LIAN LI ?The Ultimate Craft
Lian Li has more than 20 years experience, and continued to develop the new technology, the product quality and design is outstanding. Lian Li persisted to make product in Taiwan, and uses the most outstanding material as well as the most advanced technical manufacture in order to provide modern art high-quality goods.
|  |
 | For the past 20 years, Lian Li has putted a lot of effect to make our products better. The external parts are in hair-line brush anodized aluminum, and touch up with the diamond cut edges.
|
| Our outstanding quality has earned us ISO 9001 certification for all of our products.
|  |

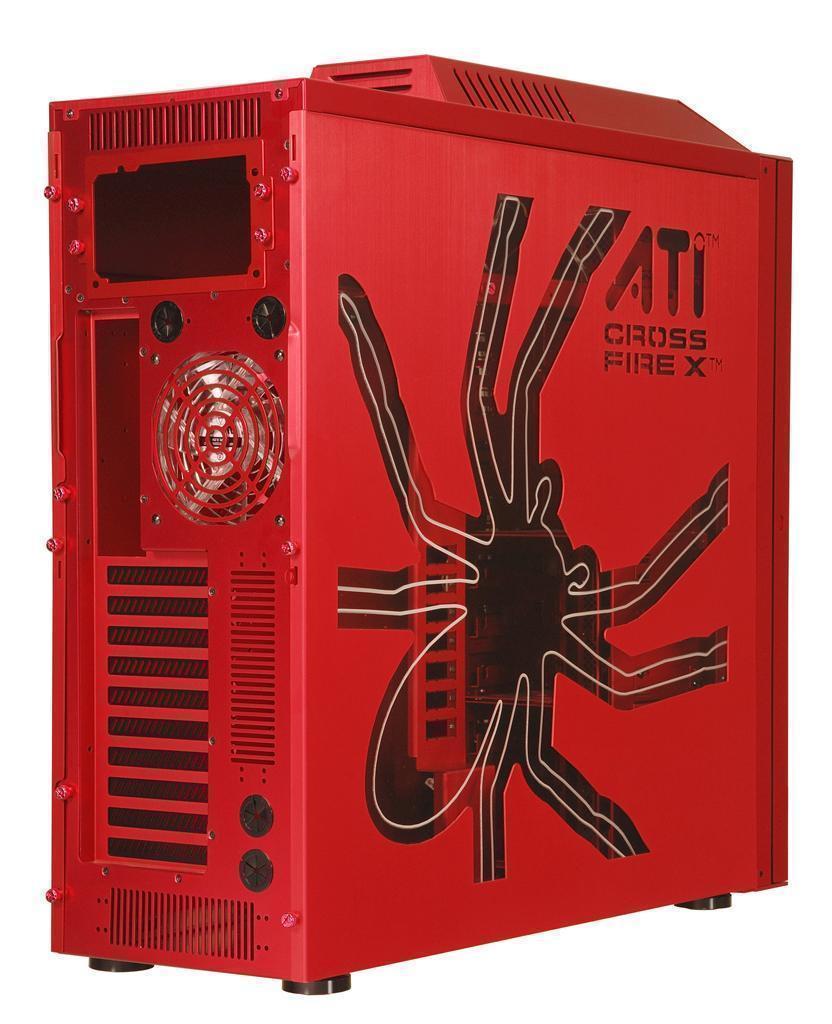

 | ARMORSUIT PC-P80R colored in red inside out, touch up with screws and PCI bracket in black. There are spcial design graphic and texts cut out in ATI? CrossFireX? and AMD? Spider theme , it is specially made for CES show 2008, and now it is ready for you to own!
|
LIAN LI - Excellent Design
Lian Li has once again setting the new benchmarks to the PC Chassis, design for the future hardware, for meets professionals' need . With special color and treatment. This is the ultimate chassis for ultimate user!
|  |
 | Lian Li put a lot of effect on the external finishing, all the external parts in hair-line brush anodized aluminum, and touch up with the diamond cut edges. Lian Li has once again setting the new benchmarks to the PC Chassis, design for the future hardware, for meets professionals' need .
|

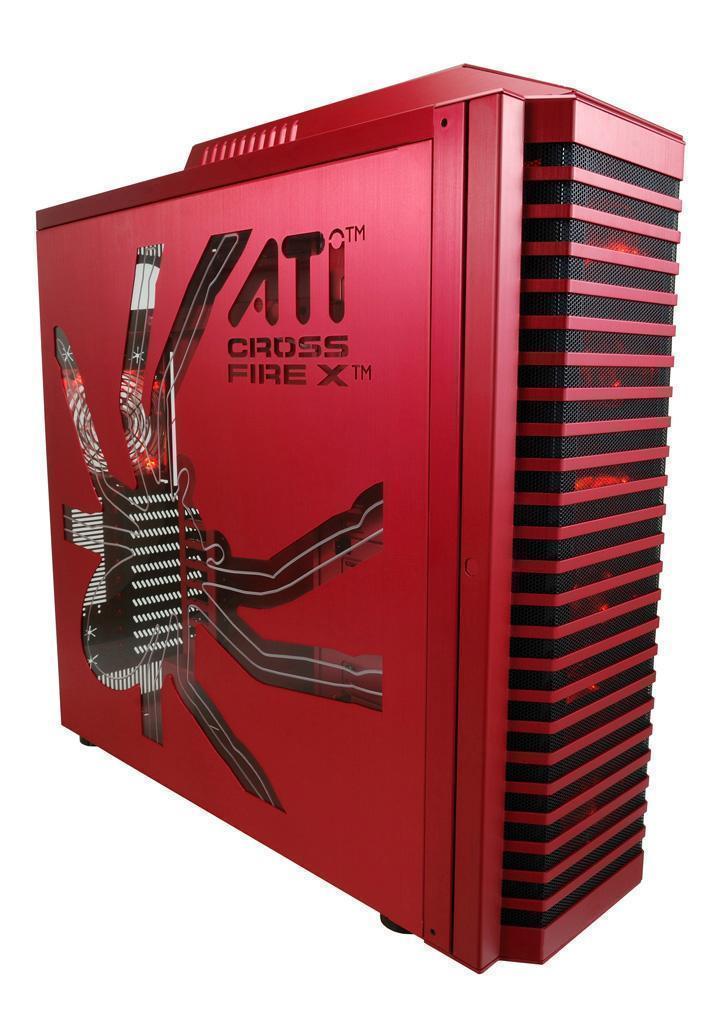

| The artwork on the side panel was cutted with 4000W laser, and transparent acrylic panel with carven lines to enhance the theme of the AMD™ spider. |  |
 | There are no sharp edges, all sharp edges have had removed to ensure user?s safety. And finished in high quality workmanship.
|
LIAN LI?High quality craft products
AROMORSUIT PC-P80R has 2mm thick alumumin front panel with world first and only three 14cm fans with red LED backit in the front to intake cool air into the system. |  |
 | As theme of CrossFireX, ARMORSUIT PC-P80R features 10 PCI slots, for most advance graphics system, it can housed four dual-layers graphihcs cards, ARMORSUIT PC-P80R designed for today, and tomorrow lastest hardware.
|

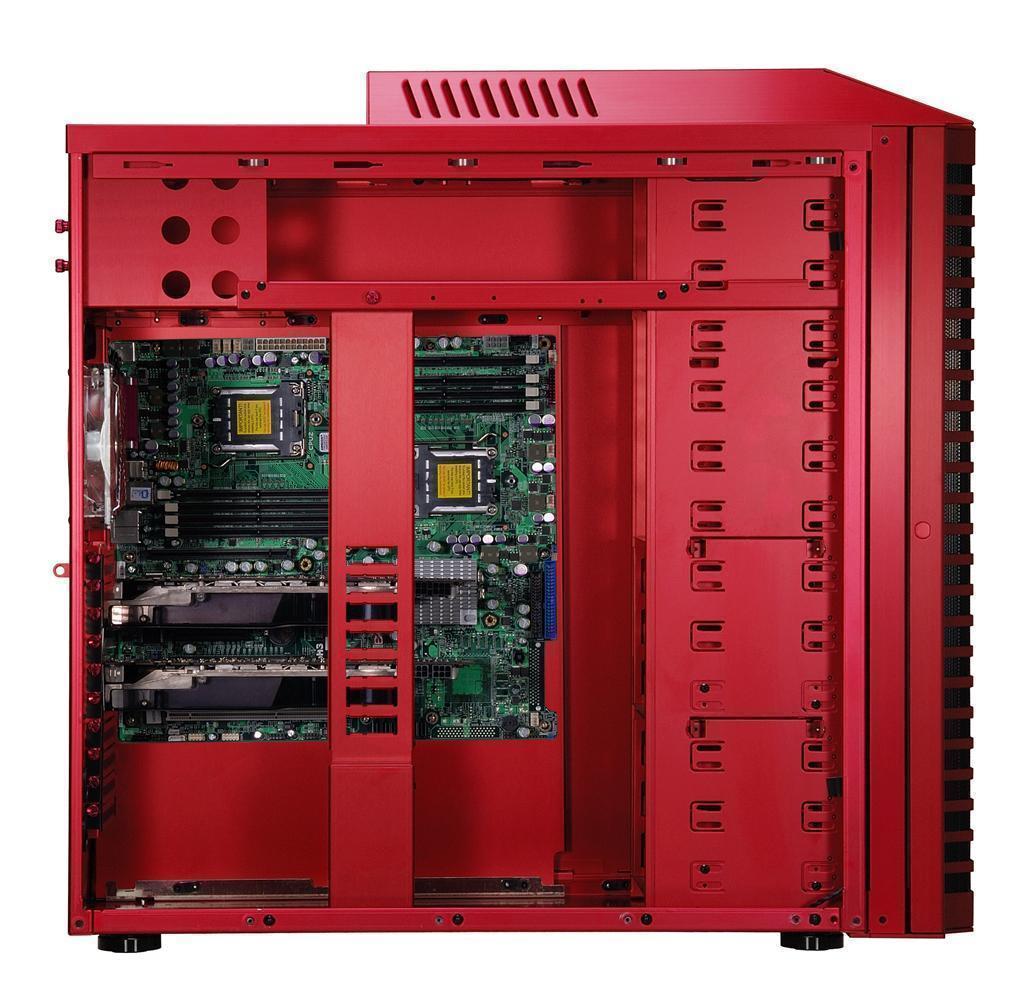

| There is huge internal space, user can fitted with most powerful hardware, it can work with 12" x 13" dual processors EATX serverboard, and alot of room for other hardware.
|  |

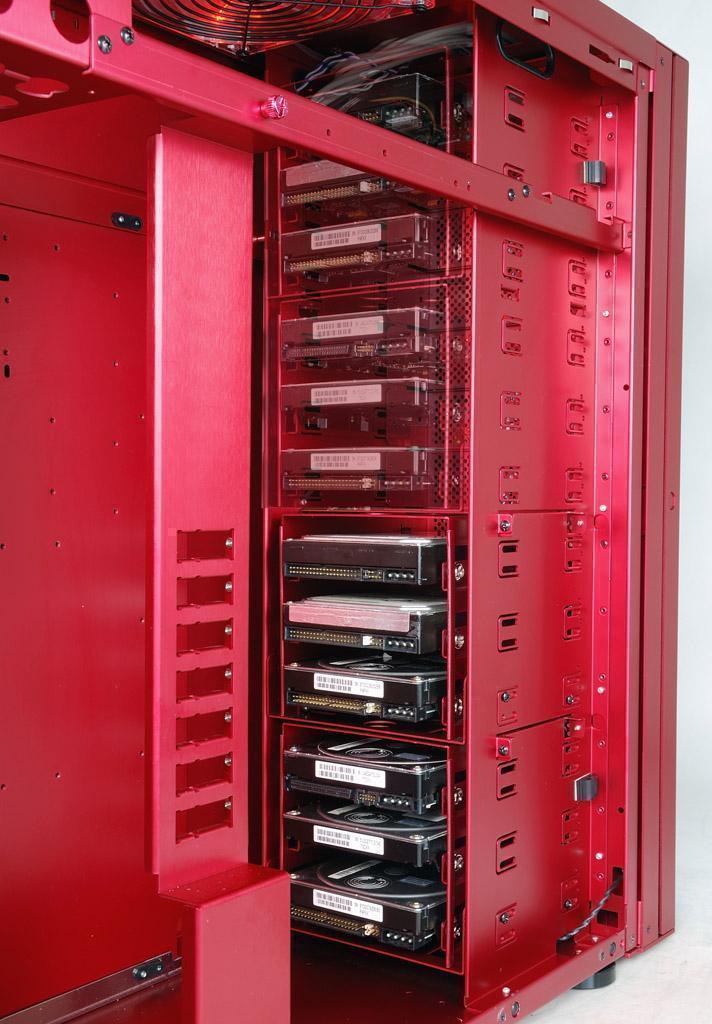

 | Twelve 5.25" space rack in ARMORSUIT PC-P80R. There are also two modularized HDD cages, which can hold three 3.5" HDD each. User can adjust the position of the HDD cage to suit their need.
|
Silent Performance
World first and only of using 3 x14cm fans in the front to intake cool air into the system.
14cm fan features low RPM with high air flow to get the best balance between Silent and Cooling. These fans are connected to a liner fan speed controller, which can be adjsut from 800~1180RPM
|  |
 | Top mount one 14cm blue LED fan, to exhaust the hot air out of the chassis, there is a cover to dim the noise down, and internal also fitted with fan guard to protect end user. The top 14cm fan also attached to the liner fan speed controller, it can be adjsut from 800~1180RPM
|
| Lian Li designer looks into detail, ARMORSUIT PC-P80 equipped anti-vibration kit on the chassis, to absorb the noise. Like the EMI spring on the top cover, it absorb the vibration, and the side panel still easy to remove and close.
|  |
 | Chassis with anti-vibration kit.
The anti-vibration spring on the chassis, it push the side panel to against the chassis, reduce the gap between the side panel and the chassis, to reduce the vibration noise level.
|
| The rubber strip on the front door panel, it stop the door to knock the front panel, to avoid the door scratch the front panel, also close the gap of the door and front panel.
|  |
 | Lian Li patented anti-vibration HDD cage, with anti-vibration kit and special HDD mounting rack. User can easily install the HDD into the cage. And the rubber rings on the HDD, absorb the vibration to stop the noise. The Lian Li patended thumb screw kit ensure easy installation.
|
| Lian Li also look into the detail, where people won't notice, ARMORSUIT PC-P80R equipped high quality aluminum case stand, with anti-vibration rubber pad. To stop noise from vibration, and protect floor surface. The aluminum are specially treated in black anodized finishing.
|  |
 |
LIAN LI ? Creative Thermal Solution
ARMORSUIT PC-P80R designed for high end hardware system, there are a lot of fans inside the chassis, to meet the thermal requirement. To make it silent, but still have enough airflow to cool down the system, Lian Li designer using three huge 14cm intake fans in the front, running in low RPM, but still move enough air into the chassis. To get the best balance of silent and cooling. These fans can be adusted by a liner fan speed controller from speed of 800~1180RPM.
|
| There are also a 14cm blue LED fan on the top panel to exhaust the hot air out of the chassis, Lian Li designer place a cover to control the air direction, to dim the noise level down. This fan also attached to the liner fan speed controller, it can be adjusted from 800 to 1180RPM.
|  |
 | Front mount linear fan speed controller for adjust fan speed from 800-1180RPM for the three 14cm fans in the front and one 14cm fan on the top. User can choose the fan speed to get the best cooling or silent performance. |
| The air filter is design to be easy to clean, and washable. And it is easy to remove, just pull it out of the front panel door, no tool required.
|  |
 | Rear mount silent 12cm fan to draw the hot system air out. A fan guard fitted to protect user?s hand. it is set as 1500RPM.
|
| Design for enthusiasts, ARMORSUIT PC-P80R equips four water pipe inlets, allow to run dual liquid cooling systems.
|  |
 |
Friendly Design
The Top cover can be open up and remove for easy hardware service and installation. There are optional kit for support liquid cooling system.
|
| ARMORSUIT PC-P80R features removable motherboard tray, user can install the motherboard on a table top, easy for future upgrade and service.
|  |
 | Power / reset button and multi-media I/O ports location on the top-front for easy access. The I/O ports has four USB ports, one ports, HD+ AC 97 Audio and e-SATA ports.
|
| No metter of where you want to place your chassis. ARMORSUIT PC-P80R's front panel can switch the open direction, allow chassis to fit in different working environment.
|  |
 | The door can be easy to be release, simply just push the release key for the door axis. ( there is a safety screw to secure the axis for transportation).
|
| Lian Li designer come out an unique door stop design, by using steel ball as door stop, to stop the door in the right position. And sounds like closing the door on a high end automotive.
|  |
 | ARMORSUIT PC-P80R equipped server grade add-on card holder, to secure the long heavy graphics card in position, to prevent it from bending. There are two different size of support aims for different size cards. It is also a good ideal for LAN party user, to hold the card in position before travel.
|
| The chassis and front panel all fitted with locks to protect hardware.
|  |
 |
Multi-media ports? connectors follow international specification standard, with one connector for easy installation
Audio supports HD Audio and AC97 Audio design for batter compatibility
|
