Product Overview
Better connections using dual band Wireless-N
Dual band wireless networks deliver better connections with less interference
Greater bandwidth for high-quality media streaming and better online gaming
Push 'N' Connect securely connects devices at the touch of a button
Automatic Quality of Service (QoS) for reliable Internet, voice and gaming applications
For use with ADSL broadband (through the telephone line)
Product Features
Eight (8) internal smart antennas, to optimise signal strength and range
Push 'N' Connect using Wi-Fi Protected Setup (WPS) allows you to add computers to the network quickly and securely
Automatically upgrades to the latest router firmware
Easy setup with Smart Wizard installation CD
NETGEAR Green
Convenient one touch on/off switch and Wi-Fi button conserve energy
Efficient Energy Star-compliant power supply
Packaging manufactured with at least 80% recycled materials

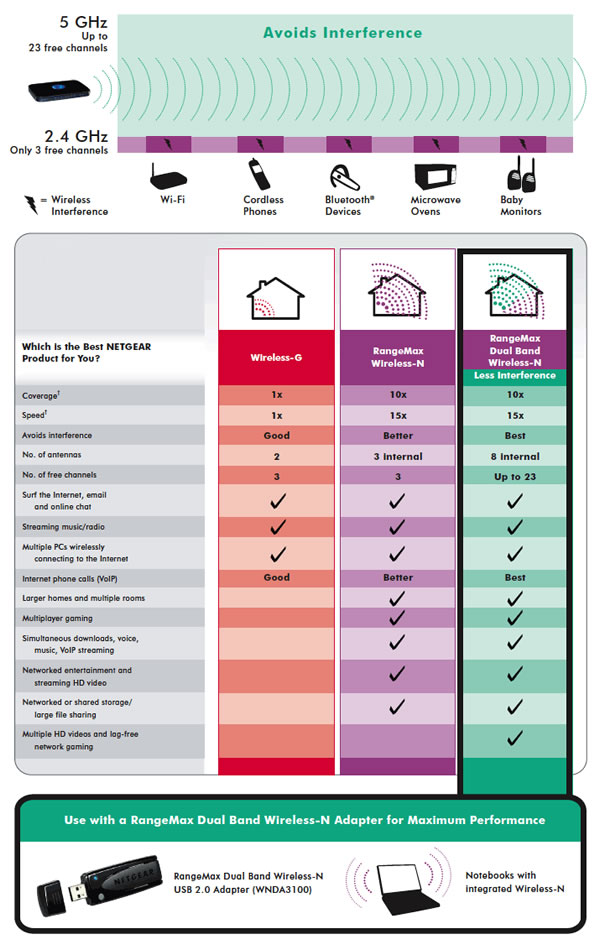

Why Dual Band?
'Dual Band' delivers a better coverage and connection with more channels, avoiding interference from household devices such as Microwaves, Baby Monitors, Cordless Phones and Bluetooth devices.
System Requirements
ADSL Internet Service
2.4 GHz 802.11n draft specification adapter
or 2.4 GHz 802.11 b/g wireless adapter.
Alternatively, an Ethernet adapter and
cable for each computer
Microsoft Windows Vista, XP, 2000,
Mac OS, UNIX, or Linux
Internet Explorer 5.0 or FireFox 2.0
or higher
We recommend using this product with the
RangeMax Wireless-N Adapters (WN511B,
WN311B, WN111, WNDA3100)
Standards
IEEE 802.11n draft version 2.0
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
2.4 GHz
IEEE 802.11n, IEEE 802.11a 5.0 GHz
WAN (ADSL): ITU 992.1 (G.dmt) Annex A, ITU
992.2 (G.lite), ITU 992.3 ADSL2(G.dmt.bis),
ITU 992.5 ADSL2+
Wireless Configuration
Type 1: Full 2.4 GHZ configuration supporting
802.11n/802.11g/ 802.11b
Type 2: Duo 2.4 GHz and 5 GHz configuration
supporting 802.11n/802.11a (5 GHz) and
802.11g/ 802.11b (2.4 GHz)
Physical Specifications
Dimensions: 223 x 153 x 31 mm
(8.8 x 6.0 x 1.2 in)
Weight: 0.5 kg (1.2 lb)
Ease of Use
Smart Wizard simplifies setup by
automatically detecting and configuring your
router for virtually all ISP connections
WiFi Protected Setup (WPS), PIN
and Push Button
Security
Double firewall:
Network Address Translation (NAT)
to hide PCs and files from outside users
Stateful packet inspection (SPI) firewall
to deny outside requests
for personal information
Denial-of-service (DoS) attack prevention
Intrusion detection and prevention (IDS)
Wi-Fi Protected Access? (WPA2-PSK,
WPA-PSK)
Wired Equivalent Privacy (WEP) 64-bit,
128-bit encryption
Wireless access control to identify authorized
wireless network devices
Exposed host (DMZ) for secure gaming
Privacy & Parental Control
'Trusted user' control
Time-based usage controls
Web site logging
Remote management
URL content filtering
Functions
Auto FW detection algorithm
QoS function
Package Contents
RangeMax Dual Band Wireless-N
Modem Router (DGND3300)
Stand
Ethernet cable
Setup CD
12V, 1.5A power adapter,
localized to country of sale
Warranty/support information card
Warranty
NETGEAR 1-year Warranty
