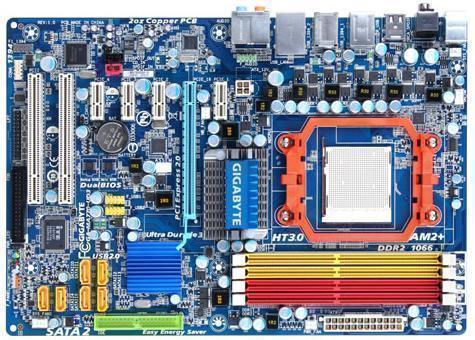

AMD Phenom / FX Phenom / Athlon /Sempron Support, Dual Channel DDR2, 6 x 3Gb SATA, 1x IDE, 8 x USB 2.0, 7.1 HD Audio, Gigabit LAN
Sorry, this product is no longer available to purchase.
Part Number | GA-MA770-UD3 |
Model Number | GA-MA770-UD3 |
Form Factor | ATX |
Width | 30.5cm |
Depth | 21.0cm |
Compatible Processors |
AMD Phenom FX processor
AMD Phenom X4 processor AMD Phenom X3 processor AMD Athlon X2 processor AMD Athlon processor AMD Sempron X2 processor AMD Sempron processor |
Socket Type | Socket AM3 / AM2+ / AM2 processors |
Chipset Manufacturer | AMD |
Chipset Type | AMD 770 |
RAM Installed / Max Capacity | 0 MB / 16 GB Max |
RAM Slots | 4 x 240 Pin |
Supported RAM Technology | DDR2 Non-ECC,Un-buffered Memory |
Supported RAM Speeds |
DDR2 PC2-8500/1066MHz
DDR2 PC2-6400/800MHz DDR2 -PC2-5300/667MHz |
Expansion Slots Total (Free) | 1 x PCIe x16
4 x PCIe x1 2 x PCI |
Video Controller | None Present |
Video Controller Location On Motherboard or On CPU | None Present |
Supported Ouputs | None Present |

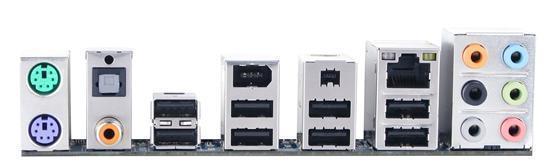

Ports Present & Quantity | 1 x PS/2 keyboard port
1 x PS/2 mouse port 1 x coaxial S/PDIF Out connector 1 x optical S/PDIF Out connector 1 x serial port 8 x USB 2.0/1.1 ports 2 x IEEE 1394a ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) |
Ports Present & Quantity | 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 6 x SATA 3Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x North Bridge fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x IEEE 1394a header 1 x parallel port header 1 x serial port header 1 x power LED header 1 x chassis intrusion header |
SATA Ports | 6 x SATA 3 Gb/s ports |
IDE Ports | 1 x UltraDMA 133/100/66 port |
RAID | SATA RAID 0, RAID 1 and RAID 0+1 |
Controller | Realtek 8111C |
Lan Speed | Gigabit LAN |
Ports | 1 x LAN(RJ45) port |
Controller/Codec/Information |
Realtek ALC888 codec
High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF In/Out Support for CD In |
Feature List |
Support for @BIOS
Support for Download Center Support for Q-Flash Support for EasyTune (Note 5) Support for Xpress Install Support for Xpress Recovery2 Support for Virtual Dual BIOS Support for Easy Energy Saver |
Accessories List | User's manual
Norton Internet Security OEM 2 x SATA cables I/O Shield 1 x Driver CD |
