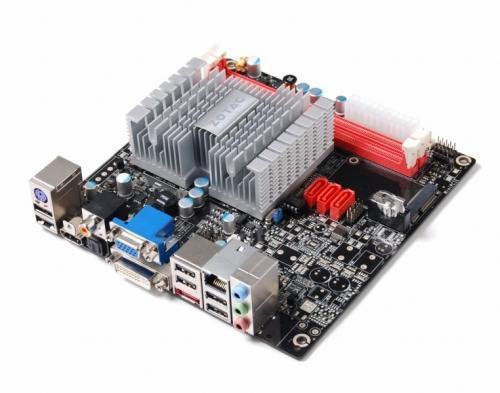

Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC ® ION platform. The mini-ITX form factor ZOTAC ® ION combines a high-performance NVIDIA ® ION graphics processor with a power-efficient Intel ® Atom processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, productivity and HD video playback tasks.
NVIDIA® ION Graphics
Turn up the visuals at a fraction of the size with the NVIDIA® ION™ graphics processor - featuring full 1080p HD video, 3D gaming, support for Windows Vista and Windows 7, and up to 10X faster graphics performance. Make sure your PC is optimized with NVIDIA ION, the only solution for a premium experience on compact desktop computers.
NVIDIA ® PureVideo HD technology harnesses the power of the ION's™ 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes HD video formats and enhances standard-definition videos with the ION GPU for flawless HD and superior SD video playback.
NVIDIA PureVideo technology enables smooth DVD video playback with vivid colors and superior picture quality. With PureVideo technology, movies are displayed with stunning quality while keeping CPU utilization to a minimum."
General
Height
170mm
Width
170mm
Graphics
NVIDIA ION graphics processor
Graphics Engine
450 MHz
Shader Clock
1100 MHz
Stream Processors
16
Form Factor
Mini-ITX
Support For
Microsoft DirectX 10
Microsfot Windows Vista Premium Ready
Processor Support
Integrated Intel Atom
Intel ATOM
FSB
533MHz
Features
Intel Hyper Threading Technology
Memory
Memory Type
DDR2 667/800
Slots
2x 240 pin DDR2 DIMM Slots
Max Memory Supported
4GB
Expansions
Expansion Slots
1 Mini PCI Express x1
Stoarge
3 SATA 3.0Gbps ports
1 e.SATA 3.0 Gbps Port
SATA RAID 0,1,0+1
Connectors
10 USB Ports (6 on back panel, 4 via pin header)
1 Serial Pport Header
1 MOLEX power connector (Can power up to 3 SATA defvices) (Optional)
1 HD Audio Port (Line-in, Line-out, Mic-in)
1 PS/2 Keyboard Port
2 Digital S/PDIF Outputs (1 Optical, 1 Coaxial)
1 WiFi antenne Connection (optional)
1 DC Power Jack (optional)
Display Output
VGA
DVI
HDMI (w/7.1-channel Audio)
NVIDIA nView™ multi-display (up to 2 monitors)
HDCP
