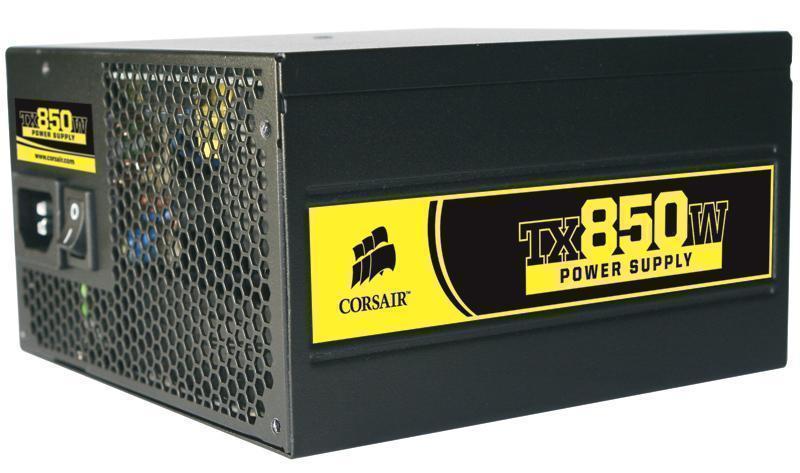

The Corsair TX power supplies are engineered using advanced technology and components typically found with high performance power supplies. With design features such as a dedicated, single +12V rail offer the maximum compatibility with the latest system components. Energy efficient circuitry capable of delivering greater than 80% efficiency ratings across 20%, 50%, and 100% load conditions make the TX family of PSUs ideal for the value/quality conscious enthusiast. With a large 140mm (120mm on TX650W) diameter temperature-controlled fan that is ultra quiet, yet still more than sufficient to cool the internals of the system, reliability and stability are no longer worries for the gamer, overclocker or enthusiast and high-end system builder.
Corsair TX Series Features:
- Supports ATX12V v2.2 standard and older ATX12V 2.01 spec
- Ultra-quiet 120mm (140mm on TX750W) double ball-bearing fan delivers excellent airflow
- 80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation and lower energy bill
- 99% Active Power Factor Correction provides clean and reliable power to your system
- Universal AC input 90~264V automatically scans and detects the correct voltage
- Dedicated single +12V rail offers maximum compatibility with latest components
- Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
- High quality Japanese capacitors provide uncompromised performance and reliability.
- Extra long cables support full tower size chassis.
- TX850W Dimension: 5.9"(W) x 3.4"(H) X 6.3"(L);”
- TX750W Dimension: 5.9"(W) x 3.4"(H) X 6.3"(L);
- TX650W Dimension: 5.9"(W) x 3.4"(H) X 5.9"(L);
- MTBF: 100,000 Hours
- NVIDIA SLI™-ready certified.
AC Input
1000-240V ~ 12A 50/60Hz
DC Output
+3.3V +5V +12V -12V +5Vsb
Max Load
30A 30A 70A 0.8A 3A
Max Combined Wattage
180W 840W 9.6W 15W
Total Power
750W
Power
ATX 24 pin & 20 pin compatible
x1
EPS/ATX12V 8-4 pin
x1
PCI-E 8 pin
x4
SATA
x8
4 Pin Molex Peripheral
x8
Floppy
x2
Connectivity
Service & Support
5 Year Warranty
Manufacturer Warranty
Features
Supports ATX12V v2.2 standard and older ATX12V 2.01 spec
Ultra-quiet 120mm (140mm on TX750W and TX850W) double ball-bearing fan delivers excellent airflow
80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation and lower energy bill
99% Active Power Factor Correction provides clean and reliable power to your system
Universal AC input 90~264V automatically scans and detects the correct voltage
Dedicated single +12V rail offers maximum compatibility with latest components
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
Extra long cables support full tower size chassis.
Extra long cables support full tower size chassis.
NVIDIA SLI™-ready certified.
MTBF: 100,000 Hours
