Product Overview

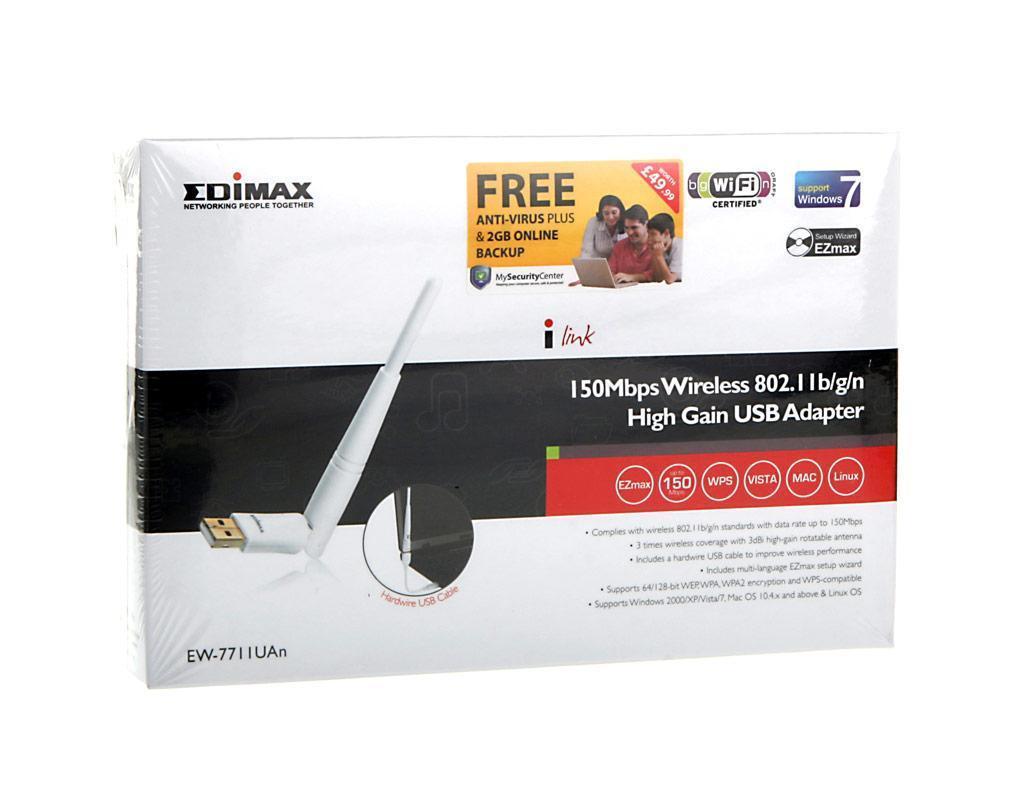

EW-7711UAn is a high-gain wireless USB adapter which provides a simple and easy way to add or upgrade wireless connectivity to your desktop or notebook computer. This nLITE high-gain USB adapter supports higher data rate up to 150Mpbs when connecting with wireless 802.11n device. You can just plug it into computer's USB port and enjoy incredible high-speed wireless network access.
Compatible with wireless 802.11n devices with data rate up to 150Mbps
EW-7711UAn complies with wireless 802.11b/g standards. With built-in with the latest wireless technology, EW-7711UAn can increase the coverage 3 times more and reduce 'dead spots' within the wireless range. The transmission data rate when connecting with wireless 802.11n devices is up to 150Mbps, which makes signal travel farther and maintain wireless connections much reliable than standard wireless 802.11b/g network.
Supports WPS-compatible (Wi-Fi Protected Setup) button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless USB adapter supports software WPS-compatible configuration and hardware WPS push button. When both ends of the wireless connection use wireless solution with WPS, it will automatically configure the wireless network with robust WPA data encryption and authentication.
Supports multi-language EZmax setup wizard
The included 16 languages EZmax setup wizard and friendly UI will walk you through configuring EW-7711UAn to your wireless network.
Portable and compact design
EA-7711UAn is currently the smallest wireless adapter. Its rotatable 3dBi high gain antenna makes the wireless transmission more stable and reach farther. The compact design of EW-7711UAn is convenient to carry for all mobile users.
Includes USB cradle to improve the performance
This antenna size USB adapter achieves the impressive performance when plugging in USB cradle included in the package.
General
| Form Factor |
Plug-in module |
| Device Type |
Network adapter |
| Interface (Bus) Type |
USB 2.0 Type A |
Expansion / Connectivity
| Compatible Slots |
1 x USB |
| Interfaces |
1 x network - Radio-Ethernet |
Manufacturer Warranty
| Service & Support |
1 years warranty |
| Service & Support Details |
Limited warranty - 1 years |
Networking
| Connectivity Technology |
Wireless |
| Data Link Protocol |
IEEE 802.11n, IEEE 802.11n |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11g |
| Data Transfer Rate |
54 Mbps |
| Line Coding Format |
DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Frequency Band |
2.4 GHz |
| Antenna |
3dBi Hi-Gain Internal Antenna
|
| Transmit Power |
16dBm (Typical) |
Miscellaneous
| Encryption Algorithm |
64/128/256-bit WEP Encryption, WPA ( TKIP, IEEE 802.1x) and AES |
Software / System Requirements
| OS Required |
Windows 98SE/Me/2000/XP/Vista and Linu |
| Peripheral / Interface Devices |
CD-ROM |
