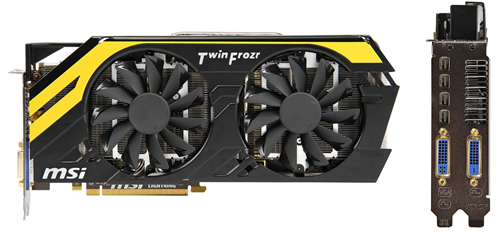

Product Overview

The next generation AMD graphics card has arrived, fitted with a 28nm GPU that packs 4.3bn transistors and is combined with 3GB GDDR5 Memory, it provides users with the speed for smoother gaming. Supporting full DirectX 11, AMD CrossFireX and AMD HD3D. Furthermore, new PCI Express 3.0 delivers improved encoding and twice the performance of the previous PCI Express 2.0 and vision horizons can be expanded across six displays with AMD Eyefinity technology. This technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.

MSI Exclusive Features

	Unlocked Digital Power Unlocked BIOS: One click to unlock all protections for extreme overclocking. Digital PWM Controller: More stable and precise voltage by digital signal. Enhanced Power Design: 2X Power output for maximum OC potential.
	GPU Reactor MIS GPU Reator is an add-on device on the back of the R7970 Lightning (Behind GPU) that contains additional Hi-c capacitors to provide 88% higher power capacity and eliminate power noise (ripple).
	MSI TwinFrozr IV with Dust Removal Technology MSI's latest incarnation of their Twin Frozr thermal design offers a 20c cooler temperature and 11.7dB quieter sound than on a reference product. Additionally TwinFrozr IV features dust removal technology to improve heat dissipation and card lifespan by removing dust.
	Military Class III Components This card features Military Class III components that adhere to MIL-STD-810G standard combined with Hi-c CAP, SFC and All Solid CAPs to ensure the best stability and quality.
	V-Check Points V-Check Points are Bulit-in Voltage measurement points on the graphics card. Get accurate voltage of GPU and Memory on the fly with additional cables to hold multimeter probes.
	MSI Afterburner Utility Afterburner is a co-development by MSI and Rivatuner and is the ultimate graphics card tuning utility. This utility enables all MSI graphics card users to boost performance and to monitor all kinds of critical information in real-time. Afterburner is a completely free utility which is compatible with almost all MSI graphics cards.
	MSI Solid Capacitor Graphics Cards MSI Graphics Cards utilise high quality solid capacitors. For the gamers and high-end users, this feature not only means that the product has better quality components within, but also provides much stronger support for users that want to engage in hard-core tuning.
	Live Update 5 MSI Live Update 5 is a single utility software that automatically checks BIOS, driver and utility updates and installs them for you, which saves your time and lowers the risk of downloading the wrong file.

AMD Features

	AMD Graphics Core Next (GCN) Technology Available on select, high-performance AMD Radeon HD 7000 Series graphics products, the Graphics Core Next (GCN) Architecture is a radically new approach to the design of a consumer GPU. Most importantly, it is the world's first 28nm GPU architecture, which enables AMD to fit up to 4.3 billion transistors-the most basic building blocks of a GPU-into approximately the same space once needed to fit 2.6 billion. Increasing transistor density by greater than 60% is more than just a feat of engineering-it's responsible for the world's most powerful and advanced GPU. Designed to push not only the boundaries of DirectX 11 gaming, the GCN Architecture is also AMD's first design specifically engineered for general computing. Equipped with up to 32 compute units (2048 stream processors), each containing a scalar coprocessor, AMD's 28nm GPUs are more than capable of handling workloads-and programming languages-traditionally exclusive to the processor. Coupled with the dramatic rise of GPU-aware programming languages like C++ AMP and OpenCL, the GCN Architecture is truly the right architecture for the right time.
	AMD ZeroCore Power Technology AMD ZeroCore Power Technology leverages AMD's leadership in notebook power efficiency to grant our desktop GPUs the ability to power down when your monitor is off, also known as the "long idle state." This is great for those times when you've stepped away from your PC to take a call, watch TV, or pop down to the store. Furthermore, AMD ZeroCore Power allows additional GPUs in an AMD CrossFire technology configuration to shut off when they're not in use-even the fan stops spinning! An AMD-exclusive technology, AMD ZeroCore Power ensures that unused or idle GPUs are as efficient as possible. Even the most hardcore gamer with an AMD CrossFire multi-gpu configuration benefits from AMD ZeroCore Power. Unused or idle GPUs are shut down until needed to conserve power.
	AMD HD3D Technology AMD HD3D Technology is supported by an advanced and open ecosystem that, in conjunction with specific AMD hardware and software technologies, enables 3D display capabilities for many PC applications and experiences. Your PC has evolved, offering unprecedented amount of games, photos and movies for you to play, watch, design, create, share and download in 3D. With the arrival of the latest in 3D technology you can now enjoy an enhanced visual experience on Stereo 3D-capable desktops and notebooks powered by AMD HD3D Technology.
	AMD App Acceleration Groundbreaking AMD App Acceleration technology helps you to enjoy beautifully rich and clear video playback when streaming from the web. Take in your favorite movies in stunning, stutter-free HD quality. Run multiple applications smoothly at maximum speed. Enjoy lightning fast game play and realistic physics effects
	AMD CrossFireX Multi-GPU Technology AMD CrossFireX technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFireX harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance.1 With AMD CrossFireX-certified AMD Radeon HD graphics cards ready for practically every budget and the flexibility to combine two, three or four GPUs, AMD CrossFireX is the perfect multi-GPU solution for those who demand the best
	AMD PowerPlay Technology AMD PowerPlay technology is designed to enable power saving profiles that help reduce power consumption when the GPU is idle or in minimal use in comparison to previous AMD products. This dynamic power management enables the GPU to automatically adjust power between low, medium and high states for a tremendous power efficiency advantage. For example, when receiving and composing emails little demand is on the GPU and it runs in a low state, whereas when gaming, there is high demand on the graphics engine and the GPU runs in a high state.
	AMD PowerTune Technology AMD PowerTune technology helps deliver higher performance that is optimized to the thermal limits of the GPU by dynamically adjusting the clock during runtime based on an internally calculated GPU power assessment. AMD PowerTune technology also improves the mechanism to deal with applications that would otherwise exceed the GPU?s TDP. By dynamically managing the engine clock speeds based on calculations which determine the proximity of the GPU to its TDP limit, AMD PowerTune allows for the GPU to run at higher nominal clock speeds in the high state than otherwise possible
	AMD Catalyst The AMD Catalyst Control center has been designed from the ground up to give you a stable, reliable experience and also allow you to control every aspect of your GPU quickly and easily. Quickly and easily add and configure additional displays to your GPU. Make your games look better and run faster. Enhance the quality of playback of your movies and online video content. Unlock new performance , features, and improvements with each driver release
	AMD Eyefinity 2.0 Multi-Display Technology The next generation of AMD Eyefinity technology is here, featuring all-new support for stereo 3D, universal bezel compensation and brand new display configurations. Face it: the best just got better: The enhancements for AMD Radeon HD7000 series include: Stereo 3D-multi-display stereoscopic 3D support via DisplayPort 16K X 16K maximum display group resolution-output up to 268 megapixels per GPU.

General Specifications

Bus Interface	PCI Express 3.0 x16
Output Interface	1 x DVI-I 1 x DVI-D 4 x Mini DisplayPort

Expansion / Connectivity

Compatible Slots	1 x PCI Express x16
Width	Dual Slot

GPU Specification

Core Clock	1070 MHz Core Clock
Stream Processors	2048

Memory Specification

Memory Type	384 bit GDDR5
Memory Size	3072 MB
Memory Effective Size	5600 Mhz

Display Specification

Multi-Monitor Support	Up to 6 displays
Max Digital Resolution	2560x1600
Max Analogue Resolution	2048x1536

Thermal Specification

Max GPU Temp	99C
Min PSU Requirement	500W
Required Power Connectors	1 x 6-pin 1 x 8-pin

Supported Technologies

Technologies

DirectX 11 Support OpenGL 4.2 AMD Graphics Core Next (GCN) Technology AMD ZeroCore Power Technology AMD HD3D Technology AMD App Acceleration AMD CrossFireX Multi-GPU Technology AMD PowerPlay Technology AMD PowerTune Technology AMD Catalyst AMD Eyefinity 2.0 Multi-Display Technology MSI Military Class III Components MSI GPU Reactor MSI Unlocked Digital Power Design

Manufacturer Warranty

Warranty

3 Years
