Features

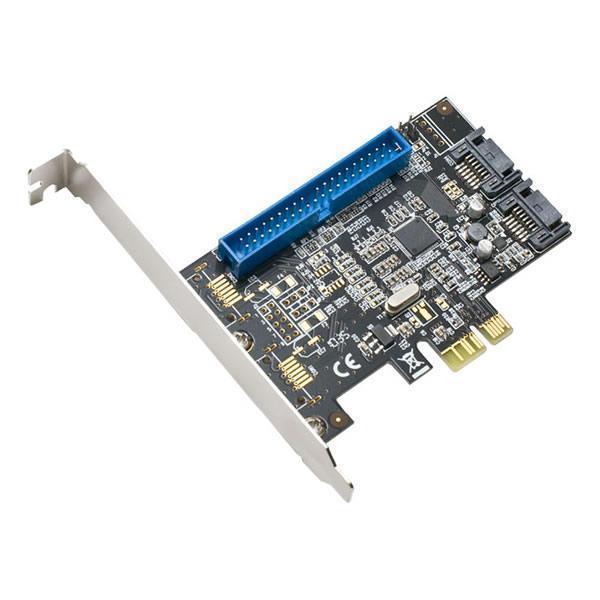

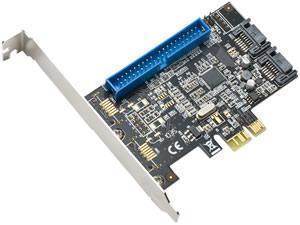

This PCI-Express Ultra-ATA133 + SATA 6Gbps Combo Card gives the user the flexibility to have both PATA and SATA interfaces on one PCI Express card. By using this card, it saves an extra PCI-Express slot for other PCI-Express card to be installed on to the PC. This is helpful to user when there are just a limited number of PCI-Express slots available on the PC

General

• Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
• Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
• Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
• Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 1.0a
• Compliant with Serial ATA II Spec
• 1-Lane 5.0 / 2.5Gbps PCI Express bus
• Supports Windows 7 / Vista / XP / 2000 / Server2003-2008 32/64-bit, Linux operating system
• Parallel ATA (PATA) interface
• Supports up to Ultra-DMA 6 transfer mode
• Transfer rate up to 133MBps
• Serial ATA (SATA) interface
• Supports SATA 3.0 (Up to 6Gbps)
• Backward compatible to SATA-II (3Gbps) and SATA-I (1.5Gbps) specification
• Supports Native Command Queue (NCQ) and Port Multiplier
• Supports Hot Plugging on SATA port
• Supports RAID 0, 1
