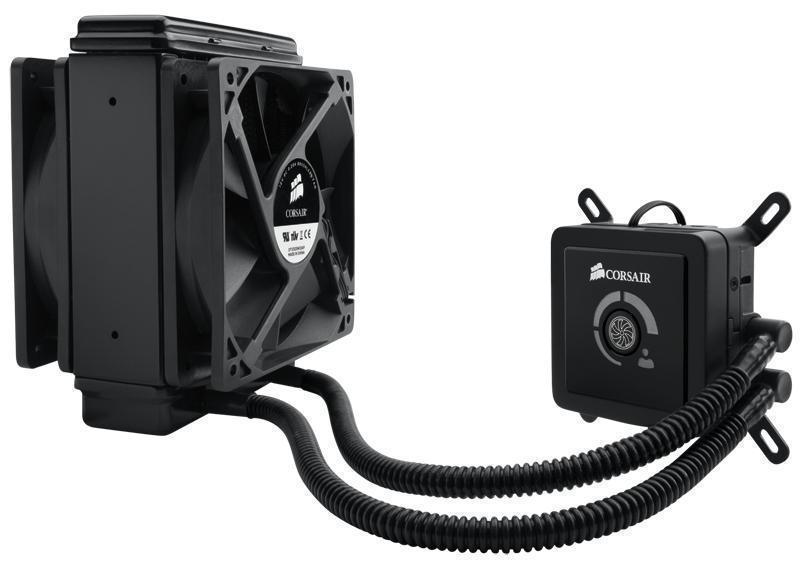

Corsair H80 High Performance Liquid CPU Cooler
Order Code: CSR-H80
Manf.Code: CWCH80
The Corsair Hydro Series H80 high-performance CPU cooler fully supports Corsair Link Digital connections, so you can be in complete control of your cooling. Monitor a wide range of parameters, including pump speed, coolant temperature, and fan speed, and customize your own performance profiles*
* Requires the Corsair Link Commander, sold separately
|
|
Performance at your fingertips

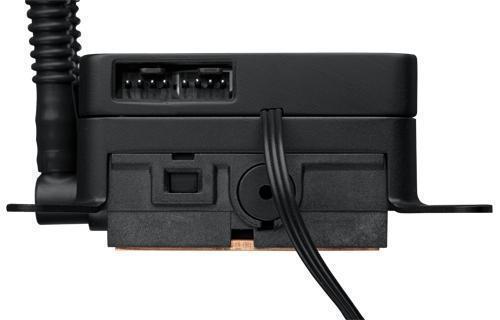

The low-profile integrated pump and cold plate includes push-button control so you can select the fan speed and cooling performance setup that best suits your needs. The cool white LED display lets you know at a glance which profile is being used.
Double-up for excellent cooling

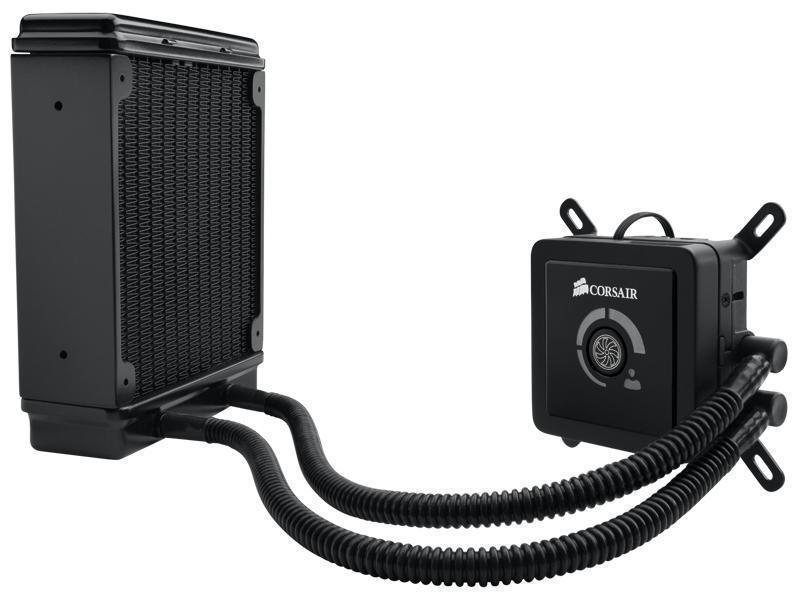

Featuring a double-thick radiator to maximize the surface area available for heat dissipation, and dual, performance matched fans, the H80 delivers cooling performance that lets your CPU keep its cool, even when pushed to the limit. And with all this cooling performance, the compact design still fits virtually any case with a 120mm fan mount.
Package contents
NB: Hydro Series H80 requires a case with a rear or top 120mm fan mount
Compatibility
| Intel i7 LGA 1366 | Yes |
| Intel i3/i5/i7 LGA 1156/5 | Yes |
| Intel LGA 775 | Yes |
| AMD AM3 | Yes |
| AMD AM2+ | No |
| AMD AM2 | Yes |
| AMD 939 | No |
| AMD 754 | No |
General
| Rated Fan Speed | 1300 RPM (Low Noise), 2000 RPM (Balanced), 2500 RPM (High Performance) |
| Air Flow | 46 - 92 CFM |
| Weight | 1.2 Kg |
| Noise Level | 22 - 39 dBA |
Radiator Dimensions
| Width | 120mm |
| Depth | 38mm |
| Height | 152mm |
Fan Dimensions
| Width | 120mm |
| Depth | 25mm |
| Height | 120mm |
Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.
Your Name
Your Email
Friends Name
Friends Email
Personal Message
2012-05-16
Product Rating:
I just installed this on the i7 2600 i have in my HP pavillion system, dont worry all the components are now in my UTgard from xigmatek. only issue i had was getting it to align with the mounts and also i never used the included back plate as the motherboard had one from the previous cooler, max temperate in the whole case is now the gpu at 50 degrees at max load, the i7 now tops out at 42 degrees at max. Result!!! and delivered day early too.
Reviewed Posted by: Marcus,
Winchester
2012-04-21
Product Rating:
Nice kit. Fitted it makes a lot of difference. Issues I had were fitting it in the case as it is fairly bulky (make sure your case is large enough). Fans are not top knotch. Had to replace both immediately as they were V Noisy. Will take this up with Novatech, corsair..
Reviewed Posted by: Marc Sanders,
Southampton
2011-12-09
Product Rating:
Ordered one of these on 5th December and it arrived the next day by 10am. Top service Novatech, can't fault service like that. To the cooler, it's knocked well over 20c off my system temps and thats with me overclocking my q6600 to 2.75ghz from 2.4 stock. Stock cooler idle temps were at 57c on stock clock speeds. Now overclocked with the h80 fitted it idles at 32c. Does what it says on the box, my only gripe would be that i found the pre applied thermal paste isnt enough. I coated my cpu with artic silver 5. So i would recommend anyone else to do so aswell
Reviewed Posted by: Darren,
Darlington
2011-09-22
Product Rating:
Great product - well impressed my case Coolermaster CM 690 II Lite Dominator @ core i7 950 3.6Ghz D0 stepping idle 50oc with AC 7 Pro after 35oc - gaming was 70oc mark- after - 60oc max @ 4ghz I mounted the CM rear case fan - on top extracting heat - and I have the H80 fans blowing air out of the case not in - now enjoying consistent max fps in css like before but no big fps drops cause by server lag- smooth baby yeh - point- mount the 2nd fan on radiator after you installed the block onto CPU because it covers the mount screws on MB - I had to remove the closest ram stick - use the big foam from H80 box to cover ram cpu slot to rest cpu block cooler on when installing fan radiator as can get in the way - google OC-ing your cpu before, acquire tried&testes settings and enjoy - PS OC at own risk- worth the money :)
Reviewed Posted by: Aden M-Bling,
Dorset
