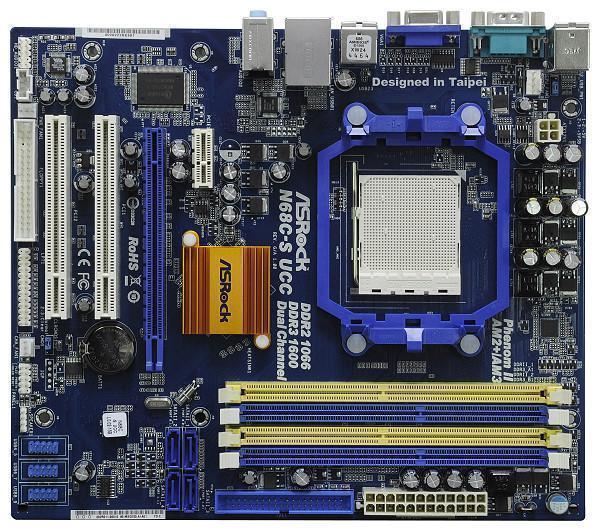

ASRock N68C-S UCC nForce 630a (Socket AM2+) Motherboard
Order Code: ASR-N68CSU
Manf.Code: N68C-S-UCC
CPU, Chipset and Graphics Features
|
AMD AM2 / AM2+ / AM3 CPU support This motherboard supports AMD AM2 / AM2+ Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processors. This motherboard supports AM3 Phenom II X6 / X4 / X3 / X2 / Athlon II X4 / X3 / X2 / Sempron processors. |
|
NVIDIA nForce 630a Chipset NVIDIA nForce 630a media and communications processors (MCPs) power feature rich, high performance motherboards for AMD AM2+ / AM3 CPUs. Featuring RAID and MediaShield technology and native gigabit LAN support as standard. |
Memory Features
| Dual channel DDR3 1600/1333/1066/800 Support This motherboard supports DDR3 memory that features data transfer rates of 1600/1333/1066/800 MHz providing great performance for 3D graphics and other memory-demanding applications. Please Note DDR3 and DDR2 Memory are supported seperately and can not be used in conjunction with each other. |
|
| Dual channel DDR2 1066/800/667/533 Support This motherboard supports DDR2 memory that features data transfer rates of 1066/800/667/533 MHz providing great performance for 3D graphics and other memory-demanding applications. Please Note DDR2 and DDR3 Memory are supported seperately and can not be used in conjunction with each other. |
Overclocking Features
 |
OC DNA OC DNA, provides a convenient way for users to share their OC settings with others. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as you! |
 |
OC Tuner ASRock OC Tuner is a user-friendly ASRock overclocking tool that allows you to guard your system by monitoring / adjusting harware voltages and temperatures. |
Other Features
 |
ASRock UCC The ASRock UCC (Unlock CPU Core) feature simplifies AMD CPU activation. With a simple switch of the BIOS option “Unlock CPU Core”, you can unlock the extra CPU core to enjoy an instant performance boost. Unlock CPU potential up to 6 cores, AMD X2 / X3 Core -> X4 Core, AMD X4 Core -> X6 Core 100% CPU Performance Boost! |
 |
ASRock AIWI ASRock's AIWI utility introduces a new way of PC gaming operation. ASRock AIWI is the world's first utility to turn your iPhone/iPad touch into a game joystick to control your PC games. All you have to do is install the ASRock AIWI utility and download the free AIWI Lite from App store to your iPhone/iPod touch. Connecting your PC and Apple devices via Bluetooth or WiFi networks you will start experiencing the exciting action of motion controlled games. |
 |
ASRock App Charger App Charger is an ASRock utility that increases the speed at which connected devices (such as mobile phones) charge by up to 40%. App Charger supports continuous charging when your computer enters into standby mode, hibernation or power off completely. |
 |
ASRock SmartView It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go. |
 |
Instant Boot Most people these days don't like to switch off their computers everyday, we keep our computer up and running 24 hours a day, because it takes such a long time for our system to boot up again. ASRock Instant Boost allows you to turn on your PC and boot up to Windows in 4 seconds! this not only improves the Boot speed, but also provides clean boot to OS and saves energy. |
 |
Instant Flash ASRock Instant Flash is a user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows. |
General
| Part Number | N68C-S UCC |
| Model Number | N68C-S UCC |
| Form Factor | Micro-ATX form factor |
| Width | 24.4cm |
| Depth | 20.8cm |
Processor Information
| Compatible Processors | AM2+ / AM2 Processors AMD Phenom FX Phenom Athlon 64 FX Athlon 64 X2 Dual-Core Athlon X2 Dual-Core Athlon 64 Sempron processor AM3 Processors AMD Phenom II X6 AMD Phenom II X4 AMD Phenom II X3 AMD Phenom II X2 Athlon II X4 Athlon II X3 Athlon II X2 Sempron processors |
| Socket Type | AMD AM2+ |
Chipset
| Chipset Manufacturer | nVidia |
| Chipset Type | GeForce 7025 / nForce 630a |
Memory
| RAM Installed / Max Capacity | 0 GB / 8 GB |
| RAM Slots | 2 x DDR3 DIMM (AM3 CPU Support Only) 2 x DDR2 DIMM |
| Supported RAM Technology | Dual Channel DDR2 SDRAM Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | Supports DDR2 1066(AM3/AM2+ Only)/800/667/533 Supports DDR3 1866(OC)/1333/1066 MHz memory |
Expansion Slots
| Expansion Slots Total (Free) | 1 x PCI Express x16 slot
1 x PCI Express x1 slot 2 x PCI slots |
VGA & Integrated Graphics Options
| Video Controller | Integrated NVIDIA GeForce 7025 Graphics Max. shared memory 256MB |

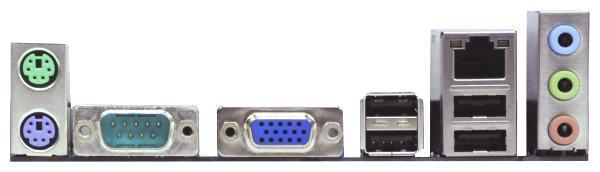

Ports & Connectivity - External IO Panel (Back of Motherboard)
| Ports Present & Quantity | 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port 1 x Serial Port: COM1 1 x VGA Port 4 x Ready-to-Use USB 2.0 Ports 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jack: Line in / Front Speaker / Microphone |
Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
| Ports Present & Quantity | 4 x SATAII 3.0 Gb/s connectors
1 x ATA133 IDE connector (supports 2 x IDE devices) 1 x Floppy connector 1 x Print Port header 1 x CPU/Chassis/Power FAN connector 1 x 24 pin ATX power connector 1 x 4 pin 12V power connector 1 x CD in header 1 x Front panel audio connector 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
Storage Interfaces & Controllers
| nForce 630a | 4 x SATAII 3.0 Gb/s connectors RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions 1 x IDE 1 x Floppy Connector |
LAN & Networking
| Realtek | 1 x PHY RTL8201EL |
| Lan Speed | 10/100Mbit |
| Ports | 1 x RJ-45 |
Audio
| Controller/Codec/Information | VIA VT1705 Audio Codec
5.1 CH HD Audio |
Features & Technologies
| Feature List | ASRock OC Tuner
Intelligent Energy Saver Instant Boot ASRock Instant Flash ASRock OC DNA Hybrid Booster: CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.) ASRock AM2 Boost |
Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.
Your Name
Your Email
Friends Name
Friends Email
Personal Message
2012-01-25
Product Rating:
Great Motherboard for the price. Easy to install and its good for overclocking. I also love the DDR2 and 3 support.No troble so far (had it for a month now)!
Reviewed Posted by: Flicony,
Worthing (next to brighton)
2012-01-06
Product Rating:
been said before but great board even on price. and fast without o/c needing to be done wish all boards were like this one ,thanks novatech.
Reviewed Posted by: peter whitear,
locksheath
2011-10-05
Product Rating:
A great board for the price. Overclocking features are brilliant, particularly for AM2 CPU's. AM3 support is great but remember not to get aything more than 95W. Supports DDR3 1600 too! As with any motherboard be sure to check and double check the qualified CPU and memory list. The chipset heat sink gets quite toasty, worth noting when you plan chassis fans.
Reviewed Posted by: mouldie,
2011-06-07
Product Rating:
Does exactly what its says on the tin.
Reviewed Posted by: Tissy,
2011-04-22
Product Rating:
Easy to install and setup, with plenty of options. The website description for this motherboard is spot on and well worth the price.
Reviewed Posted by: Tom from Kent,
2011-04-16
Product Rating:
Excellent features which suit my present requirement but give future proofing as well so I will be able to go up a notch to more multiple core processors and faster memory when I need to.
Reviewed Posted by: Keith Deeley (Lincoln),
2010-10-26
Product Rating:
impressive tech for a great price
Reviewed Posted by: Discounts for regulars and businesses,
2010-10-01
Product Rating:
Simply to fit with a very comprehensive instruction book and is performing very well. Another grand buy from Novatech.
Reviewed Posted by: Great spec board for almost peanuts,
2010-09-23
Product Rating:
not installed yet - dislocated my knee which caused delay - but exactly what was needed for a repair - at the right price
Reviewed Posted by: Fox,
2010-09-22
Product Rating:
I chose this for the Instant Boot feature. It really works and means the desktop can be accessed without putting the kettle on!
Reviewed Posted by: BernieF,
2010-09-16
Product Rating:
I love the choice between DDR2 or DDR3 great board, overclocking is easy plus has a core unlocker which i need to test but on th whole nice small board
Reviewed Posted by: Denny,
