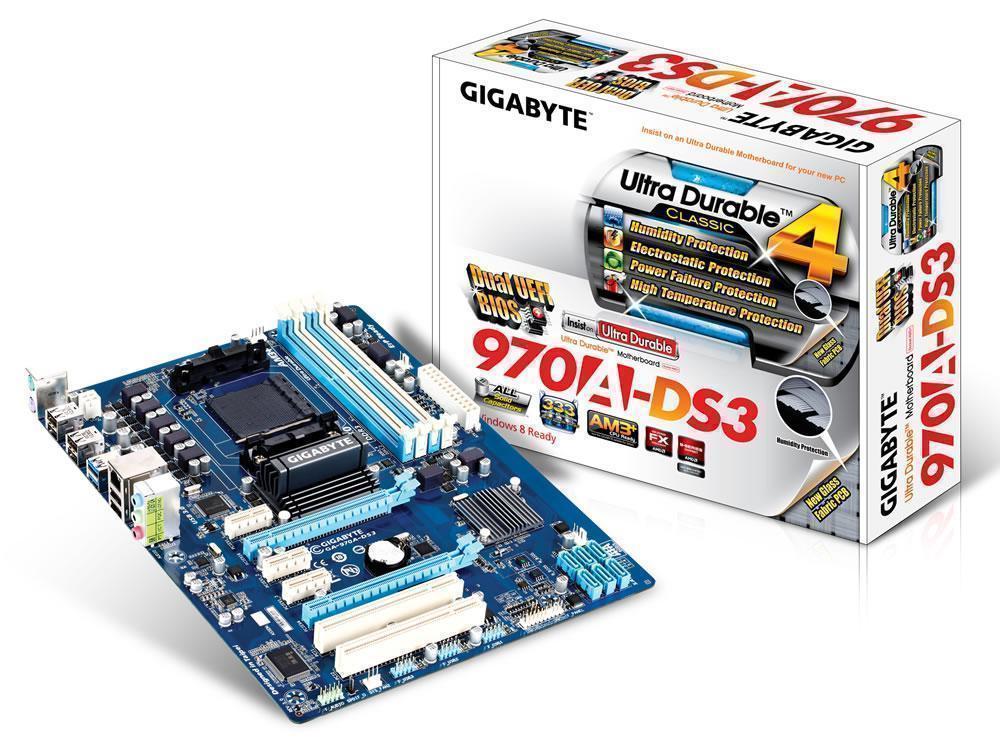

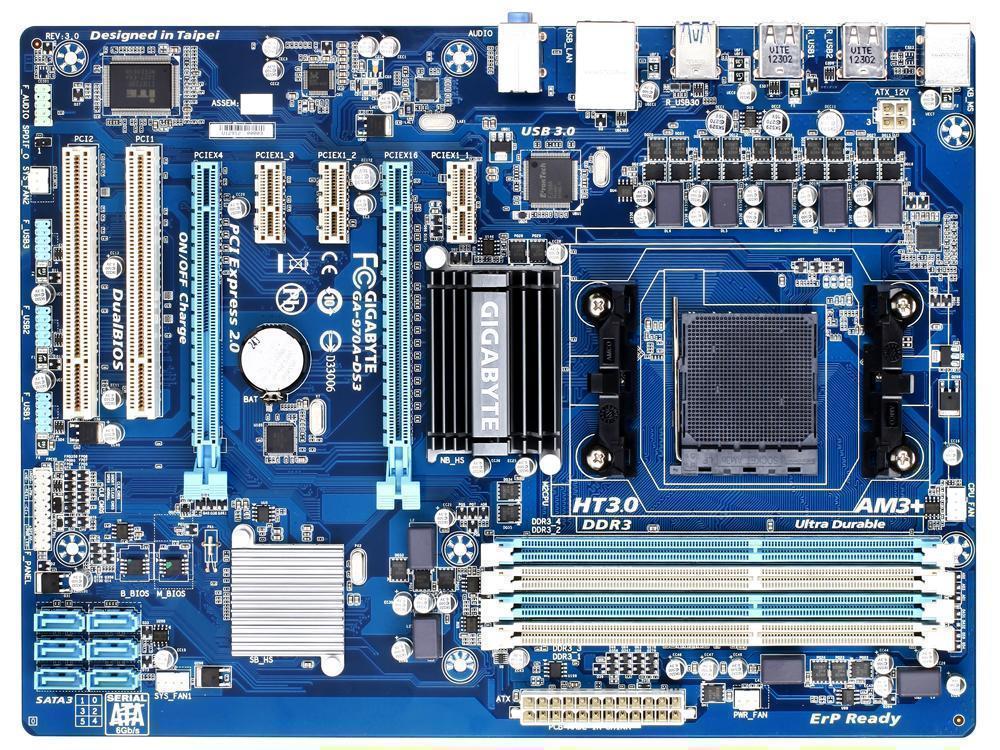

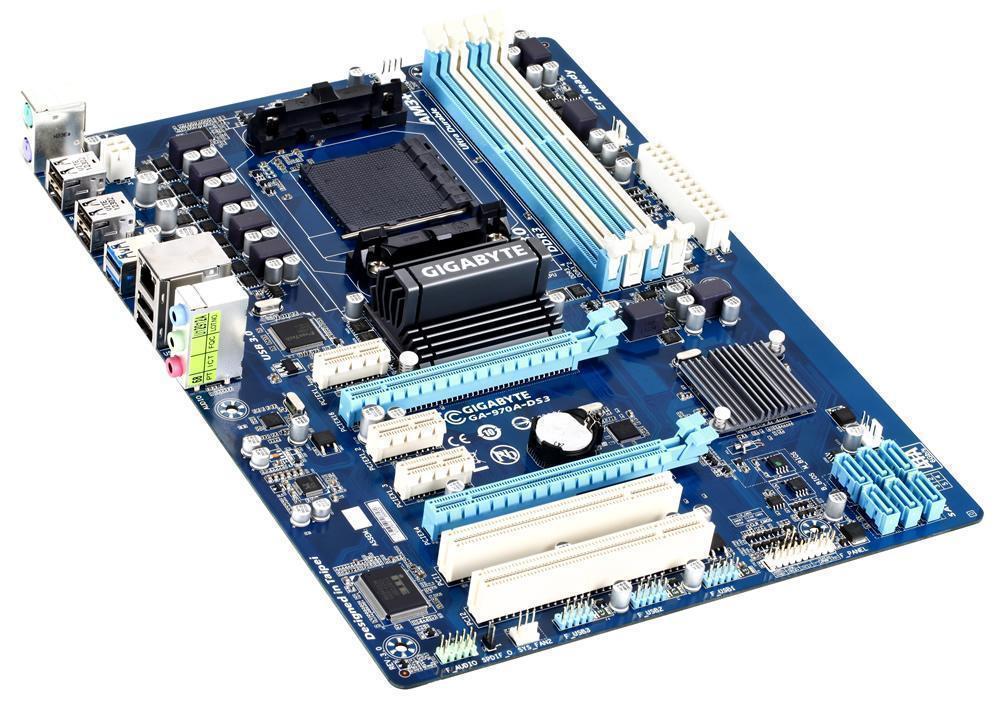

GIGABYTE GA-970A-DS3 AMD 970 (Socket AM3+) Motherboard

AM3+ CPU Support, ATX, DDR3 (32GB max), 2 x USB3, 12 x USB2, 6 x SATA3

Sorry, this product is no longer available to purchase.

Please view our whole range of ATX Form Factor here

Spend between £100 and £1000 to get your goods before you pay

More information

All consumer credit transactions are authorised and regulated by the Financial Conduct Authority

CPU and Chipset Features



AMD (AM3+) FX Series Processors
This motherboard supports AMD AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 4800MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process.

AMD 970 Chipset
AMD 970 Chipset is designed to support up to 4800MT HyperTransport 3.0 (HT 3.0) interface speed and PCI Express 2.0 x16 graphics. It is optimized with AMD’s latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.

Performance and Stability Features


Ultra Durable 4 Classic
GIGABYTE Ultra Durable 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats.

Graphics Features


AMD CrossfireX Multi-GPU Support
AMD CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.

Memory Features


Dual-Channel DDR3 2000+ MHz Support
This motherboard supports up to 32GB DDR3 memory that features data transfer rates of up to 2000(O.C) MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications.

Transfer Features


SATA 6 Gbps
Yet another onboard feature of GIGABYTE AMD 900 series motherboards are integrated the latest AMD SB950 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 900 series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

USB 3.0 Support
The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

3x USB Power Boost
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.

Software and Bios Features


Dual UEFI Bios
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.

ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.

Windows 8 Ready
With hardware driver compatibility tested and assured, GIGABYTE provides a complete solution for Windows 8 support. Starting now, users can experience the next generation operating system on GIGABYTE hardware, and can rest assured that they can easily upgrade once the final driver versions are released without any compatibility issues!

General

Part Number GA-970A-DS3
Model Number GA-970A-DS3
Form Factor ATX
Width 30.5cm
Depth 22.5cm

Processor Information
Compatible Processors FX
Phenom II
Athlon II
Socket Type AM3+
Power Design 4 Phase

Note: Please refer to www.gigabyte.com for CPU Support List


Chipset
Chipset Manufacturer AMD
Chipset Type 970 / SB950

Memory
RAM Installed / Max Capacity 0 MB / 32 GB Max
RAM Slots 4 x DDR3 DIMM
Supported RAM Technology Dual Channel DDR3 SDRAM
Supported RAM Speeds DDR3 2000(O.C.)/1866/1600/1333/1066 MHz

Expansion Slots
Expansion Slots Total (Free) 1 x PCIe 2.0 x16 (running at x16)
1 x PCIe 2.0 x16 (running at x4)
3 x PCIe 2.0 x1
2 x PCI

VGA & Integrated Graphics Options
Video Controller N/A
Multi-GPU Support AMD CrossFireX Support

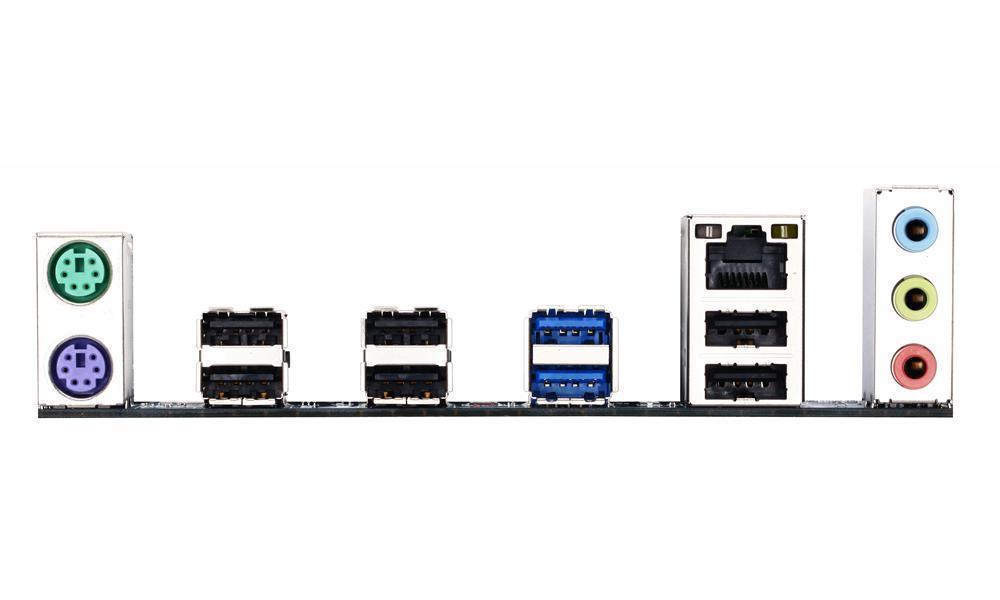

Ports & Connectivity - External IO Panel (Back of Motherboard)
Ports Present & Quantity 1 x PS/2 keyboard/mouse port
6 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
3 x audio jacks

Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
Ports Present & Quantity 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

Storage Interfaces & Controllers
AMD SB950 Chipset 6 x SATA 6Gb/s (RAID 0,1,5,10)

LAN & Networking
Controller Realtek RTL8111E Gigabit LAN
Lan Speed 10/100/1000
Ports 1 x LAN(RJ45) port

Audio
Controller/Codec/Information Realtek ALC887 Codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Features & Technologies
Feature List Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share
