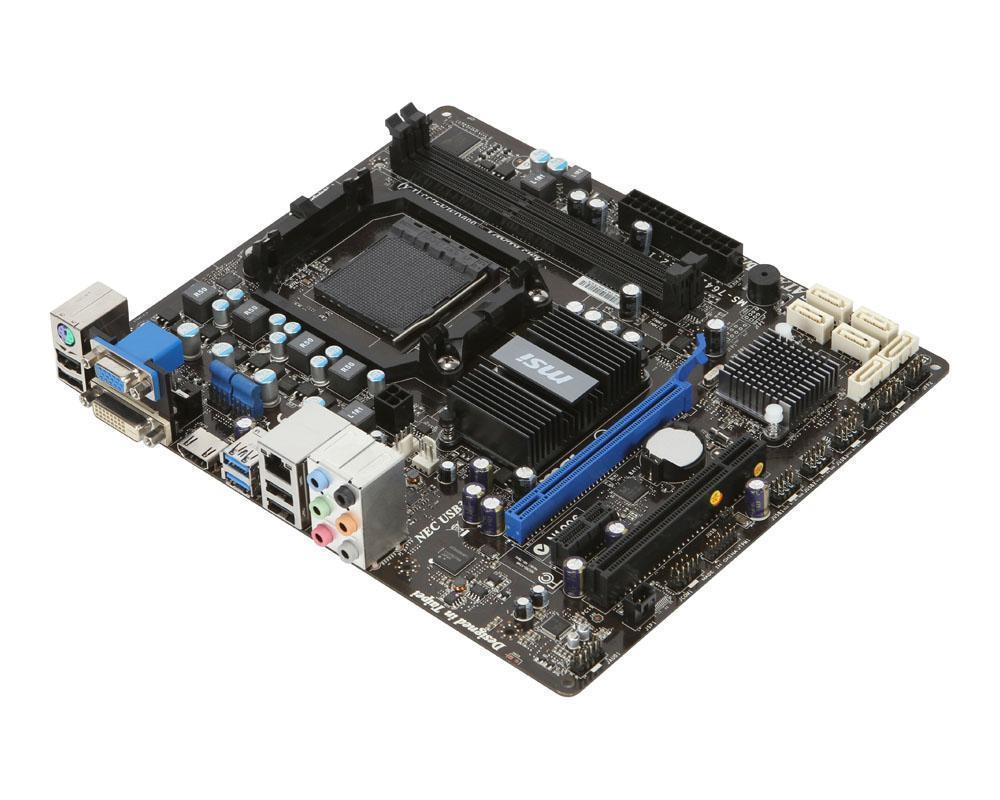

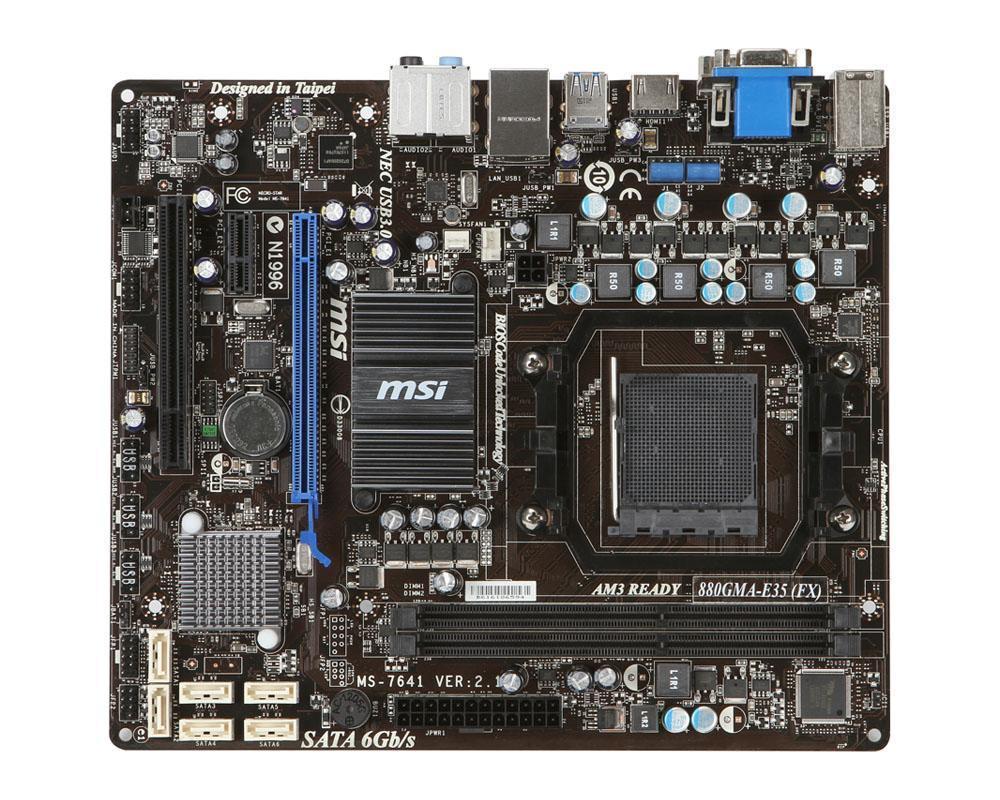

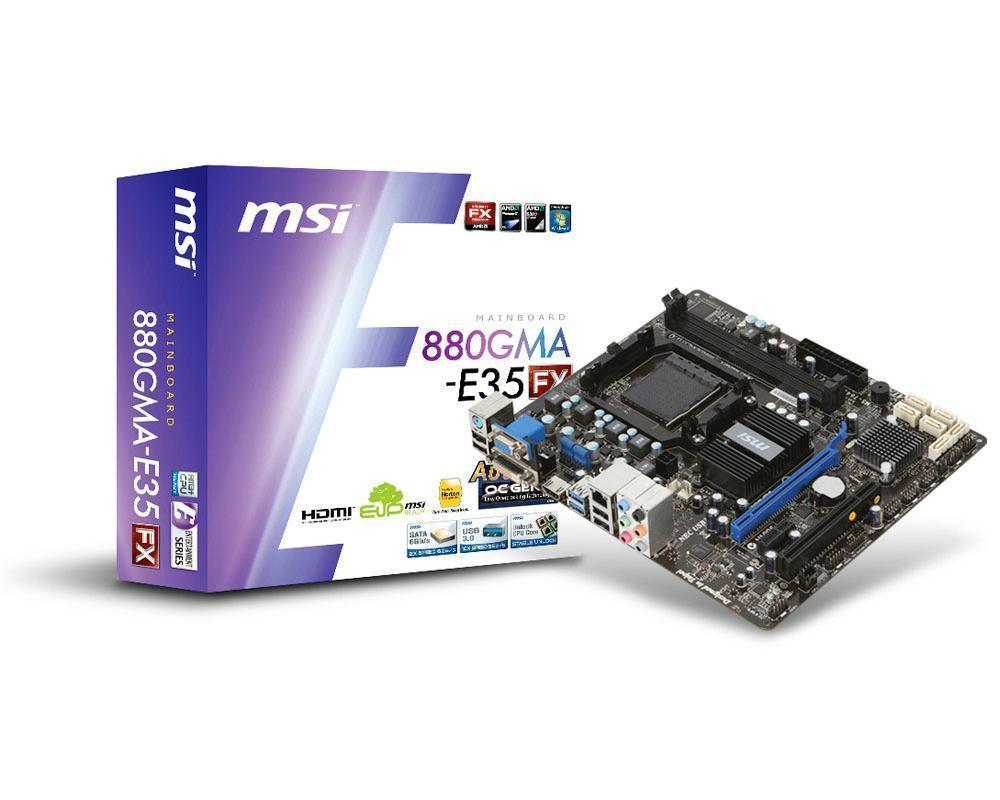

MSI 880GMA-E35 (FX) AMD 880G (Socket AM3+) Motherboard
AM3+ CPU, mATX, DDR3 (16GB max), 2 x USB 3, 10 x USB 2, 6 x SATA 6Gb/s, RAID, 1 x HDMI, 1 x DVI, 1 x VGA, 7.1 HD Audio
Order Code: MSI-880E35
Manf.Code: 880GMA-E35 (FX)
Price:
£66.98 inc vat
CPU, Chipset and Graphics Features
|
AMD AM3+ FX/PhenomII /AthlonII /Sempron 100 Series Processors
This motherboard supports latest AMD Socket AM3+ multi-core processors with up to 8 native CPU cores and delivers better overclocking capabilities with less power consumption. It features AMD Turbo CORE Technology 2.0 and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process. |
|
AMD 880G Chipset
AMD 880G Chipset is designed to support up to 5200MT/s HyperTransport 3.0 (HT 3.0) interface speed and PCI Express 2.0 x16 graphics. It is optimized with AMD’s latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities. |
|
HDMI v1.3 Support
HDMI (High-Definition Multimedia Interface) is a new generation fully digital video/audio interface which can transfer 1080p Highi-Definition video and Audio output in single compact connector. By passing HDMI 1.3 certification, this product can deliver highest video, audio quality and also support HDCP protection of Blu-ray. |
|
HTPC Ready
With the large diversity of display outputs on this motherboard, you are able to choose and upgrade display devices then build up your own home theater. |
Memory Features
|
Dual-Channel DDR3 1333/1066/800 MHz support
The motherboard supports DDR3 memory that features data transfer rates of DDR3 1333/1066/800 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications. |
Transfer Features
|
SATA 6Gb/s
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. |
|
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient. |
Overclocking Features
|
Auto OC Genie
In the past, users needed to adjust settings for CPU and Memory in the BIOS menu to overclock. The relation between these ratios and clock speeds are extremely complicated, taking up to 30 minutes to find the right settings for an optimized PC. Auto OC Genie simplifies it all into one button press. Where high-end CPUs are usually priced around 1000 USD, Auto OC Genie allows you to take a 200 USD CPU (1/5 the price) to reach the same performance. Your C/P ratio rises up 500% immediately for the ultimate value. |
|
Unlock CPU Core
MSI’s Unlock CPU Core technology, exclusive from MSI, can unlock the hidden cores in the CPU by making a few selections from the BIOS. By unlocking a Phenom II X2 CPU into a Phenom II X4 CPU, users can boost the CPU performance over 104%. In Addition, MSI discovers the ability to unlock Phenom II X4 960T to a 6 core CPU through the same BIOS setting. |
Other Features
|
M-Flash
Compared to the common mainboard which needs extra BIOS chips, MSI’s M-Flash has a double advantage. Firstly it doesn’t need extra components and secondly all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. |
|
APS (Active Phase Switching)
Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. |
|
i-Charger
Mobile consumer appliances are getting more and more attention in the current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the i-Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. |
|
Solid Capacitors on PWM
Capacitors are the most important component for an electronic product’s power supply. The quality of the capacitors can impact the stability of the entire system and the risk of a product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. |
|
Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. |
General
| Part Number | 880GMA-E35 (FX) |
| Model Number | 880GMA-E35 (FX) |
| Form Factor | ATX |
| Width | 24.4cm |
| Depth | 20.5m |
Processor Information
| Compatible Processors | FX Phenom II Athlon II Sempron |
| Socket Type | AM3+ |
Note: Please refer to www.msi.com for CPU Support List
Chipset
| Chipset Manufacturer | AMD |
| Chipset Type | 880G / SB850 |
Memory
| RAM Installed / Max Capacity | 0 MB / 16 GB Max |
| RAM Slots | 2 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 1333/1066/800 MHz |
Expansion Slots
| Expansion Slots Total (Free) | 1 x PCIe 2.0 x16
1 x PCIe x1 1 x PCI |
VGA & Integrated Graphics Options
| Video Controller | AMD Radeon HD 4250 |
| Multi-GPU Support | N/A |

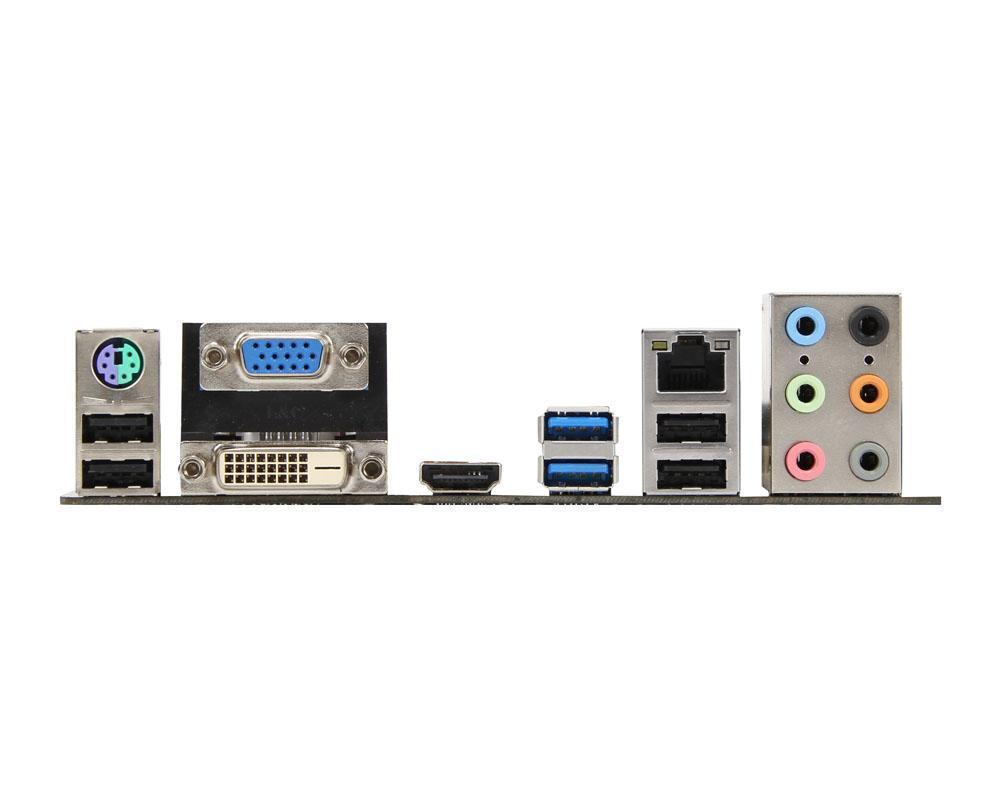

Ports & Connectivity - External IO Panel (Back of Motherboard)
| Ports Present & Quantity | 1 x PS/2 keyboard or mouse port
4 x USB 2.0 ports 2 x USB 3.0 ports 1 x Graphic Card port 1 x DVI-D port 1 x HDMI port 1 x RJ45 LAN jack 1 x 6 in 1 audio jack |
Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
| Ports Present & Quantity | 1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector CPU x 1 / System x 1 FAN connectors 1 x Front panel audio connector 1 x Front panel connector 1 x Chassis intrusion switch connector 3 x USB 2.0 connectors 6 x Serial ATA III connectors 1 x Serial port connector 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector |
Storage Interfaces & Controllers
| AMD SB850 Chipset | 6 x SATA 6Gb/s RAID 0,1,10 Support |
LAN & Networking
| Controller | Realtek RTL8111E |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
Audio
| Controller/Codec/Information | Realtek ALC887
Flexible 7.1-channel audio with jack sensing Compliant with Azalia 1.0 Spec |
