Order Code: MSI-990GD8
Manf.Code: 990FXA-GD80
 | AMD AM3+ FX/PhenomII /AthlonII /Sempron 100 Series Processors
This motherboard supports latest AMD Socket AM3+ multi-core processors with up to 8 native CPU cores and delivers better overclocking capabilities with less power consumption. It features AMD Turbo CORE Technology 2.0 and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process. |
|
AMD 990FX Chipset AMD 990FX Chipset is designed to support up to 5.2GT/s HyperTransport 3.0 (HT 3.0) interface speed and dual PCI Express 2.0 x16 graphics. It is optimized with AMD latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities. |
|
NVIDIA SLI Multi-GPU Technology NVIDIA SLI technology is a revolutionary platform innovation that allows you to intelligently scale graphics performance by combining multiple NVIDIA graphics solutions in an SLI-Certified motherboard. Using proprietary software algorithms and dedicated scalability logic in each NVIDIA graphics processing unit (GPU), NVIDIA SLI technology delivers up to twice the performance (with 2 cards) and 2.8X the performance (with 3 cards) compared to a single graphics solution. |
 |
AMD CrossfireX Multi-GPU Technology AMD CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominatig power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience. |
 |
Dual-Channel DDR3 2133(OC) MHz support The motherboard supports up to 32GB DDR3 memory that features data transfer rates of up to 2133(OC) MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications. |
 |
SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. |
 |
USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient. |
 |
OC Genie II - Overclock & Unlock CPU Core in 1 Second OC Genie II, the most powerful and easy overclocking technology is implemented on MSI's AMD 9-Series mainboards. MSI's OC Genie II completely automates advanced overclocking functions and offers up to 248% higher performance with the simple click of a button. It does not matter if you're a first time hardware owner, or a veteran overclocker, activating MSI OC Genie II will unlock your hidden CPU cores, overclock your CPU and your memory to simply give you the best and most stable performance for free on MSI AMD 9-Series mainboards. |
 |
DrMOS With its 3-in-1 combined design and special circuity, the DrMOS solution can drop the motherboards temperature by up to 16C when compared similar motherboards with a more traditional MOS solution. This temperature drop helps extend the life of the board and brings increased stability when overclocking. DrMOS also combines the IC, bottom MOSFET and TOP MOSFET to make a smoother faster transfer of electricity across the board. The result is improved performance when compared to traditional decentralised MOS designs. |
 |
Lossless 24-bit/192KHz HD Audio Onboard PC audio gets better! MSI is the first to implement the most high-end HD Audio codecs available. Don’t be fooled by other inferior audio solutions onboard (sometimes you can’t even find the driver!) Only MSI offers the Loss-less 24-bit/192KHz HD Audio function with an incredible 109 SNR dB value to provide the most clear & vivid HD audio quality and support 7.1 channels surround sound playback with a 2-channel independent stereo output (multiple streaming) through the front panel 3.5 inch phone jack. |
 |
Military Class II - Hi-c CAP 8X the Lifespan of a Solid Capacitor!! Insisting on the best stability, MSI utilizes Hi-c CAPs on their Military Class series motherboards. Made of the rare element Tantalum, often used on space shuttles and satellites, which sustains very high temperatures and shows an amazingly high electrical conductivity. |
 |
Military Class II - Super Ferrite Choke The Super Ferrite Chokes (SFC) use a Ferrite core that is Super-Permeable. Compare with a traditional choke, the Super Ferrite Chokes run at a 35 degree Celsius lower temperature. The lower working temperature will enhance mainboard stability. |
 |
Military Class II - Solid CAP 10 years long lifespan. For providing the highest quality products, MSI built-in Solid CAP in the entire Military Class series. This not only makes bursting capacitors a non-issue but also ensures a dramatically extended lifetime and ultra-low ESR. |
 |
Active Phase Switching (APS) Active Phase Switching (APS) technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. |
 |
M-Flash Compared to the common mainboard which needs extra BIOS chips, MSI’s M-Flash has a double advantage. Firstly it doesn’t need extra components and secondly all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. |
 |
Super Charger Mobile consumer appliances are getting more and more attention in the current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. |
 |
AMD Cool'n'Quiet AMD Cool'n'Quiet Technology reduces heat and noise so you can experience amazing performance without distraction. Combined with core enhancements, included in the AMD processors, that can improve overall power savings, deliver better multitasking and energy efficiency. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes. |
 |
3TB+ Infinity 3TB+ Infinity is not only breaking through the limit of the traditional BIOS, but also enhancing the utilization of a hard drives efficiently. In addition to supporting the latest 3TB hard drives, MSI 3TB+ Infinity technology can use the 3TB hard drive as boot disk when installing a 64-bit operating system. Compared to competitors, MSI 3TB+ Infinity is an industry-leading technology which substantially presents an advantage of development and application in the future. |
 |
USB Safeguard USB Safeguard can prevent mainboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the mainboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan. |
 |
Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time. |
 |
Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. |
 |
Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. |
 |
Windows 8 Ready This MSI mainboard is officially certified from Microsoft for Windows 8 compatibility. MSI are the only leading mainboard brand that runs 3DMark for Windows 8 successfully on their certified mainboards, which proves that MSI is fully ready for Windows 8 in terms of both software and hardware, safeguarding the Windows 8 system’s stability and compatibility for consumers and providing the best user experience! |
General
| Part Number | 990FXA-GD80 |
| Model Number | 990FXA-GD80 |
| Form Factor | ATX |
| Width | 30.5cm |
| Depth | 24.5m |
| Compatible Processors | FX Phenom II Athlon II Sempron |
| Socket Type | AM3+ |
| Chipset Manufacturer | AMD |
| Chipset Type | 990FX / SB950 |
| RAM Installed / Max Capacity | 0 MB / 32 GB Max |
| RAM Slots | 4 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 2133(OC)/1800/1600/1333/1066/800 MHz |
| Expansion Slots Total (Free) | 4 x PCIe 2.0 x16
2 x PCIe 2.0 x1 1 x PCI |
| Video Controller | N/A |
| Multi-GPU Support | Supports ATI CrossfireX Supports nVidia SLI |

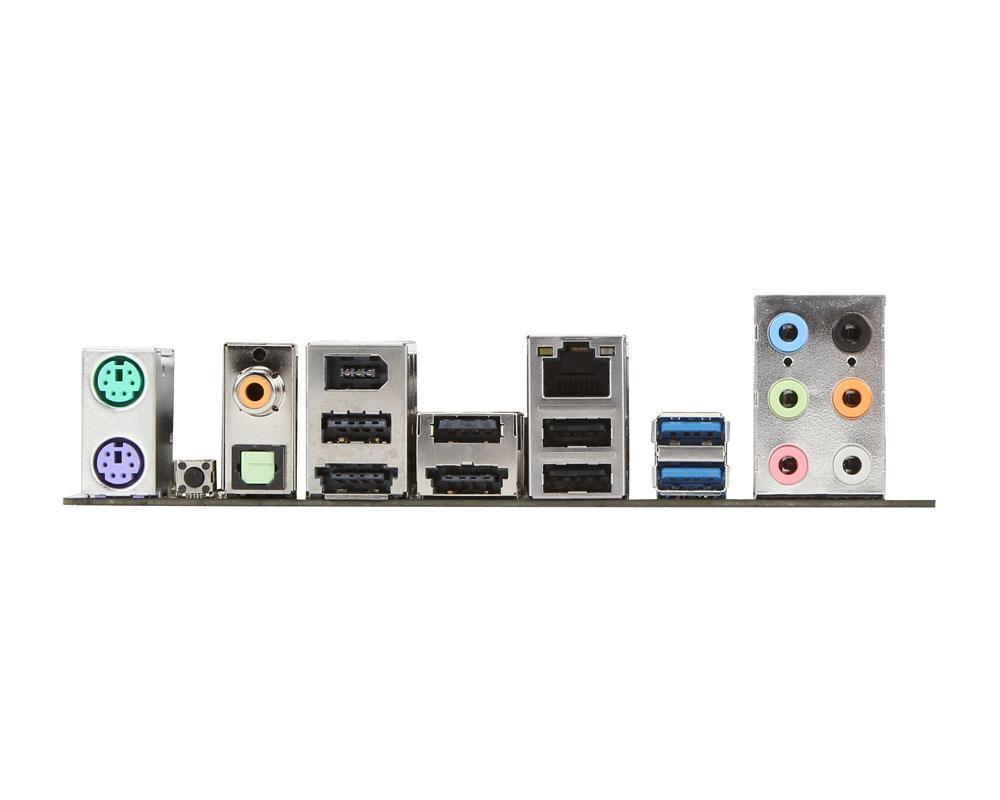

| Ports Present & Quantity | 1 x PS/2 Keyboard port
1 x PS/2 Mouse port 1 x Clear CMOS button 1 x Coaxial SPDIF-out 1 x Optical SPDIF-out 4 x USB 2.0 ports 2 x USB 3.0 ports (blue) 2 x eSATA / USB 2.0 Combo ports 1 x RJ45 LAN Jacks 1 x 6 in 1 audio jack |
| Ports Present & Quantity | 1 x ATX 24-pin power connector
1 x ATX 8-pin 12V CPU power connector CPU x 1 / System x 4 FAN connectors 1 x Front panel audio connector 1 x Front panel connector 1 x Chassis intrusion switch connector 2 x USB 2.0 connectors 1 x USB 3.0 connector 6 x Serial ATA III connectors 1 x IEEE1394 connector 1 x Serial port connector 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Debug LED display 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector |
| AMD SB950 Chipset | 6 x SATA 6Gb/s (RAID 0,1,5,10) 2 x eSATA 6Gb/s |
| Controller | Realtek RTL8111E Gigabit LAN |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
| Controller/Codec/Information | Realtek ALC892
True Blu-ray Audio Support Flexible 8-channel audio with jack sensing Compliant with Azalia 1.0 Spec |
