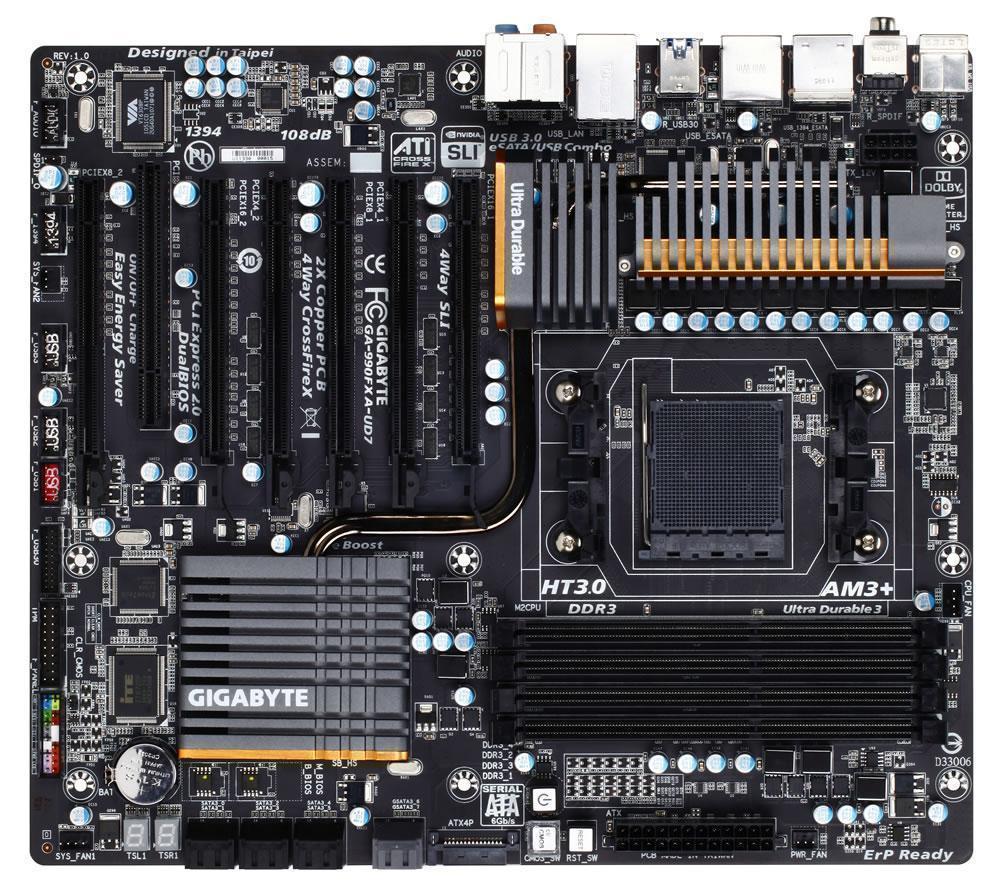

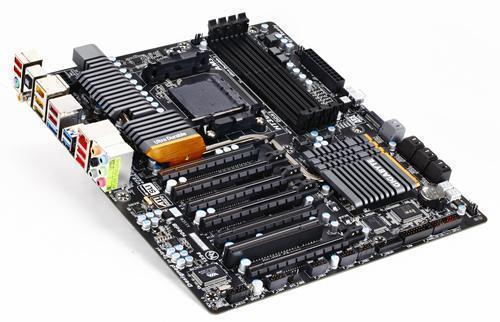

Gigabyte GA-990FXA-UD7 AMD 990FX (Socket AM3+) Motherboard
Order Code: GIG-990FX7
Manf.Code: GA-990FXA-UD7
CPU, Chipset and Graphics Features
 | AMD FX / Phenom II / Athlon II / Sempron 100 Series Processors
This motherboard supports AMD AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 4800MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process. |
|
AMD 990FX Chipset AMD 990FX Chipset is designed to support up to 5.2GT/s HyperTransport 3.0 (HT 3.0) interface speed and dual PCI Express 2.0 x16 graphics. It is optimized with AMD latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities. |
|
Driver MOSFETs - Integration of VRM Components A traditional Voltage Regulator Module (VRM) consists of a Choke, Capacitors, MOSFETs and a Driver IC. By incorporating the MOSFETs and driver IC in accordance with the Driver-MOSFET specification, we can achieve higher power transfer and increased efficiency at higher switching frequencies to satisfy the growing power requirements of today's processors. Driver-MOSFETs also help to reduce VRM real estate requirements in the CPU zone. |
|
Get Ready for New Generation of 32nm AMD AM3+ CPU GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming. |
 |
Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 PhenomII series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. |
 |

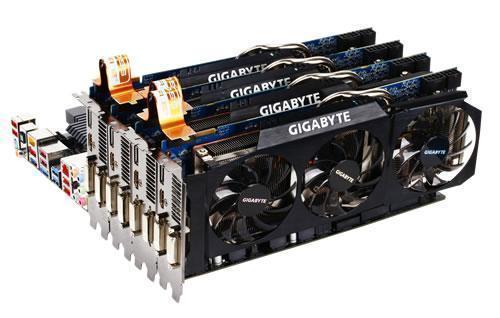

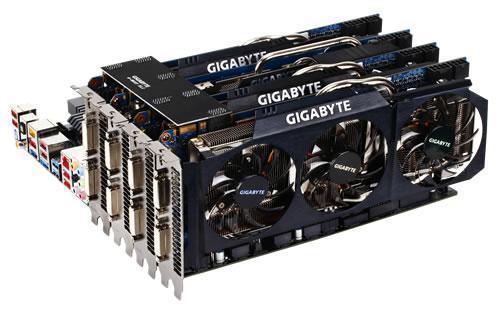

4 way SLI and 4 way CrossFireX Flexible graphics capabilities - Up to 4 VGA cards are supported for either 4 way CrossFireX or 4 way SLI action (running at two x16 or four x8 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. |
Memory Features
 |
Dual Channel DDR3 2000+ MHz Delivering native support for DDR3 memory up to 2000MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. |
Transfer Features
 |
SATA 6 Gbps Yet another onboard feature of GIGABYTE AMD 900 series motherboards are integrated the latest AMD SB950 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 900 series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces. |
 |
USB 3.0 Support The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. |
 |
3x USB Power Boost GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. |
Overclocking Features
 |
Cloud OC GIGABYTE Cloud OC is a free overclocking application that facilitates PC overclocking through any web browsing capable device such as a smart phone, iPad, iPhone, Netbooks or notebook PC. Being browser based, it connects via wireless Internet, Bluetooth or through an Ethernet cable, and its many functions are categorized into three tabs: Tuner, System Info and Control. |
 |
AMD OverDrive Support The AMD OverDrive utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets. |
 |
Visible Overvoltage Reminder An onboard Debug LED (Embedded post code LED display) simplifies motherboard signals and indicates system status. |
Audio Features
 |
108dB Signal-to-Noise ratio playback GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards. All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise. |
 |
Dolby Home Theater Support Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones. |
Other Features
 |
Ultra Durable 3 GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking. |
 |
DualBIOS 3TB+ HDD Support (Hybrid EFI Technology) Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website. GIGABYTE DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive. |
 |
On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. |
 |
Turbo XHD- Full Automatic RAID 0 GIGABYTE Turbo XHD provides a quick and easy way to boost your hard drive performance. Just via the latest BIOS update, Turbo XHD will automatically enabled when the system detecting 2 new SATA3 HDDs and providing users effortlessly to set up a RAID 0/Strip configuration. |
 |
GIGABYTE innovative technology- Easy Energy Saver GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance. |
 |
EasyTune6 GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. |
 |
eSATA/USB combo eSATA/USB combo ports provides significant convenience by supporting eSATA and USB devices in one port, and may not require additional power source when connecting devices through the applicable cable. |
 |
Onboard Quick Switches Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment. |
 |
AutoGreen- Greening your PC via Bluetooth cellphone AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth cell phone is out of range of your computer. Note: GIGABYTE motherboards do not include a Bluetooth receiver; the addition of a 3rd party Bluetooth receiver is required. |
 |
ErP Lot 6 support The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency. |
General
| Part Number | GA-990FXA-UD7 |
| Model Number | GA-990FXA-UD7 |
| Form Factor | ATX |
| Width | 30.5cm |
| Depth | 26.3m |
Processor Information
| Compatible Processors | FX Phenom II Athlon II |
| Socket Type | AM3+ |
Note: Please refer to www.gigabyte.com for CPU Support List
Note: To enable AM3+ AMD FX-Series CPU, please update to latest BIOS
Chipset
| Chipset Manufacturer | AMD |
| Chipset Type | 990FX / SB950 |
Memory
| RAM Installed / Max Capacity | 0 MB / 32 GB Max |
| RAM Slots | 4 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 2000(O.C.)/1866/1600/1333/1066 MHz |
Expansion Slots
| Expansion Slots Total (Free) | 2 x PCIe 2.0 x16 (running at x16)
2 x PCIe 2.0 x16 (running at x8) 2 x PCIe 2.0 x16 (running at x4) 1 x PCI |
VGA & Integrated Graphics Options
| Video Controller | N/A |
| Multi-GPU Support | Supports ATI CrossFireX Technology Supports NVIDIA SLI Technology |

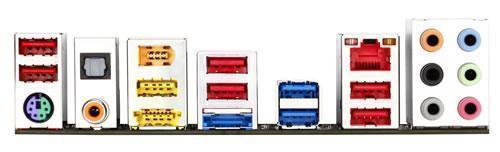

Ports & Connectivity - External IO Panel (Back of Motherboard)
| Ports Present & Quantity | 1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector 1 x coaxial S/PDIF Out connector 1 x IEEE 1394a port 7 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x eSATA/USB Combo connector 1 x eSATA 6Gb/s connector 1 x RJ-45 port 6 x audio jacks |
Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
| Ports Present & Quantity | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x PCIe power connector 8 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 3 x USB 2.0/1.1 headers 1 x USB 3.0/2.0 header 1 x IEEE 1394a header 1 x Trusted Platform Module (TPM) header 1 x clearing CMOS jumper 1 x clearing CMOS button 1 x power button 1 x reset button |
Storage Interfaces & Controllers
| AMD SB950 Chipset | 6 x SATA 6Gb/s (RAID 0,1,5,10,JBOD) |
| Marvell 88SE9172 Chipset | 2 x SATA 6Gb/s (RAID 0,1) 2 x eSATA 6Gb/s |
LAN & Networking
| Controller | Realtek RTL8111E Gigabit LAN |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
Audio
| Controller/Codec/Information | Realtek ALC889 codec
High Definition Audio 2/4/5.1/7.1-channel Support for Dolby Home Theater Support for S/PDIF Out |
Features & Technologies
| Feature List | Support for @BIOS
Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune Support for Easy Energy Saver Support for Smart Recovery Support for Auto Green Support for ON/OFF Charge Support for Cloud OC Support for 3TB+ Unlock Support for Q-Share |
