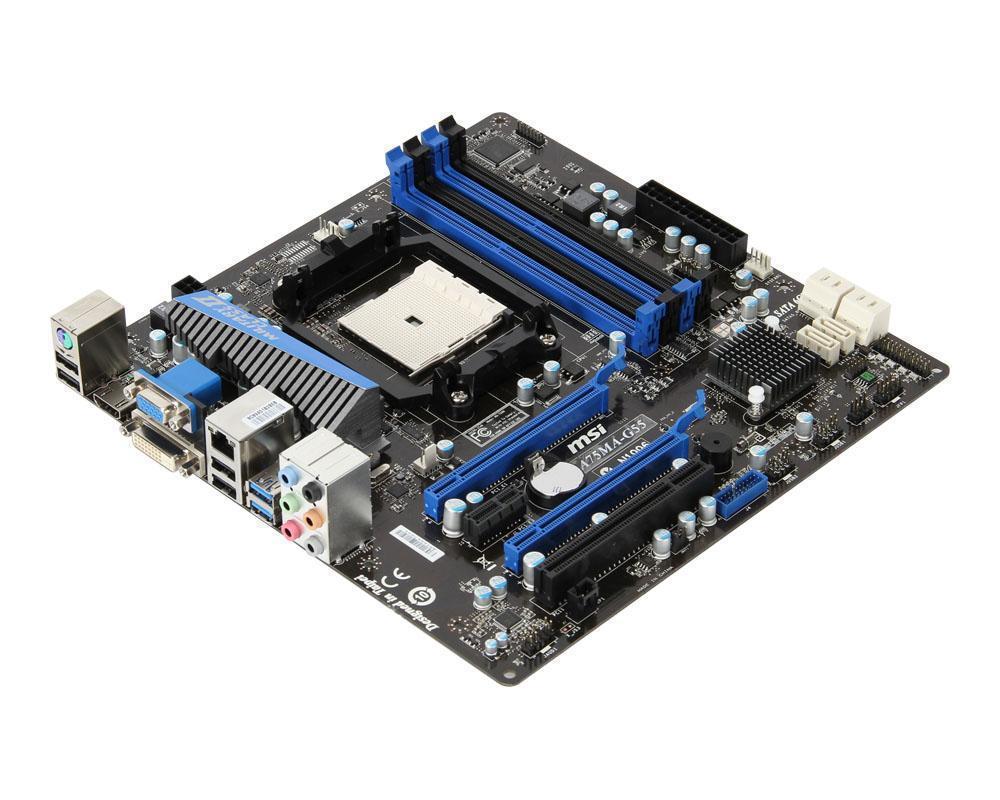

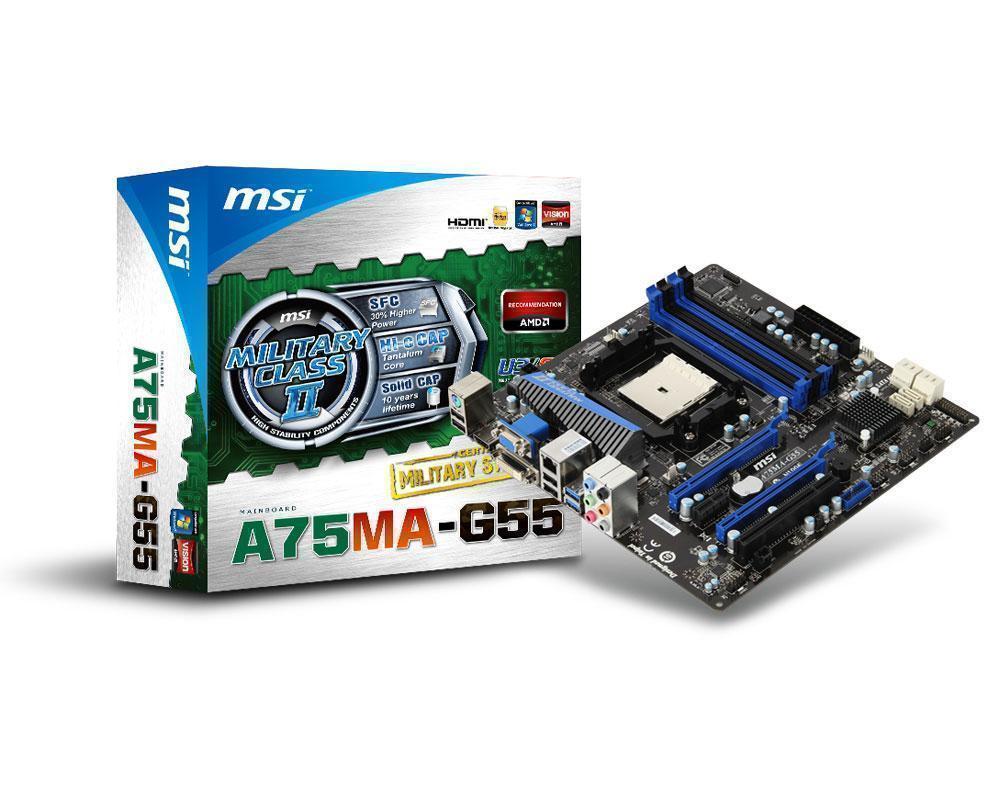

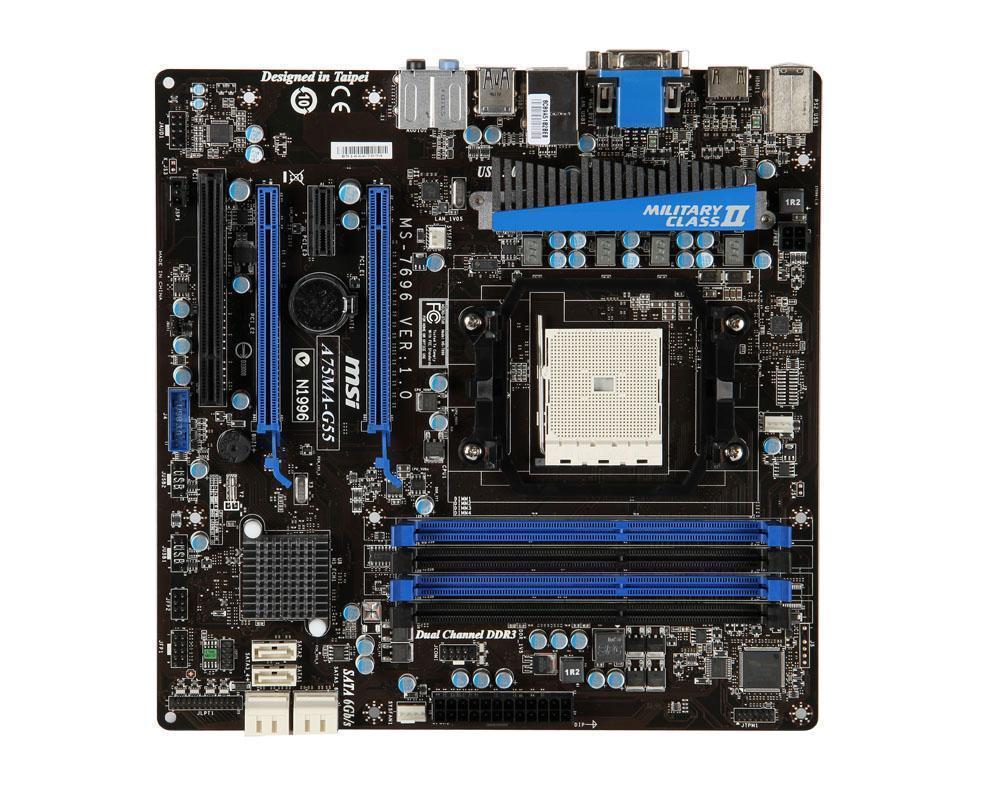

MSI A75MA-G55 AMD A75 (Socket FM1) Motherboard
AMD A / E2 Series Support, mATX, DDR3 (max 32GB), 4 x USB3, 8 x USB2, 6 x SATA 6Gb/s, RAID, HDMI, DVI, VGA, 7.1 Audio
Order Code: MSI-A75MG5
Manf.Code: A75MA-G55
Price:
£64.99 inc vat
CPU, Chipset and Graphics Features
 | AMD A- & E2- Series Accelerated Processor with AMD Radeon HD 6000 Series Graphics
This motherboard supports AMD A- & E2- series Accelerated Processor with AMD Radeon HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s. |
|
AMD A75 FCH (Hudson D3) AMD A75 FCH (Hudson D3) is designed to support up to 5GT/s interface speed and PCI Express 2.0 x 16(at x4 speed)graphics. It supports 6 x SATA 6Gb/s ports and 4 x USB 3.0 Ports. |
|
HDMI v1.4 HDMI (High-Definition Multimedia Interface) is the new generation fully digital video/audio interface which can transfer 1080p High-Definition video and Audio output in single compact connector. Supporting HDCP copy protection such as Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. |
 |
ATI CrossfireX Multi-GPU Technology ATI CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, ATI CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. ATI CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four ATI Radeon HD graphics cards, making it the most scalable gaming platform ever. With an ATI CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience. |
Memory Features
| Dual-Channel 1866(OC)/1600/1333/1066 MHz support The motherboard supports DDR3 memory that features data transfer rates of DDR3 1866(OC)/1600/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications. |
Transfer Features
 |
SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. |
 |
USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. MSI also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient. |
Overclocking Features
 |
OC Genie II Just press the OC Genie button or enable OC Genie II function in the BIOS menu and the APU performance will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with an image performance that is smoother and lag-free! |
Other Features
 |
Military Class II - Hi-c CAP 8X the Lifespan of a Solid Capacitor!! Insisting on the best stability, MSI utilizes Hi-c CAPs on their Military Class series motherboards. Made of the rare element Tantalum, often used on space shuttles and satellites, which sustains very high temperatures and shows an amazingly high electrical conductivity. |
 |
Military Class II - Super Ferrite Choke The Super Ferrite Chokes (SFC) use a Ferrite core that is Super-Permeable. Compare with a traditional choke, the Super Ferrite Chokes run at a 35 degree Celsius lower temperature. The lower working temperature will enhance mainboard stability. |
 |
Military Class II - Solid CAP 10 years long lifespan. For providing the highest quality products, MSI built-in Solid CAP in the entire Military Class series. This not only makes bursting capacitors a non-issue but also ensures a dramatically extended lifetime and ultra-low ESR. |
 |
Click Bios Concept Click BIOS Concept is based on the new UEFI technology which supports todays latest hardware. From faster booting to supporting large hard drives with a capacity of over 3TB. MSI's Click BIOS can be controlled with both a keyboard, but it also supports mouse control which simplifies navigating and manipulating system settings. |
 |
M-Flash Compared to the common mainboard which needs extra BIOS chips, MSI’s M-Flash has a double advantage. Firstly it doesn’t need extra components and secondly all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. |
 |
i-Charger Mobile consumer appliances are getting more and more attention in the current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. |
 |
Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time. |
 |
Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. |
 |
Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. |
General
| Part Number | A75MA-G55 |
| Model Number | A75MA-G55 |
| Form Factor | Micro ATX |
| Width | 24.4cm |
| Depth | 24.4m |
Processor Information
| Compatible Processors | AMD A Series Processors AMD E2 Series Processors |
| Socket Type | FM1 |
Note: Please refer to www.msi.com for AMD CPU Support List
Chipset
| Chipset Manufacturer | AMD |
| Chipset Type | A75 |
Memory
| RAM Installed / Max Capacity | 0 MB / 32 GB Max |
| RAM Slots | 4 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 1866/1600/1333 MHz |
Expansion Slots
| Expansion Slots Total (Free) | 2 x PCIe 2.0 x16
1 x PCIe 2.0 x1 1 x PCI |
VGA & Integrated Graphics Options
| Video Controller | Radeon HD 6000 Series Graphics Integrated in APU |
| Multi-GPU Support | Supports AMD CrossFireX Technology |

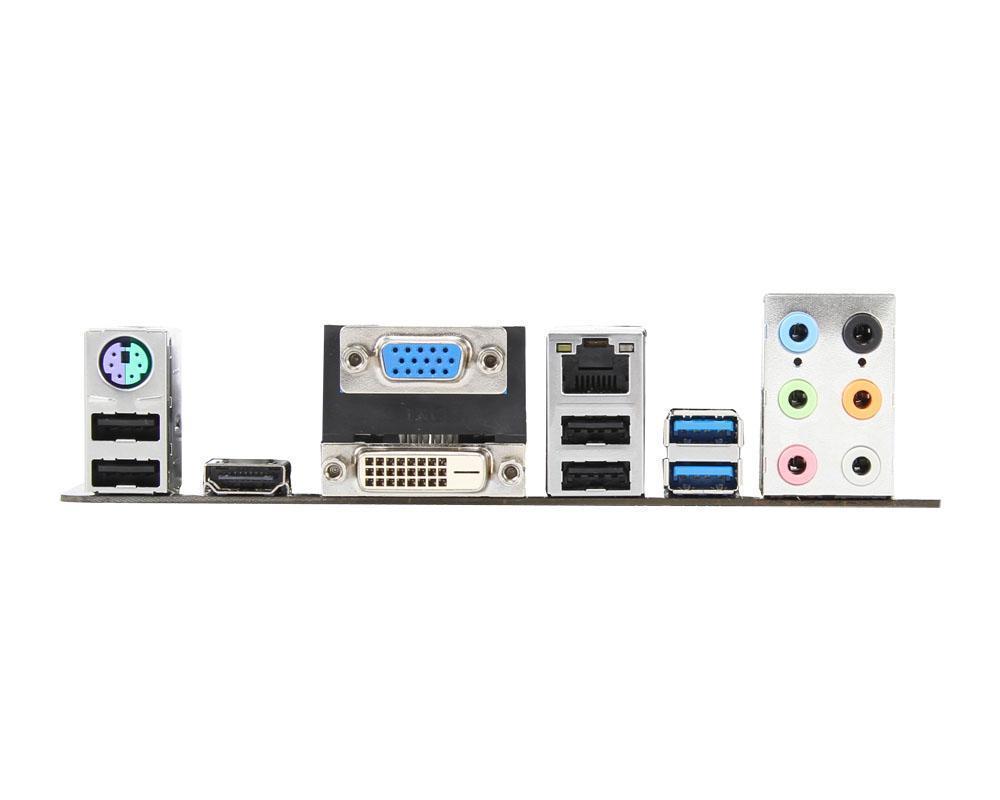

Ports & Connectivity - External IO Panel (Back of Motherboard)
| Ports Present & Quantity | 1 x PS/2 keyboard or mouse
1 x Graphic Card port 1 x HDMI port 1 x DVI-D port 4 x USB 2.0 ports 2 x USB 3.0 ports 1 x RJ45 LAN jack 1 x 6 in 1 audio jack |
Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
| Ports Present & Quantity | 1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector CPU x 1 / System x 2 FAN connectors 1 x Front panel audio connector 1 x Front panel connector 2 x USB 2.0 connectors 1 x USB 3.0 connector 6 x Serial ATA 6Gb/s connectors 1 x Serial port connector 1 x Parallel port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector |
Storage Interfaces & Controllers
| AMD A75 Chipset | 6 x SATA 6Gb/s (RAID 0,1,10) |
LAN & Networking
| Controller | RTL8111E |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
Audio
| Controller/Codec/Information | Realtek ALC887 8-Channel High Definition Audio CODEC |
