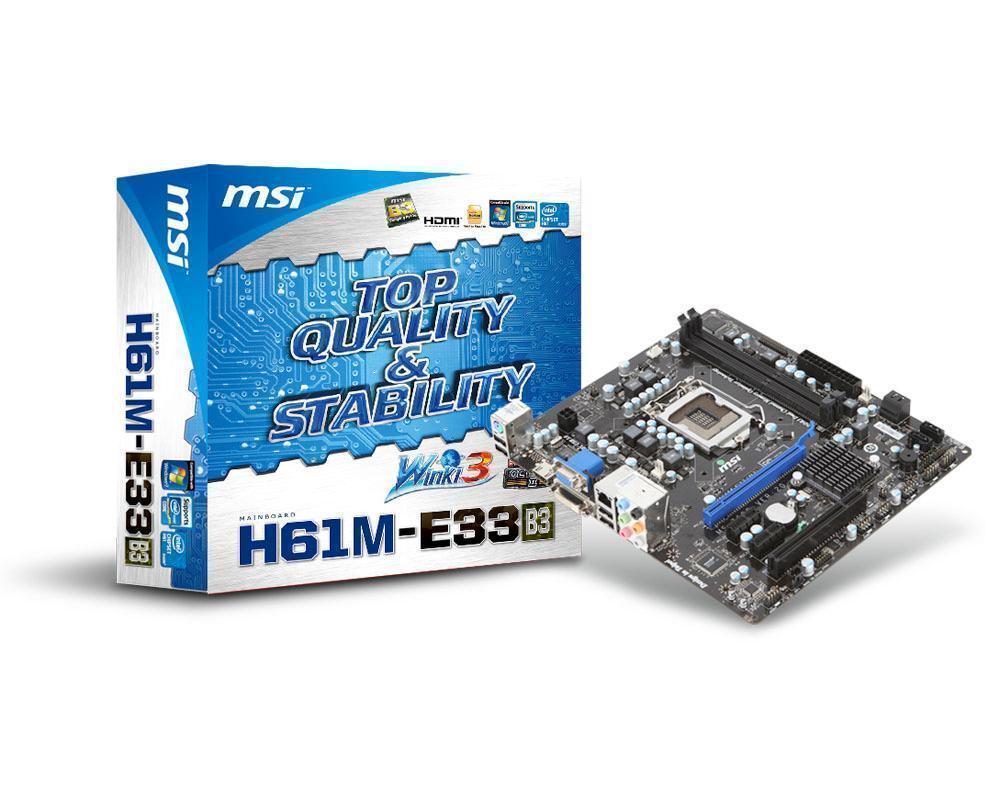

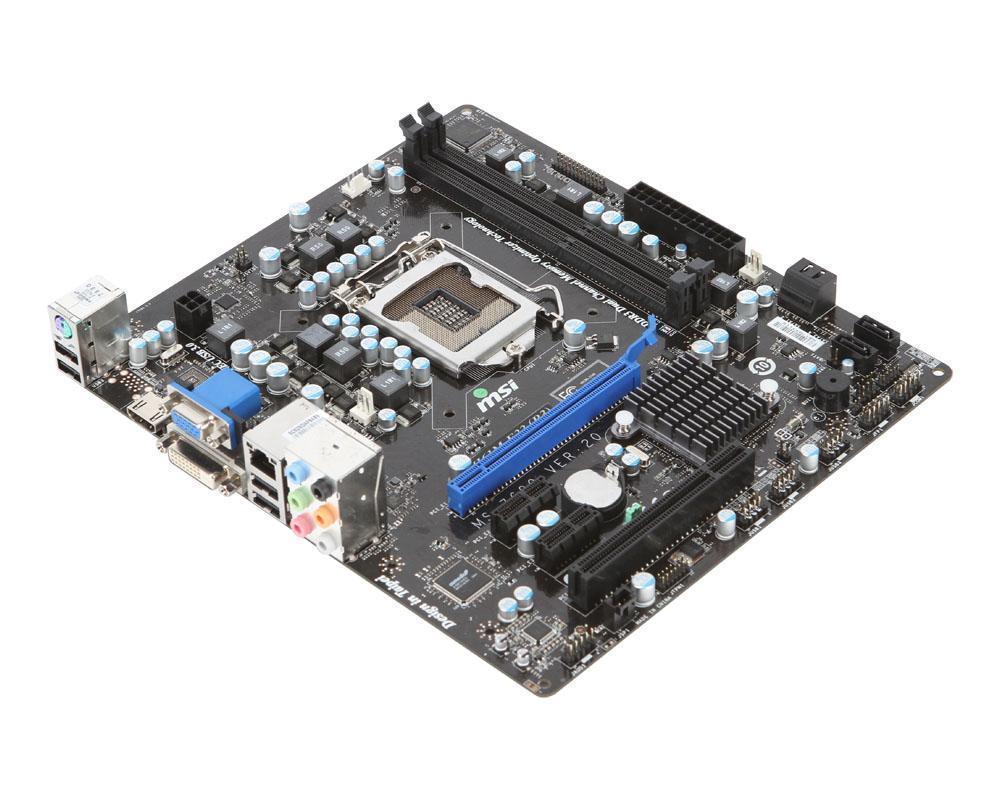

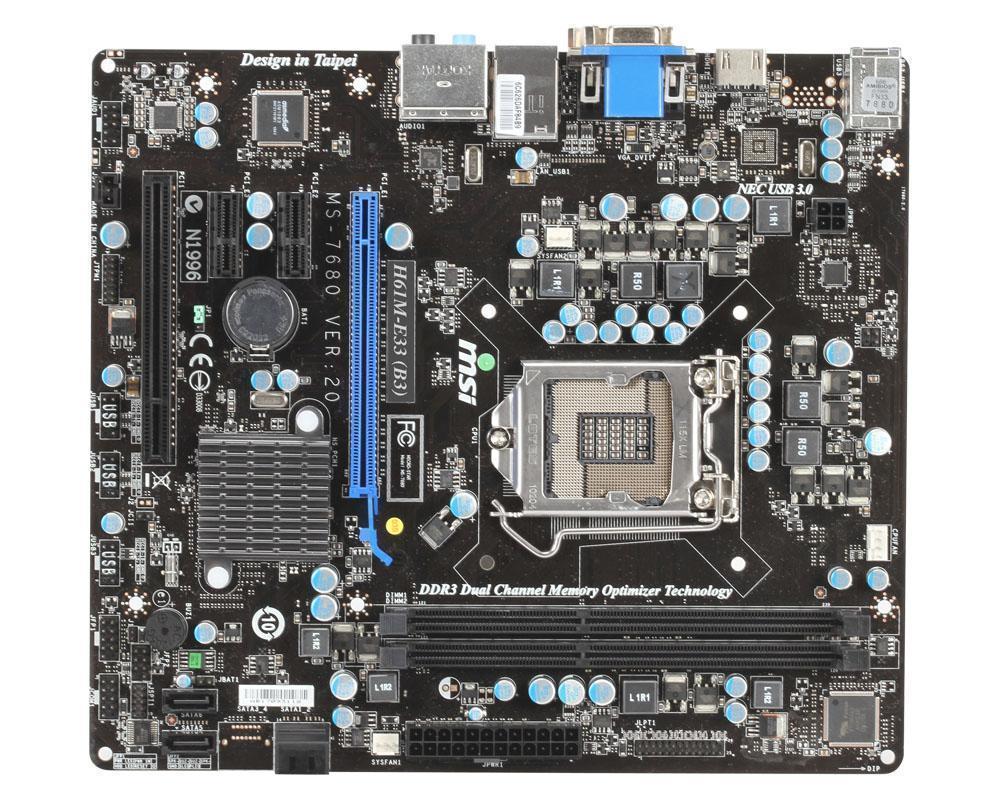

MSI H61M-E33 Intel H61 (Socket 1155) Motherboard
Core i7 / i5 / i3 Support, mATX, DDR3 (max 16GB), 10 x USB2, 4 x SATA 3Gb/s, 1 x HDMI, 1 x DVI, 1 x VGA, 7.1 Audio.
Order Code: MSI-H61ME3
Manf.Code: H61M-E33-B3
Price:
£52.99 inc vat
CPU, Chipset and Graphics Features
 |
LGA1155 Intel Second Generation Core i7/Core i5/Core i3 Processors Ready
This motherboard supports the latest Intel second generation Core i7/Core i5/Core i3 processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7/Core i5/Core i3 processors are among the most powerful and energy efficient CPUs in the world. |
 |
Intel H61 Express Chipset The Intel H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel Core i7 / Core i5 / Core i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. |
 |
B3 Stepping Ready To fix Intel's 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its P67/H67/H61 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI P67/H67/H61 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67/H61 mainboard. |
 |
HDMI Interface HDMI (High-Definition Multimedia Interface) is new generation fully digital video/audio interface which can transfer 1080p Highi-Definition video and up to 8 channel surround sound such as Dolby Digital or DTS in single compact connector. By passing HDMI 1.3 certification, this product can deliver highest video, audio quality and also support HDCP protection of Blu-ray. |
Memory Features
| Dual-Channel 1333/1066 MHz support The motherboard supports DDR3 memory that features data transfer rates of DDR3 1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications. |
Overclocking Features
 |
OC Genie II Just press the OC Genie button or enable OC Genie II function in the BIOS menu and the CPU performance (P67 series) or the 3D performance of iGPU (H67/H61 series) will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with an image performance that is smoother and lag-free! |
Other Features
 |
All Solid Capacitors Capacitors are the most important component for an electronic product's power supply. The quality of the capacitors can impact the stability of the entire system and risk of potential product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. |
 |
M-Flash Compared to the common mainboard which needs extra BIOS chips, MSI’s M-Flash has a double advantage. Firstly it doesn’t need extra components and secondly all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. |
 |
i-Charger Mobile consumer appliances are getting more and more attention in the current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. |
 |
Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time. |
 |
Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. |
 |
Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. |
General
| Part Number | H61M-E33-B3 |
| Model Number | H61M-E33 (B3) |
| Form Factor | Micro ATX |
| Width | 24.5cm |
| Depth | 21.5m |
Processor Information
| Compatible Processors | Intel Core i7 Intel Core i5 Intel Core i3 |
| Socket Type | LGA 1155 |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Type | H61 Express |
Memory
| RAM Installed / Max Capacity | 0 MB / 16 GB Max |
| RAM Slots | 2 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 1333/1066 MHz |
Expansion Slots
| Expansion Slots Total (Free) | 1 x PCIe 2.0 x16
2 x PCIe 2.0 x1 1 x PCI |
VGA & Integrated Graphics Options
| Video Controller | Supports Intel HD Graphics |
| Multi-GPU Support | N/A |

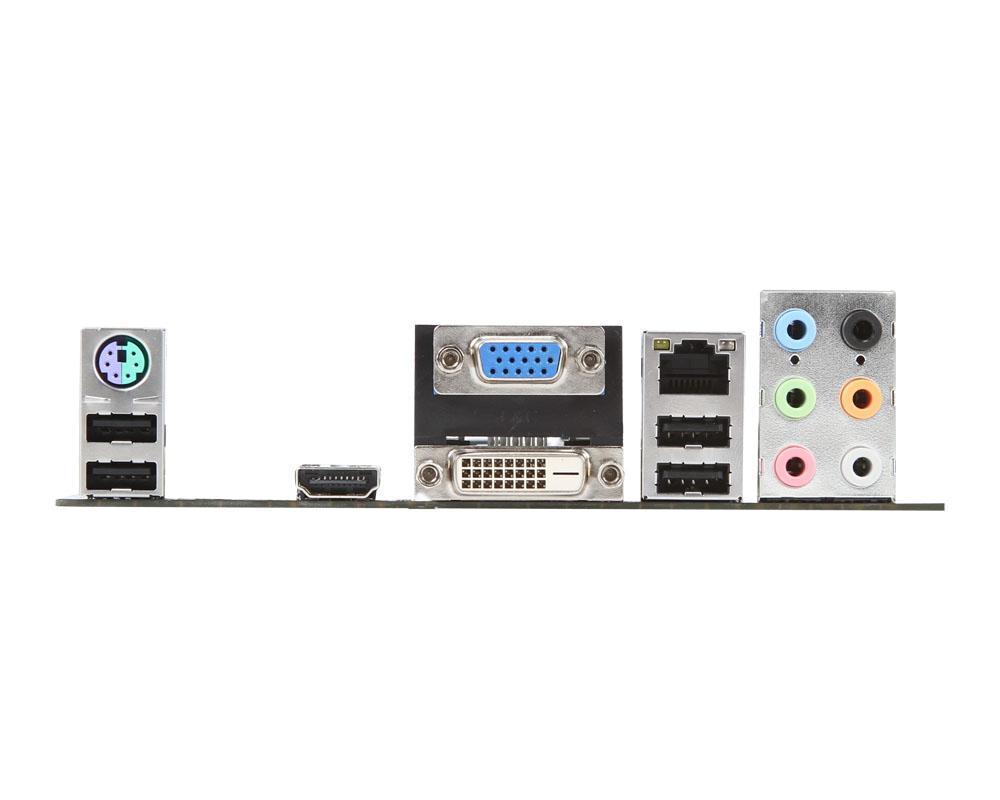

Ports & Connectivity - External IO Panel (Back of Motherboard)
| Ports Present & Quantity | 1 x PS/2 Mouse/Keyboard port
4 x USB 2.0 ports 1 x HDMI port 1 x VGA 1 x DVI-D port 1 x RJ45 LAN Jack 1 x 6 in 1 audio jack |
Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
| Ports Present & Quantity | ATX 24-Pin power connector
4-pin ATX 12V power connector CPU x 1 / System x 2 FAN connectors CD-in connector Front panel audio connector Front panel connector 1 x chasis intrusion connector 3 x USB 2.0 connectors 4 x Serial ATAII connectors 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector 1 x Serial port connector 1 x Parallel port connector |
Storage Interfaces & Controllers
| Intel H61 Express Chipset | 4 x SATA 3Gb/s |
LAN & Networking
| Controller | Realtek RTL8111E Gigabit LAN |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
Audio
| Controller/Codec/Information | Realtek ALC887 codec
Flexible 8-channel audio with jack sensing Compliant with Azalia 1.0 Spec Meet Microsoft Vista Premium spec |
