Sorry, this product is no longer available to purchase.
Please view our whole range of Intel 1155 (Z77 Chipset) here

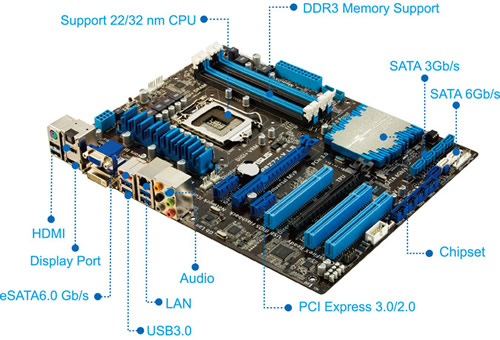

 | Intel 3rd and 2nd Generation Core i7/i5/i3 Processors Ready
This motherboard supports Intel 3rd generation (Ivy Bridge) Intel Core processor-based platform and 2nd generation (Sandy Bridge) Core i7/i5/i3/Pentium/Celeron processors, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd generation Intel Core processor-based platform and 2nd generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world. |
|
Intel Z77 Express Chipset The Intel Z77 Express Chipset is a single-chipset design to support socket 1155 Intel 3rd generation Intel Core processor-based platform and 2nd generation Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel Z77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel integrated graphic performance. |
|
Dual Intelligent Processors 3 The world’s first Dual Intelligent Processors from ASUS pioneered twin onboard chips - TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Dual Intelligent Processors 3 builds on that foundation with new SMART DIGI+ power control, which includes multiple digital voltage controllers, allowing ultra-precise tuning for the CPU, iGPU and DRAM. It’s upgraded with one-click extreme performance optimization and selectable CPU wattage levels, offering easier power control and better power savings with the user-friendly AI Suite II utility. |
|
TPU plus SMART DIGI+ Always at the forefront of power design, ASUS propels you into the future standard of power management again by SMART DIGI+ Technology, which works with the TPU (TurboV Processing Unit) to ramps up performance to its maximum. Enable the all-new SMART DIGI+ key with a single click and adjust CPU ratios manually in the TPU to increase CPU frequency up to an incredible 85%! SMART DIGI+ Technology also includes the Smart CPU Power Level profile, which reduces CPU power consumption to a specific indicated wattage with a single click, creating a cooler and quieter PC. With next generation Intel VRD 12.5 future power technology, ASUS once again leaps to the future of innovation. |
|
PCIe 3.0 Ready The latest PCI Express bus standard delivers improved encoding for twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. It’s a must-have feature for PC users aiming to improve and optimize graphics performance, as well as have the latest, most future-proof technology. |
|
LucidLogix Virtu MVP LucidLogix Virtu MVP featuring HyperFormance Technology boosts your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel processor graphics and Windows 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize 3x faster video conversion with Intel Quick Sync Video technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. For users searching for perfection, LucidLogix Virtu MVP provides great graphical performance and the best flexibility and efficiency. |
|
AMD CrossfireX Multi-GPU Support AMD CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience. |
 |
Dual-Channel DDR3 1600/1333/1066 MHz Support The motherboard supports up to 32GB DDR3 memory that features data transfer rates of 1600/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications. |
 |
Complete USB 3.0 Integration ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 8 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. This motherboard affords greater convenience to high speed connectivity. |
 |
USB 3.0 Boost New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction |
 |
Extra SATA 6Gb/s Supports The Intel Z77 Express chipset natively supports the next-generation Serial ATA (SATA) interface, delivering up to 6Gb/s data transfers. ASUS provides extra SATA 6Gb/s ports with enhanced scalability, faster data retrieval and double the bandwidth of current bus systems. |
 |
USB Charger+ 3X Faster Charging for All Smart Devices. With a dedicated onboard controller, quick-charge all your smart devices such as iProducts. smartphones, tablets and more, all up to 3X faster, even when the PC is powered off, in sleep or hibernation modes. |
 |
Network iControl With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center. |
 |
USB BIOS Flashback A truly revolutionary hardware-based update solution. USB BIOS Flashback offers the most convenient way ever to update the BIOS! It allows users to update new UEFI BIOS versions even without hardware such as a CPU or DRAM installed into the motherboard. Just plug in a USB flash drive containing the BIOS file, and press the BIOS Flashback button for 3 seconds with the power supply connected. The UEFI BIOS will then automatically update without requiring further interaction. With its new, complementary Windows application, users can regularly check for UEFI BIOS updates and download the latest BIOS automatically. Hassle-free updating for the ultimate convenience! |
 |
Intel Smart Response Technology Intel Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min 18.6GB available capacity required) as a cache for frequently accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system. |
|
Intel Smart Connect Technology Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience. |
|
Intel Rapid Start Technology Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping the energy use low. |
 |
UEFI BIOS ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems. |
 |
Windows 8 Ready With hardware driver compatibility tested and assured, ASUS provides a complete solution for Windows 8 support. Starting now, users can experience the next generation operating system on ASUS hardware, and can rest assured that they can easily upgrade once the final driver versions are released without any compatibility issues! |
General
| Part Number | P8Z77-V LE |
| Model Number | P8Z77-V LE |
| Form Factor | ATX |
| Width | 30.5cm |
| Depth | 24.4m |
| Compatible Processors | Intel 3rd Generation Core i7/i5/i3 Intel 2nd Generation Core i7/i5/i3 Intel Pentium Intel Celeron |
| Socket Type | LGA 1155 |
| Chipset Manufacturer | Intel |
| Chipset Type | Z77 Express |
| RAM Installed / Max Capacity | 0 MB / 32 GB Max |
| RAM Slots | 4 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 1600/1333/1066 Mhz |
| Expansion Slots Total (Free) | 1 x PCIe 3.0 x16 (running at x16)
1 x PCIe 2.0 x16 (running at x4) 2 x PCIe 2.0 x1 3 x PCI |
| Video Controller | Supports Intel HD Graphics |
| Multi-GPU Support | Supports AMD Quad CrossFireX |
| Ports Present & Quantity | 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Ports Present & Quantity | 1 x USB 3.0 connector(s)
4 x USB 2.0 connector(s) 1 x COM port(s) connector(s) 3 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s) |
| Intel Z77 | 2 x SATA 6Gb/s (RAID 0,1,5,10) 4 x SATA 3Gb/s (RAID 0,1,5,10) |
| Marvell Controller | 1 x SATA 6Gb/s 1 x eSATA 6Gb/s |
| Controller | Realtek 8111F |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
| Controller/Codec/Information | Realtek ALC892
Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound Optical S/PDIF out port(s) at back panel |
| Feature List | ASUS Dual Intelligent Processors 3
SMART DIGI+ : Smart DIGI+ Key Smart CPU Power Level ASUS TPU : Auto Tuning TurboV GPU Boost TPU switch ASUS EPU : EPU EPU switch ASUS Digital Power Design : 8 Phase Power Design 1 Phase DRAM Power Design CPU Power Utility DRAM Power Utility ASUS Exclusive Features : USB BIOS Flashback MemOK! AI Suite II Ai Charger+ USB Charger+ Anti-Surge Low EMI Solution ESD Guards ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Network iControl USB 3.0 Boost Disk Unlocker ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution ASUS Fan Xpert 2 ASUS EZ DIY : ASUS O.C. Tuner ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS Q-Design : ASUS Q-Shield 100% All High-quality Conductive Polymer Capacitors |
