Sorry, this product is no longer available to purchase.
Please view our whole range of Intel 2011 (X79 Chipset) here
Spend between £100 and £600 to get your goods before you payMore information
CPU, Chipset and Graphics Features
|2nd Generation Intel Core i7 Processor family for the LGA 2011 Socket
GIGABYTE X79 series motherboards are designed to unite unrivalled desktop PC performance with a new level of flexibility and hardware control. Based on the latest Intel X79 Express Chipset, supporting the new LGA 2011 Intel Core i7 processors, GIGABYTE X79 series motherboards bring DIY builders to a new area of performance-oriented computing.
|Intel X79 Express Chipset
The Intel X79 Express Chipset is the latest single-chipset design that supports the 2nd Generation Intel Core i7 Processor family for the LGA 2011 Socket. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the X79 comes with 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems.
|PCI Express Gen.3 Support
The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
|GIGABYTE 3D Power
GIGABYTE X79 series motherboards are the first to take advantage of the exclusive GIGABYTE 3D Power, an all new hardware and software-based Digital Power Engine for both the PWM and Memory that delivers unprecedented power delivery control. Utilizing a brand new Digital PWM controller, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the CPU and memory no matter the loading. This all new, all digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE X79 motherboard. GIGABYTE is the first in the industry to utilize digital memory controllers for not only the Memory, but VTT and VSA, for real-time monitoring and adjusting. Digital memory control allows users to monitor and record DDR power and current in real-time while gaming, overclocking or at idle. Users can also set OVP (Over Voltage Protection) to safeguard your memory, adjust memory Load-line Calibration to fix memory vdrooping for a quicker response time and adjust memory PWM frequency on-the-fly.
|AMD CrossfireX Multi-GPU Technology
AMD CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.
|NVIDIA SLI Multi-GPU Technology
SLI technology allows using multiple Nvidia graphics cards in a single computer system with a mainboard equipped with an nForce SLI MCP. Users need an a mainboard with two PCI-Express 16x graphics slots and two matching GeForce graphics cards which are "SLI Ready". Most NVIDIA's PCI-Express graphics cards starting from the 6600 GPU can enjoy the benefits of SLI.
|4 Channel Memory on 8 slots
With a potential data bandwidth of up to 25GB/Sec and 256 Bits memory addressing, the Intel X79 platform offers unrivalled memory performance. Supporting up to 64GB of DDR3 1600 memory (X79-UD5 only), GIGABYTE X79 series motherboards give you the ultimate performance for today's memory-intensive applications.
|GIGABYTE 333 Onboard Acceleration
GIGABYTE X79 series motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.
|SATA 6 Gbps
GIGABYTE motherboards are High-Speed SATA Revision 3.0 compatible, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, they offer even faster data transfer rates of up to a theoretical 4x the speed of current SATA interfaces.
|SuperSpeed USB 3.0
GIGABYTE motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
|3x USB Power Boost
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

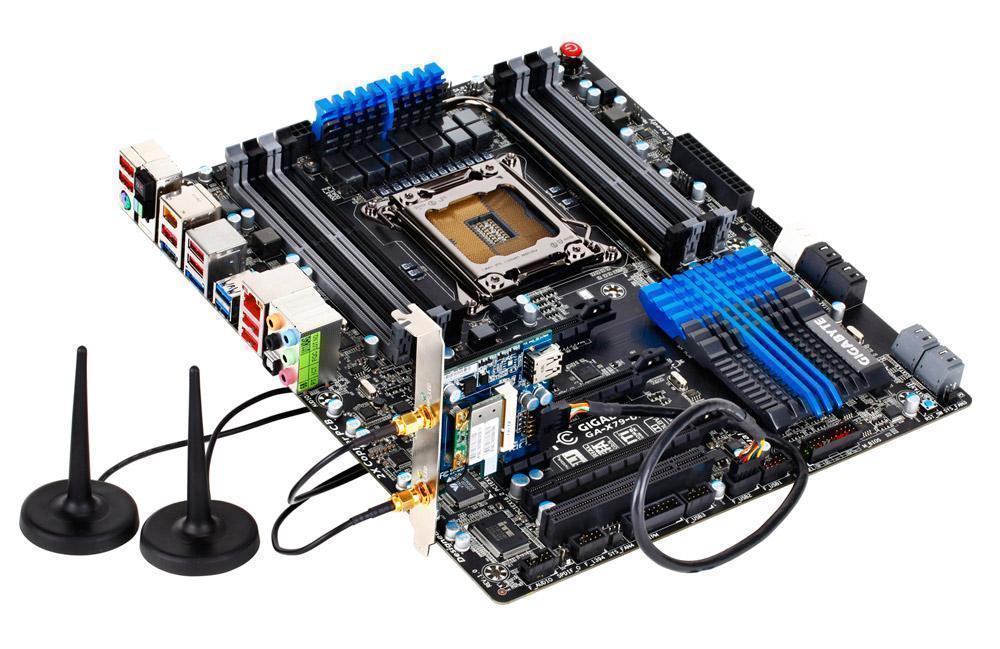

|GIGABYTE Bluetooth 4.0 and WiFi Card
With 2 kinds data transfer mode, GIGABYTE Bluetooth 4.0 and WiFi Card providing spec 300 Mbps transfer rates, 802.11n supports the latest WiFi specifications for better signal coverage, and featuring the newest Bluetooth 4.0, you will not suffer from signal loss like before.
|GIGABYTE 3D Power|
Users can now enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.
|3D Power: Voltage Control|
Voltage parameters can be modified within 3D Power, including load line calibration the of CPU. By adjusting load line calibration, Vdrooping can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, memory controller, VTT and system memory.
|3D Power: Phase Control|
Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed.
|3D Power: Frequency Control|
GIGABYTE's digital PWM allows for adjustable frequency control via the International Rectifier (IR3567) PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.
OC-Dual BIOS features a unique back-panel BIOS switcher and LED indicator, allowing users to select one BIOS for normal use, and another for specifically designated for overclocking. This means that if your overclocking configuration suffers from instability, you can easily revert to your stable settings if needed. With OC-Dual BIOS, users can also easily compare two different BIOS versions, a very useful feature when users want to update to a new BIOS, but don't want to lose their original settings.
|GIGABYTE 3D BIOS
The revolutionary GIGABYTE 3D BIOS application is based on our new GIGABYTE UEFI DualBIOS technology and is available to consumers in two new exclusive modes of interaction never before seen in a BIOS environment. GIGABYTE has re-drawn the traditional BIOS experience providing mainstream and enthusiast users with a choice of unique and powerful graphical interfaces.
UEFI DualBIOS Technology
At the heart of this exciting 3D BIOS technology is a pair of 8MB physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.
Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.
Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you’ve come to expect, wrapped a slick, new and optimized graphical UEFI interface.
|GIGABYTE On/Off Charge
GIGABYTE X79 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.
|GIGABYTE Ultra Durable 3
GIGABYTE X79 motherboards are equipped with the highest quality components that guarantee lower system temperatures, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable 3 design features 2 ounces of copper for both the power and ground layers which dramatically lower system temperature. GIGABYTE's Ultra Durable 3 also features Japanese made solid capacitors, PowerPAK MOSFETs and Ferrite Chokes which combine to offer lower motherboard temperatures, less wasted power and extended product longevity.
|Windows 8 Ready
With hardware driver compatibility tested and assured, GIGABYTE provides a complete solution for Windows 8 support. Starting now, users can experience the next generation operating system on GIGABYTE hardware, and can rest assured that they can easily upgrade once the final driver versions are released without any compatibility issues!
|Compatible Processors||Intel 2nd Generation Core i7 Extreme|
|Socket Type||LGA 2011|
|Chipset Type||X79 Express|
|RAM Installed / Max Capacity||0 MB / 64 GB Max|
|RAM Slots||8 x DDR3 DIMM|
|Supported RAM Technology||Quad Channel DDR3 SDRAM|
|Supported RAM Speeds||DDR3 2133/1866/1600/1333/1066 Mhz|
|Expansion Slots Total (Free)||2 x PCIe 3.0 x16 (running at x16)
1 x PCIe 3.0 x16 (running at x8)
2 x PCIe 2.0 x1
1 x PCI
|Multi-GPU Support||Supports 3-Way AMD CrossFireX
Supports 3-Way nVidia SLI

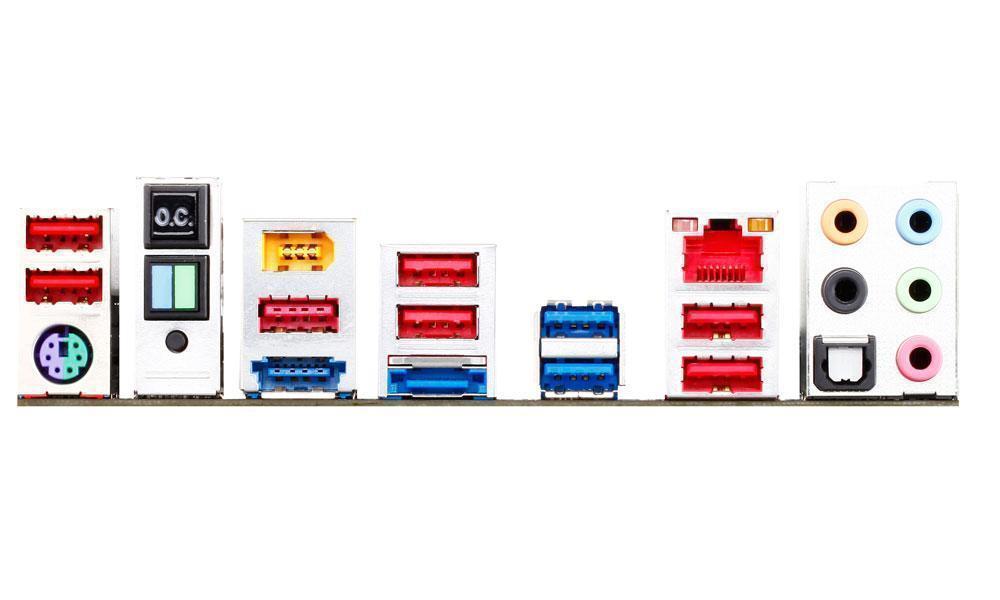

|Ports Present & Quantity||1 x PS/2 keyboard/mouse port
1 x CPU overclocking button
1 x BIOS switch button
1 x Clear CMOS button
1 x IEEE 1394 port
7 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x eSATA/USB Combo connector
1 x eSATA 6Gb/s connector
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
|Ports Present & Quantity||1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU fan header
4 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x IEEE 1394a header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
|Intel X79 Express Chipset||2 x SATA 6Gb/s (RAID 0,1 Support)
4 x SATA 3Gb/s (RAID 0,1,5,10 Support)
|Marvell 88SE9172 Chip||4 x SATA 6Gb/s (RAID 0,1 Support)
2 x eSATA 6Gb/s
|Controller||Intel GbE LAN|
|Ports||1 x LAN(RJ45) port|
|Controller/Codec/Information||Realtek ALC898 codec
High Definition Audio
Support for Dolby Home Theater
Support for S/PDIF Out
|Feature List||Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Smart 6
Support for eXtreme Hard Drive (X.H.D)
Support for ON/OFF Charge
Support for Cloud OC
Support for 3TB+ Unlock
Support for TouchBIOS
Support for Q-Share
