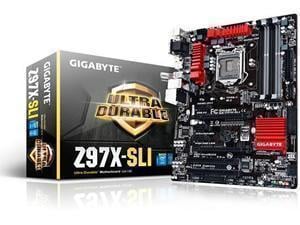

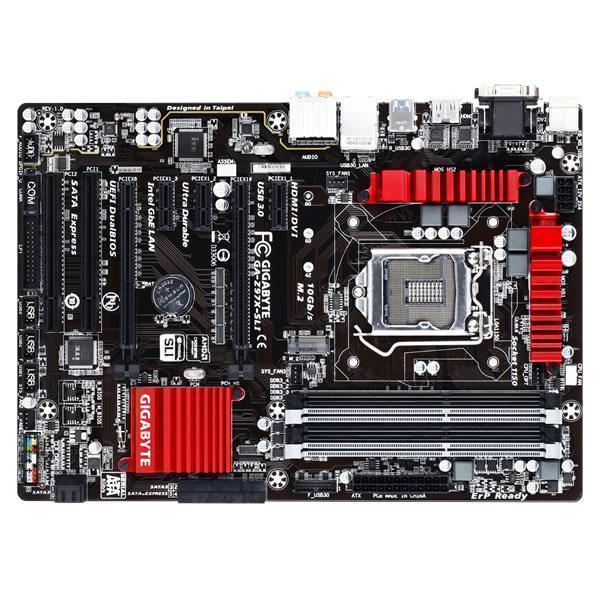

GIGABYTE GA-Z97X-SLI Intel Z97 (Socket 1150) Motherboard

i7 / i5 / i3 / Pentium / Celeron Support (5th/4th Gen), ATX, DDR3 (max 32GB), 6 x USB3, 8 x USB2, 6 x SATA3, SATA Express, M.2, DSub, DVI-D, HDMI
£89.99 inc vat

Order Code: GIG-Z97SLI

Manf.Code: GA-Z97X-SLI

Buy Online

6 available to buy online Free Delivery
Quantity:

Add to Wishlist

GIGABYTE GA-Z97X-SLI Intel Z97 (Socket 1150) Motherboard

Order Code: GIG-Z97SLI

£89.99 inc vat

Collect @ Store

Portsmouth : 6 in stock

Quantity:

Spend between £100 and £1000 to get your goods before you pay

More information

All consumer credit transactions are authorised and regulated by the Financial Conduct Authority

CPU and Chipset Features



Intel LGA1150 4th/5th Generation CPU Support

This motherboard supports Intel 4th and 5th Generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance.

Intel Z97 Express Chipset

The Intel Z97 Express Chipset is a single-chipset design that supports Intel LGA1150 4th and 5th Generation Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z97 provides a maximum 6 USB 3.0 ports, 6 SATA 6Gb/s ports and 1GB/s M.2 support for faster data retrieval. Moreover, the Intel Z97 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Performance and Stability Features


All Solid Caps and Low RDS(on) MOSFETs

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Power Failure Protection with Anti-Surge IC

GIGABYTE 9 series Ultra Durable motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Humidity Protection with New Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE 9 series motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

5x (15µ) Gold Plated CPU Socket Design

GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

Intel Smart Response Technology

Uses an installed fast SSD (18.6GB available capacity required) as a cache for frequently-accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.

Intel Rapid Start Technology

Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping energy use low.

Graphics Features


4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.

HDMI Support

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

AMD CrossfireX Multi-GPU Support

AMD CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system’s graphics capabilities. It allows you the ability to scale your system’s graphics horsepower as you need it, supporting up to four AMD Radeon HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFireX gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.

NVIDIA SLI Multi-GPU Technology

NVIDIA SLI technology is a revolutionary platform innovation that allows you to intelligently scale graphics performance by combining multiple NVIDIA graphics solutions in an SLI-Certified motherboard. Using proprietary software algorithms and dedicated scalability logic in each NVIDIA graphics processing unit (GPU), NVIDIA SLI technology delivers up to twice the performance (with 2 cards) and 2.8X the performance (with 3 cards) compared to a single graphics solution.

Memory Features


Dual-Channel DDR3 3000(OC) MHz Support

The motherboard supports 32GB DDR3 memory that features data transfer rates of up to 3000(OC) MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia and Internet applications.

Cooling Features


GIGABYTE OPT Fan Support

Many of today’s 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.

Audio Features


Realtek ALC1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC. The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Built-in Rear Audio Amplifier

Specially designed for gamers, GIGABYTE 9 series Ultra Durable motherboards utilize a high-capacity amplifier which is able to drive 600O loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones.

Transfer Features




SATA 6Gb/s

SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.



SATA Express 10Gb/s

GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.



M.2 10Gb/s

GIGABYTE motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.



USB 3.0

Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. GIGABYTE also has implemented a front panel USB 3.0 port, making the use of an external USB 3.0 device even more convenient.



Intel Gigabit LAN

Intel Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Software and Bios Features


GIGABYTE UEFI DualBIOS

GIGABYTE motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

GIGABYTE EasyTune App

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

GIGABYTE Cloud Station APP

GIGABYTE Cloud Station is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection.

Intel Smart Connect Technology

Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.

General Specification

Model Number GA-Z97X-SLI
Form Factor ATX
Dimensions 30.5cm x 21.4cm

Processor Information
Compatible Processors Intel 5th Generation Core i7/i5/i3
Intel 5th Generation Pentium
Intel 5th Generation Celeron
Intel 4th Generation Core i7/i5/i3
Intel 4th Generation Pentium
Intel 4th Generation Celeron
Socket Type LGA 1150
Power Design 4 Phase

Note: Please refer to GIGABYTE Website for Intel CPU Support List

Chipset
Chipset Manufacturer Intel
Chipset Type Z97 Express

Memory
RAM Installed / Max Capacity 0 MB / 32 GB Max
RAM Slots 4 x DDR3 DIMM
Supported RAM DDR3 Non-ECC UDIMM
RAM Architecture Dual-Channel
Supported RAM Speeds 3000/2800/2400/2133/1866/1600/1333 Mhz

Expansion Slots
Expansion Slots Total (Free) 2 x PCIe 3.0 x16
3 x PCIe 2.0 x1
2 x PCI

VGA & Integrated Graphics Options
Video Controller Supports Intel HD Graphics
Multi-GPU Support Supports AMD CrossfireX
Supports NVIDIA SLI

Ports & Connectivity - External IO Panel (Back of Motherboard)
Ports Present & Quantity 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x Audio jacks

Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
Ports Present & Quantity 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 PCIe connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x Water cooling fan header (CPU_OPT)
3 x System fan headers
1 x Front panel header
1 x Front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x Serial port header
1 x Parallel port header
1 x Clear CMOS jumper

Storage Interfaces & Controllers
Intel Z97 Express 6 x SATA 6Gb/s (RAID 0,1,5,10)
1 x SATA Express 10Gb/s
1 x M.2 (2242 / 2260 / 2280) 10Gb/s (PCIE & SATA Mode)

Note: M.2 / SATA Express and SATA3 4/5 connectors can only be used one at a time.
Note: The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed


LAN & Networking
Controller Intel
Lan Speed 10/100/1000
Ports 1 x LAN(RJ45) port

Wireless
Wireless N/A
Speed N/A
Features N/A

Audio
Controller Realtek ALC1150
Features 8-Channel HD Audio

Features & Technologies
Feature List GIGABYTE APP Center
Support for @BIOS
Support for EasyTune
Support for EZ Setup
Support for Fast Boot
Support for ON/OFF Charge
Support for Smart TimeLock
Support for Smart Recovery 2
Support for System Information Viewer
Support for USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
