Product Overview

Get a taste of Microsoft DirectX 11 and hardware tessellation technologies with the class-leading GeForce GT 520 graphics card. The GeForce GT 520 delivers an outstanding visual computing experience with perfect high-definition video playback capabilities. Hardware Blu-ray decoding capabilities enable flawless Blu-ray 3D playback while Dolby TrueHD and DTS-HD Master Audio bitstreaming enables bit-perfect audio output for the ultimate audio and visual experience with the GeForce GT 520 graphics card. HDMI 1.4 support ensures the GeForce GT 520 is compatible with the latest generation of 3DTV displays.

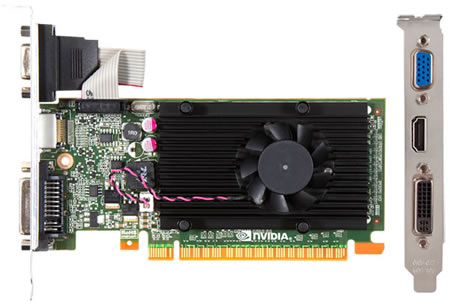

Image for display purposes only. Product appearance and video outputs may differ. Please check specification.

NVIDIA Features

	NVIDIA PhysX Technology PhysX is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, PhysX will provide an exponential increase in physics processing power and will take gaming to a new level delivering rich, immersive physical gaming environments.
	NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality.
	NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers and developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video and audio encoding to oil and gas exploration, product design, medical imaging, and scientific research.

General Specifications

Bus Interface	PCI Express 2.0 x16
Output Interface	1 x DVI-I 1 x HDMI 1 x VGA

Expansion / Connectivity

Compatible Slots	1 x PCI Express x16
Width	Single Slot

GPU Specification

Core Clock	810 MHz Core Clock
Shader Clock	1620 MHz Core Clock
CUDA Cores	48

Memory Specification

Memory Type	64 bit GDDR3
Memory Size	1024 MB
Memory Effective Size	1333 Mhz

Display Specification

Multi-Monitor Support	Up to 2 displays
Max Digital Resolution	2560x1600
Max Analogue Resolution	2048x1536

Thermal Specification

Max GPU Temp	102C
Max Power Requirement	29W
Min PSU Requirement	300W
Required Power Connectors	N/A

Supported Technologies

Technologies

DirectX 11 Support OpenGL 4.1 NVIDIA PhysX Technology NVIDIA CUDA Technology NVIDIA 3D Vision

Manufacturer Warranty

Warranty

1 Year
