Product Overview

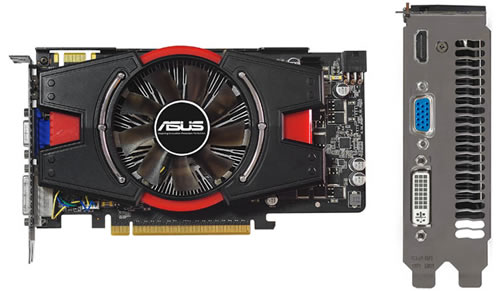

ASUS is proud to introduce the ASUS GTX 550 Ti. The card boasts Super Alloy Power which can create a 15% performance increase, 2.5 longer product life span and a 35°C cooler operation. Super Alloy Power is a special blend of elements formed using an ASUS exclusive formula, under extreme pressure and temperatures. The metals are highly-magnetic, heat-resistant and anti-corrosive used to reduce power loss, enhance durability and achieve cooler operation. Super Hybrid Engine is an intelligent power consumption optimizer that switches between high- and low-intensity power profiles in real-time. This in turn can provide up to 15% improved performance. With exclusive Voltage Tweak technology also being a key feature of this product, the GTX ENGTX550 TI/DI/1GD5 covers users for every possible over-clocking and over-volting scenario. With the complete package offered by this card users can easily boost their performance by up to 50%!

ASUS Exclusive Features

Super Alloy Power The new and exclusive Super Alloy Power technology on ASUS graphics cards uses a special alloy formula which is highly-magnetic, heat-resistant and anti-corrosive. It delivers a more stable and quieter operation compared to the reference design – a welcome bonus sought after by performance seekers. During overclocking, the Super Hybrid Engine acts as an intelligent controller to switch between high and low intensity power profiles in real time for 15% performance boost. Super Alloy Capacitor increases the card’s lifespan to 150,000 hours which is 2.5 times longer than traditional capacitors. Super Alloy components are reinforced with special alloy formula and manufactured under high temperature and pressure to deliver stable and noise-free operation.

ASUS Voltage Tweak Full throttle overclocking with exclusive ASUS Voltage Tweak via Smart Doctor – boosting 50% more speed, performance and satisfaction!

ASUS Smart Doctor ASUS SmartDoctor is a group of special tools to help users make the most of their ASUS graphics cards. It monitors the Fan RPM, AGP Power Level, GPU and RAM temperature, and has a slide bar for easy manual overclocking. Furthermore, the embedded HyperDrive and SmartCooling technology can dynamically overclock and change the fan speed for better performance and convenience. With its comprehensive hardware monitoring functions it provides you with the best graphics card investment protection and best performance when overclocking.

NVIDIA Features

	NVIDIA PhysX Technology PhysX is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, PhysX will provide an exponential increase in physics processing power and will take gaming to a new level delivering rich, immersive physical gaming environments.
	NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers and developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video and audio encoding to oil and gas exploration, product design, medical imaging, and scientific research.
	NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality.
	NVIDIA SLI Technology Delivers up to 2x the performance of a single GPU configuration for unequaled gaming experiences by allowing two cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI technology dramatically scales performance on today's hottest games.
	NVIDIA PureVideo HD Technology Blu-ray and HD DVD movies are bringing a new level of movie-viewing experience; with high-definition image quality far surpassing standard-definition DVDs. NVIDIA PureVideo HD2 technology provides unsurpassed Blu-ray and HD DVD movie picture quality.

General Specifications

Bus Interface	PCI Express 2.0 x16
Output Interface	1 x DVI-I 1 x HDMI 1 x VGA

Expansion / Connectivity

Compatible Slots	1 x PCI Express x16
Width	Dual Slot

GPU Specification

Core Clock	900 MHz Core Clock
Shader Clock	1800 MHz Core Clock
CUDA Cores	192

Memory Specification

Memory Type	192 bit GDDR5
Memory Size	1024 MB
Memory Effective Size	4100 Mhz

Display Specification

Multi-Monitor Support	Up to 2 displays
Max Digital Resolution	2560x1600
Max Analogue Resolution	2048x1536

Thermal Specification

Max GPU Temp	100C
Max Power Requirement	116W
Min PSU Requirement	400W
Required Power Connectors	1 x 6-pin

Supported Technologies

Technologies

DirectX 11 Support OpenGL 4.2 NVIDIA PhysX Technology NVIDIA CUDA Technology NVIDIA SLI Technology NVIDIA 3D Vision NVIDIA Pure VideoHD

Manufacturer Warranty

Warranty

2 Years
