Product Overview

Get your PC ready to dominate this year’s blockbuster games with the GeForce GTX 550 Ti. With up to 6 times the performance of previous generation’s graphics, you know you are well armed for the future. Performance is not the end of the story though; full DirectX 11 done right that blows away the competition, NVIDIA 3D Vision, NVIDIA Surround Gaming and NVIDIA PhysX give you the edge on your opponents. Get serious performance today with the GeForce GTX 550Ti.

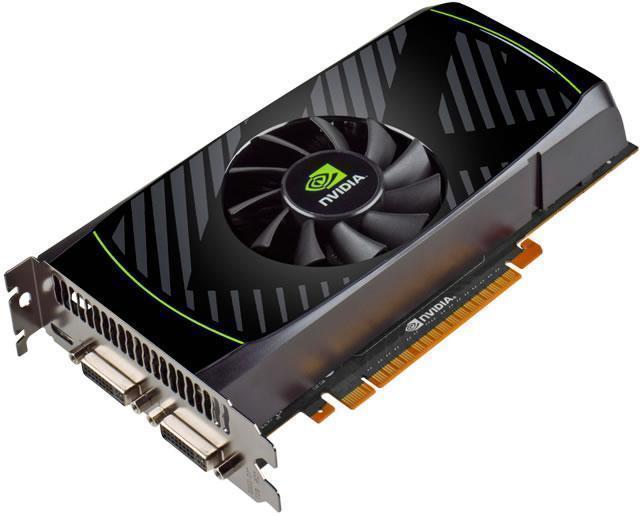

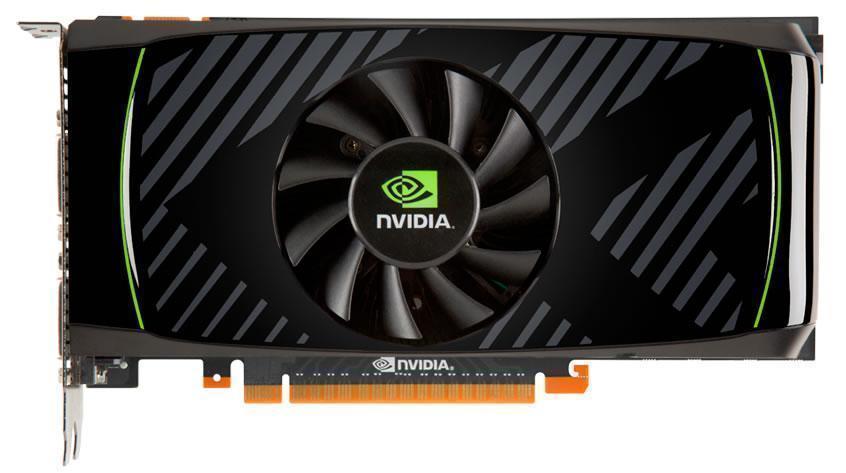

Image for display purposes only. Product appearance and video outputs may differ. Please check specification.

NVIDIA Features

	NVIDIA PhysX Technology PhysX is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, PhysX will provide an exponential increase in physics processing power and will take gaming to a new level delivering rich, immersive physical gaming environments.
	NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers and developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video and audio encoding to oil and gas exploration, product design, medical imaging, and scientific research.
	NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality.
	NVIDIA SLI Technology Delivers up to 2x the performance of a single GPU configuration for unequaled gaming experiences by allowing two cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI technology dramatically scales performance on today's hottest games.
	NVIDIA PureVideo HD Technology Blu-ray and HD DVD movies are bringing a new level of movie-viewing experience; with high-definition image quality far surpassing standard-definition DVDs. NVIDIA PureVideo HD2 technology provides unsurpassed Blu-ray and HD DVD movie picture quality.

General Specifications

Bus Interface	PCI Express 2.0 x16
Output Interface	1 x DVI-I 1 x HDMI 1 x VGA

Expansion / Connectivity

Compatible Slots	1 x PCI Express x16
Width	Dual Slot

GPU Specification

Core Clock	900 MHz Core Clock
Shader Clock	1800 MHz Core Clock
CUDA Cores	192

Memory Specification

Memory Type	192 bit GDDR5
Memory Size	1024 MB
Memory Effective Size	4100 Mhz

Display Specification

Multi-Monitor Support	Up to 2 displays
Max Digital Resolution	2560x1600
Max Analogue Resolution	2048x1536

Thermal Specification

Max GPU Temp	100C
Max Power Requirement	116W
Min PSU Requirement	400W
Required Power Connectors	1 x 6-pin

Supported Technologies

Technologies

DirectX 11 Support OpenGL 4.2 NVIDIA PhysX Technology NVIDIA CUDA Technology NVIDIA SLI Technology NVIDIA 3D Vision NVIDIA Pure VideoHD

Manufacturer Warranty

Warranty

2 Years
