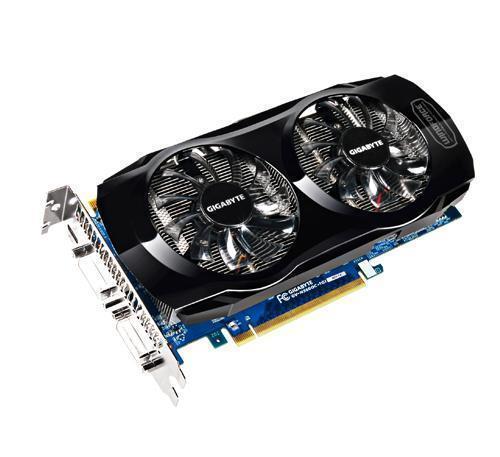

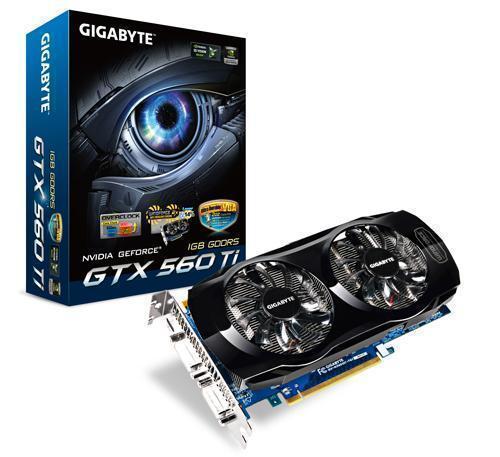

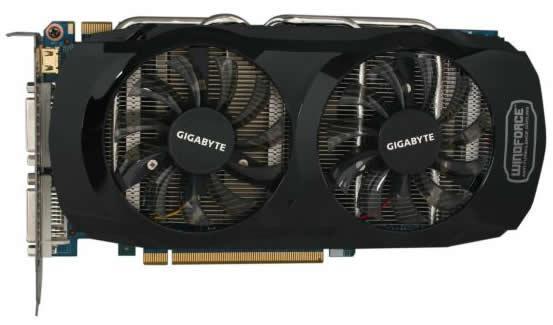

GIGABYTE GeForce GTX 560Ti OC 1024MB GDDR5
Order Code: GIG-560
Manf.Code: GV-N560OC-1GI
Product Overview
With explosive performance and an innovative thermal design, NVIDIA GeForce GTX 560 Ti rips through the latest games with quiet operation. As you've come to expect from a GeForce GTX GPU, GTX 560 Ti packs support for all the premium GTX gaming technologies such as DirectX 11, NVIDIA Surround, 3D Vision, PhysX, and SLI. GeForce GTX 560Ti - arm yourself for battle.
Gigabyte Exclusive Features
 | Ultra Durable VGA
GPU Temperature 5%~10% down Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB. GIGABYTE Ultra Durable VGA can lower GPU temperature by 5% to 10%. Overclocking Capability 10%~30% Up Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability. GIGABYTE Ultra Durable VGA graphic accelerators improve overclocking capability by 10% to 30%. Power Switching Loss 10%~30% Down Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency. GIGABYTE Ultra Durable VGA can lower power switching loss by 10% to 30%. |

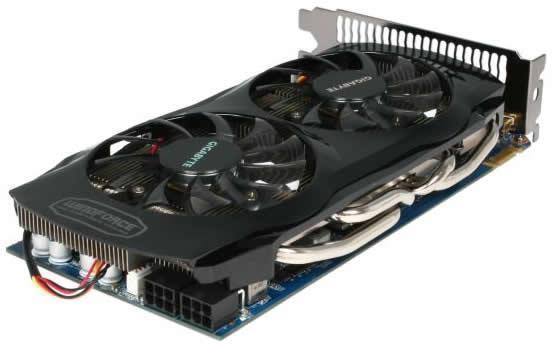

 | WindForce 2X Anti-turbulence-Parallel inclined
GIGABYTE introduces WINDFORCE, the latest cooling technology that differentiates the brand’s graphics cards from the rest. GIGABYTE understands that a fan is crucial to the graphics card, so only the fan with the most efficiency is selected for WINDFORCE. To qualify for WINDFORCE, a cooling solution must be equipped with anti-turbulence inclined fans, ultra quiet PWM fan and pure copper heat pipe. Inclined fins help to reduce excessive heat and turbulence. Depending on its orientation, there are 4 types of inclined-fan designs: outward-inclined, 3D-inclined, parallel-inclined, and mirroring-inclined. Each type generates excellent exterior airflow for efficient heat dissipation from the interior GPU core. |
NVIDIA Features
 | NVIDIA PhysX Technology
PhysX is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, PhysX will provide an exponential increase in physics processing power and will take gaming to a new level delivering rich, immersive physical gaming environments. |
 | NVIDIA CUDA Technology
NVIDIA CUDA technology is the world’s only C language environment that enables programmers and developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video and audio encoding to oil and gas exploration, product design, medical imaging, and scientific research. |
 | NVIDIA 3D Vision Surround
Expand your games across three displays in full stereoscopic 3D for the ultimate “inside the game” experience with the power of NVIDIA 3D Vision and SLI technology. NVIDIA Surround also supports triple screen gaming with non-stereo displays. |
 | NVIDIA 3D Vision
NVIDIA 3D Vision brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality. |
 | NVIDIA SLI Technology
Delivers up to 2x the performance of a single GPU configuration for unequaled gaming experiences by allowing two cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI technology dramatically scales performance on today's hottest games. |
 | NVIDIA PureVideo HD Technology
Blu-ray and HD DVD movies are bringing a new level of movie-viewing experience; with high-definition image quality far surpassing standard-definition DVDs. NVIDIA PureVideo HD2 technology provides unsurpassed Blu-ray and HD DVD movie picture quality. |
General Specifications
| Bus Interface | PCI Express 2.0 x16 |
| Output Interface | 2 x DVI-I 1 x Mini HDMI |
Expansion / Connectivity
| Compatible Slots | 1 x PCI Express x16 |
| Width | Dual Slot |
GPU Specification
| Core Clock | 900 MHz Core Clock |
| Shader Clock | 1800 MHz Core Clock |
| CUDA Cores | 384 |
Memory Specification
| Memory Type | 256 bit GDDR5 |
| Memory Size | 1024 MB |
| Memory Effective Size | 4000 Mhz |
Display Specification
| Multi-Monitor Support | Up to 2 displays |
| Max Digital Resolution | 2560x1600 |
| Max Analogue Resolution | 2048x1536 |
Thermal Specification
| Max GPU Temp | 97C |
| Minimum PSU Requirement | 500W |
| Required Power Connectors | 2 x 6-pin |
Supported Technologies
| Technologies | DirectX 11 Support
OpenGL 4.1 NVIDIA PhysX Technology NVIDIA CUDA Technology NVIDIA SLI Technology NVIDIA 3D Vision NVIDIA Surround Technology NVIDIA Pure VideoHD GIGABYTE WindForce 2X Thermal Solution |
Manufacturer Warranty
| Warranty | 2 Years |
Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.
Your Name
Your Email
Friends Name
Friends Email
Personal Message
2012-03-29
Product Rating:
Great value cards. Serious performance for the money. Just make sure your PSU is up to the job. Early cards were slightly under volted. A firmware update has sorted the issue, but it means they run pretty hot. Make sure your firmware is upto date, you have a quality PSU , and cooling in the case to cope with the heat.
Reviewed Posted by: Mike Gilbert,
Hampshire
2012-03-14
Product Rating:
Great card for the price i bought one to play Battlefield 3 and althought it did not run it on ultra very well i am happy with it, i am going to buy another and sli them ;)
Reviewed Posted by: Tony ,
liverpool
2012-02-16
Product Rating:
Great Card had this for a week and no problems at all (touch wood) runs Skyrim on Ultra High setting and WoW on Ultra (includeing Shadows) with no problems would recommend this to anyone that wants a great gaming GPU
Reviewed Posted by: Brian,
Bristol
2012-01-09
Product Rating:
Great card, rates 7.8/7.9 on windows experience index! Great overall card for the price, runs seemlessly, and came with adapters, DVI male to VGA female and Mini HDMI male to HDMI female.
Reviewed Posted by: Martyn Watton,
Southampton
2011-11-02
Product Rating:
Amazing card for the price, running everything i have on ultra. Windows rates it 7.9 and i can't wait to test it out on Skyrim soon. Also the free copy of Batman: Arkham City only sweetens the deal.
Reviewed Posted by: Nigel,
Portsmouth
2011-09-29
Product Rating:
had this card for over a month now and everything i have played on this card whit maxed out seting's on a 1080p nova tech 28inch works a treat and thats running a amd 1100 overclocked whit 8gig or ram
Reviewed Posted by: wiggy ,
2011-06-26
Product Rating:
Bought this card based on a review in a computer mag. Was not disappointed. Performs like a dream, performance equivalent to cards twice the price. Very good value for money.
Reviewed Posted by: cyborg,
2011-06-01
Product Rating:
Absolutely delighted with this graphics card, I purchased it for my second machine, but ended up replacing my ATI 5870 in my main machine. It''s the dogs Bollox!
Reviewed Posted by: Bertie,
2011-05-11
Product Rating:
This GPU has outstanding performance keeping @ 24-38 degree''s.
Reviewed Posted by: Anonymous,
2011-03-21
Product Rating:
brilliant card, much faster and full graphics compared to my old 9800gtx+
Reviewed Posted by: matt,
2011-02-22
Product Rating:
An impressive Card from Nvidia. I bought 2 to test out the SLI technology and am impressed with the temperature and quiet fans. Having set one GPU for phsyx while the other runs the monitor and it runs lovely. Bought for it''s directX11 compatability, it''s recommended for anyone wanting to try SLI and still have a graphics card that will perform well with modern games.
Reviewed Posted by: Duck,
2011-02-22
Product Rating:
I bought this card to replace a Ati 4870 , The graphics look aweome and all my games be played on ultra high settings. Im really impressed. Its quiet & cool , delivery was 2 days . couldn''t be more happy.
Reviewed Posted by: pete,
