Product Overview

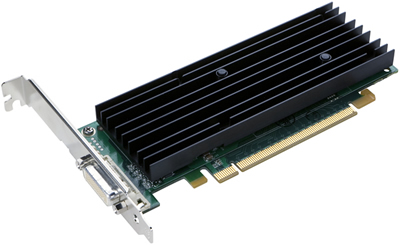

NVIDIA Quadro NVS 290 by PNY Technologies graphics boards for x16 PCIE deliver a new level of performance, quality and stability to professional 2D multi-display environments. The innovative NVIDIA unified architecture dynamically allocates geometry, shader, and compute processing power to efficiently deliver optimized performance. The 256MB DDR2 frame buffer makes the NVS 290 Microsoft Vista ready and capable of displaying the full Windows Aero user interface. Two VGA connectors, via the included DMS-59 to dual VGA adapter cable, offer outstanding image quality at resolutions up to 2048 x 1536 at 85Hz. Business professionals who spend their days in front of a workstation understand the importance and value of a solution that helps them work more efficiently. Whether it's tracking securities across multiple displays or managing several desktop applications, corporate users are looking for the right solution to fit their business requirements. The NVIDIA Quadro NVS 290 by PNY delivers the compatibility, quality and performance that corporate users demand. From small businesses to enterprise-level corporations, the NVIDIA Quadro NVS 290 by PNY for x16 PCIE delivers solutions to fit every user's needs.

NVIDIA Features

NVIDIA nView Technology As the magnitude of data increases, it is more crucial than ever for business professionals to efficiently manage their system’s desktop environment. Using NVIDIA nView Desktop Management Software, professionals have maximum flexibility and unprecedented control of a single or multiple display environments. nView provides the right set of tools to navigate through their system’s information reducing lost time while maximizing productivity.

NVIDIA PureVideo HD Technology NVIDIA PureVideo technology is the combination of high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine, and high quality HD video playback from Blu-Ray or HD-DVD.

General Specifications

Interface	PCI-Express x16
Output Interface	1 x DMS-59 (DMS-59 to Dual DVI-I SL adapter cable Included)

Expansion / Connectivity

Compatible Slots

1 x PCI Express x16

Display Specification

Maximum Displays per board	2
Maximum Analogue Resolution	2048x1536
Maximum Digital Resolution	1920x1200
nView Enabled	Yes

Memory Specification

Memory Type	64 bit GDDR2
Memory Size	256 MB
Memory Effective Size	800 Mhz

Manufacturer Warranty

Warranty

3 Years

Supported Technologies

Technologies

NVIDIA nView Technology NVIDIA Pure Video HD 128-bit color precision Unlimited vertex instruction 3D volumetric texture support 12 pixels per clock rendering engine 3rd generation occlusion culling 16 textures per pixel in fragment programs Window ID clipping functionality Hardware accelerated line stippling Low Profile bracket included in box Includes Full Height and Low Profile Brackets
