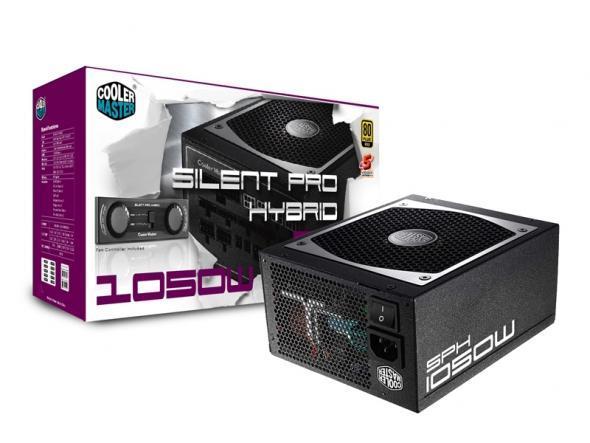

Coolermaster Silent Pro Hybrid Power Supply - 1050 Watt

80 PLUS Gold certified Power Supply - Fully Modular Cable Management System - Support for SLI and Crossfire
£237.43 inc vat
Review Star Review Star Review Star Review Star Review Star

Write a Review

Order Code: CM-SPH105

Manf.Code: RSA50-SPHAD3

Buy Online

Ordered Upon Request Free Delivery
Quantity:

Collect @ Store

Please select a store

Quantity:

You may also like...

Coolermaster Silent Pro Hybrid Power Supply - 1300 Watt
2 at Suppliers
£290.18 inc vat
Coolermaster GX 750W 80PLUS® Power Supply
2 in stock
£74.99 inc vat

Spend between £100 and £600 to get your goods before you pay

More information

Overview

Silent Pro hybrid 1050W is part of Cooler Master’s first fully modular power supply series with integrated dual 7V fan ports. It utilizes a single powerful +12V rail that operates at over 90% efficiency and carries an 80Plus Gold certification. A fan speed controller is included in the package. It occupies a 5.25” drive bay and enables a user to control the Silent Pro Hybrid 135mm Silent Hydraulic Bearing fan along with up to three system fans.

Features

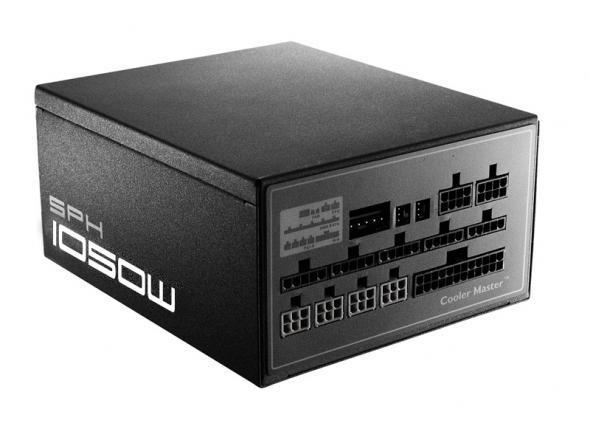

  • Fully Modular Cables
    Flexibility of using only the cables needed for a cleaner system build

  • Silent Operation

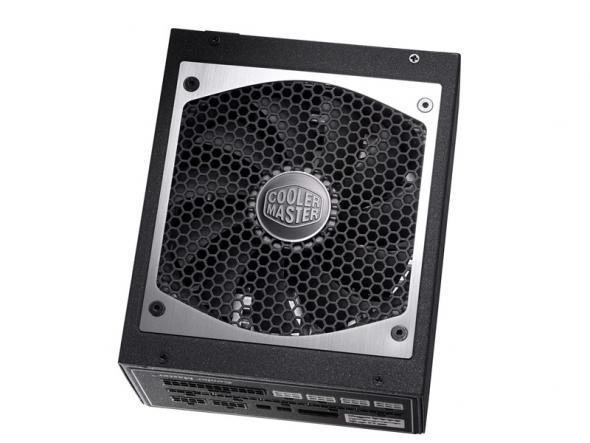

    135 mm Hydraulic Dynamic Bearing Fan for quieter operation

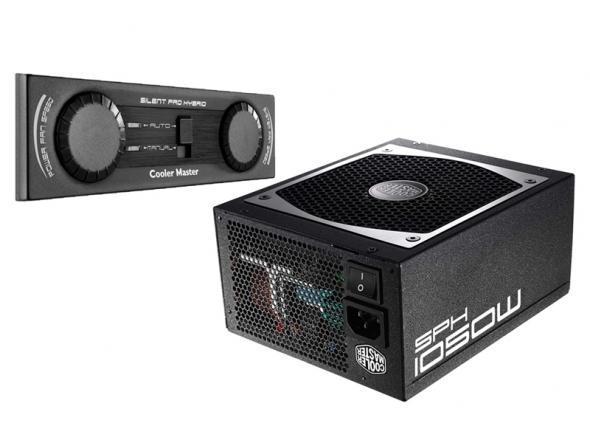

  • Function Panel Fan Speed Control
    5.25”control panel for 135mm PSU and three system fans

  • Switchable Automatic / Manual mode

    - Fanless Mode:
    Fanless operation with 135mm fan is at 0dB when loading is under 200W or 25 degree celcius

    - Manual Mode:
    PSU fan speed can be adjusted manually from 3V-12V

    Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading up to 105A.

  • Double-Layer EMI Filter Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.

  • Unique Patented Technologies:

    Hybrid Transformer™:
    Specially design transformer to improve thermal and efficiency. Patent design transformer mount with heat sink, the size was reduced by up to 25% than the traditional transformer providing lesser energy consumption, while conducting the heat for better overall efficiency.

    HTT™ - Heat Transfer Technology:
    Patent design “L” shaped heat sink layout. This technology helps to guide the air flow along the heat sink to improve the air circulation for maximum performance.

    Hyper Path™:
    Patent design hyper link between IC and the relative components. Patent energy conversion design path provides super efficient connection from the transformer to components. The signal can be transfer directly without any energy loss.

  • Intel Compliant ATX12V v 2.3 and EPS version 2.92 compliant.

  • Active PFC+ PWM Combo Controller Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.

  • Japanese Capacitors
    High quality capacitors protecting equipment from capacitor leakage problem, also increasing the life-span of your equipment, especially at high temperatures.

    Eco-friendly design: Erp Lot6 Ready!
    A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode

    Supports 4-Way SLI / CrossFire + Dual CPUs.
    Able to run toughest rig with 4-way GPUs and dual CPUs without any hassle.

    And More...
    Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
    Multiple Protection Design (OVP / UVP / OCP / OPP / OTP / SCP)
    High reliability with an MBTF of at least 100,000 hours of use.
    Five Year Warranty.

    Exterior


    • General

    Brand Coolermaster
    Range Silent Pro Hybrid
    Model Number RSA50-SPHAD3
    Type Intel ATX 12V V2.3 & SSI EPS 12V V2.92
    Dimensions (W x H x D) 150 x 180 x 86 mm
    Output Capacity 1050 Watt
    Power
    Input Voltage 90-264V (Auto Range)
    Input Current 9-4.5A
    Input Frequency Range 47Hz-63Hz
    PFC Active PFC (>0.9)
    Power Good Signal 100-500ms
    Hold Up Time 17ms
    PFC Active PFC (>0.9)
    Efficiency 90% Typically
    MTBF 100,000 Hours

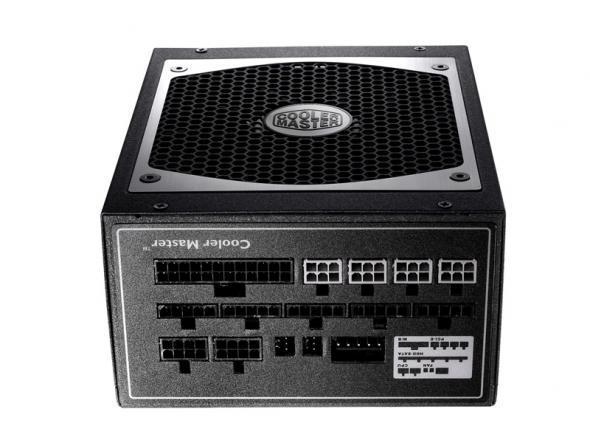

    Connectors
    24 Pin Motherboard 1
    4 + 4 Pin CPU 2
    6 + 2 Pin PCIe 6
    SATA 12
    4 Pin Peripheral 5
    4 Pin Floppy 1
    3 Pin Fan 3
