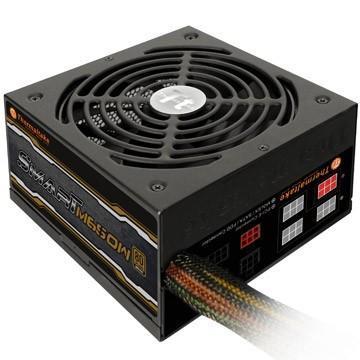

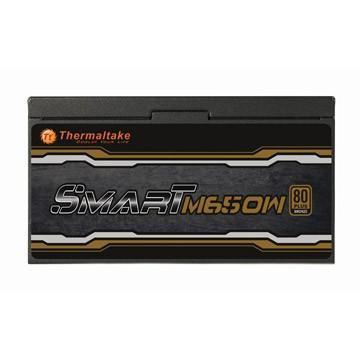

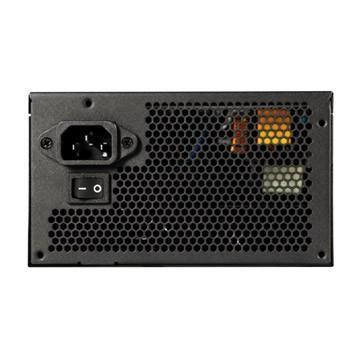

Thermaltake Smart Power Series - 650 Watt Modular Power Supply

80 PLUS® Bronze Certified, Up to 88% efficent, Fully Modular Cable Management System, Supports multiple core high-end graphic cards & CPU

Order Code: TT-SP650M

Manf.Code: SP-650M

Write a Review

Price: £81.98 inc vat
Free Delivery
Buy Online

Buy Online

2 Due 28 May
Quantity:
Add to Basket
Collect at Store

Collect @ Store

Please select a store

Quantity:
Order To Collect

Features

  • Support the latest ATX 12V V2.3 & EPS 12V standards.
  • Guaranteed to deliver 650W continuous output @ 40°C operating environment.
  • High current & single +12V rail provides superior performance.
  • 80 PLUS® Bronze certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
  • Active PFC with Universal AC input.
  • Supports multiple core high-end graphic cards & CPU. (NVIDIA SLI & ATI CrossFire Ready)
  • High reliability: MTBF>100,000 hours.
  • Heavy-duty protection circuitry of Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
  • Safety / EMI Approvals: UL/CUL/TUV/CE/FCC and BSMI certification.

  • High Quality Japanese Main Capacitor
    Japanese main capacitors provide uncompromised performance and reliability.
  • Industrial Grade Protection
    Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.

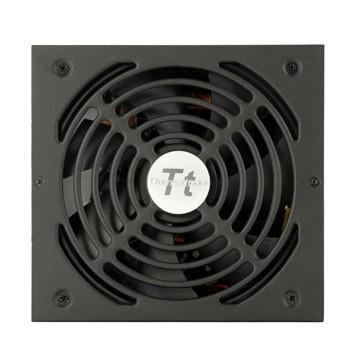

  • Ultra Quiet 14cm Fan
    SMART Modular Bronze series adopt 14cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
  • Flat Modular Cables
    SMART Modular Bronze series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.
  • Modular Cable Management
    Cable management design improves internal airflow and reduce clutter.
  • 80 Plus Bronze Certified
    SMART Modular Bronze series saves energy through its high energy efficiency of up to 85% and is 80 PLUS® Bronze certified.



    • General

    Brand Thermaltake
    Series Smart Power
    Part Code SP-650M
    Colour Black
    Dimensions (H x W x D) 86mm x 150mm x 160mm
    Max. Output Capacity 650W
    Peak Output Capacity 715W
    Type Intel ATX 12V 2.3
    PFC Active PFC
    Power Good Signal 100-500 msec
    Connectors
    Main Power 1
    ATX 12V 1
    PCI-E 8 Pin 2
    PCI-E 6+2 Pin 2
    SATA 6
    Peripheral 4
    Floppy Disk Drive 1
    Operating Conditions
    Operating Temperature 0°C to +50°C
    Operating Humidity 20% to 90%, non-condensing
    Storage Temperature -20°C to +70°C
    Storage Humidity 5% to 95%, non-condensing

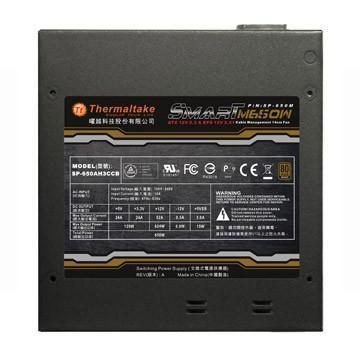

    DC Output +3.3V +5V +12V -12V +5.5Vsb
    Max Output Current 24A 24A 52A 0.5A 3.0A
    Max Output Power 120W 120W 624W 6W 15W
