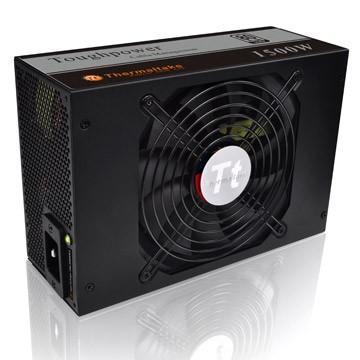

ThermalTake Toughpower 1500W Modular Power Supply

The most powerful PSU On The Market, Active ATX, up to 91% efficiency

Order Code: TT-TP1500

Manf.Code: TP-1500M

Write a Review

Price: £234.98 inc vat
Free Delivery
Buy Online

Buy Online

Ordered Upon Request
Quantity:
Add to Basket
Collect at Store

Collect @ Store

Please select a store

Quantity:
Order To Collect

Technology Features

  • High Quality Japanese Capacitor - Japanese capacitors provide uncompromised performance and reliability.
  • High Efficiency Circuit Design - Maximum efficiency up to 91% under wide load range.
  • Industrial Grade Protection - Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power, Over Temperature and Short-Circuit Protections.

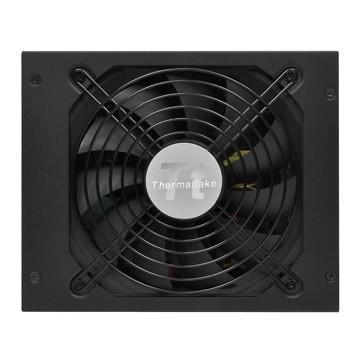

  • Ultra Quiet 13.5cm Fan - Toughpower 1500W adopt 13.5cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
  • Modular Cable Management - Cable management design improves internal airflow and reduce clutter

    Features

  • Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.
  • 24 / 7 @ 40?: Guaranteed to deliver 1500W continuous power.
  • 80 PLUS Silver certified – with 87-91% efficiency @ 20-100% load under real world load conditions.
  • Double-forward switching circuitry offers low power loss and high reliability.
  • Robust and dedicated quad +12V rails(30A for 12V1 & 12V2, 50A for 12V3 & 12V4) design provides superior performance under all types of system loading.
  • High quality Japanese capacitors: ensure superb performance and reliability.
  • Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
  • Universal AC input 100V~240V automatically scans and detects the correct voltage.
  • Multi-GPU ready: 8 x PCI-E connectors support up to 4-way ATI CrossFireX and Nvidia SLI.
  • Designed to support latest Intel/AMD multi -core CPUs.
  • Active PFC with PF value 0.99 - less harmonic pollution, greater efficiency.
  • Ultra-silent operation with intelligent 13.5cm cooling fan speed control.
  • Dimension: 150mm(W)x86mm(H)x220mm(L).
  • High reliability: MTBF>120,000 hours.
  • Built in industrial-grade protections: over current, over voltage, under voltage, over power, over temperature and Short-Circuit protections.
  • Safety / EMI : UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI certified.

    • General

    Brand Thermaltake
    Model Number TP-1500M
    Type Intel ATX 12V 2.3 & EPS 12V 2.92
    Max. Output Capacity 1500W
    Peak Output Capacity 1600W
    Colour Black
    Dimension (H x W x D) 86mm x 150mm x 220mm
    PFC (Power Factor Correction) Active PFC
    Power Good Signal 100-500 msec
    Hold Up Time 16msec (minimum) @ full load at 115Vac/ 230Vac input.
    Input current 18A – 9A
    Input Frequency Range 50 Hz - 60 Hz
    Input Voltage 100 Vac- 240 Vac
    Cooling System 135mm Fan: 2400 R.P.M. ± 10%
    Efficiency 87%-91% efficiency @ 20-100% load
    MTBF 120,000 hrs minimum
    Power
    AC Input 230V (47-63Hz)
    DC Output +3.3 +5 +12V1 +12V2 +12V3 +12V4 -12V +5Vsb
    Max Load 40A  40A 30A   30A   50A  50A  0.5A  6A
    Max Combined Wattage N/A
    Total Power 1500W


    Connectivity
    ATX 24 pin & 20 pin compatible x1
    EPS/ATX12V 4+4 pin x1
    PCI-E 6+2 pin x8
    SATA x12
    4 Pin Molex Peripheral x8
    Floppy x1


    Manufacturer Warranty
    Service & Support 5 Year Warranty
