Asus Xonar D2/PM
PCI Interface, Dolby Headphone, Dolby Virtual Speaker, Dolby Pro-Logic IIx, Dolby Digital Live, DTS Connect, DirectSound3D, A3D 1.0
Order Code: ASU-XD2PM
Manf.Code: 90-YAA021-1UAN00
Price:
£91.91 inc vat
Product Features
Product Overview

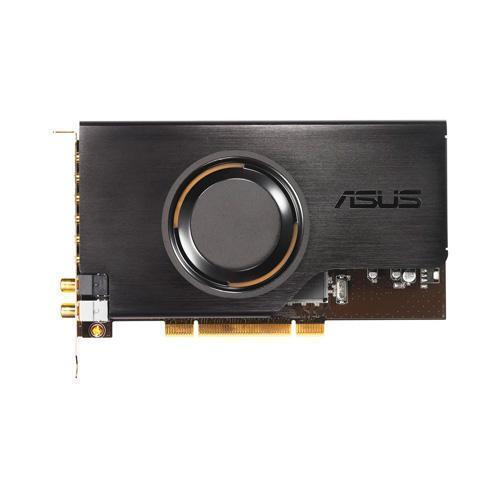

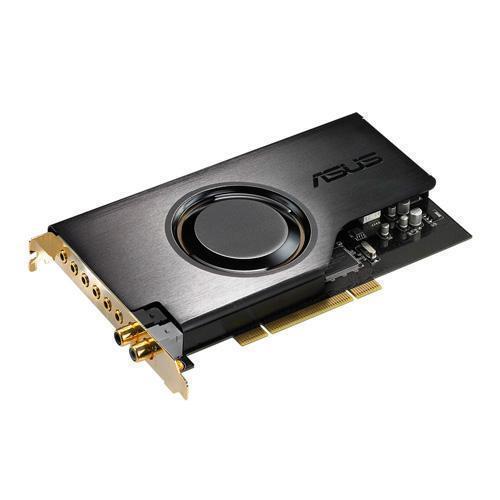

ASUS Xonar D2 audio card, dedicated to be the best audio card for gaming and home entertainments, provides unprecedented 118dB In/Out SNR audio quality and features for games, music, and movies. Combining 192k/24bit ultra fidelity input and output at with a suite of Dolby and DTS sound technologies and abundant valuable software, the Xonar D2 is well designed to upgrade your PC to a powerful and high-quality Home Entertainment Center, which you will never have with onboard audio or other sound cards!
Audio Performance
| Output Signal-to-Noise Ratio | 118dB for all channels dB |
| Input Signal-to-Noise Ratio | 118dB |
| Output THD+N at 1kHz | 0.0004% (-108dB) |
| Input THD+N at 1kHz | 0.0004% (-108dB) |
| Frequency Response | <10Hz to 46kHz (for all channels) |
| Output/Input Full-Scale Voltage | 2 Vrms (5.65 Vp-p) |
| Sample Rate Conversion Quality | Almost lossless high-fidelity floating-point filters |
Main Chipset
| Audio Processor | ASUS AV200 High-Definition Sound Processor |
| 24-bit D-A Converter of Digital Sources | Burr-Brown PCM1796 *4 |
| 24-bit A-D Converter for Analog Inputs | Cirrus-Logic CS5381* 1 |
Sample Rate and Resolution
| Playback Sample Rate | 44.1K/48K/96K/192KHz @ 16/24bit |
| Recording Sample Rate | 44.1K/48K/96K/192KHz @ 16/24bit |
| S/PDIF Digital Output | Dolby Digital, DTS, WMA-Pro |
| S/PDIF Digital Input | 44.1K/48K/96K/192KHz @ 16/24bit |
| ASIO 2.0 Driver Support | 44.1K/48K/96K/192KHz @16/24bit |
I/O Ports
| Analog Output Jack | 3.50mm mini jack *4 (Front/Side/Center-Subwoofer/Back) |
| Analog Input Jack | 3.50mm mini jack *2 (Line-In/Mic-In) |
| Other line-level analog input | CD-In, Aux-In (4-pin header on the card) |
| Digital S/PDIF Output | Coaxial and High-bandwidth Optical Combo Connector |
| Digital S/PDIF Input | Coaxial and High-bandwidth Optical Combo Connector |
| MIDI Ports | MPU-401 MIDI I/O bracket and converter cable |
Driver Features
| Operation System | Windows 7/Vista/XP(32/64bit)/MCE2005 |
| Sound Technologies | Dolby Digital Live
Dolby Headphone Dolby Virtual Speaker Dolby Pro-Logic IIx DTS Connect VocalFX Smart Volume Normalizer Karaoke Functions Magic Voice FlexBass Xear 3D Virtual Speaker Shifter 10 Band Equaliser 27 Environmental Effects DirectSound3D GX 2.5 DirectSound HW DirectSound SW A3D 1.0 OpenAL generic modes 128 3D sounds processing capability |
