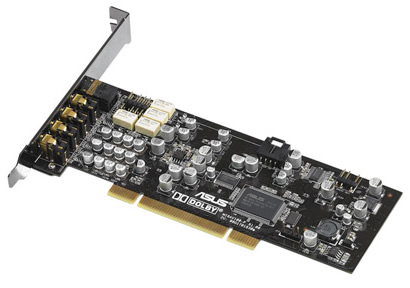

Asus Xonar D1

PCI Interface, Dolby Digital Live, Dolby Headphone, Dolby Pro-Logic IIx, Dolby Virtual Speaker, DirectSound3D, A3D1.0, OpenAL

Sorry, this product is no longer available to purchase.

Please view our whole range of Sound Cards here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features


  • 35 times clearer then on-board audio
  • Supports latest DS3D GX2.0 for gaming on Vista & XP
  • Dolby home theater technologies
  • Low-profile bracket bundled
  • S/pdif connect to vga cards for hdmi output



    Product Overview


    Complete Dolby Home Theater technologies
    Inheriting from DX and D2X, Xonar D1 also provides complete valuable Dolby Home Theater technologies for games and all home entertainments:

    Dolby Digital Live:
    Real-time 5.1 Dolby Digital surround sound encoders

    Dolby Pro-Logic IIx:
    Converts stereo or 5.1 sounds to seamless 7.1 surround soundfield

    Dolby Headphone:
    Delivers a realistic and spacious 2-to-5.1 surround or 3D positional soundfield over any set of stereo headphones

    Dolby Virtual Speaker:
    Simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers

    Supports latest DS3D GX 2.0 for gaming on Vista & XP
    DS3D GX 2.0 not only revives EAX and DirectSound effects in games on Windows Vista as GX 1.0, but also incorporates Dolby Home Theater Technologies (Dolby Virtual Speaker, Dolby Headphone, Dolby Digital Live, Dolby PrologicIIX) to provide best gaming audio experience.

    Innovative VocalFX makes gaming and online chat more lively and attractive
    VocalFX is an innovative voice processing technology to let your voice get into the realistic game landscape (VoiceEX) or to emulate the background scenes in online chat (ChatEX). It also allows you to change your voice pitch to disguise who you are (Magic Voice). These features dramatically increase the fun for voice communication on PC.

    Delivers about 35 times cleaner audio quality than most motherboard audio
    The noise on Xonar D1 audio card is only 1/35 (2.8%) of the noise level from most motherboard onboard audio. In addition, Xonar D1 also produces as little as 1/32 (-105dB) of the total harmonics distortion from motherboard audio does (-75dB).

    S/PDIF header for combining audio with video through a VGA cards HDMI output
    The new S/PDIF header allows connectivity with supporting VGA cards, facilitating merged output of audio and video through a VGA cards HDMI port. This provides a clean, simple solution for Home Theater PC builders.

    • Audio Performance

    Output Signal-to-Noise Ratio 116dB for front-out, 112dB for other channels dB
    Input Signal-to-Noise Ratio 112 dB
    Output THD+N at 1kHz 0.00056% (-105dB) for Front-out
    Input THD+N at 1kHz 0.0004% (-108dB) for Line-in
    Frequency Response <10Hz to 48KHz
    Output/Input Full-Scale Voltage 2 Vrms (5.65 Vp-p)

    Main Chipset
    Audio Processor ASUS AV100 High-Definition Sound Processor
    24-bit D-A Converter of Digital Sources Cirrus-Logic CS4398*1 for Front-Out
    Cirrus-Logic CS4362A*1 for other 6 channels
    24-bit A-D Converter for Analog Inputs Cirrus-Logic CS5361* 1

    Sample Rate and Resolution
    Playback Sample Rate 4.1K/48K/96K/192KHz @ 16/24bit
    Recording Sample Rate 44.1K/48K/96K/192KHz @ 16/24bit
    S/PDIF Digital Output 44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital, DTS
    S/PDIF Digital Input 44.1K/48K/96K/192KHz @ 16/24bit
    ASIO 2.0 Driver Support Supports 44.1K/48K/96K/192KHz @16/24bit

    I/O Ports
    Analog Output Jack 3.50mm mini jack *4 (Front/Side/Center-Subwoofer/Back)
    Analog Input Jack 3.50mm mini jack *1 (Shared by Line-In/Mic-In)
    Other line-level analog input Aux-In (4-pin header on the card)
    Digital S/PDIF Output High-bandwidth TOS-Link optical transmitter
    S/PDIF Header Connecting to supported VGA cards with HDMI output

    Other Specifications
    System Requirements One PCI slot for the audio card
    Microsoft Windows 7/Vista(32/64bit)/XP(32/64bit)/MCE2005
    Intel Pentium4 1.4GHz or AMD Athlon 1400 CPU or faster CPU
    256 MB DRAM system memory
    60 MB available HDD space
    CD-ROM drive (or DVD-ROM drive)
    High-quality headphones
    or powered analog speakers
    or Dolby Digital or DTS decoder
    Package Contents Xonar D1 7.1 Channel PCI Audio Card
    Driver CD (including RMAA V6.0.6 utilities)
    Low-profile bracket
    S/PDIF TOSLINK optical adaptors *1
    Quick Start Guide
    Driver CD (including RMAA V6.0.6 utilities)
