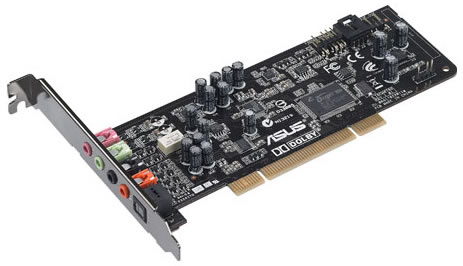

Asus Xonar DG - OEM

PCI Interface, Dolby Headphone, DirectSound3D, A3D 1.0, OpenAL

Sorry, this product is no longer available to purchase.

Please view our whole range of Sound Cards here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features


  • Built-in Headphone AMP
  • Powers up every sound detail in gaming
  • 3 gain modes for different usage scenarios
  • Dolby Headphone for an immersive 5.1 surround imaging
  • GX2.5 for realistic 3D audio effects



    Product Overview


    The Xonar DG sound card combines Dolby Headphone 5.1 high definition surround with ASUS own GX 2.5 gaming audio engine and an on-board headset amplifier. These result in accurate and deep audio that brings every nuance and sound across fully, making the new Xonar DG an ideal sound card for gamers who want to remain totally aware of their play environments.

    • Audio Performance

    Output Signal-to-Noise Ratio 105 dB
    Input Signal-to-Noise Ratio 103 dB
    Output THD+N at 1kHz 0.0025% (-92dB)
    Input THD+N at 1kHz 0.0022% (-93dB)
    Frequency Response <10Hz to 46kHz
    Output/Input Full-Scale Voltage 1Vrms (3Vp-p)

    Main Chipset
    Audio Processor C-Media CMI8786 High-Definition Sound Processor
    24-bit D-A Converter of Digital Sources Cirrus Logic CS4245*1
    24-bit A-D Converter for Analog Inputs Cirrus Logic CS4245*1
    High Fidelity Headphone Amplifier Optimized for 32~150 Ohms

    Sample Rate and Resolution
    Playback Sample Rate 44.1K/48K/96K @ 16/24bit
    Recording Sample Rate 44.1K/48K/96K @ 16/24bit
    S/PDIF Digital Output 44.1K/48K/96KHz @ 16/24bit
    Dolby Digital, DTS, WMA-Pro
    ASIO 2.0 Driver Support 44.1K/48K/96K/192KHz @16/24bit

    I/O Ports
    Analog Output Jack 3.50mm mini jack *3 (Front/Side/Center-Subwoofer)
    Analog Input Jack 3.50mm mini jack *1 (Line-In/Mic-In)
    Other line-level analog input Aux-In (4-pin header on the card)
    Digital S/PDIF Output High-bandwidth Optical Connector supports 96KHz/24bit
    Front-Panel Header Supports headphone jack-detection

    Driver Features
    Operation System Windows 7/Vista/XP(32/64bit)/MCE2005
    Sound Technologies Dolby Digital Live
    Dolby Headphone
    Smart Volume Normalizer
    Karaoke Functions
    Magic Voice
    FlexBass
    Xear 3D Virtual Speaker Shifter
    10 Band Equaliser
    27 Environmental Effects
    DirectSound3D GX 2.5
    DirectSound HW
    DirectSound SW
    A3D 1.0
    OpenAL generic modes
    128 3D sounds processing capability
