Swann 4 Camera 500GB Network Based Security System

500GB, 4 x Sony CCD BNC Cameras, Night Vision, Indoor / Outdoor

Sorry, this product is no longer available to purchase.

Please view our whole range of CCTV & Security here

Spend between £100 and £1000 to get your goods before you pay

More information

All consumer credit transactions are authorised and regulated by the Financial Conduct Authority

Product Highlights

  • View & record from up to 4 cameras simultaneously during the day, night, indoors or outdoors
  • Includes 4 all-weather, high resolution 480TVL cameras with powerful night vision to 65ft/20m
  • Set & forget by recording continuously from 4 cameras for 120 days* onto a massive 500GB hard drive
  • Save time & have peace of mind by easily locating incident video, then transfer to a USB flash drive
  • Surveillance in the palm of your hand with live viewing on 3G enabled Smartphones
  • Remote viewing is easier than ever to set up with UPnP (Universal Plug n Play) auto network configuration
  • Fight back against crime by deterring intruders, protecting your property & knowing what's happening at all times
  • A state of the art solution for any home or business wanting complete protection


    Product Overview

    With the Swann DVR4-1200 4 Camera Security System, peace of mind has never been easier - or more affordable. Capable of monitoring and recording video from the 4 cameras included in the pack the Swann DVR4-1200 Digital Video Recorder offers you state-of-the-art, professional monitoring in an easy to install, easy to setup and easy to use package. The 4 professional grade PRO-560 CCD cameras will provide clear video direct to the DVR and can see during the day & night (up to 65ft / 20m). Even better, you can also securely access your system from practically anywhere in the world from almost any computer connected to the internet, or even from your 3G capable Smartphone. The Swannview app can be viewed with iPhone, iPad, Blackberry, Android, Windows Mobile 6, Symbian OS and more*. You're in total control of the DVR's recording modes - easily select your preferred resolution, frame rate and the amount of video compression. You can record from the four cameras for 120 days* continuously onto the massive 500GB hard drive. You can transfer video incidents to USB flash drive to keep on your PC or forward to other parties. With its affordable price and features, this is a perfect starting point for a home or business looking for a cutting-edge security solution. The Swann DVR4-1200 DVR - professional, affordable and powerful. It really is advanced security made easy.



    *120 days recording achieved using lower settings, default settings give 30 days recording
    *Not all handset models supported

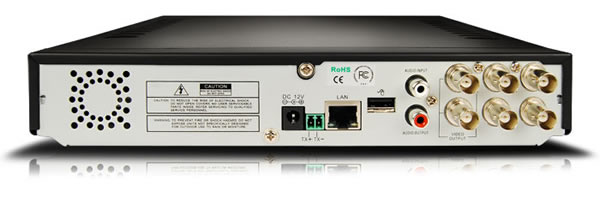

  • DVR4-1200 Specification


    Video Specification
    Video Format Both
    Video Inputs 4 x Composite BNC Inputs
    Video Outputs 2 x Composite BNC Outputs
    Display Resolution NTSC: 704 x 480 / PAL: 704 x 576
    Display Frame Rate NTSC: 120fps / PAL: 100fps

    Audio Specification
    Audio Input 1 x RCA Input
    Audio Output 1 x RCA Output

    Recording Specification
    Compression Format H.264
    Recording Resolution NTSC: 704 x 480 (D1), 704 x 240 (HD1), 352 x 240 (CIF)
    PAL: 704 x 576 (D1), 704 x 288 (HD1), 352 x 288 (CIF)
    Recording Frame Rate NTSC: 30 fps (D1), 60 fps (HD1), 120 fps (CIF)
    PAL: 25 fps (D1), 50 fps (HD1), 100 fps (CIF)
    Recording Modes Manual / Schedule / Motion
    Multiplex Operation Triplex
    HDD Interface / Memory Type SATA
    Hard Drive Support Up to 1TB

    Network Specification
    LAN Connection Yes
    Network Interface RJ45
    Network Protocol TCP/IP, DDNS, UPnP
    Remote Operation Yes

    General Specifications
    Operating Power DC 12V
    Dimensions 250mm x 220mm x 40mm
    Weight 1.5kg
    Back-up Method USB to Flash Drive
    Mouse Support Yes
    Remote Control Yes
    Remote Control Battery 2 x AAA

    PRO-560 Camera Specifications


    Video Specification
    Image Sensor 1/4" Sony CCD
    Video Quality 480 TV Lines
    Number of Effective Pixels NTSC: 510 x 492 / PAL: 628 x 582
    Minimum Illumination 0 Lux (IR on)
    Day/Night Mode Color during day / switches to B&W at night
    White Balance Automatic
    Signal / Noise Ratio > 50dB
    Electronic Shutter NTSC: 1/60 - 1/100,000
    PAL: 1/50 - 1/100,000
    Gain Control Automatic
    Backlight Compensation Yes
    Wide Dynamic Range No
    Lens 3.66mm
    Viewing Angle 62 Degrees

    Audio Specification
    Microphone N/A
    Audio Range N/A

    Night Vision Specification
    Night Vision Distance Up to 65ft / 20m
    IR Cut Filter No
    Number of Infra-Red LEDs 12
    Infra-Red Wavelength 850nm
    Infra-Red LED Life 10,000 hours

    General Specification
    Indoor / Outdoor Both
    Operating Power DC 12V
    Operating Temperature -4 degrees F~ 113 degrees F
    -20 degrees C ~ 45 degree C
    Body Construction Aluminum
    Dimensions - Camera & Stand N/A
    Dimensions - Camera 82mm x 58mm x 55mm
    Dimensions - Stand 50mm x 50mm x 70mm
    Weight - Camera 203g
    Weight - Camera & Stand 286g
    Cable Length 18m
