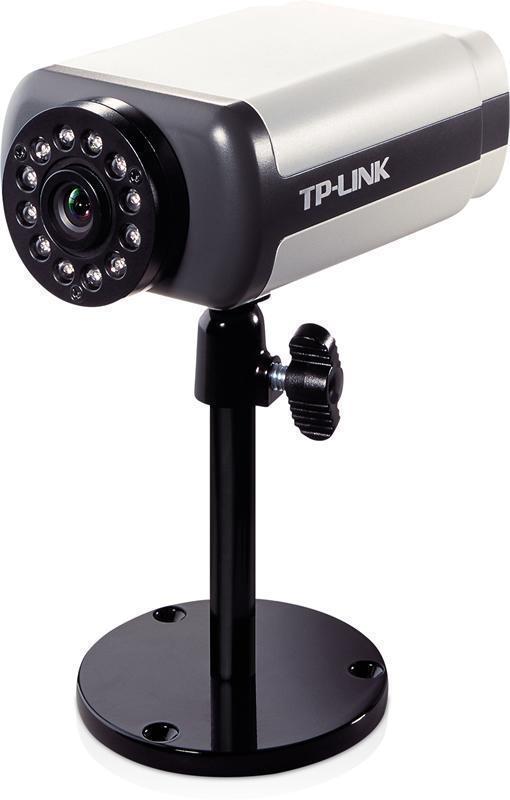

TP-Link TL-SC3171 Day / Night Network IP Camera

Sorry, this product is no longer available to purchase.

Please view our whole range of Indoor Cameras here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features


  • 1/4" progressive scan CMOS sensor produces clear and crisp images
  • Mechanical IR-Cut filter Removable for true day/night surveillance
  • 12 Infrared LEDs ensures 10 meters (32.8 feet) effective night vision range
  • 2-way audio allows users to listen & talk remotely
  • Digital input / output ports for external alarm & sensor
  • MPEG-4/MJPEG dual streams for simultaneous remote recording and local surveillance
  • 3GPP compliant enables live video surveillance from 3G phones
  • Bundled management software accommodates up to 16 cameras at the same time
  • SSL/HTTPS encryption protects your privacy from malicious intrusion
  • Embedded Watchdog function automatically restarts the IP camera when errors are detected
  • Motion triggered e-mail alerts to keep you updated on the situation on the ground
  • Frame rate at 30fps in VGA resolution for smooth video


    What This Product Does


    TL-SC3171 IP surveillance camera is a versatile solution for your home & office monitoring. It watches your home, your kids, your workplace, whatever you care for most. After connecting directly to a local network using the camera's 54Mbps wireless or wired Ethernet connection, it can send live video to your home PC or through the internet to a Web browser or Smartphone, anywhere in the world!

    True Day / Night Surveillance


    TL-SC3171 uses 12 IR (Infrared) LEDs light as a means to produce clear images in the dark and an industrial mechanical ICR (IR Cut-filter Removable) completely filters that light during the day ensuring vivid video as clear as you would see with the naked eye, both functions unavailable on traditional day/night cameras that resulted in poor image quality during both the day and the night.



    16-channel Management Software


    The surveillance software coming with the IP camera assists you manage multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. You can archive streaming video and audio straight to your hard drive, playback video, and monitor up to 16 cameras on a single screen.

    Dual Streaming


    Unlike traditional IP Cameras operating at only MPEG-4 or MJPEG compression mode, TL-SC3171 can deliver MPEG-4 and MJPEG streams simultaneously ---- MJPEG produces lossless while bandwidth-consuming video and MPEG-4 produces efficiently compressed "small size" video. Now with TL-SC3171, you can just monitor local rooms with MJPEG stream and remote office with MPEG-4 stream, backing them all up to a server in MPEG-4 format.

    • Camera Specification

    Image Sensor 1/4" Progressive scan CMOS sensor
    Resolution 1.3 Megapixel (1280 x 1024)
    Lens F: 2.0, f: 4.3mm
    Viewing Angle Diagonal 61°, Horizontal 48°, Vertical 36°
    Digital Zoom 10x Digital
    Minimum Illumination 0.5 Lux (0 Lux with IR)
    Day/Night Mechanism Mechanical IR-Cut filter Removable
    12 IR (Infrared) LEDs

    Video / Image Specification
    Video Compression Motion JPEG; MPEG- 4
    Frame Rate & Resolutions Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120
    Video Streaming Simultaneous Motion JPEG and MPEG-4 (Dual streaming)
    Image Settings Rotation: Mirror, Flip, Mirror Flip
    Image: brightness, contrast, saturation, hue
    Overlay capabilities: time, date, text and privacy image

    Audio Specification
    Audio Communication Two-way (full duplex)
    Audio Input Built-in microphone
    Audio Output Audio line output connector for external speaker
    Audio Compression N/A

    Alarm and Event Management
    Events Trigger Built-in motion detection, schedule external alarm input
    Notification Method E-mail, FTP, HTTP and external alarm out

    Network Specification
    Standards and Protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP,UDP, 3GPP/ISMA RTSP
    Security Multiple password-protected user levels
    HTTPS encryption

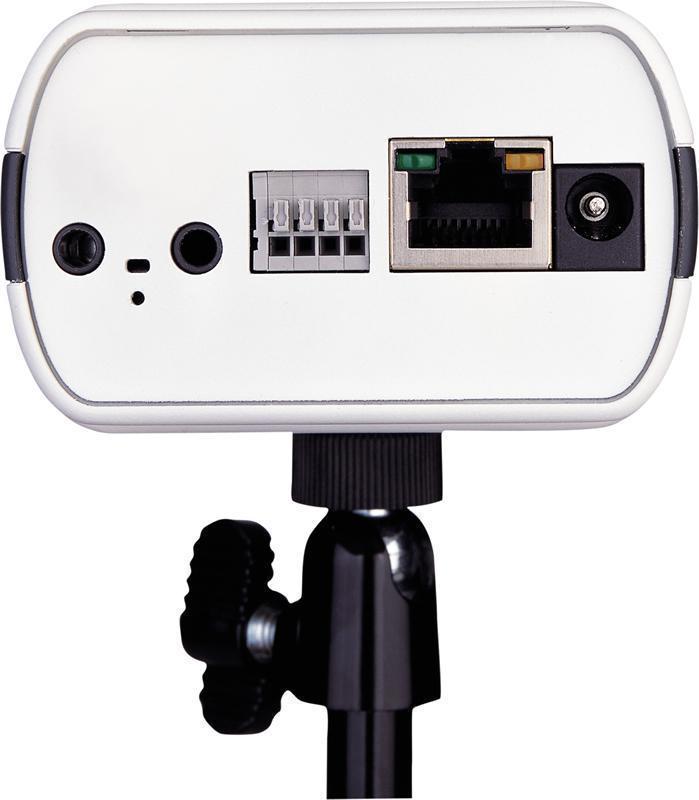

    Interface Specification
    Network Interface 1 x RJ-45 for Ethernet 10/100 Base-T
    Power Connector DC Power Jack
    Audio Output 3.5 mm jack for Mic in
    3.5 mm jack for Speaker out
    Button Reset Push Button

    Software Specification
    Users 5 simultaneous users
    Unlimited number of users via multicast
    Management Software Viewing and recording up to 16 cameras
    Supported OS Windows 98/ME/2000/2003/XP/Vista/7, Mac OS Leopard 10.5
    Supported Browser Internet Explorer; Firefox; Chrome; Safari

    General Specification
    External Power Supply 12V DC, Max 12W
    Dimensions( H X W X D ) 136 x 75 x 47mm
    Certification CE, FCC, RoHS


    For further information please visitTP-Link Official Website
