TP-Link TL-SC3430 HD Network IP Camera

Sorry, this product is no longer available to purchase.

Please view our whole range of Indoor Cameras here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features


  • 1.3 megapixel progressive scan CMOS sensor produces high definition video quality
  • H.264, MPEG-4 and MJPEG video streaming for different quality requirements and bandwidth environments
  • Supports Samba Network Storage for convenient video recording through the Internet
  • 10x digital zoom for detailed close-ups
  • 2 way audio allows users to listen and speak remotely
  • 3GPP compliant allows users to view live video via their 3G mobile devices
  • Advanced SSL/HTTPS encryption and IP filter protect users’ privacy from malicious intrusions
  • Email or FTP notifications triggered by motion Detection, Audio Detection or Schedule Timer offer sensitive invasion alert
  • Free bundled software supports simultaneous monitoring of up to 16 cameras
  • Quick Universal Plug and Play Installation



    What This Product Does


    With its built-in high performance 1.3Mega-Pixel sensor, the TL-SC3430 is excellent for homes, shops, banks, offices and other building surveillance where clearer video and more image detail are required. What is more exciting is that wherever users are, high definition video can be delivered to them with the most fluidity, through a standard web browser or 3G device so that users will be to stay close to what they care for most. With simple installation, event alerts, 2-way audio and other practical functions, the TL-SC3430 is a perfect solution for the advanced viewer with attention to detail.

    1.3 Megapixel HD Video for Identification Surveillance


    Equipped with high performance 1.3Mega-Pixel sensor, it can provide HD images that are more useful, with more image detail and with wider scope for identification, such as faces of people or a car’s license plate.

    Advanced H.264 Codec Delivers Beautifully Smooth Video


    H.264 is an advanced video compression technology that greatly reduces the size of a digital video file (up to 80%) without compromising video quality compared with video quantity. Using H.264 provides savings in network bandwidth and storage costs, as well as achieves much higher video quality for a given bit rate.

    Intelligent Surveillance Functionality


    Motion detection settings make the camera record automatically and alert you via an e-mail when motion is detected.

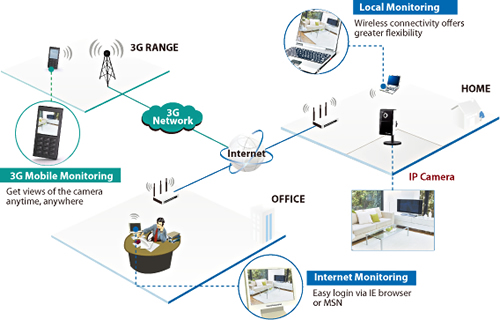

    Multiple Easy Remote Viewing Options


    TP-LINK's TL-SC3430 is compliant with 3GPP protocols, so users can look in on their cameras from 3G mobile Phones, laptops or tablets, such as Android phones or 3G enabled iPads.

    16-channel Management Software


    The TL-SC3430’s bundled surveillance software assists users with managing multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. Users can archive streamed video and audio straight to their hard drives, playback video, and monitor up to 16 cameras on a single screen.

    2-Way Audio Communication


    With the TL-SC3430’s built-in microphone or one purchased separately, users can hear what’s happening within range of their cameras remotely. What’s more , by connecting an external speaker to the TL-SC3430, users may also speak to someone near the camera or give a public address depending on the speaker’s strength. This brings users more convenience allowing for better communication when monitoring their cameras from a remote location.

    Easy Remote Access-DDNS & UPnP


    Eliminating the need for users to remember a numeric IP address, the TL-SC3430’s DDNS feature enables users to remotely access the camera by typing an easy-to-remember domain name (e.g. www.mycamera.com) into their browser. This feature comes in handy, especially when the camera’s IP address is always changed by users’ Internet Service Providers. Even more convenient is if the camera is connected with a router and set up in a local area network, the router’s UPnP function can facilitate access to the camera without any complicated configuration of the router or camera.

    • Camera Specification

    Image Sensor 1/4" Progressive scan CMOS sensor
    Resolution 1.3 Megapixel (1280 x 1024)
    Lens F: 1.8, f: 4.2 mm
    Viewing Angle Diagonal 58°, Horizontal 46°, Vertical 35°
    Digital Zoom 10x Digital
    Minimum Illumination 0.5 Lux

    Video / Image Specification
    Video Compression Motion JPEG
    MPEG-4 Part 2 (ISO/IEC 14496-2) Simple Profile
    H.264 Baseline Profile
    Frame Rate & Resolutions Max. 15 fps at 1280x1024 (SXGA), 1280x720 (HD 720)
    Max. 30 fps at 640x480 (VGA), 320x240 (QVGA)
    Video Streaming Simultaneous Motion JPEG, MPEG-4, H.264 and 3GPP (4 streaming)
    Controllable Frame rate and bandwidth
    Support Unicast and Multicast
    Support 3GPP/ISMA RTSP (Real Time Streaming Protocol)
    Image Settings Rotation: Mirror, Flip, Mirror Flip
    Image: brightness, contrast, saturation
    Overlay capabilities: time, date, text and privacy image

    Audio Specification
    Audio Communication Two-way (full duplex)
    Audio Input Built-in microphone
    Audio Output Audio line output connector for external speaker
    Audio Compression G.711 µ law, a law, and AMR

    Alarm and Event Management
    Advanced Built-in audio & motion detection, schedule, network link down
    Events Trigger E-mail, FTP, network storage
    Notification Method Pre- and Post-alarm buffer
    Built-in Samba/NFS Client for NAS

    Network Specification
    Standards and Protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP,UDP, 3GPP/ISMA RTSP
    Security Multiple password-protected user levels
    HTTPS encryption
    IP filter

    Interface Specification
    Network Interface 1 x RJ-45 for Ethernet 10/100 Base-T
    Power Connector DC Power Jack
    Audio Output 3.5 mm Jack for Speaker out
    Button Reset Push Button

    Software Specification
    Users 10 simultaneous unicast users
    Unlimited number of users via multicast
    Management Software Viewing and recording up to 16 cameras
    Supported OS Windows 98/ME/2000/2003/XP/Vista/7, Mac OS, Linux
    Supported Browser Internet Explorer; Firefox; Chrome; Safari

    General Specification
    External Power Supply 12V DC, Max 12W
    Dimensions( H X W X D ) 96 x 58 x 31mm
    Certification CE, FCC, RoHS


    For further information please visitTP-Link Official Website
