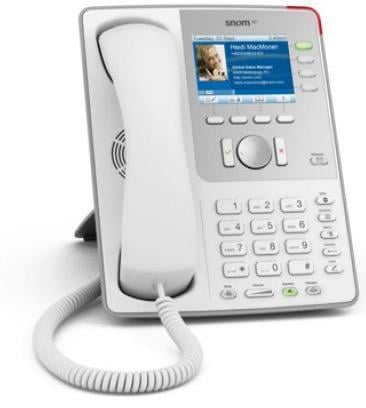

Product Overview

Awarded by the Internet Telephony Services Providers' Association (ITSPA) of the United Kingdom, the snom 870 VoIP telephone is our latest innovation for all modern people with high demands for future-oriented technology combined with user friendliness. The large high-definition TFT color display is not only larger than the one of its little brother snom 821, it also offers an advancement in technical innovation. This display is a completely newly designed touch screen with unique, intuitive user interface. Thus the snom 870 enables the user to easily handle even complex applications like swapping of calls, or establishment of conference calls for up to 5 participants via simple "drag and drop".

Address Book

The well-arranged address book makes sure that each caller can be quickly identified. It offers space for additional information such as company affiliation, email address and much more. The control elements on display are designed for active call handling, so that the right contact is selected even in multiple call scenarios.

Audio Quality

The audio quality of the snom 870 matches the high standards that snom customers have come to expect: wideband audio with silence supression and voice activity detection. The integrated XML mini browser provides a wide range of additional applications. Whether it is the control of an external USB monitoring camera or accesing the most important stock exchange sata; the snom 870 offers a lot of room for extras.

WLAN and Security

No matter where the snom 870 is used, it is prepared for anything: conventional power supply via wall socket, Power over Ethernet or WLAN through USB; the snom 870 adapts to any working environment. A secure connection via VPN, TLS and SRTP, which prevents the recording of data, completes the picture.

Physical Specifications

Dimensions	N/A
Weight	920g
Certification	IEC 60950-1:2001 DE 2-008417 FCC Class B CE Mark
Power Consumption	4.0 - 7.0 Watts

Phone Interface

External Interface

1 x LAN 1 x PC (RJ45) 1 x Power 2 x 10/100/1000 Ethernet 1 x Handset RJ 4P4C Connector 1 x Headset RJ 4P4C Connector 2 x USB Type A 1 x USB Type 2

Phone Features

User Interface

- High-resolution Touchscreen TFT - 4.3”, 480 x 272 pixels, 24bit color - 29 keys, 5 LEDs - 15 freely programmable and - 12 variable function keys - Comfortable and intuitive menu structure - Incoming call indication via LED - Caller identification on display - LED indication for missed calls and new messages - Directory (up to 2000 entries) - Speed dial - Local dial plan - Lists of missed, received, and dialed calls - Indication of calls on hold - Clock with automatic daylight-saving time, call duration - Call blocking (deny list) - Blocking of anonymous calls - Call swapping during an ongoing call - Auto answer mode - Ringtone selection, VIP ringtones,import of individual ringtones - URL dialing support - National language support - DND mode (do not disturb) - Speakerphone (full duplex) - Keyboard lock

Call Features

- Extremely easy WLAN connection via USB - Hold - Unattended and attended transfer - Music on hold (if supported by PBX) - Call forwarding - 5-way conferencing (bridge on phone) - Call park, call pickup (if supported by PBX) - Call completion on busy/not available - Client Matter Code (CMC) - Call waiting/switching between calls - Automatic Redial - Group call announcements - Multiple audio device support - Unified Communications with snom CTI und snom OCS edition

Network Specifications

Web Server	- Built in HTTP/HTTPS web server - Remote configuration/provisioning - Dial from web interface or snom CTI - Password protection - Diagnostics (tracing, logging, syslog)
Security, QoS	- HTTPS (server/client) - Transport Layer Security (TLS) - SRTP (RFC 3711), SIPS, RTCP, VLAN (IEEE 802.1X) - LLDP-MED
Audio Codec	- Wideband Audio - G.711 A-law, µ-law - G.722, G.729AB, G.723.1, G.726, GSM FR - Comfort noise generation (CNG) - Voice activity detection (VAD)
SIP	- RFC 3261 compliant - UDP, TCP, and TLS - Digest/basic authentication - PRACK (RFC 3262) - Error information support - Reliability of provisional responses(RFC 3262) - Early media support - DNS SRV (RFC 3263), redundant server support - Offer/Answer (RFC 3264) - MWI (RFC 3842), subscription for MWI events (RFC 3265) - Dialog-state monitoring (RFC 4235) - In-band/out-of-band/SIP INFO DTMF - STUN client (NAT traversal) - Bridged line appearance (BLA) - Auto provisioning with PnP - Presence/Buddy-list feature - Busy lamp field support (BLF)
Installation	- Automatic software update - Automatic settings retrieval via HTTP/HTTPS/TFTP - Installation via web interface - Static IP provisioning, DHCP - NTP
