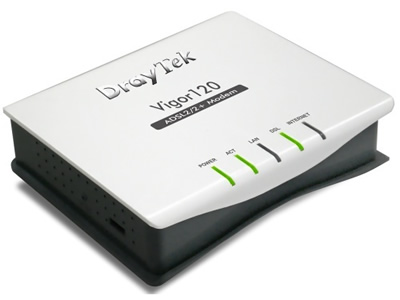

Draytek Vigor 120 ADSL2+ Modem

1 x 10/100 RJ45 Port, 1 x RJ11 Port

Sorry, this product is no longer available to purchase.

Please view our whole range of here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features

  • ADSL, ADSL2 & ADSL2+ Ethernet Modem
  • Bridge (pass) a single IP address or a whole public subnet
  • Ideal Partner for DrayTek dual-WAN products
  • IPv6 and IPv4 Compatible
  • Ethernet Connection for client device (router, PC etc.)
  • ADSL Parameters pre-set for UK parameters (adjustable)
  • PPPoA Bridging compatible with ISPs running IPv6
  • Normally no setup/configuration of the Vigor 120 required
  • Annex A & Annex M



    Product Overview

    The DrayTek Vigor 120 is an ADSL modem with an Ethernet connection; it is not a router but a true ADSL Ethernet Modem. By providing a PPPoE to PPPoA bridge, the connected device (firewall, router or PC) can log into the Internet (your ISP) directly and have full control over the ADSL connection - that makes the Vigor 120 a unique product. You can connect any device to the Vigor 120 which has a PPPoE client facility, which includes PCs, most Ethernet-WAN routers and the Apple Airport but the actual connection to your ISP is still PPPoA (unlike other modems which only provide PPPoE native bridging), which is the unique feature of this product and makes it compatible with all UK ISPs, where PPPoA is used as standard.

    Other ADSL Ethernet 'modems' use workarounds to get a public IP address 'through' to your secondary device/client, requiring non-standard operation and complicated dual-stage setup (modem logs in, router routes) but the Vigor 120 provides the secondary device with a real routed IP connection and the ability to fully manage the connection, making setup easy. In most cases, the Vigor 120 needs no setup or configuration - just plug it in and set up your PC or router. All login/ISP details are entered on the connected client device, not the Vigor 120.

    This method also differs from using a regular ADSL router which logs in itself and then uses NAT or multiple public IP addresses to create an onward client connection for your secondary device; that is not IP Address thrifty, or introduces secondary NAT compromises. With the Vigor 120 bridge/modem, you get a true single public IP address (or multiple, if you have them) straight through to your firewall/router, which also has complete control of the ISP connection.

    • Protocol Support

  • ANSI T1.413 Issue 2
  • ITU-T G.992.1 G.dmt (ADSL)
  • ITU-T G.992.2 G.lite
  • ITU-T G.992.3 ADSL2
  • ITU-T G.992.5 ADSL2+
  • Annex L (READSL)
  • Annex M
  • PPPoA / PPPoE Bridging (WAN to LAN)
  • Bridging compatible with ISPs running IPv6*
  • RFC-2684 / RFC-1483

    Built-in Diagnostics (WUI / CLI)

    Physical Interfaces
  • RJ11 - ADSL Line
  • RJ45 - 10/100BaseT Ethernet (auto-sensing/MDI-X)
  • Power Socket (9VDC)

    Environmental
  • Operating : 0° ~ 40° C
  • Storage : -25° ~ 70 ° C
  • Humidity : 20% ~ 90% Non-Condensing

    Pysical Specification
  • Dimensions : 105 (W) x 90mm (D) 27mm (H) (mm)
  • Power : 9VDC, 0.5A. AC/DC Adaptor included.
  • Maximum Power : 4.5W

    * currently supported in beta firmware
