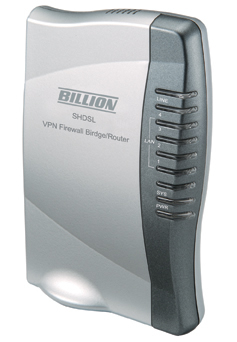

Billion BiPAC 8500 SHDSL VPN Firewall Router

4 x 10/100 RJ45 Ethernet Ports, 1 x WAN Port, 1 x PS2 Port (console)

Sorry, this product is no longer available to purchase.

Please view our whole range of DSL Routers (NTL Lines) here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features

  • High-speed internet access with SHDSL
  • Support Symmetric Data Rate of up to 2.3 Mbps (2-wire)
  • Parental Control with URL Blocking and Packet Filtering
  • Supports Virtual Private Network (VPN) and QoS
  • SOHO Firewall Security with DoS Prevention and SPI
  • Integrated 4-port Ethernet Switch



    Product Overview
    A high-quality 4-port wired VPN bridge/router that supports the worldwide SHDSL standard for symmetric rates up to 2.3 Mbps (2-wire). Incorporating a business-class firewall, embedded VPN protocols and Billion’s renowned built-in Quality of Service (QoS) feature, this an ideal model for the business user.

    High-speed Internet Access with 2-wire SHDSL
    The BiPAC 8500 complies with the standard of SHDSL for worldwide deployment and supports a symmetric data rate of up to 2.3 Mbps. With the SHDSL technology, the BiPAC 8500 series allows office users to enjoy high-speed symmetric bandwidth and multimedia applications such as FTP sharing, video conferencing and real-time audio with much ease and speed than ever before.

    High-speed Back-to-Back Connectivity
    The BiPAC 8500 series can be configured as RT/COT (client/server) mode for back-to-back applications. With the symmetric transmission auto-detect speed of up to 2.3 Mbps, the router can offer a cost-effective way for bandwidth-consuming applications, such as distance learning and video conferencing.

    Smooth and Responsive Net Connection
    The Quality of Service (QoS) feature helps users to manage the bandwidth and prioritize data transfer effectively. It gives one full control over the traffic of any type of data, ensuring latency-sensitivity and bandwidthconsuming applications such as video conferencing, customer information or FTP sharing, can move through the router at instantaneous speed, even when under heavy tasking. The speed for inbound and outbound data passed through the router can be controlled to ensure that users do not saturate the bandwidth with their browsing activities.

    SOHO Firewall Security with DoS Prevention and SPI
    Besides having a built-in NAT natural firewall feature, the BiPAC 8500/8520 also provides an advanced hacker pattern-filtering protection that can automatically detect and block Denial of Service (DoS) attacks, such as IP Spoofing, Ping of Death, etc. The router is also built with Stateful Packet Inspection (SPI) to determine whether a data packet should be allowed to pass through the firewall to the private LAN.

    Virtual Private Network
    The router supports embedded Virtual Private Network (VPN) protocols for users to establish private encrypted tunnels over the public Internet.

    • SHDSL Compliance

  • Compliant with ITU-T G.991.2 Standard
  • Symmetric data rate of up to 2.3 Mbps / 4.6 Mbps

    Network Protocols and Features
  • NAT, static routing and RIP-1/2
  • Universal Plug and Play (UPnP) Compliant
  • Dynamic Domain Name System (DDNS)
  • Virtual Server and DMZ
  • SNTP, DNS relay and IGMP proxy

    Firewall
  • Built-in NAT firewall
  • Stateful Packet Inspection (SPI)
  • Prevent DoS attacks including IP Spoofing, Land Attack, Smurf Attack, Ping of Death, TCP SYN Flooding, etc.
  • Packet Filtering – port, source IP address, destination IP address, MAC address
  • URL Content Filtering – string or domain name detection in URL string

    Operating Environment
  • Operating temperature: 0 - 40ºC
  • Storage temperature: -20 - 70ºC
  • Humidity: 20 - 95% non-condensing

    ATM and PPP Protocols
  • ATM Adaptation Layer Type 5 (AAL5)
  • Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
  • Bridged or routed Ethernet encapsulation
  • VC and LLC based multiplexing
  • PPP over Ethernet (PPPoE)
  • PPP over ATM (RFC 2364)
  • Classical IP over ATM (RFC 1577)
  • MAC Encapsulated Routing (RFC 1483 MER)

    Management
  • Web-based GUI for remote and local management
  • Firmware upgrade and configuration data upload and download via Web-based GUI
  • Embedded Telnet server for remote and local management
  • Available Syslog monitoring
  • SNMP v3, MIB-I and MIB-II supported
  • Supports DHCP server/client/relay

    Virtual Private Network (VPN)
  • Embedded IPSec & PPTP client/server
  • IKE key management
  • DES, 3DES and AES encryption for IPSec
  • MPPE Encryption for PPTP
  • L2TP over IPSec
  • L2TP/PPTP/IPSec pass-through

    Quality of Service Control
  • Supports the DiffServ approach
  • Traffic prioritization and bandwidth management based-on IP protocol, port number and address

    Physical Interface
  • WAN: SHDSL port
  • Console: PS2
  • LAN: 4-port 10/100M auto-crossover (MDI/MDI-X) Switch
  • Factory default reset button
  • Power jack
  • Power switch

    Physical Specification
  • Dimensions: 7.32" x 5.04" x 1.81" (186mm x 128mm x 46mm)

    Power Requirement
  • Input: 12V DC, 1A
