Product Features

High-speed broadband connection with ADSL2+ or through a configured Ethernet WAN

Compliant with draft 802.11n standards

Supports draft 802.11n Wireless Access Point with WPA-PSK/WPA2-PSK

Delivers high-speed wireless connection; up to 300Mbps data rate

Expanded wireless coverage of up to 3 times the range of 802.11g products

WPS (Wi-Fi Protected Setup) for easy setup

Auto channel select

Integrated 4-port Ethernet switch, one port can be configured as a WAN interface

SOHO firewall security with DoS prevention and packet filtering

Universal Plug and Play (UPnP) compliant

Supports VPN pass-through

Easy Sign-On (EZSO) and web-based configuration

Quality of Service control

Dynamic Domain Name System (DDNS)

Easy network management

Ideal for home & SOHO users

Optimal Wireless speeds and coverage

With an integrated draft 802.11n Wireless Access Point, the router delivers up to 6 times speeds and 3 times wireless coverage of an 802.11b/g network device. It supports up to 300Mbps data rate, is also compatible with 802.11b/g equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button.

Express Internet Access

Integrated with ADSL2+ modem that complies with worldwide ADSL standards, the router supports downstream rates of up to 12/24 Mbps with ADSL2/2+, 8 Mbps with ADSL, and upstream rates of up to 1 Mbps. The users can enjoy not only high-speed ADSL2+ connection, but also running broadband applications such as interactive gaming, video streaming and real-time audio easier than ever. By doubling the upstream data rate, the Annex M standard included in the BiPAC 7300N model supports the latest ADSL2/2+ for higher upload speeds. Alternatively, by configuring one of Ethernet LAN ports as a WAN interface, an existing cable-modem (or pre-configured ADSL2+ modem from a service provider’s binding term) user can connect his or her device with the BiPAC 7300N to enjoy high-speed broadband connections.

Firewall Security and Smooth Traffic

With the built-in NAT default firewall, the advanced anti-hacker pattern-filtering protection features automatically detect and block Denial of Service (DoS) attacks. In addition, packet filtering provides high-level security for access control. Quality of Service control prioritizes the traffic and allows users to enjoy smooth traffic while running applications such as P2P or multimedia through the Internet.

Easy Network Management

The web-based user interface of the BiPAC 7300N makes it extremely easy for users to install and manage the network. The router supports both DHCP client and server, enabling system administrators to easily integrate this router into existing network environments, as well as manage IP assignment without having to reconfigure other stations.

Hardware Features

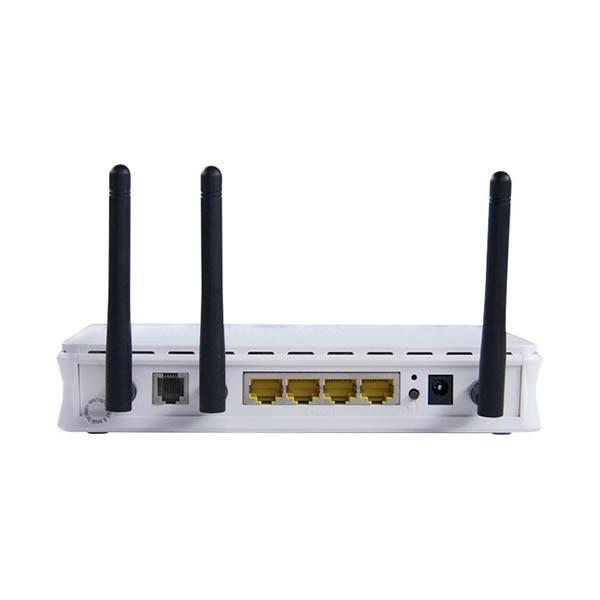

Interface	4 x 10/100Mbps LAN Ports 1 x RJ11 Port
Button	1 x Power Button 1 x WPS Button
Power Supply	External Power Supply
Dimensions(WxDxH)	185 x 123 x 36mm
Antenna Type	Detachable Omni-Directional
Antenna Gain	3 x 2dBi

ADSL Specification

ADSL Standards	Full-rate ANSI T1.413 Issue 2 G.dmt (ITU G.992.1) G.lite (ITU G.992.2) G.hs (ITU G.994.1) ADSL over ISDN/U-R2
ADSL2 Standards	G.dmt.bis (ITU G.992.3)
ADSL2+ Standards	G.dmt.bis plus (ITU G.992.5)

Wireless Features

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Frequency	2.400-2.4835GHz
Wireless Transfer Speed	Up to 300Mbps
Wireless Security	64/128 bits WEP Supported for Encryption WPA-PSK/ WPA2-PSK Support WPS (Wi-Fi Protected Setup)

Other Features

Network Protocols and Features	NAT, static routing and RIP-1/2 NAT supports PAT and multimedia applications Transparent Bridging Virtual Server and DMZ SNTP, DNS relay and DDNS IGMP snooping and IGMP proxy
Firewall & VPN	Built-in NAT Firewall Stateful Packet Inspection (SPI) Prevents DoS attacks including Land Attack, Ping of Death, etc. Remote access control for web base access Packet and URL filtering Password protection for system management VPN pass-through
Quality of Service Control	Supports the DiffServ approach Traffic prioritization based-on IP protocol,port number and address
ATM and PPP Protocols	ATM Adaptation Layer Type 5 (AAL5) Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483) Bridged or routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (PPPoE) PPP over ATM (RFC 2364) OAM F4/F5
Management	Quick Installation Wizard and Auto-scan ADSL settings Web-based for remote and local management Firmware upgrades and configuration data upload/download via web-based interface Embedded Telnet server for local management SNMP v1/v2/v3, MIB-I and MIB-II support Available Syslog monitoring Supports DHCP server/client/relay Mail Alert
