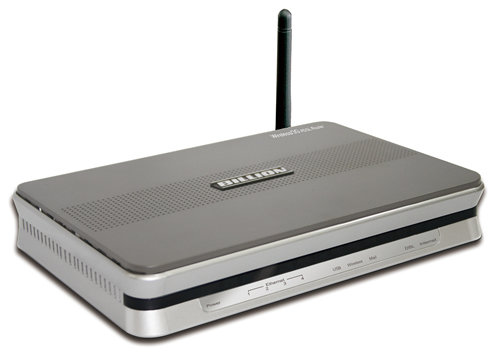

Billion BiPAC 7402GX 3G / ADSL2+ Wireless VPN Firewall Router

802.11 b/g, 54Mbps, 2.4Ghz, 4 x 10/100 RJ45 Fast Ethernet Ports, 1 x RJ11 Port, 1 x USB (Supports 3G / HSDPA)

Order Code: BIL-7402GX

Manf.Code: BIPAC 7402GX

Sorry, this product is no longer available to purchase.

Please view our whole range of ADSL Routers (BT Line) here

Product Features


  • Dual WAN interfaces for ADSL2+ and 3G connections
  • Auto fail-over feature to ensure an always-on connection
  • High-speed Internet access with ADSL2/2+; backward compatible with ADSL
  • USB 2.0 port for plugging a 3G/HSDPA modem as backup (Available from your service provider)
  • Supports 16 IPSec Virtual Private Network (VPN) tunnels
  • Wi-Fi Protected Setup feature makes setting up a secure network quick and easy
  • SOHO firewall security with DoS prevention and SPI
  • Secured VPN with powerful DES/3DES/AES
  • Quality of Service control
  • Syslog monitoring
  • Supports IPTV applications
  • Ideal for: home users?office users?event or meeting organizers



    Product Overview


    Communication Flexibility via 3G/HSDPA using the USB port
    The BiPAC 7402X allows you to connect a 3G/HSDPA USB modem to its built-in USB port, enabling you to use a 3G/HSDPA, UMTS, EDGE, GPRS, or GSM Internet connection, makes downstream rates of up to 14.4Mbps possible. With the increasing popularity of the 3G standard, communication via the BiPAC 7402X is becoming more convenient and widely available -allowing you to watch movies, download music on the road, or access e-mail no matter where you are. You can even share your Internet connection with others, no matter if you're in a meeting, or speeding across the country on a train.

    Always Online
    The BiPAC 7402GX is compliant with worldwide ADSL standards, and supports download rates of up to 12/24Mbps using ADSL2/2+, 8Mbps using ADSL and an upload rate of up to 1Mbps. Using this technology you'll be able to enjoy high-speed ADSL and broadband multimedia applications such as interactive gaming, video streaming and real-time audio. The integrated Annex M standard supports ADSL2/2+ for higher upload speeds by doubling the upload data rate. Planned support for auto-failover means that you'll be assured of a constant Internet connection – in case your ADSL line fails, the BiPAC 7402X will connect via 3G to deliver uninterrupted connectivity.

    Double-layer Protection
    An integrated 802.11g Wireless Access Point offers quick yet easy access with data encryption for added security. Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) support ensures high-level data protection and WLAN access control. In addition, rich firewall security features such as SPI, DoS attack prevention and URL content filtering are integrated to provide unparalleled protection for Internet access. Enjoy the benefits of added security by simply pressing the Wi-Fi Protected Setup button to quickly and easily set up secure wireless communication. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand the wireless network without the need for using any wires.

    Secure VPN connections
    The BiPAC 7402GX supports embedded IPSec VPN (Virtual Private Network) protocols, allowing users to establish encrypted private connections of up to 16 simultaneous tunnels over the Internet. With a built-in DES/3DES VPN accelerator, the router enhances IPSec VPN performance significantly and ensures that data is transmitted securely between two or more sites.

    • ADSL Compliance

  • Compliant with ADSL Standard
  • Full-rate ANSI T1.413 Issue 2
  • G.dmt (ITU G.992.1)
  • G.lite (ITU G.992.2)
  • G.hs (ITU G.994.1)
  • ADSL over ISDN/U-R2
  • Compliant with ADSL2 Standard
  • G.dmt.bis (ITU G.992.3)
  • ADSL2 Annex M (ITU G.992.3 Annex M)(Available on BiPAC 7402X series -A)
  • Compliant with ADSL2+ Standard
  • G.dmt.bisplus (ITU G.992.5)
  • ADSL2+ Annex M (ITU G.992.5 Annex M)(Available for BiPAC 7402(G)X A model only)

    Network Protocols and Features

  • NAT, static routing and RIP-1/2
  • Universal Plug-and-Play (UPnP) Compliant
  • Dynamic Domain Name System (DDNS)
  • Virtual Server and DMZ
  • SNTP, DNS relay, IGMP Proxy
  • POP3 (email account checking)
  • IGMP Snooping for video services

    Virtual Private Network (VPN)

  • 16 IPSec VPN Tunnels
  • 8 L2TP VPN Tunnels (Dial-in: 4, Dial-out: 4)
  • 8 PPTP VPN Tunnels (Dial-in: 4, Dial-out: 4)
  • Embedded IPSec, L2TP & PPTP client/server
  • IKE key management
  • DES, 3DES and AES encryption for IPSec
  • Embedded powerful 3DES accelerator
  • MPPE Encryption for PPTP
  • L2TP over IPSec
  • L2TP/PPTP/IPSec pass-through

    Management

  • Quick Installation Wizard and Auto ADSL settings
  • Web-based GUI for remote and local management
  • Firmware upgrade and configuration data upload and download via web-based GUI
  • Embedded Telnet server for remote and local management
  • Available Syslog monitoring
  • SNMP v3, MIB-I and MIB-II support
  • Supports DHCP server/client/relay
  • Support Remote Management
  • TR-069 *

    Wireless 802.11g

  • Compliant with IEEE 802.11g and 802.11b standards
  • 2.4GHz - 2.484GHz frequency range
  • Up to 54Mbps wireless operation rate
  • 64-/128-bit WEP supported for encryption
  • Wireless Security with WPA-PSK/WPA2-PSK support
  • Wireless Distribution System (WDS) repeater function support

    IPTV Application

  • IGMP Snooping
  • Virtual LAN (VLAN)
  • Quality of Service (QoS)

    ATM and PPP Protocols

  • ATM Adaptation Layer Type 5 (AAL5)
  • Multiple protocols over AAL5 (RFC 2684, formerly RFC 1483)
  • Bridged or routed Ethernet encapsulation
  • VC and LLC based multiplexing
  • PPP over Ethernet (PPPoE)
  • PPP over ATM (RFC 2364)
  • Classical IP over ATM (RFC 1577)
  • MAC Encapsulated Routing (RFC 1483 MER)
  • OAM F4/F5

    Operating Environment

  • Operating temperature: 0 - 40°C
  • Storage temperature: -20 - 70°C
  • Humidity: 20 - 95% non-condensing

    Quality of Service Control

  • Supports DiffServ approach
  • Traffic prioritization and bandwidth management based-on IP protocol, port number and address

    Firewall

  • Built-in NAT firewall
  • Stateful Packet Inspection (SPI)
  • Prevent DoS attacks including IP Spoofing, Land Attack,Smurf Attack, Ping of Death, TCP SYN Flooding, etc.
  • Packet Filtering – port, source IP address, destination IP address, MAC address
  • URL Content Filtering – string or domain name detection in URL string

    Physical Interface

  • WLAN: one 2 dBi detachable antenna
  • DSL: ADSL port
  • Ethernet: 4-port 10/100M auto-crossover (MDI/MDI-X) Switch
  • USB 2.0 supports 3G/HSDPA modem backup
  • Console: the Ethernet Port # 4 can be also connected to console
  • Factory default reset button
  • Power jack
  • Power switch

    Physical Specifications

  • Dimensions: 7.28" x 4.86" x 1.42" (185mm x 123.5mm x 36mm)

    Power Requirements

  • Input:12V DC, 1.2A
  • Car power cable available separately *(Note 6)
