Product Overview

The NETGEAR N300 Wireless ADSL2+ Modem Router Router is ideal for both professional and personal Internet use, providing Wireless-N speed for simultaneous downloads, voice and music, and online gaming. Complete with a built-in DSL modem, it is compatible with all major DSL Internet service providers. Storage for downloads is easy with ReadySHARE for shared access to a USB storage device.

NETGEAR Features

Wireless N Technology
Wireless N is the next generation of high-speed Wi-Fi, capable of delivering the range and capacity to support today's most bandwidth-hungry applications, like streaming HD (High Definition) video, voice and music. Wireless N offers you a greater range, signal strength and wireless speed when compared to that of older Wireless G products. Upgrade your wireless network to the power of N today!

ReadySHARE USB Storage Access
Easy shared access from any computer in your home network to an external USB hard drive connected to your router. Simply plug your external USB storage device into the USB port on the DGN2200 and any computer connected to your network will be able to access the data stored on the USB storage device.

Netgear Live Parental Controls
Netgear Live Parental Controls, powered by OpenDNS, is a router-based Web filtering solution available on Netgear Wireless-N router and gateway products.

Total home Protection
Live Parental Controls protects all Internet-connected devices through the router. It not only protects computers, but also set-top box, iPhone, iPod, and gaming consoles. You no longer need to worry about phones and gaming consoles not being protected when kids use them in their own rooms. Even guest computers accessing the Internet through your network are protected.

Flexible Settings
You may have your own computer or you may be sharing a computer with other members in the family. Default and per-user settings allow customizable configurations for different computing arrangement and personalize the settings for each person. Per-time setting allows Internet access during scheduled time slots, to help manage work/play balance.

Minimal Software Installation
Installation requires a one-time installation of the Management Utility. Once Live Parental Controls are set up, the software runs in the background and does not protrude normal Internet usage.

Netgear Genie
Netgear Genie is a software tool that allows you to easily monitor and repair your home network. Remotely control all media in your home from your iPad or iPhone, easily setup and monitor Parental controls and many more features. Netgear Genie is free and can be downloaded at http://www.netgear.co.uk/landing/en-us/netgear-genie.aspx


Netgear Green
Netgear is committed to developing innovative new products and new product features that increase energy efficiency, use fewer resources, and meet or exceed global environmental standards. We are setting comprehensive benchmarks for products that carry the Netgear Green logo. Netgear Green means Innovation - a commitment to smarter, greener products, helping businesses and homes use less energy and save money.

WPS - Push 'N' Connect
Wi-Fi Protected Setup (WPS) is a standard for easy and secure wireless network set up and connections. Netgears's products use the name Push 'n' Connect for WPS. To use WPS, your product must support WPS and be compatible with WPA security. WPS can automatically set up a random network name (SSID) and strong WPA wireless security for wireless routers, access points, computers, adapters, Wi-Fi phones, and other consumer electronics devices.

Hardware Features

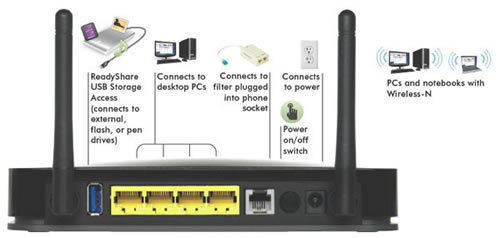

Interface	1 x RJ11 WAN 4 x 10/100 RJ45 1 x USB 2.0 1 x Power button 1 x WPS Button 1 x Wifi On/Off Button
Antenna Type	2 x 2dBi Omni Directional (Fixed)

Wireless Features

Wireless Standards	IEEE 802.11n IEEE 802.11g IEEE 802.11b
Wireless Frequency	2.4 GHz
Wireless Transfer Speed	Up to 300Mbps
Wireless Security	64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support

ADSL Features

ADSL Standards

ANSI T1.413 Issue 2 ITU-T G.992.1 Annex A (G.dmt) ITU-T G.992.2 (G.lite) ITU-T G.994.1 (G.hs) ITU-T G.992.3 (G.dmt.bis) ITU-T G.992.5 Annex A/M ADSL 2/2+ 24Mbps downstream

Other Specifications

Size	173 x 128 x 33 mm
Weight	300g
Compatible OS	Windows 8 (32/64-bit) Windows 7 (32/64-bit) Windows Vista (32/64-bit) Windows XP Linux Mac OS X
Warranty	2 Years
