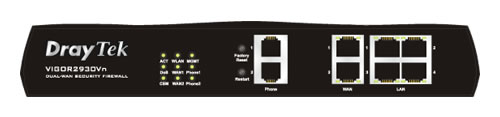

DrayTek Vigor 2930Vn Dual WAN / VoIP Wireless-N Router

802.11 b/g/n, 300Mbps, 2.4Ghz, 4 x 10/100 RJ45 Ports, 2 x RJ45 WAN Port, 2 x VoIP Ports, VPN, Detachable Antennas

Sorry, this product is no longer available to purchase.

Please view our whole range of here

Spend between £100 and £600 to get your goods before you pay

More information

Product Features

  • Broadband Router/Firewall
  • Dual Ethernet WAN ports
  • Load Balancing & WAN Failover
  • VPN Dial-in/dial-out with VPN hardware co-processor
  • SSL VPN
  • Mobile One-Time Passwords for Teleworker VPNs
  • VPN Trunking
  • Comprehensive and Robust Firewall
  • Content Filtering (by matched keyword or data type)
  • Web Site Category Filtering & Blocking
  • Ethernet and WLAN Virtual LAN segmentation (common/distinct)
  • Configurable QoS Features (For traffic prioritisation)
  • 802.11n Wireless LAN ('n' models)
  • Optional VigorCare Available
    Product Overview
    The Vigor 2930 is a high-performance dual-WAN firewall. The two dedicated ethernet WAN ports can provide load balancing, WAN failover or bandwidth aggregation (increasing total bandwidth onto the Internet). Versions with SIP-Compliant VoIP (Voice-over-IP) and ISDN support are also available. High Speed total WAN througput of up to 70Mb/s is available, and IPSec VPN throughput of up to 40Mb/s. Extensive QoS support and comprehensive Web Content filtering features help you make the most efficient use of your bandwidth. The Vigor 2930 is in an all-new DrayTek housing design with all LEDs and sockets provided conveniently on the front. This makes desk usage, wall mouting or rack-mounting (optional bracket required) all equally covenient.

    Wireless N Technology
    The Vigor2930 Series ('n' models) features the latest 802.11n wireless LAN specification and has been certified by the WiFi alliance for cross compatibility and WiFi compliance (including WPA/WPA2 and WMM). 802.11n provides a total wireless bandwidth of up to 300Mb/s using new methods such as packet aggregation and channel bonding. Throughput depends on your own environment (factors such as obstructions, number of hosts and distance all make a significant difference), but actual transfer speeds of 100Mb/s are achievable (based on our real world tests). In addition, 802.11n provides greater coverage and resilience to interference compared to previous wireless standards thanks to the MIMO technology and the Vigor's triple-antennae diversity arrangement. This offset arrangement of aerials provides offset paths between hosts so that interference can be overcome.

    Voice-over-IP Features
    The Voice-over-IP (VoIP) facilities on the Vigor 2930 'V' models within the series are extensive. Standard SIP compliance, with up to 12 simultaneous registrars (e.g. DrayTEL etc.) is supported, plus multiple codec support and many supplemental services enabling you to make thorough use of your Internet connection for Voice calls. Short codes (speed dials) and VoIP LCR ('Least Cost Routing') are also supported.



    Complete Internet Security
    The Vigor 2930 Series provides several independent levels of security including encryption (up to WPA2), authentication (802.11x) and methods such as MAC address locking and DHCP fixing to restrict access to authorised users only. The Web interface lets you see how many and which clients are currently connected as well as their current bandwidth usage. An 'instant' block lets you disconnect a wireless user temporarily in case of query. The Wireless VLAN facility allows you to isolate wireless clients from each other or from the 'wired' LAN.

    Dual-WAN Load Balancing & Backup
    Either (or both) Ethernet WAN ports on the Vigor 2930 can be connected to an ADSL modem, cable modem or any other Ethernet-based Internet feed. When you are using both ports, the secondary interface can be used either for WAN-Backup or load balancing. WAN-Backup provides contingenry (redunancy) in cases of your primary feed or ISP suffering temporary outage. Internet Traffic will be temporarily routed via the secondary Internet access. When normal services is restored to your primary ADSL line, all traffic is switch back to that. In load-balancing mode, the Vigor 2930 will make use of both of your WAN feeds together, spreading your Internet traffic across both either as equally as possible or according to user-configurable rules. For example, you might want all of your VoIP traffic to be routed only through one ISP connection.

    SSL VPN
    VPNs (Virtual Private Networks) enable you to link two remote computers or networks securely using the public Internet. An encrypted tunnel is created to carry your private data between the two sites. Tunnels making use of PPTP, L2TP, AES and IPSec protocols have been available on Vigor routers for many years and provide a simple to set up solution for your site-to-site or teleworker VPNs. SSL VPNs provide a new method for teleworker to central site VPN, providing great convenience, low TCO and simplicity where other methods may not be possible.

    VPN Trunking
    VPN Trunking is the facility to create more than one VPN tunnel to the same remote location in order to provide either increased bandwidth between the two sites (load balancing) or resilience (failover) in the event that one tunnel/connection is interrupted. The Vigor 2930 supports both Failover and Load Balancing modes for VPN Trunks. The Vigor 2930 already supports load balancing to the Internet using its dual-WAN ports. What VPN trunking does is enables a tunnel to be created down each WAN connection to the same remote location creating a single virtual tunnel, as far as the traffic and LAN devices/clients are concerned.

    • Physical Interfaces:

  • LAN: 4-port 10/100 Base-TX Switch
  • WAN: 2-port 10/100 Base-TX Ethernet
  • VoIP: 2-port FXS Phone Ports ('V' models only)

    Dual-WAN Ports:
  • 10/100Base-T Ethernet
  • Outbound Policy-Based Load-Balance
  • WAN Connection Fail-over
  • BoD (Bandwidth on Demand)

    VoIP Features ('V' Models only):
  • Protocols: SIP, RTP / RTCP
  • 12 SIP Registrar Accounts (for up to 12 VoIP providers)
  • G.168 Line Echo-cancellation
  • Automatic Gain Control
  • Jitter Buffer ( 125ms )
  • Voice Codecs:
  • G.711 A / µ Law
  • G.723.1
  • G.726
  • G.729 A / B
  • VAD / CNG
  • Tone Generation: DTMF , Dial , Busy , Ring Back , Call Progress
  • DTMF Transmission: In Band / Out Band ( RFC-2833 ) / SIP info
  • FAX / Modem Support G.711 Pass-through
  • T.38 for FAX
  • Supplemental Services:
  • Caller ID
  • Call Hold / Retrieve
  • Call Waiting
  • Call Waiting with Caller ID
  • Call Transfer
  • Call Forwarding ( Always , On Busy and On No Answer )
  • DND (Do not Disturb)
  • Call Barring ( Incoming / Outgoing )
  • MWI ( Message Waiting Indicator ) ( RFC-3842 )
  • Hotline (Dial preset number when handset lifted)

    Wireless LAN Features ('n' models only):
  • 802.11n Compliant
  • Latest 'MIMO' Technology with three aerials (2T3R)
  • Packet Aggregation and Channel Bonding
  • Optional Higher Gain or directional aerials available - Click Here.
  • Compatible with 802.11b and 802.11g Standards
  • Active Client list in Web Interface
  • Wireless LAN Isolation (from VLAN groups and wired Ethernet interfaces)
  • 64/128-bit WEP Encryption
  • WPA/WPA2 Encryption
  • Switchable Hidden SSID
  • Restricted access list for clients (by MAC address)
  • Time Scheduling (WLAN can be disabled at certain times of day)
  • Access Point Discovery
  • WDS (Wireless Distribution system) for WLAN Bridging (Firmware Upgradable)
  • 802.1x Radius Authentication
  • Wireless Rate-Control
  • Automatic Power Management
  • 802.11e WMM (Wi-Fi Multimedia)

    WAN Protocols:
  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
  • BPA

    Firewall & Security Features:
  • CSM (Content Security Management):
  • URL Keyword Filtering - Whitelist or Blacklist specific sites or keywords in URLs
  • Surfcontrol Support - Block Web sites by category (subject to subscription)
  • Prevent accessing of web sites by using their direct IP address (thus URLs only)
  • Blocking automatic download of Java applets and ActiveX controls
  • Blocking of web site cookies
  • Block http downloads of file types :
  • Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
  • Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
  • Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
  • Time Schedules for enabling/disabling the restrictions
  • Block P2P (Peer-to-Peer) file sharing programs (e.g. Kazza, WinMX etc. )
  • Block Instant Messaging programs (e.g. IRC, MSN/Yahoo Messenger etc.)
  • Multi-NAT, DMZ Host
  • Port Redirection and Open Port Configuration
  • Policy-Based Firewall
  • MAC Address Filter
  • SPI ( Stateful Packet Inspection )
  • DoS / DDoS Protection
  • IP Address Anti-spoofing
  • E-Mail Alert and Logging via Syslog
  • Bind IP to MAC Address

    VPN Support:
  • Up to 50 Simultaneous VPN Tunnels
  • Protocols : PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption : MPPE and Hardware-Based AES / DES / 3DES
  • Authentication : Hardware-Based MD5 , SHA-1
  • IKE Authentication : Pre-shared Key and Digital Signature ( X.509 )
  • PFS (Perfect Forward Secrecy)
  • IKE Phase 1 Agressive/Standard Modes & Phase 2 Selectable lifetimes
  • LAN-to-LAN (Dial-in & Dial-Out), Teleworker-to-LAN
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through

    Bandwidth Management:
  • QoS
  • Guaranteed Bandwidth for VoIP
  • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for each Direction (Inbound / Outbound)
  • Bandwidth Borrowed
  • Temporary (5 minute) Quick Blocking of any LAN Client
  • Bandwidth / Session Limitation

    Network/Router Management:
  • Web-Based User Interface (HTTP / HTTPS)
  • CLI ( Command Line Interface ) / Telnet / SSH*
  • Administration Access Control
  • Configuration Backup / Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP / FTP
  • Logging via Syslog
  • SNMP Management with MIB-II

    Network Features:
  • DHCP Client / Relay / Server
  • Dynamic DNS
  • NTP Client (Syncrhonise Router Time)
  • Call Scheduling (Enable/Trigger Internet Access by Time)
  • RADIUS Client
  • DNS Cache / Proxy
  • Microsoft UPnP
  • Port-Based VLAN (Ethernet LAN ports exclusive/inclusive groups)

    Routing Protocols:
  • Static Routing
  • RIP V2

    Operating Requirements:
  • Rack Mountable (Optional mount bracket required)
  • Temperature Operating : 0°C ~ 45°C
  • Storage : -25°C ~ 70°C
  • Humidity 10% ~ 90% ( non-condensing )
  • Power Consumption: 18 Watt Max.
  • Dimensions: L240.96 * W165.07 * H43.96 ( mm )
  • Operating Power: DC 15V (via external PSU, supplied)
  • Warranty : 2 Years Manufacturer's RTB included
  • Power Requirements : 220-240VAC
