Product Overview

The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. Models supply abundant battery backup during outages and stabilize unsafe voltage levels. They provide protection from damaging surges and spikes, and allow the use of management software so you get the most out of your unit. Premium features of this family include Automatic Voltage Regulation (AVR), an LCD display, and energy saving functions that reduce electricity use. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.

Output Specifications

Output Power Capacity	330 Watts / 550 VA
Nominal Output Voltage	230V
Output Frequency	50 Hz
Waveform Type	Stepped approximation to a sinewave
Output Connections	(3) IEC 320 C13 (Battery Backup) (3) IEC 320 C13 (Surge Protection) (2) IEC Jumpers (Surge Protection)

Input Specifications

Nominal Input Voltage	230V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	IEC-320-C14 inlet
Cord Length	1.83 meters
Input voltage range	176 - 282V

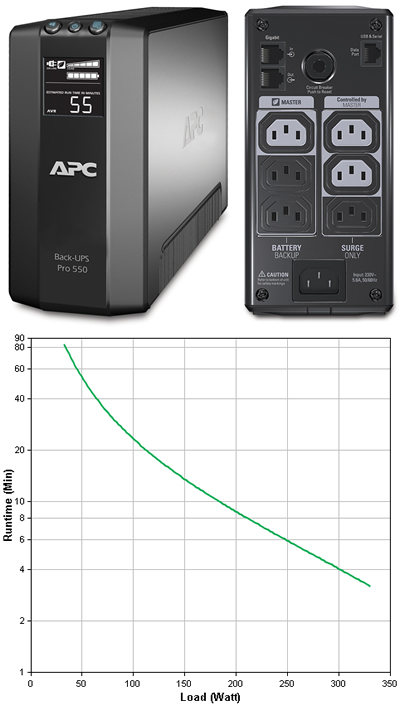

Batteries & Runtime

Replacement Battery	1 x RBC110
Typical Recharge Time	12 Hours
Runtime at Half Load (165W)	11.8 Minutes
Runtime at Full Load (330W)	3.2 Minutes

Communications & Management

Interface Port	N/A
Control Panel	Multi-function LCD status and control console
Audible Alarm	Alarm when on battery Distinctive low battery alarm Overload continuous tone alarm

Surge Protection and Filtering

Surge Energy Rating	420 Joules
Filtering	N/A
Data Line Protection	Analog phone line for phone/fax/modem/DSL (RJ-45 connector)

Physical Specification

Dimensions (H x W x D)	190mm x 91mm x 310mm
Weight	6.53 KG

Conformance

Regulatory Approvals	A-tick,C-tick,CE,GOST,GS Mark
Standard Warranty	3 years repair or replace
Equipment Protection Policy	Lifetime : 75000 GBP
Environmental Compliance	RoHS,REACH: Contains No SVHCs
