Product Overview

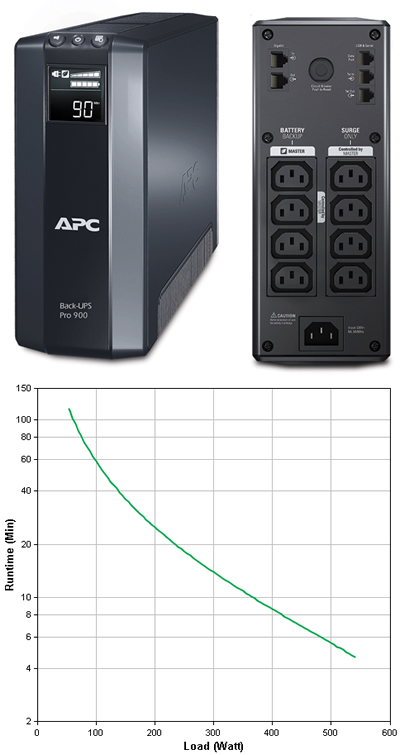

The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. Models supply abundant battery backup during outages and stabilize unsafe voltage levels. They provide protection from damaging surges and spikes, and allow the use of management software so you get the most out of your unit. Premium features of this family include Automatic Voltage Regulation (AVR), an LCD display, and energy saving functions that reduce electricity use. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.

Output Specifications

Output Power Capacity	540 Watts / 900 VA
Nominal Output Voltage	230V
Output Frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Waveform Type	Stepped approximation to a sinewave
Output Connections	(4) IEC 320 C13 (Battery Backup) (4) IEC 320 C13 (Surge Protection) (2) IEC Jumpers (Surge Protection)

Input Specifications

Nominal Input Voltage	230V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	IEC-320-C14 inlet
Cord Length	1.83 meters
Input voltage range	175 - 295V

Batteries & Runtime

Replacement Battery	1 x RBC123
Typical Recharge Time	8 Hours
Runtime at Half Load (270W)	16.3 Minutes
Runtime at Full Load (540W)	4.6 Minutes

Communications & Management

Interface Port	USB
Control Panel	Multi-function LCD status and control console
Audible Alarm	Alarm when on battery Distinctive low battery alarm Overload continuous tone alarm

Surge Protection and Filtering

Surge Energy Rating	680 Joules
Filtering	Full time multi-pole noise filtering 5% IEEE surge let-through Zero clamping response time Meets UL 1449
Data Line Protection	Analog phone line for phone/fax/modem/DSL Network line - 10/100/1000 Base-T Ethernet

Physical Specification

Dimensions (H x W x D)	250mm x 100mm x 382mm
Weight	10.72 KG

Conformance

Regulatory Approvals	A-tick,C-tick,CE,GOST,GS Mark,Telepermit
Standard Warranty	3 years repair or replace
Equipment Protection Policy	Lifetime : 75000 GBP
Environmental Compliance	RoHS,REACH: Contains No SVHCs
