Product Overview

The perfect presentation tool
An effective presentation is more than just words spoken. A strong message is based on both verbal and nonverbal messages. That's why the SMART Podium interactive pen display is the ideal tool for you to maximize your presentation. You can engage your audience, increase interactivity and impress even the most tech-savvy veterans in the room. All you need to do is touch the screen with the pen to control computer applications or write in digital ink, while your audience sees the same image projected on a large screen.

Just write
Operating the SMART Podium interactive pen display is easy. Just connect the display to your computer or collaboration appliance and a projector, and you're set. You can launch and control applications, open files and write with digital ink over material, including PowerPoint slides, websites and moving videos, all while your audience sees the same image projected on a large screen.

Stand and deliver
With the SMART Podium interactive pen display, you don't have to move from computer to projector, creating distractions and wasting valuable time. Whether you are collaborating on a project or making a presentation, you are the one who controls the pace and flow, making the presentation an active, dynamic process. If you are collaborating with a few colleagues, you can work from where you're sitting. If you are presenting in a larger setting, the SMART Podium interactive pen display allows you to comfortably interact with your material without losing eye contact with your audience. When finished, save your notes into one convenient file that can then be distributed in several formats.

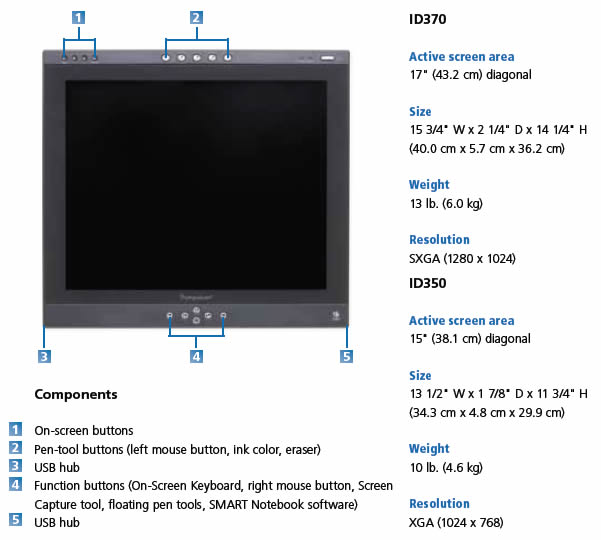

Product Features

Interactive screen
Control your computer with the pen tool. Write over any application. The pen tool is the point of contact on the screen, so you don't have to worry if you brush the screen with your palm or sleeve. Each display is designed with angular corners, straight sides and a flat bezel, so there in nothing to impede your natural writing flow.

Save function
Instantly capture and save notes.

Battery-free tethered pen
Write smoothly and comfortably with the securely attached pen. Because the pen is battery-free, there's no maintenance cost or downtime searching for replacement batteries.

Pen-tool buttons
Change ink color, or use the eraser without crowding your display with toolbars.

Function buttons
Quickly access the right mouse button, On-Screen Keyboard, Screen Capture tool, Floating Tools toolbar and Notebook software.

On-screen display buttons
Fine-tune display properties to suit your preferences.

Adjustable tilt stand
Move the console to a comfortable viewing angle.

VESA mounting plate
Integrate the SMART Podium ID350 and ID370 interactive pen displays with any standard VESA mounting arm (75 mm for the ID350 and 100 mm for the ID370).

USB connection
Easily connect the ID350 or ID370 to your computer.

USB hub
Enhance your presentation by connecting a memory key or other peripherals to the two 2.0 high-speed ports.

RGB video pass-through
Enhance your presentation by connecting a wireless microphone or other peripherals using the two ports in the USB hub.

Warranty
Two-year limited warranty

Physical Specifications

Size	40.0 cm × 36.2 cm × 5.7 cm
With Tilt Stand (Lowest Position)	40.0 cm × 12.7 cm × 35.2 cm
With Tilt Stand (Highest Position)	40.0 cm × 34.9 cm × 21.3 cm
Display Area	17" (43.2 cm) diagonal
Weight	8.5 kg

Console Features

Software	SMART Notebook software included.
Tilt Stand	You can adjust the console's tilt angle from a minimum position of 18° from vertical to a maximum position of 73° from vertical
Mounting	Standard VESA 75 mm rear mounting plate
Cables	HD15 video cable USB cable
Power Supply	Input: 100V-240V AC 50/60 Hz Output: 12V DC, 3.3A, 40 W maximum
Power Management	VESA DPMS
Power Consumption	Maximum 37 W
Plug and Play	DDC2B, EDID 1.3
Certifications	FCC, CE, WEEE, RoHS (Europe), RoHS (China)
Warranty	Two-year limited warranty.

Interactive Pen Display Features

Screen	a-Si TFT active-matrix LCD display
Screen Type	Electromagnetic resonance technology
Communication Interface	High speed USB 2.0
Resolution	SXGA 1280 × 1024 pixels
Synchronization Range	Horizontal: 30 kHz-56.5 kHz Vertical: 50 Hz-70 Hz
Viewing Angle	Horizontal 140° and vertical 130° (typical)
Color Depth	16.2 million
Contrast Ratio	500:1 (typical)
Brightness	Luminance of 300 cd/m² (typical)
Input Video Signal	Analog 0.7 Vp-p positive at 75 ohm
Auto Adjustment	Less than 2 seconds
Display Response Time	8 milliseconds response (typical)
On-Screen Display Control	Brightness, Contrast, Horizontal Position, Vertical Position, Phase, Language, Reset, Color Setting, Color Adjustment (for Red, Green and Blue)

Tablet Features

Pen Tool Buttons	Control the pen behavior: Left Mouse, Digital Ink (Black, Blue and Red) and Eraser
Function Buttons	Access tools and applications: Floating Tools, Notebook Software, Screen Capture, Right Mouse Click and Keyboard
Technology	Electromagnetic resonance technology with USB interface
Pen	Battery-free, tethered pen with convenient storage location for easy access
Pen Report Rate	100 points per second
Power Indicator	Blue light turns on when video signal is present; orange light turns on when video signal isn't present; blue and orange lights blink while power management is active
Status Indicator	Blue status light turns on when tip switch is pressed
Input/Output Interface	1 x HD15 (F) 1 x HD15 (F) 1 x USB (B) 2 x USB (A)
Security	Kensington security slot
