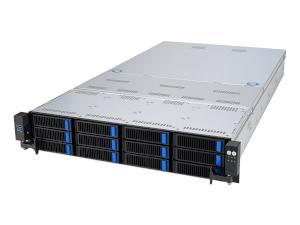

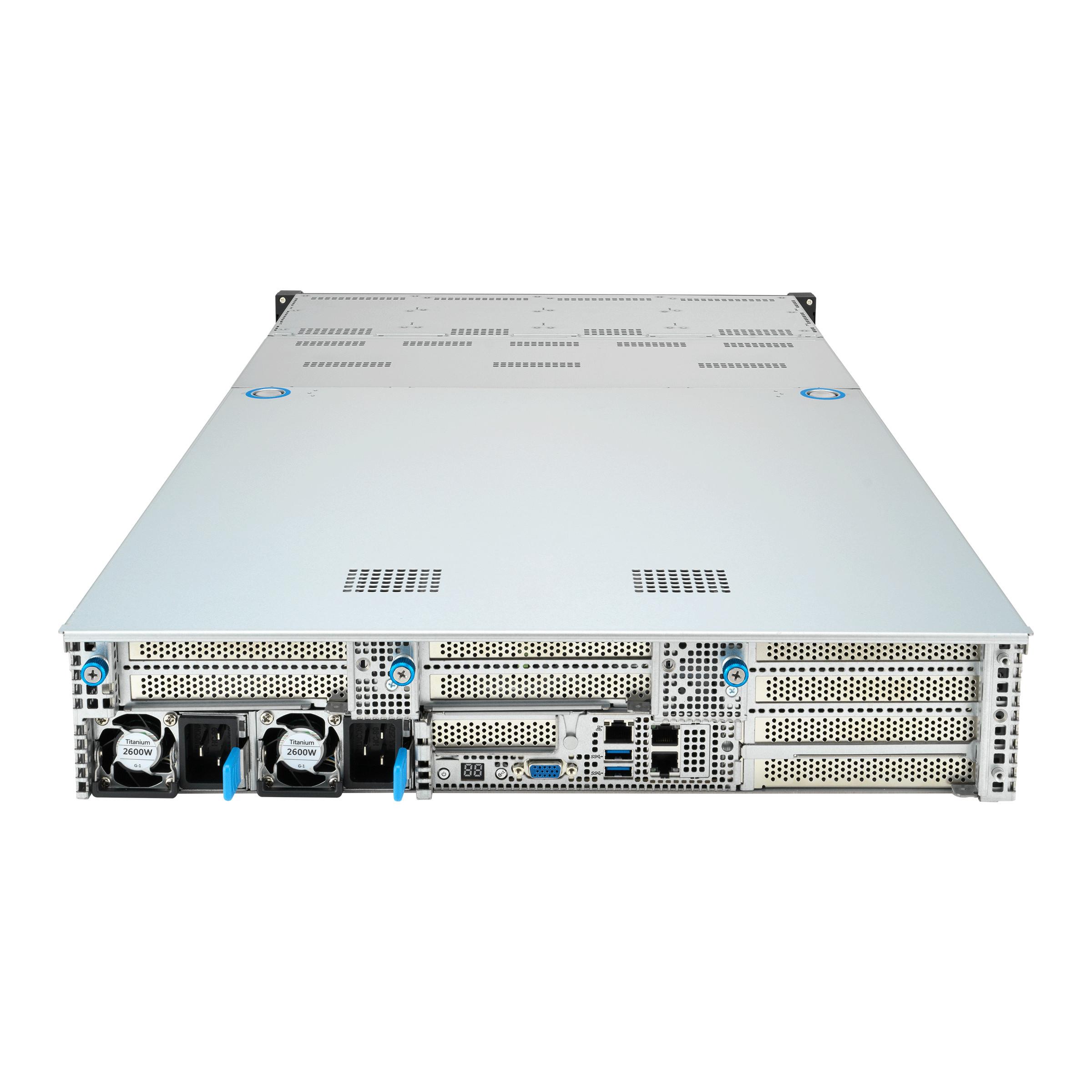

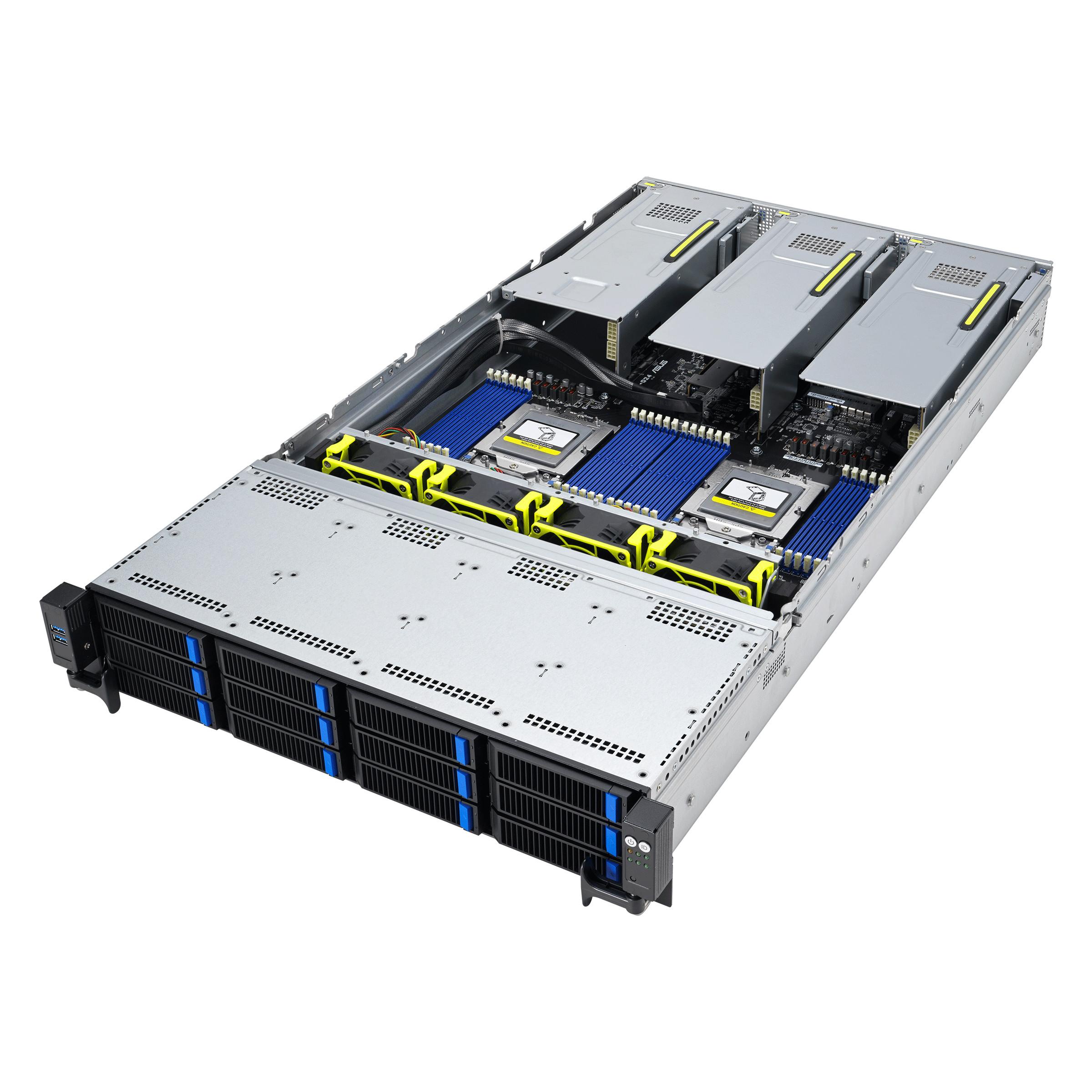

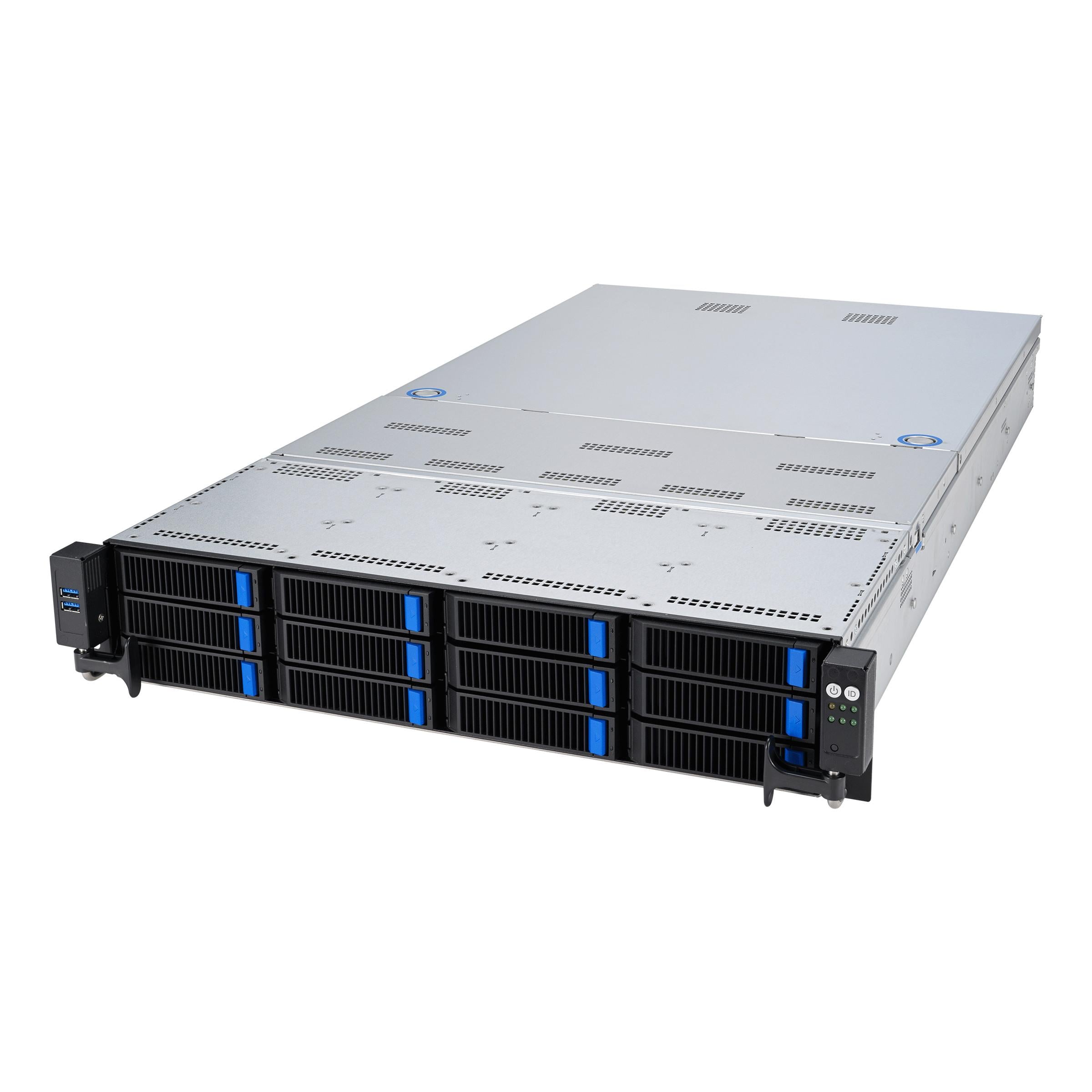

Customise your HyperServe RME4-2U12
- Dual AMD EPYC 9004 series processors
- 12-Channel RDIMM/3DS RDIMM DDR5 per processor, 24 x DIMMs
- 2 x 10GbE LAN ports (Intel X710-AT2 Controller), 1 x Management Port
- 12 x 3.5” Hot-swap Storage Bays, 2 x M.2 sockets (Gen4 x4 link, up to 2280)
- Up to 9 PCIe Gen5 slots + 1 x internal RAID slot
- 1+1 Redundant 2600W/1600W 80 PLUS Titanium
- 2U, 840mm Depth
Configure from £7180.57 inc VAT
or
| CPU Support | AMD EPYC™ 9004 Series (up to 400W) |
| Socket | 2 x Socket SP5 (LGA 6096) |
| Memory | Total Slots:24 (12-channel per CPU, 1 DIMM per CPU) Capacity :Maximum up to 3072GB per socket Memory Type :DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size :128GB, 64GB, 32GB RDIMM 128GB, 64GB, 32GB 3DS RDIMM |
| Expansion Slots | Total Slots: Up to 9 PCIe Gen5 slots + 1 x internal RAID slot 6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL) 2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL) 1 x PCIe Gen5 x16 (LPHL) 1 x PCIe Gen5 x16 (LPHL) |
| Storage | SATA Controller : 8 x SATA 6Gb/s ports 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link) SAS Controller : Braodcom HBA CARD 9500-16i (Optional) Broadcom MegaRAID 9540-8i (Optional) Broadcom MegaRAID 9560-16i (Optional) NVMe Controller : SupremeRAID™ from Graid SR1001 (support up to 4 NVMe) (Optional) SupremeRAID™ from Graid SR1000 (support up to 12 NVMe) (Optional) SupremeRAID™ from Graid SR1010 (support up to 12 NVMe) (Optional) |
| Storage Bays | Front Bays:12 x 3.5" Hot-Swap drive bays Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS* Rear Bays:2 x 2.5" Hot-Swap drive bays (Optional) Support 2NVMe** *RAID card is required to support SAS hard drives. **Will occupied 2 PCIe slots Front Bays:12 x 3.5" Hot-Swap drive bays Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS* *RAID card is required to support SAS hard drives Rear Bays (Optional):2 x 2.5" Hot-Swap drive bays (Will occupied 2 PCIe slots) Support 2 x NVMe |
| Networking | 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN |
| Graphics | Aspeed AST2600 64MB |
| I/O Ports | 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 2 x 10G RJ-45 GbE LAN port |
OS Support | Windows Server 2019, Windows Server 2022 Ubuntu 22.04 LTS Ubuntu 20.04 LTS SUSE Enterprise 15 SP3 RHEL 9.X RHEL 8.X ESXi 8.0 Please find the latest OS support from http://www.asus.com/ |
| Management Solution | On-Board ASMB11-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, CB, C-Tick, FCC(Class A) |
| Dimensions | 840mm x 449mm x 88.1mm |
| Form Factor | 2U |
| Weight | Net Weight: 19.3 kg Gross Weight: 25.77 Kg |
| Power Supply | 1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 60? Non operation humidity: 20% ~ 90% (Non condensing) |
ProcessorMemoryGraphicsRaid ControllerM.2 StorageHarddrivesNetworkingOperating SystemSupport Package
Case
Processor
Default part
AMD EPYC Genoa Dual Socket Processors
1
x
AMD EPYC Genoa 9124, 16 Core 32 Threads, 3.0GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9224, 24 Core 48 Threads, 2.50GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9254, 24 Core 48 Threads, 2.90GHz, 128MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9334, 32 Core 64 Threads, 2.70GHz, 128MB Cache, 210Watts.
1
x
AMD EPYC Genoa 9354, 32 Core 64 Threads, 3.25GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9454, 48 Core 96 Threads, 2.75GHz, 256MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9534, 64 Core 128 Threads, 2.45GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9554, 64 Core 128 Threads, 3.10GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9634, 84 Core 168 Threads, 2.25GHz, 384MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9654, 96 Core 192 Threads, 2.40GHz, 384MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9754, 128 Core 256 Threads,2.25GHz, 256MB Cache, 360Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Graphics
Default part
NVIDIA Blackwell Graphics Cards
1
x
PNY NVIDIA RTX PRO 4000 Blackwell 24GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 4500 Blackwell 32GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 48GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 72GB GDDR7 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB GDDR7 ECC Pro Graphics Card
NVIDIA Ada Lovelace Graphics Card
1
x
PNY NVIDIA RTX 4000 ADA 20GB GDDR6 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX 6000 ADA 48GB GDDR6 ECC Pro Graphics Card - OEM
Raid Controller
Default part
Broadcom RAID Controllers
Broadcom MegaRAID 9361-8i 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9380-8I8E 8 Port Internal, 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4
Graid SupremeRAID Cards
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1000
Graid Technology SupremeRAID Core Software Module License with full Features support 8 Native NVMe drives Bundled SR-1001
Graid Technology SupremeRAID Core Software Module License with full Features support 12 Native NVMe drives Bundled SR-1001
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1010
M.2 Storage
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Micron 7450 PRO Enterprise M.2 NVMe
0
Micron 7450 PRO 480GB M.2 (2280) NVMe Enterprise SSD
0
Micron 7450 PRO 960GB M.2 (2280) NVMe Enterprise SSD
0
Micron 7450 PRO 1.92TB M.2 (22110) NVMe Enterprise SSD
0
Micron 7450 PRO 3.84TB M.2 (22110) NVMe Enterprise SSD
Harddrives
Filter by:
Micron 7500 MAX Enterprise U.3 NVMe - Mixed Use, 3 DWPD
0
Micron 7500 MAX 800GB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 1.6TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 3.2TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 6.4TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 12.8TB U.3 2.5" NVMe SSD
Micron 7500 Pro Enterprise U.3 NVMe - Read Intensive, 1 DWPD
0
Micron 7500 PRO 960GB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 1.9TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 3.84TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 7.68TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 15.3TB U.3 2.5" NVMe SSD
Micron 9400 MAX Enterprise U.3 NVMe - 3 DWPD
0
Micron 9400 MAX 6.4TB U.3 NVME SSD
0
Micron 9400 MAX 12.8TB U.3 NVME SSD
0
Micron 9400 MAX 25.6TB U.3 NVME SSD
Micron 9400 Pro Enterprise U.3 NVMe - 1 DWPD
0
Micron 9400 Pro 7.68TB U.3 NVME SSD
0
Micron 9400 Pro 15.36TB U.3 NVME SSD
0
Micron 9400 Pro 30.7TB U.3 NVME SSD
Samsung PM893 SATA Data Centre Series SSD's - Read
0
Samsung PM893 240GB 2.5" SATA Enterprise SSD
0
Samsung PM893 480GB 2.5" SATA Enterprise SSD
0
Samsung PM893 960GB 2.5" SATA Enterprise SSD
0
Samsung PM893 1.92TB 2.5" SATA Enterprise SSD
0
Samsung PM893 3.84TB 2.5" SATA Enterprise SSD
Seagate SAS 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise HArd Drive 2TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SAS
0
Seagate Exo 7E10 Enterprise Hard Drive 6TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SAS
0
Seagate Exos X24 Enterprise Hard Drive 12TB SAS
0
Seagate Exo X24 Enterprise Hard Drive 16TB SAS
0
Seagate Exo X24 Enterprise Hard Drive 20TB SAS
0
Seagate Exos X24 Enterprise Hard Drive 24TB SAS
Seagate SATA 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise Hard Drive 2TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 6TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 12TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 16TB SATA
0
Seagate Exos X24 ENterprise Hard Drive 20TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 24TB SATA
Networking
Default part
Intel 10GbE Adapters
Intel X550-T2 Dual Port 10GbE RJ45 Ethernet Adapter
Intel X520-SR2 Dual Port 10GbE SFP+ Server Adapter
Intel X710-DA2 Dual Port 10GbE SFP+ Ethernet Adapter
Intel 25/40GbE Adapters
Intel XXV710-DA2 Dual Port 25GbE SFP28 Ethernet Adapter
Intel XL710-QDA2 Dual Port 40GbE QSFP+ Ethernet Converged Adapter
Intel 100GbE Adapters
Intel E810-CQDA1 Single Port 100GbE QSFP28 Ethernet Controller
Intel E810-CQDA1 Dual Port 100GbE QSFP28 Ethernet Controller
NVIDIA Mellanox ConnectX-6 High Performance Adapters
ConnectX-6 900-9X662-0073-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X662-0083-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
ConnectX-6 900-9X662-0053-ST1, 25GbE, Dual-port SFP28, PCIe 4.0 x8, No Crypto, Tall Bracket
ConnectX-6 900-9X663-0073-SQ0, 25GbE, With active cooling, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AF-0058-ST1, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket
ConnectX-6 900-9X6AG-0018-ST0, 200GbE , Single-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0056-ST1, 100GbE, Dual-port QSFP56, PCIe 4.0 x16,No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0076-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0086-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
Rail Kit
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Microsoft Windows Server 2022
Microsoft Windows Server 2022 Standard (16-core)
Microsoft Windows Server 2022 Standard (24-core)
Microsoft Windows Server 2022 Datacenter (16-core)
Microsoft Windows Server 2022 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
