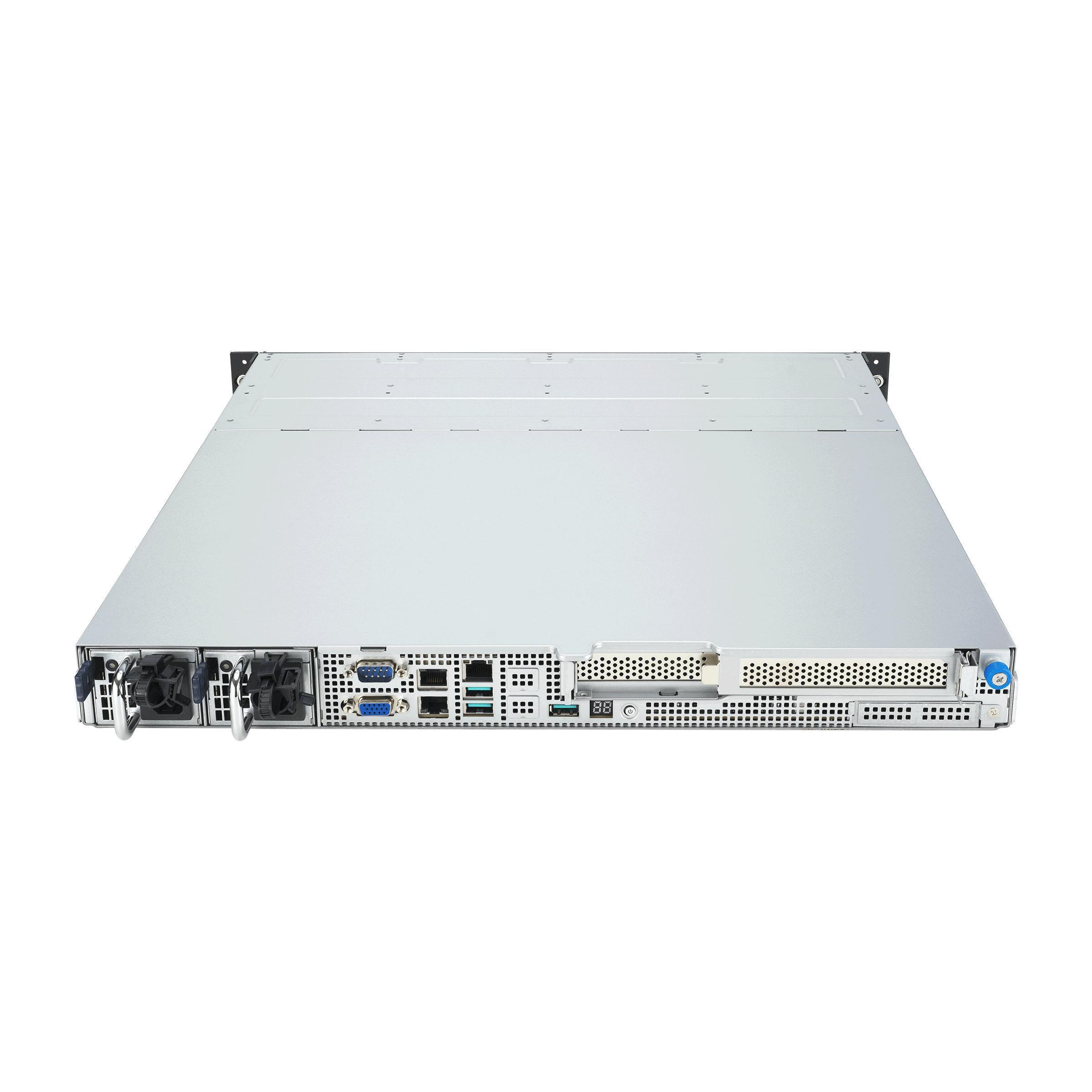

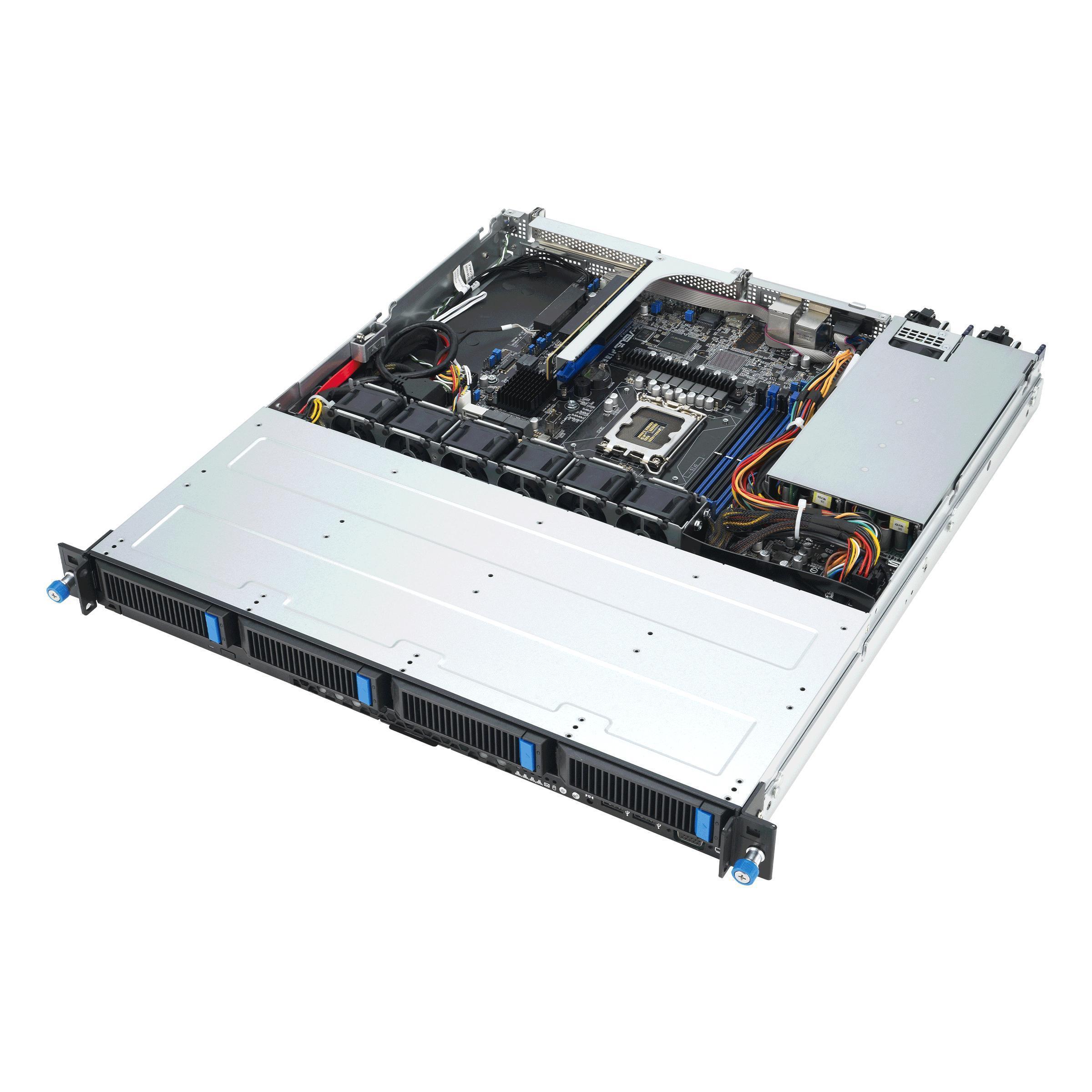

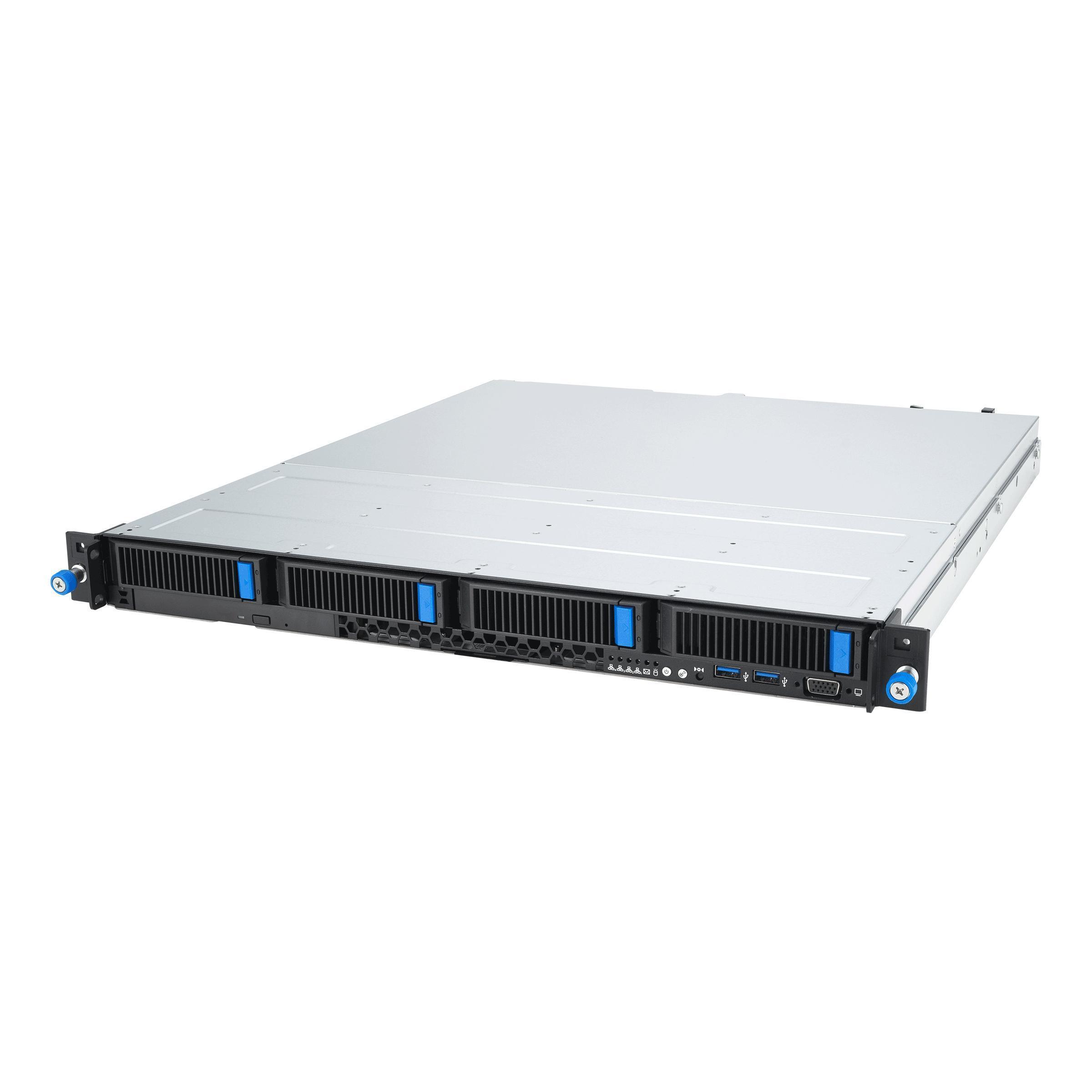

Customise your HyperServe RMXE4-1U4
- Single Intel Xeon E-2400 series processor
- 2-Channel ECC UDIMM DDR5, 4 x DIMMs slots
- 2 x 1GbE LAN ports (Intel I210-AT Controller), 1 x Management Port
- 4 x 2.5” Hot-swap Storage Bays, 1 x M.2 sockets (Gen4 x4 link, up to 2280)
- Up to 2 PCIe Gen5 slots
- 1+1 Redundant 450W 80 PLUS Platinum Power Supply
- 1U, 497mm Depth
Configure from £1955.04 inc VAT
or
| CPU Support | Intel® Xeon® processor E-2400 family Intel® Pentium™ processors |
| Socket | 1 x Socket LGA1700 |
| Memory | Total Slots:4 (2-channel) Capacity :Maximum up to 128GB UDIMM Memory Type : DDR5 4400/4000/3600 UDIMM Memory Size : 32GB, 16GB, 8GB UDIMM |
| Expansion Slots | Total PCI-E Slots:3 1 x PCI-E x 16, FH/HL 1 x PCI-E x 8, HH/HL 1 x PCI-E x 4, Proprietary R/A slot |
| Disk Controller | Storage Controller: Intel® C262 Chipset 8 x SATA3 6Gb/s ports |
| Storage Bays | 4 x 3.5” Hot-Swap HDD Bays up to (4*SATA/SAS/NVMe) *SAS support only from optional SAS HBA/RAID card |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphics | Aspeed AST2600 with 64MB VRAM |
| I/O Ports | Front:1 x VGA port, 2 x USB 3.2 Gen1 ports Rear:3 x USB 3.2 Gen 2 ports, 1 x VGA port , 1 x COM port, 1 x RJ-45 ports |
OS Support | Windows® Server 2019/2022 64-bit Linux 64-bit Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet |
| Regulatory Compliance | BSMI, CE, CB, FCC(Class A) |
| Dimensions | 497mm x 439.5mm x 44mm |
| Form Factor | 1U |
| Weight | 15.2 kg |
| Power Supply | 1+1 Redundant 450W 80 PLUS PLATINUM Power Supply |
| Environment | Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
Case
Processor
Default part
Intel Xeon E 2400 Series Processors
1
x
Intel Xeon E-2414, 4 Core, 2.6GHz, 12MB Cache, 55Watts.
1
x
Intel Xeon E-2434, 4 Core, 3.4GHz, 12MB Cache, 55Watts.
1
x
Intel Xeon E-2436, 6 Core, 2.9GHz, 18MB Cache, 65Watts.
1
x
Intel Xeon E-2456, 6 Core, 3.3GHz, 18MB Cache, 80Watts.
1
x
Intel Xeon E-2486, 6 Core, 3.5GHz, 18MB Cache, 95Watts.
1
x
Intel Xeon E-2468, 8 Core, 2.6GHz, 24MB Cache, 65Watts.
1
x
Intel Xeon E-2478, 8 Core, 2.8GHz, 24MB Cache, 80Watts.
1
x
Intel Xeon E-2488, 8 Core, 3.2GHz, 24MB Cache, 95Watts.
Intel Xeon 6300 Series Processors
1
x
Intel Xeon 6315P Processor, 4 Core, 2.8GHz, 12MB Cache, 55 Watts.
1
x
Intel Xeon 6325P Processor, 4 Core, 3.5GHz, 12MB Cache, 55 Watts.
1
x
Intel Xeon 6333P Processor, 6 Core, 3.1GHz, 18MB Cache, 65 Watts.
1
x
Intel Xeon 6337P Processor, 6 Core, 3.5GHz, 18MB Cache, 80 Watts.
1
x
Intel Xeon 6349P Processor, 6 Core, 3.6GHz, 18MB Cache, 95 Watts.
1
x
Intel Xeon 6353P Processor, 8 Core, 2.7GHz, 24MB Cache, 65 Watts.
1
x
Intel Xeon 6357P Processor, 8 Core, 3GHz, 24MB Cache, 80 Watts.
1
x
Intel Xeon 6369P Processor, 8 Core, 3.3GHz, 24MB Cache, 95 Watts.
Memory
Default part
DDR5 5600MHz ECC UDIMM Memory
1
x
16GB 5600MHz DDR5 ECC UDIMM Memory
1
x
32GB 5600MHz DDR5 ECC UDIMM Memory
Raid Controller
Default part
Broadcom RAID Controllers
Broadcom MegaRAID 9361-8i 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9380-8I8E 8 Port Internal, 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4
M.2 Storage
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Micron 7450 PRO Enterprise M.2 NVMe
0
Micron 7450 PRO 480GB M.2 (2280) NVMe Enterprise SSD
0
Micron 7450 PRO 960GB M.2 (2280) NVMe Enterprise SSD
Harddrives
Filter by:
Samsung PM893 SATA Data Centre Series SSD's - Read
0
Samsung PM893 240GB 2.5" SATA Enterprise SSD
0
Samsung PM893 480GB 2.5" SATA Enterprise SSD
0
Samsung PM893 960GB 2.5" SATA Enterprise SSD
0
Samsung PM893 1.92TB 2.5" SATA Enterprise SSD
0
Samsung PM893 3.84TB 2.5" SATA Enterprise SSD
Samsung PM1643A SAS Enterprise SSD's - Endurance 1 D
0
Samsung 960GB PM1643A 2.5" SAS Enterprise SSD
0
Samsung 1.92TB PM1643A 2.5" SAS Enterprise SSD
0
Samsung 3.84TB PM1643A 2.5" SAS Enterprise SSD
0
Samsung 15.36TB PM1643A 2.5" SAS Enterprise SSD
0
Samsung 30.72TB PM1643A 2.5" SAS Enterprise SSD
Seagate SATA 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise Hard Drive 2TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 6TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 12TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 16TB SATA
0
Seagate Exos X24 ENterprise Hard Drive 20TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 24TB SATA
Power Supply
Networking
Default part
Intel 10GbE Adapters
Intel X550-T2 Dual Port 10GbE RJ45 Ethernet Adapter
Intel X520-SR2 Dual Port 10GbE SFP+ Server Adapter
Intel X710-DA2 Dual Port 10GbE SFP+ Ethernet Adapter
Intel 25/40GbE Adapters
Intel XXV710-DA2 Dual Port 25GbE SFP28 Ethernet Adapter
Intel XL710-QDA2 Dual Port 40GbE QSFP+ Ethernet Converged Adapter
Intel 100GbE Adapters
Intel E810-CQDA1 Single Port 100GbE QSFP28 Ethernet Controller
Intel E810-CQDA1 Dual Port 100GbE QSFP28 Ethernet Controller
NVIDIA Mellanox ConnectX-6 High Performance Adapters
ConnectX-6 900-9X662-0073-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X662-0083-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
ConnectX-6 900-9X662-0053-ST1, 25GbE, Dual-port SFP28, PCIe 4.0 x8, No Crypto, Tall Bracket
ConnectX-6 900-9X663-0073-SQ0, 25GbE, With active cooling, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AF-0058-ST1, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket
ConnectX-6 900-9X6AG-0018-ST0, 200GbE , Single-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0056-ST1, 100GbE, Dual-port QSFP56, PCIe 4.0 x16,No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0076-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0086-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
Rail Kit
Operating System
Default part
Microsoft Windows Server 2022
Microsoft Windows Server 2022 Standard (16-core)
Microsoft Windows Server 2022 Standard (24-core)
Microsoft Windows Server 2022 Datacenter (16-core)
Microsoft Windows Server 2022 Datacenter (24-core)
Microsoft Windows Server 2025
Microsoft Windows Server 2025 Standard (16-core)
Microsoft Windows Server 2025 Standard (24-core)
Microsoft Windows Server 2025 Datacenter (16-core)
Microsoft Windows Server 2025 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
