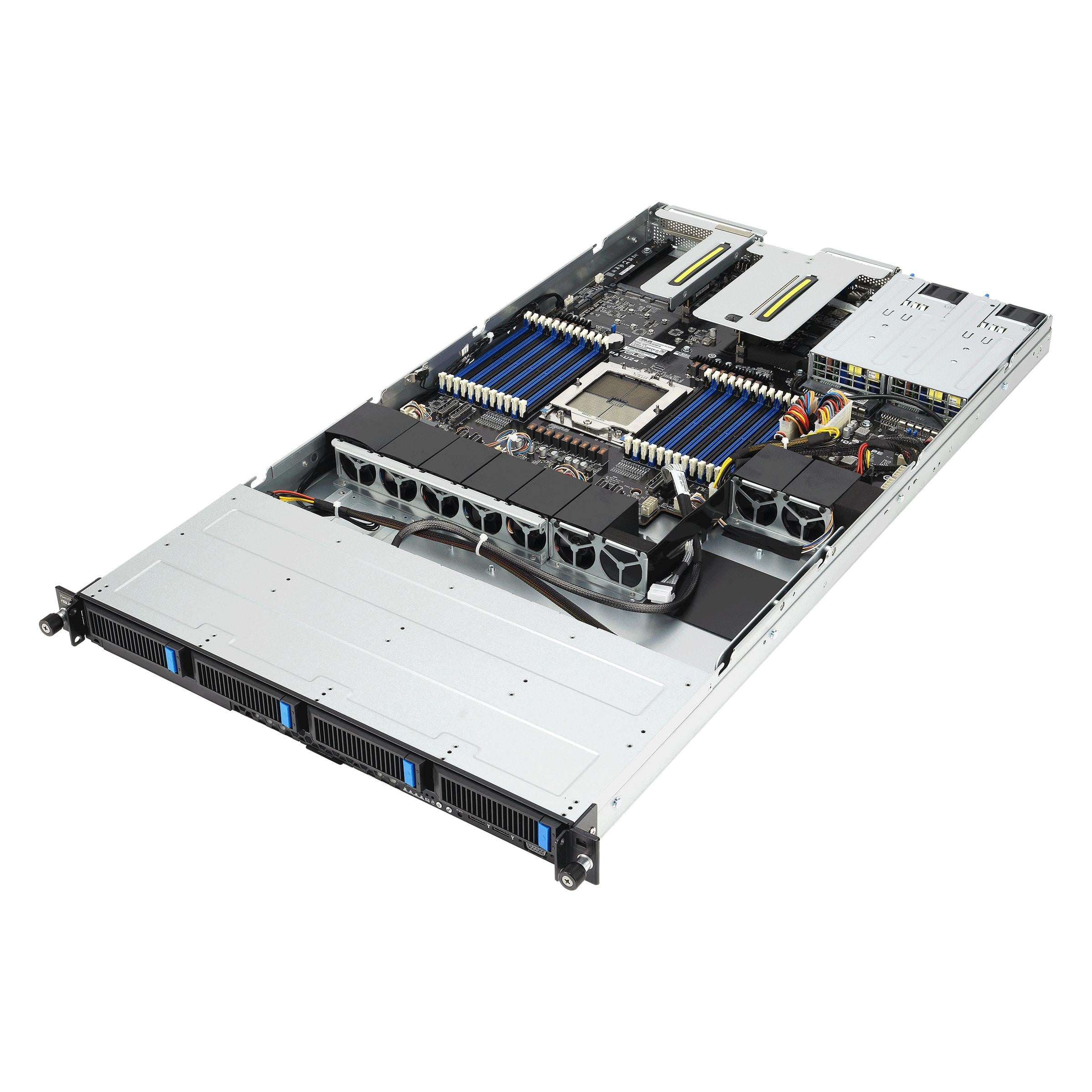

Customise your HyperServe RME5-1U4
- Single AMD EPYC 9005 series processor
- 12-Channel RDIMM/3DS RDIMM DDR5, 24 x DIMMs slots
- 2 x 1GbE LAN ports (Intel I350 Controller), 1 x Management Port

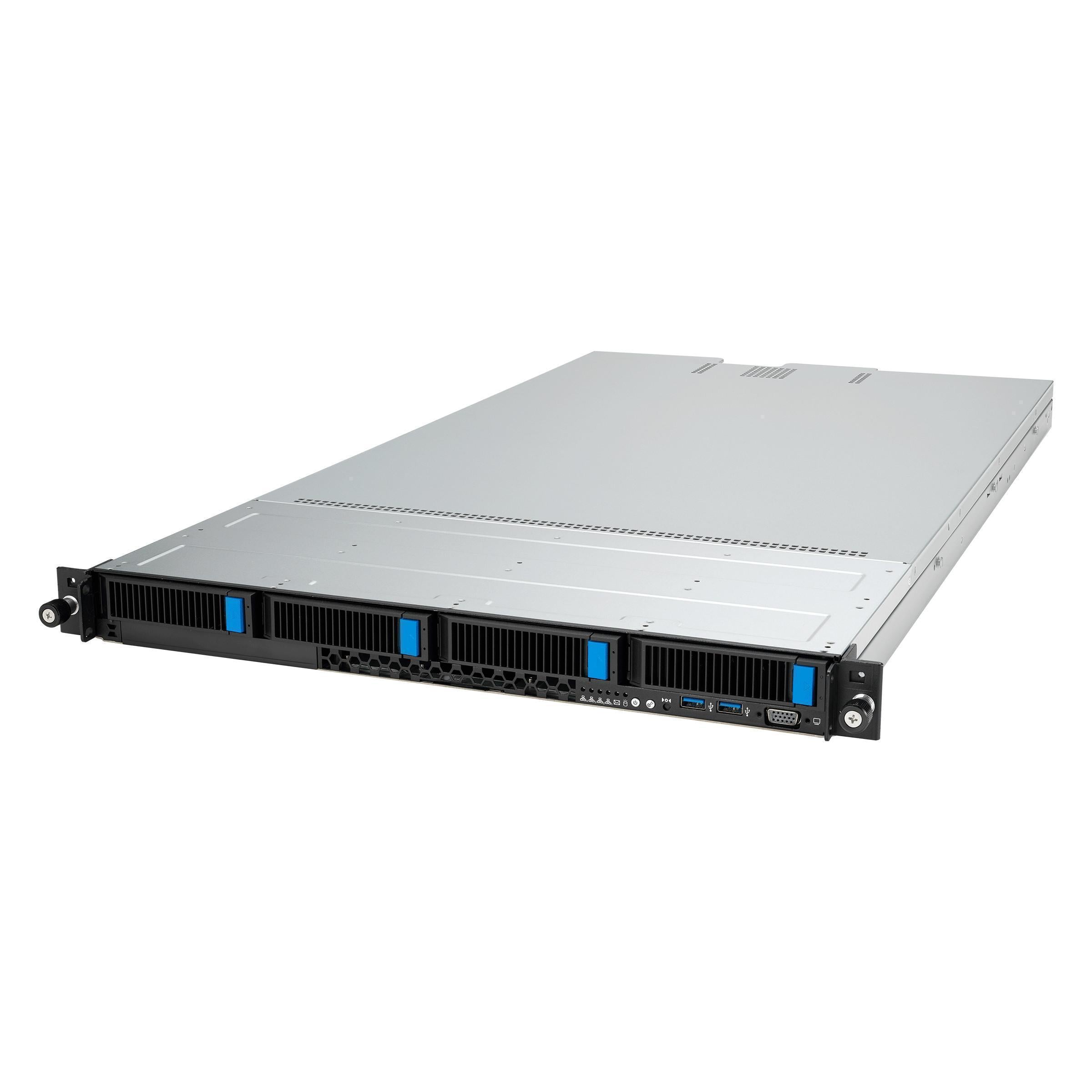

- 4 x 3.5” Hot-swap Storage Bays, 2 x M.2 sockets (Gen4 x4 link, up to 22110)
- Up to 3 x PCIe Gen5 slots + 1 x OCP3.0 slot
- 1+1 Redundant 1600W 80 PLUS Titanium Power Supply
- 1U, 842.5mm Depth
Configure from £3587.64 inc VAT
or
| CPU Support | AMD EPYC 9005 series processor AMD EPYC 9004 series processor up to 360W, with AMD 3D V-Cache technology |
| Socket | 1 x Socket (LGA 6096) |
| Memory | Total Slots:24 Capacity :Maximum up to 2.3TB Memory Type : AMD EPYC 9005 series processors DDR5 5600 RDIMM 2DPC (1 of 2) up to 5200 2DPC (2 of 2, 1R+1R ) up to 4400 2DPC (2 of 2, 2R+2R ) up to 4000 AMD EPYC 9004 series processors DDR5 4800 RDIMM 2DPC (1 of 2) up to 4800 2DPC (2 of 2, 1R+1R ) up to 4000 2DPC (2 of 2, 2R+2R ) up to 3600 Memory Size : 96, 64GB, 32GB, 16GB RDIMM |
| Expansion Slots | Total PCI-E Slots: 3 PCIe Gen5 slots + 1 OCP3.0 |
| Storage Bays | 4 x 3.5"/2.5" Front Hot-swap Storage Bays **SAS support requires an optional HBA/RAID card 2 x M.2 Socket, supports up to 22110 type (PCIe Gen4 x4 link) |
| Networking | 2 x 1GbE LAN ports (RJ45, I350-AM2) + 1 x Mgmt LAN |
| Graphics | Please find the latest GPU support from https://servers.asus.com/support/gpu |

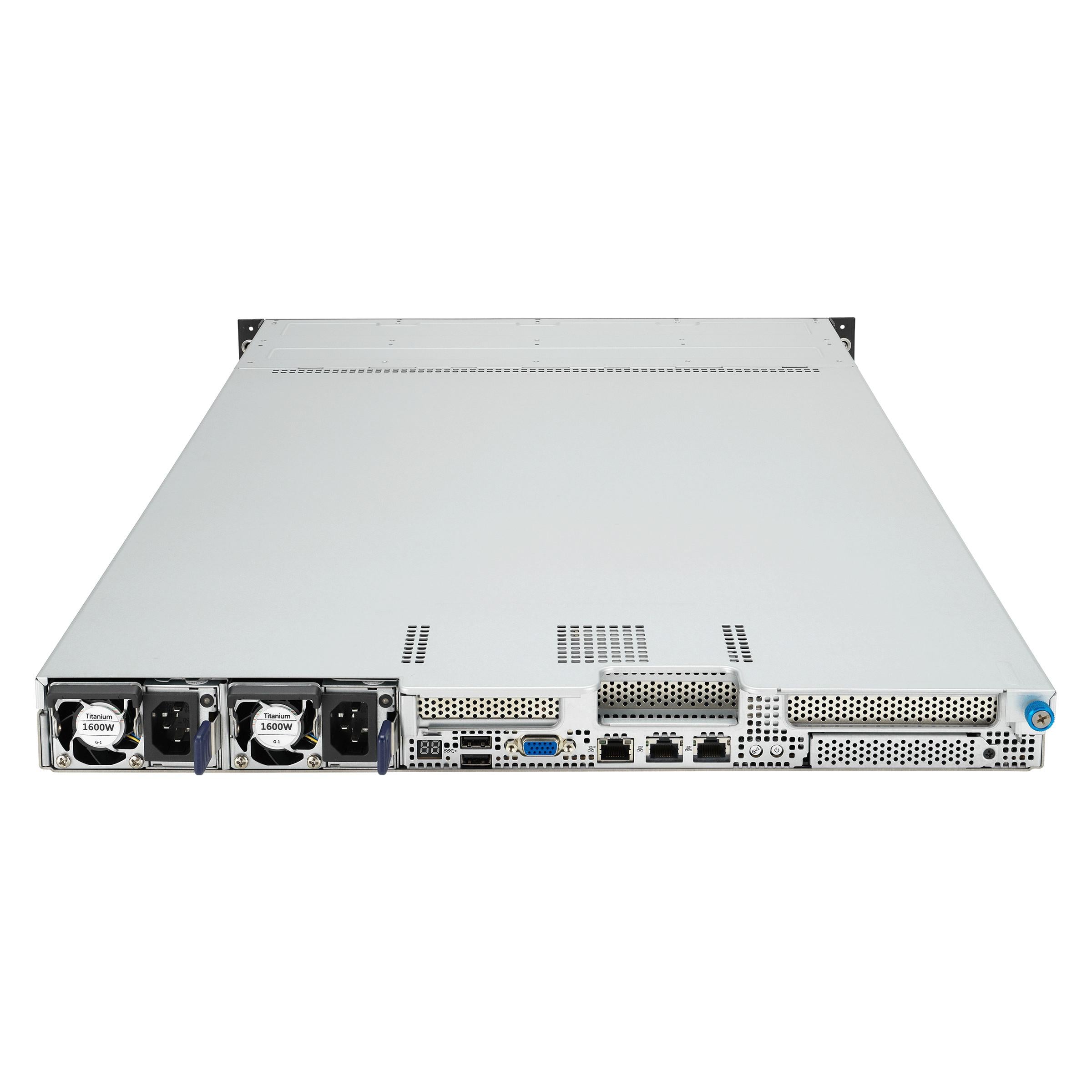

| I/O Ports | Rear: 2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports (RJ45) 1 x Management port (RJ45) 1 x VGA port 1 x COM port |
| OS Support | Linux 64-bit RHEL 9.X ESXi 8.0 Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center Enterprise (in-band) ASMB11-iKVM for (out-of-band/BMC AST2600) |
| Regulatory Compliance | BSMI, CB, CE, FCC(Class A), RCM |
| Dimensions | 842.5mm x 449mm x 43.85mm |
| Form Factor | 1U |
| Weight | Net Weight: 13.5 Kg Gross Weight: 18.5 Kg |
| Power Supply | 1+1 Redundant 1600W 80 PLUS Titanium Power Supply |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) |
Processor
Default part
AMD EPYC Turin Single Socket Processors
1
x
AMD EPYC Turin 9355P, 32 Core 64 Threads, 3.55GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Turin 9455P, 48 Core 96 Threads, 3.15GHz, 256MB Cache, 300Watts.
1
x
AMD EPYC Turin 9555P, 64 Core 128 Threads, 3.2GHz, 256MB Cache, 360Watts.
AMD EPYC Turin Dual Socket Processors
1
x
AMD EPYC Turin 9015, 8 Core 16 Threads, 3.6GHz, 64MB Cache, 125Watts.
1
x
AMD EPYC Turin 9115, 16 Core 32 Threads, 2.6GHz, 64MB Cache, 125Watts.
1
x
AMD EPYC Turin 9135, 16 Core 32 Threads, 3.65GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Turin 9175F, 16 Core 32 Threads, 4.2GHz, 512MB Cache, 320Watts.
1
x
AMD EPYC Turin 9255, 24 Core 48 Threads, 3.2GHz, 128MB Cache, 200Watts.
1
x
AMD EPYC Turin 9275F, 24 Core 48 Threads, 4.1GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Turin 9335, 32 Core 64 Threads, 3.0GHz, 128MB Cache, 210Watts.
1
x
AMD EPYC Turin 9355, 32 Core 64 Threads, 3.55GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Turin 9365, 36 Core 72 Threads, 3.4GHz, 192MB Cache, 300Watts.
1
x
AMD EPYC Turin 9375F, 32 Core 64 Threads, 3.8GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Turin 9455, 48 Core 96 Threads, 3.15GHz, 256MB Cache, 300Watts.
1
x
AMD EPYC Turin 9535, 64 Core 128 Threads, 2.4GHz, 256MB Cache, 300Watts.
1
x
AMD EPYC Turin 9555, 64 Core 128 Threads, 3.2GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Turin 9645, 96 Core 192 Threads, 2.3GHz, 256MB Cache, 320Watts.
AMD EPYC Genoa Single Socket Processors
1
x
AMD EPYC Genoa 9354P, 32 Core 64 Threads, 3.25GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9454P, 48 Core 96 Threads, 2.75GHz, 256MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9554P, 64 Core 128 Threads, 3.10GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9654P, 96 Core 192 Threads, 2.40GHz, 256MB Cache, 360Watts.
AMD EPYC Genoa High Frequency Processors
1
x
AMD EPYC Genoa 9174F, 16 Core 32 Threads, 4.10GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Genoa 9274F, 24 Core 48 Threads, 4.05GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Genoa 9374F, 32 Core 64 Threads, 3.85GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Genoa 9474F, 48 Core 96 Threads, 3.60GHz, 256MB Cache, 360Watts.
AMD EPYC Genoa Dual Socket Processors
1
x
AMD EPYC Genoa 9124, 16 Core 32 Threads, 3.0GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9224, 24 Core 48 Threads, 2.50GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9254, 24 Core 48 Threads, 2.90GHz, 128MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9334, 32 Core 64 Threads, 2.70GHz, 128MB Cache, 210Watts.
1
x
AMD EPYC Genoa 9354, 32 Core 64 Threads, 3.25GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9454, 48 Core 96 Threads, 2.75GHz, 256MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9534, 64 Core 128 Threads, 2.45GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9554, 64 Core 128 Threads, 3.10GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9634, 84 Core 168 Threads, 2.25GHz, 384MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9654, 96 Core 192 Threads, 2.40GHz, 384MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9754, 128 Core 256 Threads,2.25GHz, 256MB Cache, 360Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Raid Controller
Default part
Broadcom RAID Controllers
Broadcom MegaRAID 9361-8i 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9380-8I8E 8 Port Internal, 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4
OCP 3.0
Default part
Intel OCP 3.0 Modules
Intel X710-T2L Dual Port 10GbE/5Gbe/2.5GbE/1GbE/100Mb RJ45, OCP 3.0
Intel X710-T4L Quad Port 10GbE/5GbE/2.5GbE/1GbE/100Mb RJ45, OCP 3.0
Intel X710-DA2 Dual Port 10/1GbE SFP+, OCP 3.0
Intel X710-DA4 Quad Port 10/1GbE SFP+, OCP 3.0
Intel E810-XXVDA2 Dual Port 25/10/1GbE SFP28, OCP 3.0
Intel E810-XXVDA4 Quad Port 25/10/1GbE SFP28, OCP 3.0
Intel E810-CQDA1 Single Port 100/50/25/10GbE QSFP28, OCP 3.0
Intel E810-CQDA2 Dual Port 100/50/25/10GbE QSFP28, OCP 3.0
M.2 Storage
Micron 7450 PRO Enterprise M.2 NVMe
0
Micron 7450 PRO 480GB M.2 (2280) NVMe Enterprise SSD
0
Micron 7450 PRO 960GB M.2 (2280) NVMe Enterprise SSD
0
Micron 7450 PRO 1.92TB M.2 (22110) NVMe Enterprise SSD
0
Micron 7450 PRO 3.84TB M.2 (22110) NVMe Enterprise SSD
Samsung PM9A3 M.2 NVMe Data Centre
0
Samsung PM9A3 960GB M.2 NVME PCIE 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB M.2 NVME PCIE 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB M.2 NVME PCIE 4.0 Datacentre SSD
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Harddrives
Filter by:
Seagate SATA 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise Hard Drive 2TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 6TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 12TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 16TB SATA
0
Seagate Exos X24 ENterprise Hard Drive 20TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 24TB SATA
Samsung PM893 SATA Data Centre Series SSD's - Read
0
Samsung PM893 240GB 2.5" SATA Enterprise SSD
0
Samsung PM893 480GB 2.5" SATA Enterprise SSD
0
Samsung PM893 960GB 2.5" SATA Enterprise SSD
0
Samsung PM893 3.84TB 2.5" SATA Enterprise SSD
Power Supply
Networking
Default part
Intel 10GbE Adapters
Intel X550-T2 Dual Port 10GbE RJ45 Ethernet Adapter
Intel X520-SR2 Dual Port 10GbE SFP+ Server Adapter
Intel X710-DA2 Dual Port 10GbE SFP+ Ethernet Adapter
Intel 25/40GbE Adapters
Intel XXV710-DA2 Dual Port 25GbE SFP28 Ethernet Adapter
Intel XL710-QDA2 Dual Port 40GbE QSFP+ Ethernet Converged Adapter
Intel 100GbE Adapters
Intel E810-CQDA1 Single Port 100GbE QSFP28 Ethernet Controller
Intel E810-CQDA1 Dual Port 100GbE QSFP28 Ethernet Controller
NVIDIA Mellanox ConnectX-6 High Performance Adapters
ConnectX-6 900-9X662-0073-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X662-0083-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
ConnectX-6 900-9X662-0053-ST1, 25GbE, Dual-port SFP28, PCIe 4.0 x8, No Crypto, Tall Bracket
ConnectX-6 900-9X663-0073-SQ0, 25GbE, With active cooling, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AF-0058-ST1, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket
ConnectX-6 900-9X6AG-0018-ST0, 200GbE , Single-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0056-ST1, 100GbE, Dual-port QSFP56, PCIe 4.0 x16,No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0076-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0086-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
Rail Kit
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Microsoft Windows Server 2022
Microsoft Windows Server 2022 Standard (16-core)
Microsoft Windows Server 2022 Standard (24-core)
Microsoft Windows Server 2022 Datacenter (16-core)
Microsoft Windows Server 2022 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
