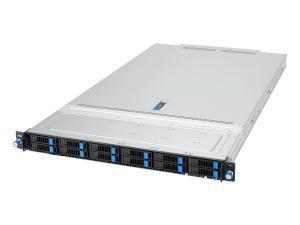

Customise your HyperServe RMX6-1U12
- Dual Intel Xeon 6 Processors
- 8-Channel RDIMM/ 3DS RDIMM DDR5 per processor, 32 x DIMMs

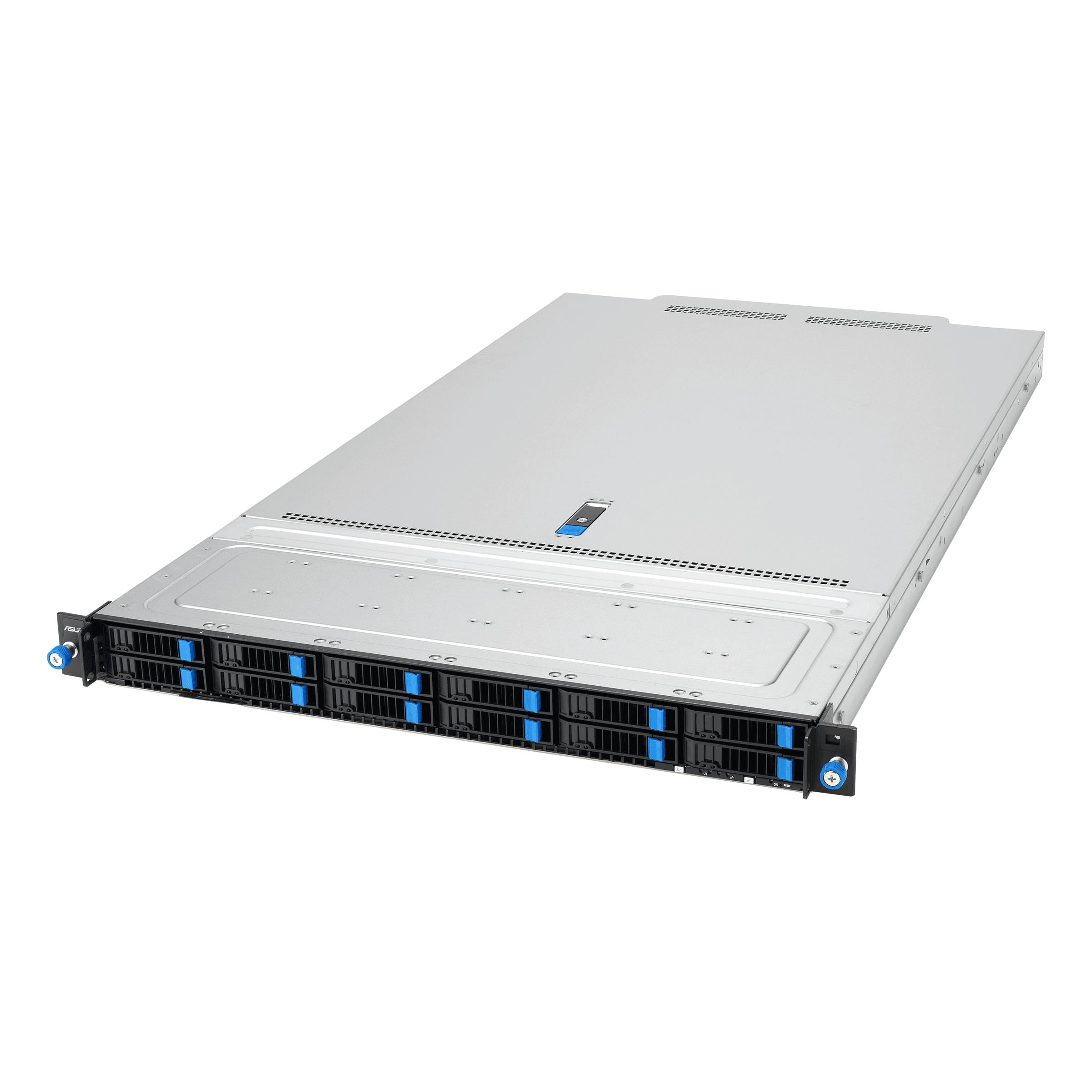

- 12 x 2.5” Hot-Swap Storage Bays, 2 x M.2 sockets (PCIE Gen5 x2 link up to 2280)
- 2 x PCIE Gen5 x16 link (FHHL) + 2 x OCP3.0 Gen5 x16 (SFF)
- 1 x Management Port
- 1+1 Redundant 2000W 80 PLUS Titanium Power Supply
- 1U, 821.7mm Depth
Configure from £6795.43 inc VAT
or
| General | Intel Xeon 6 processors (formerly codenamed Sierra Forest and Granite Rapids) |
| Socket | 2 x Socket SP5 (LGA 4710) |
| Memory | Total Slots:32 (8-channel per CPU, 16 DIMM per CPU) Capacity :Maximum up to 4TB Memory Type :DDR5 6400/5600 RDIMM/ 3DS RDIMM Memory Size :128GB, 96GB, 64GB, 32GB RDIMM 128GB, 96GB, 64GB, 32GB 3DS RDIMM |
| Expansion Slots | Total Slots: 4 2 x PCIE Gen5 x16 (FHHL) 2 x OCP3.0 Gen5 x16 (SFF) |
| Disk Controller | SATA Controller:2 x M.2 Gen5 x2 (2280/2260) |
| SAS Controller:Optional kits: Broadcom HBA CARD 9500-16i Broadcom MegaRAID 9560-16i |
|
| Storage Bays | 12 x 2.5"hot-swap drive bays Support 12x NVMe/SATA*/SAS* *HBA/ RAID card is required to support SAS or SATA hard drive |
| Networking | 1 x Management Port |
| Graphics | Aspeed AST2600 64MB |

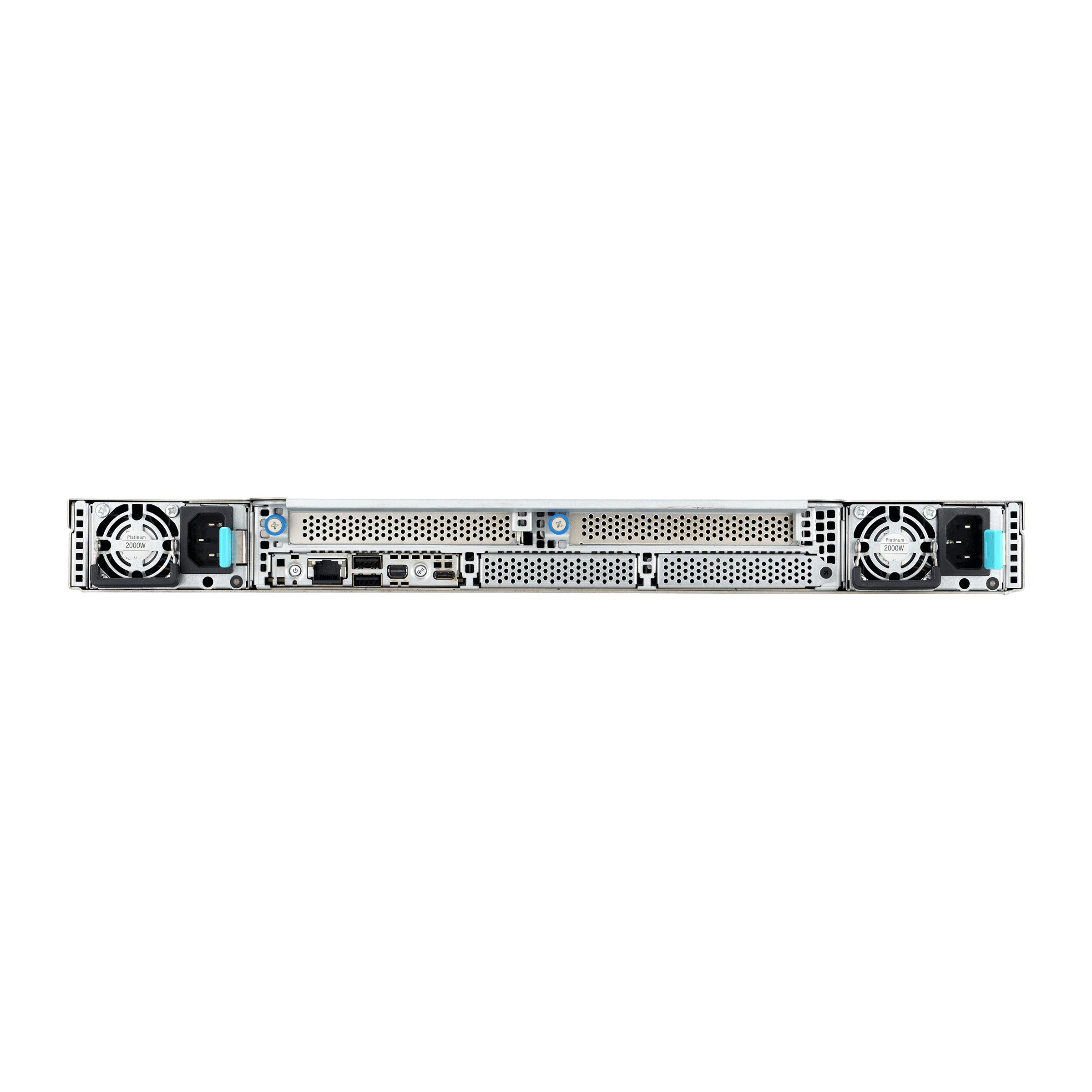

| I/O Ports | Rear: 2 x USB 3.2 Gen1 ports 1 x Mini-DP port 1 x RJ-45 Management LAN port 1 x Debug port |
OS Support | Please find the latest OS support from https://servers.asus.com/support/os |
| Management Solution | On-Board ASMB12-iKVM for KVM-over-IP ASUS Control Center Enterprise (Classic C)(Optional) |
| Regulatory Compliance | BSMI, CE, CB, RCM, FCC(Class A), ISED |
| Dimensions | 821.7(L) x 483(W) x 43.2(H) mm |
| Form Factor | 1U |
| Weight | Net Weight : 13.81KG Gross Weight : 16.71KG |
| Power Supply | 1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 60? Non operation humidity: 20% ~ 90% (Non condensing) |
ProcessorMemoryRaid ControllerBattery ProtectionOCP 3.0M.2 StorageHarddrivesNetworkingHost Bus AdapterOperating SystemSupport Package
Processor
Default part
Intel Xeon 6 Scalable Processors
1
x
Intel Xeon 6505P Processor, 12 Core, 2.2GHz, 48MB Cache, 150 Watts.
1
x
Intel Xeon 6507P Processor, 8 Core, 3.5GHz, 48MB Cache, 150 Watts.
1
x
Intel Xeon 6515P Processor, 16 Core, 2.3GHz, 72MB Cache, 150 Watts.
1
x
Intel Xeon 6517P Processor, 16 Core, 3.2GHz, 72MB Cache, 190 Watts.
1
x
Intel Xeon 6520P Processor, 24 Core, 2.4GHz, 144MB Cache, 210 Watts.
1
x
Intel Xeon 6527P Processor, 24 Core, 3.0GHz, 144MB Cache, 255 Watts.
1
x
Intel Xeon 6530P Processor, 32 Core, 2.3GHz, 144MB Cache, 225 Watts.
1
x
Intel Xeon 6728P Processor, 24 Core, 2.7GHz, 144MB Cache, 210 Watts.
1
x
Intel Xeon 6730P Processor, 32 Core, 2.5GHz, 288MB Cache, 250 Watts.
1
x
Intel Xeon 6736P Processor, 36 Core, 2.0GHz, 144MB Cache, 205 Watts.
1
x
Intel Xeon 6737P Processor, 32 Core, 2.9GHz, 144MB Cache, 270 Watts.
1
x
Intel Xeon 6738P Processor, 32 Core, 2.9GHz, 144MB Cache, 270 Watts.
1
x
Intel Xeon 6740P Processor, 48 Core, 2.1GHz, 288MB Cache, 270 Watts.
1
x
Intel Xeon 6745P Processor, 32 Core, 3.1GHz, 336MB Cache, 300 Watts.
1
x
Intel Xeon 6747P Processor, 48 Core, 2.7GHz, 288MB Cache, 330 Watts.
1
x
Intel Xeon 6748P Processor, 48 Core, 2.5GHz, 192MB Cache, 300 Watts.
1
x
Intel Xeon 6760P Processor, 64 Core, 2.2GHz, 320MB Cache, 330 Watts.
1
x
Intel Xeon 6767P Processor, 64 Core, 2.4GHz, 336MB Cache, 350 Watts.
1
x
Intel Xeon 6768P processor, 64 Core, 2.4GHz, 336MB Cache, 330 Watts.
1
x
Intel Xeon 6787P Processor, 86 Core, 2.0GHz, 336MB Cache, 350 Watts.
1
x
Intel Xeon 6788P Processor, 86 Core, 2.0GHz, 336MB Cache, 350 Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Raid Controller
Default part
Graid SupremeRAID Cards
SupremeRAID™ Core - Graid Technology SupremeRAID V2 Software Module License with full features, supports 16 native NVMe drives with bundled Nvidia GPU
SupremeRAID™ Pro - Graid Technology SupremeRAID V2 Software Module License with full features, supports 32 native NVMe drives with bundled Nvidia GPU
SupremeRAID™ Ultra - Technology SupremeRAID V2 Software Module License with full features, supports 32 native NVMe drives with bundled Nvidia GPU
Broadcom RAID Controllers
Broadcom MegaRAID 9520-8i 12GB/s SAS/SATA/NVMe RAID Controller, PCIE Gen 4 (RAID 0, 1, 10)
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4 (RAID 0, 00, 1, 10, 5, 6, 60)
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4 (RAID 0, 00, 1, 10, 5, 6, 60)
Broadcom 9660-16i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4 (RAID 0, 1, 5, 6, 10, 50, 60)
Battery Protection
Default part
RAID Controller CacheVault Protection
Broadcom MegaRAID Cache Module LSICVM02, CacheVault Flash Cache, Supports 9361 & 9380 Series
Broadcom CacheValut Power Module, Supports 9580, 9560, 9660 and 9670 Series
OCP 3.0
Default part
Intel OCP 3.0 Modules
Intel X710-T2L Dual Port 10GbE/5Gbe/2.5GbE/1GbE/100Mb RJ45, OCP 3.0
Intel X710-T4L Quad Port 10GbE/5GbE/2.5GbE/1GbE/100Mb RJ45, OCP 3.0
Intel X710-DA2 Dual Port 10/1GbE SFP+, OCP 3.0
Intel X710-DA4 Quad Port 10/1GbE SFP+, OCP 3.0
Intel E810-XXVDA2 Dual Port 25/10/1GbE SFP28, OCP 3.0
Intel E810-XXVDA4 Quad Port 25/10/1GbE SFP28, OCP 3.0
Intel E810-CQDA1 Single Port 100/50/25/10GbE QSFP28, OCP 3.0
Intel E810-CQDA2 Dual Port 100/50/25/10GbE QSFP28, OCP 3.0
M.2 Storage
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Harddrives
Filter by:
Samsung PM9A3 2.5" U.2 NVME Data Centre
0
Samsung PM9A3 960GB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 7.68TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
Micron 7500 MAX Enterprise U.3 NVMe - Mixed Use, 3 DWPD
0
Micron 7500 MAX 800GB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 1.6TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 3.2TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 6.4TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 12.8TB U.3 2.5" NVMe SSD
Micron 7500 Pro Enterprise U.3 NVMe - Read Intensive, 1 DWPD
0
Micron 7500 PRO 960GB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 1.9TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 3.84TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 7.68TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 15.3TB U.3 2.5" NVMe SSD
Micron 9400 MAX Enterprise U.3 NVMe - 3 DWPD
0
Micron 9400 MAX 6.4TB U.3 NVME SSD
0
Micron 9400 MAX 12.8TB U.3 NVME SSD
0
Micron 9400 MAX 25.6TB U.3 NVME SSD
Micron 9400 Pro Enterprise U.3 NVMe - 1 DWPD
0
Micron 9400 Pro 7.68TB U.3 NVME SSD
0
Micron 9400 Pro 15.36TB U.3 NVME SSD
0
Micron 9400 Pro 30.7TB U.3 NVME SSD
Power Supply
Networking
Default part
Intel 10GbE Adapters
Intel X550-T2 Dual Port 10GbE RJ45 Ethernet Adapter
Intel X520-SR2 Dual Port 10GbE SFP+ Server Adapter
Intel X710-DA2 Dual Port 10GbE SFP+ Ethernet Adapter
Intel 100GbE Adapters
Intel E810-CQDA1 Single Port 100GbE QSFP28 Ethernet Controller
Intel E810-CQDA1 Dual Port 100GbE QSFP28 Ethernet Controller
NVIDIA Mellanox ConnectX-6 High Performance Adapters
ConnectX-6 900-9X662-0073-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X662-0083-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
ConnectX-6 900-9X662-0053-ST1, 25GbE, Dual-port SFP28, PCIe 4.0 x8, No Crypto, Tall Bracket
ConnectX-6 900-9X663-0073-SQ0, 25GbE, With active cooling, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AF-0058-ST1, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket
ConnectX-6 900-9X6AG-0018-ST0, 200GbE , Single-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0056-ST1, 100GbE, Dual-port QSFP56, PCIe 4.0 x16,No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0076-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0086-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
Rail Kit
Host Bus Adapter
Default part
Host Bus Adapters (HBA) (Non RAID)
Broadcom 9500-8e Host Bus Adapter 12Gb/s SAS/SATA/NVMe Controller, PCIE Gen 4
Broadcom 9500-16e Host Bus Adapter 12Gb/s SAS/SATA/NVMe Controller, PCIE Gen 4
Broadcom 9500-8i Host Bus Adapter 12Gb/s SAS/SATA/NVMe Controller, PCIE Gen 4
Broadcom 9500-16i Host Bus Adapter 12Gb/s SAS/SATA/NVMe Controller, PCIE Gen 4
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Microsoft Windows Server 2025
Microsoft Windows Server 2025 Standard (16-core)
Microsoft Windows Server 2025 Standard (24-core)
Microsoft Windows Server 2025 Datacenter (16-core)
Microsoft Windows Server 2025 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
