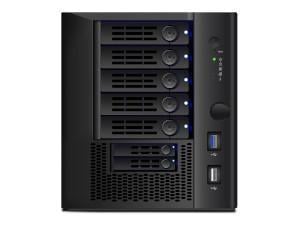

Customise your HyperStore TN X+

Intel Atom C3758 Processor
Up to 64GB DDR4 ECC Memory
2x 10 Gigabit Ethernet LAN ports, 1 x Management Port
5 x 3.5” Hot-swap Storage Bays, 2 x 2.5” Hot-swap Storage Bays
210 x 267 x 241mm (W x D x H)

Configure from £1956.00 inc VAT

Chassis	5+2 Bay Enclosure – Super Quiet Design
Drive Bays	5 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5" to 2.5" adaptors available) 2 x SATA 2.5” Hot-Swappable SSD Bays
Maximum Raw Capacity	Up to 105 TB
CPU	Octa-core C3758 Intel CPU
Memory	32 GB DDR4 with ECC (Upgradeable to 64GB)
RAID	OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
Disk Management	Hot-Swappable Drives Bad Block Scan + HDD S.M.A.R.T ISO Mounting Support Hardware-Accelerated Disk Encryption
Network	Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports Dedicated RJ45 IPMI Port (Remote Hardware Management) 2 x SFP+ 10G Add On Card (Optional)
USB Ports	1 x USB 3.0 Port (Front) 1 x USB 2.0 Port (Front) 2 x USB 2.0 Ports (Rear)
Read/Write Cache	(Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
PCIe Expansion	1 x PCI Express 3.0 x 4
Power Supply	100V to 240V AC, 50/60 HZ, Single Phase
Power Consumption (Maximum)	Diskless: 40W With drives & 10G Add-on-card: 111W
Power Management	Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
User Control Interface	Web Browser and Remote Hardware Management (IPMI)
Dimensions (W x D x H)	8.25" x 10.5" x 9.5" / 210 x 267 x 241mm
Weight (no drives)	13lbs / 5.9Kg
Limited Warranty	3-Year Warranty Included. Software Warranty requires registration at portal.ixsystems.com.
Accessories	Basic Setup Guide 2 x Case Door Keys bag of HDD screws 2 x 7 ft cat6 copper cable
