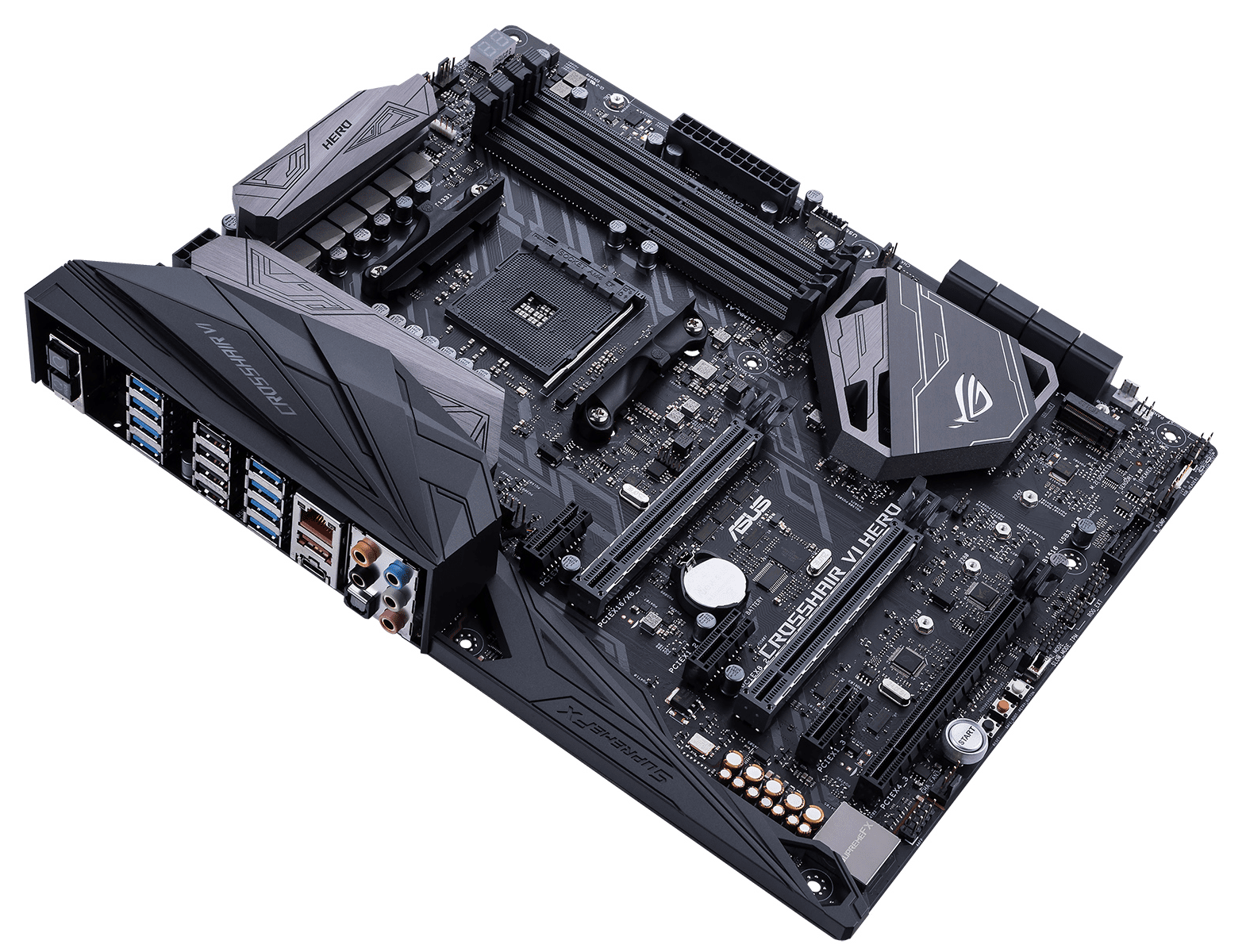

Asus Crosshair VI HERO AMD AM4 X370 Chipset Motherboard

Ryzen/A-series/Athlon (7th Gen), ATX, DDR4, 3 x USB 3.1, 10 x USB 3.0, 6 x USB 2.0, 1 x M.2, 2 x PCI-E 3.0 x16, SLI/Crossfire

Asus Crosshair VI HERO AMD AM4 X370 Chipset Motherboard
Dispatches within 1 - 3 Days question tooltip

£239.64 inc vat

£199.70 ex vat

payment cards

Order Code: ASU-X37CRH

Manf.Code: 90MB0SC0-M0EAY0

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

Asus Crosshair VI HERO AMD AM4 X370 Chipset Motherboard overview

ASUS X370 Crosshair VI Hero AM4 Motherboard

OS Support

The Asus X370 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
CPU
Socket AM4 socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Architecture 14nm CPU
Chipset AMD X370 Chipset

Memory
Memory Slots 4 DIMM / 64GB Max DDR4
Memory Support DDR4 2133, 2400, 2666 Un-buffered memory
ECC No
Channels Dual Channel Architecture

Expansion
Expansion Slots 2 x PCIe 3.0 x16 slots
1 x PCIe 2.0 x16 slot
3 x PCIe 2.0 x1 slot

VGA
Integrated Graphics Processor Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU
Multi-VGA Output Support HDMI
Multi-VGA SLI/CrossfireX
Storage Connectivity
Sata 8 x SATA 6Gb/s ports
M.2 - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (Ryzen supports PCIE 3.0 x4 and SATA modes)(A-Series/Athlon supports pCIE 3.0 x2 and SATA modes)
Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x Clear CMOS button
1 x BIOS Flashback button
1 x M.2 Wi-Fi Slot
2 x USB 3.1 ports ( 1 x Type-C [black] and 1 x Type-A [red] )
8 x USB 3.0 ports [blue]
4 x USB 2.0 ports [black]
1 x Anti-surge LAN (RJ45) port
1 x Optical S/PDIF out

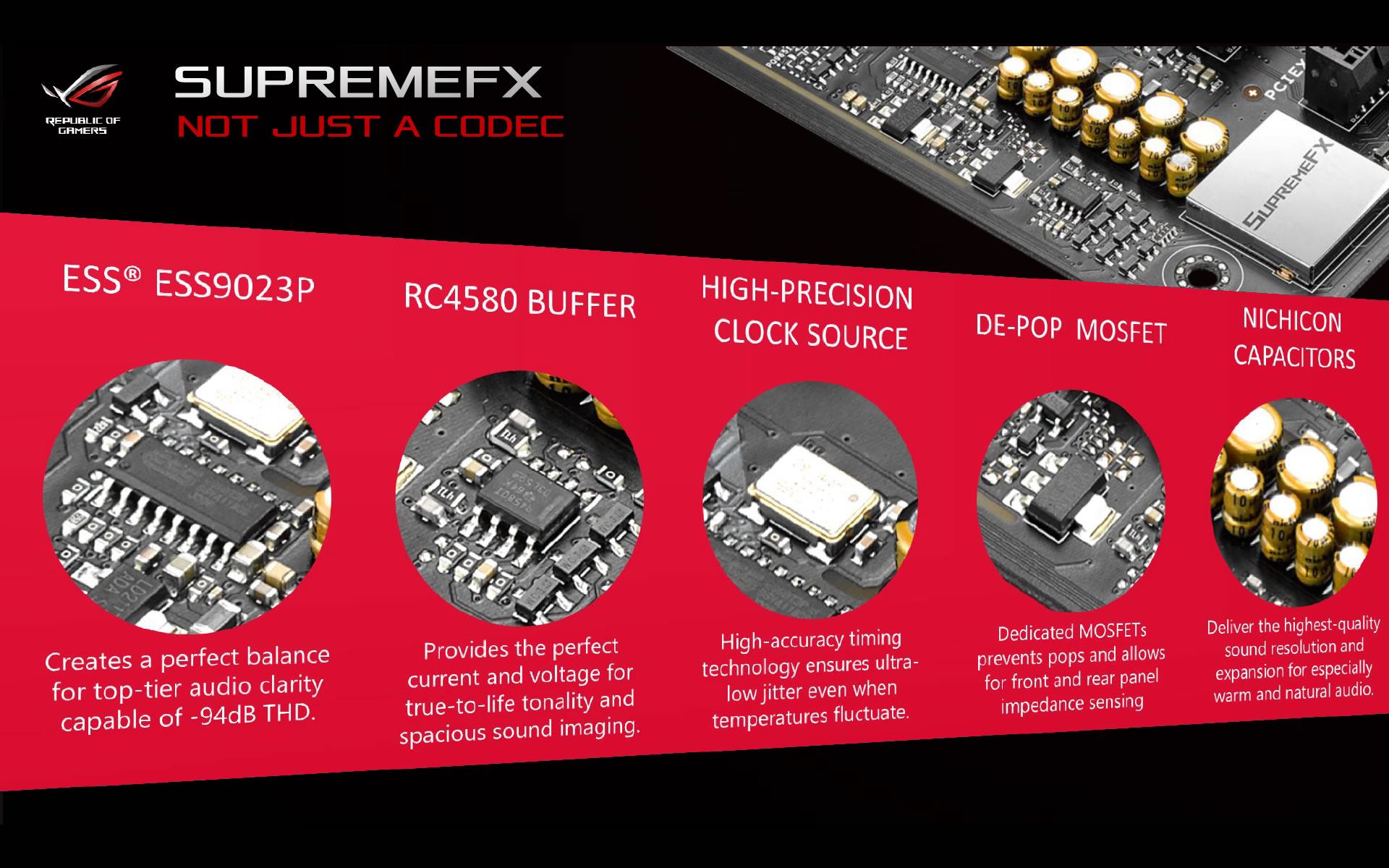

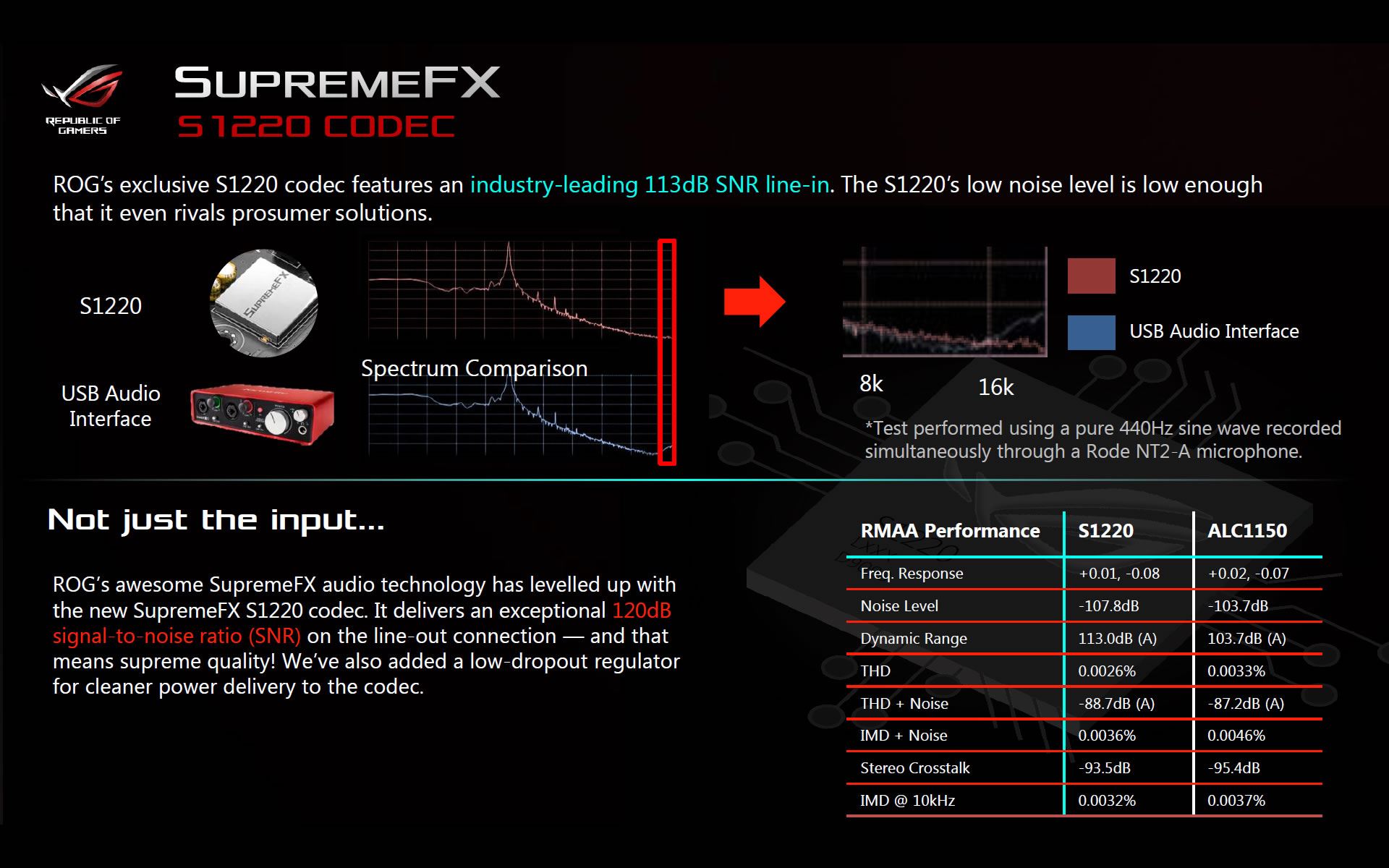

5 x Gold-plated audio jacks

Ports & Connectivity - Internal IO
Ports Present & Quantity 1 x USB 3.1 front panel connector
1 x USB 3.0 header supports additional 2 USB 3.0 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports [ via ROG_EXT header ]
8 x SATA 6Gb/s connectors
1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIE 3.0 x4 and SATA modes)
1 x ROG extension (ROG_EXT) header
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
1 x 4-Pin AIO_PUMP connector
1 x 4-Pin W_PUMP+ connector
1 x 3-Pin W_FLOW connector
1 x 2-Pin W_IN connector
1 x 2-Pin W_OUT connector

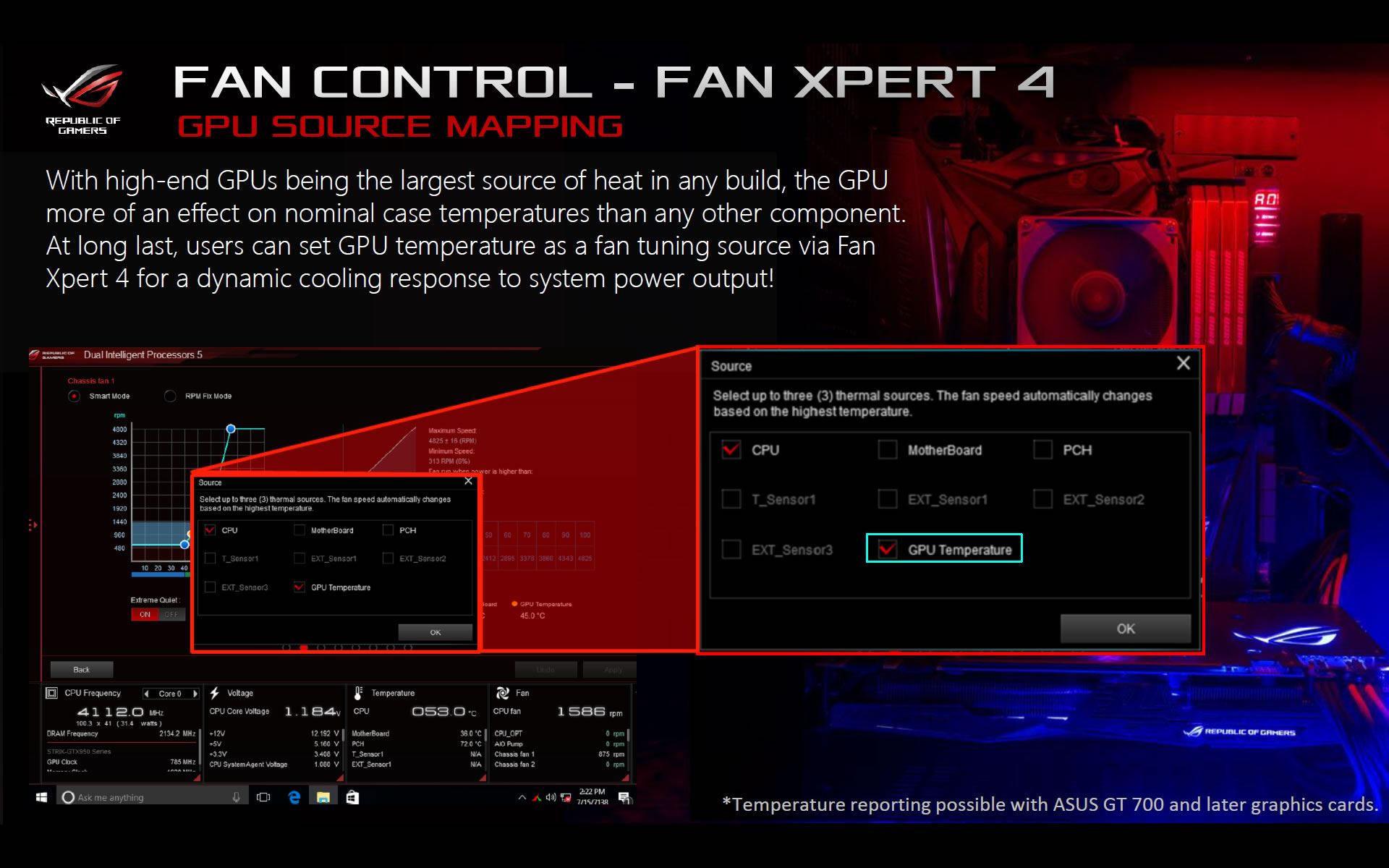

3 x 4-Pin Chassis fan connectors
1 x Thermal sensor connector
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x 4-pin EATX 12V power connector
1 x Start button
1 x Reset button
1 x Safe Boot button
1 x Retry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x System panel connector
1 x Front panel audio connector (AAFP)

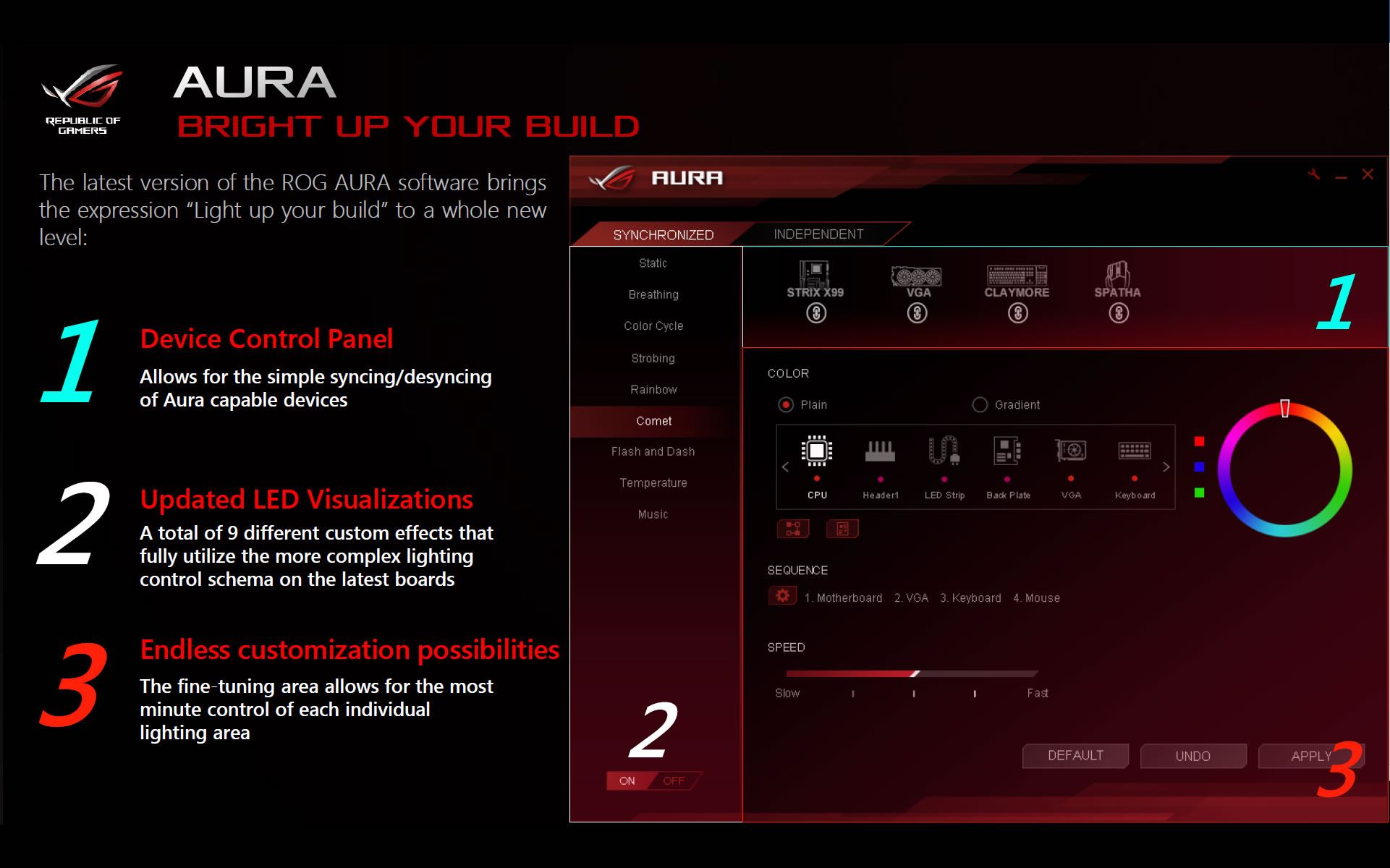

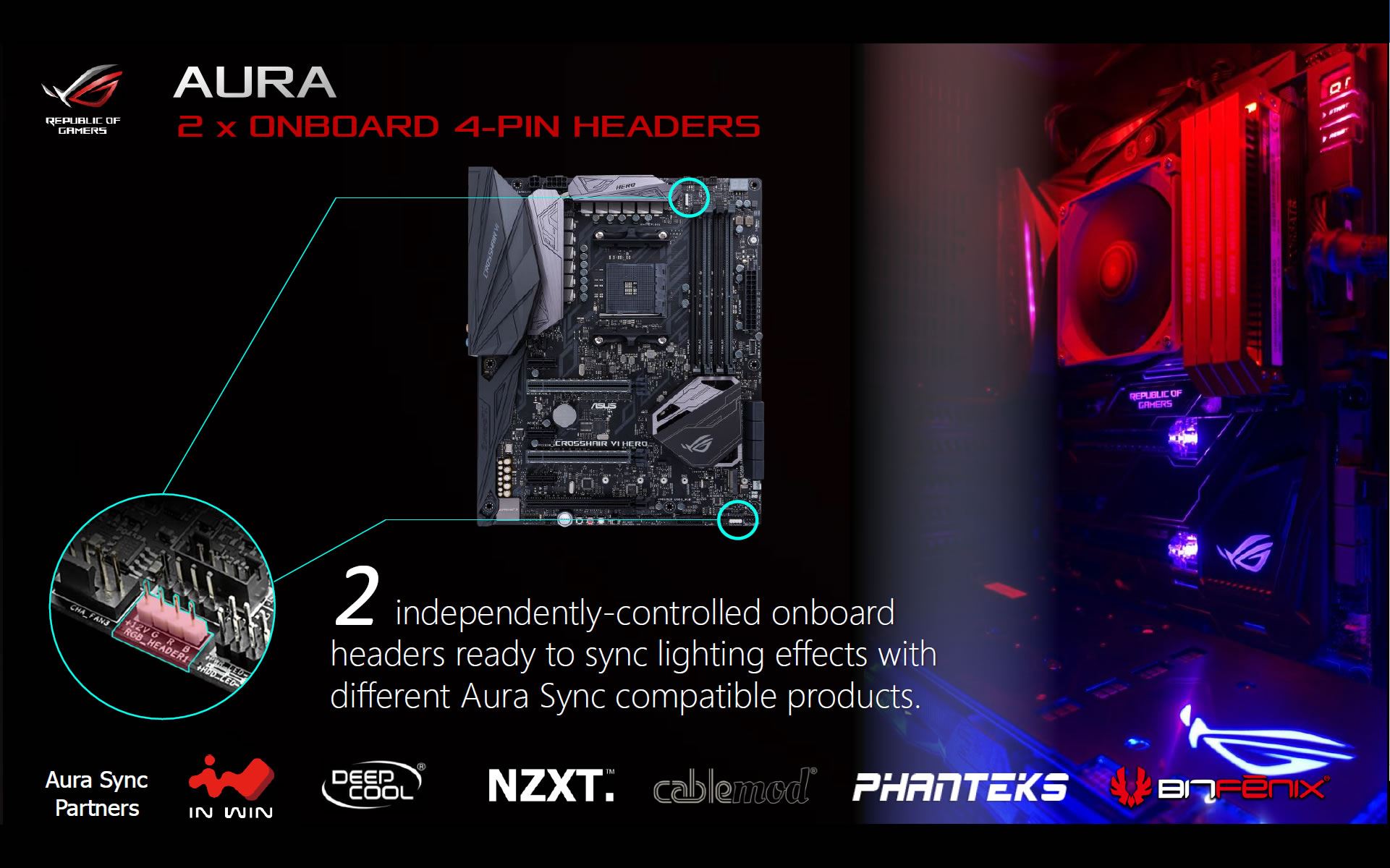

2 x Aura RGB Strip headers
1 x TPM connector
1 x Speaker Header

Accessories
Accessories User guide
Support DVD
I/O Shield
1 x SLI™ HB Bridge(2-way-M)
2 x 2-in-1 SATA 6Gb/s Cables
1 x Q-Connector
1 x M.2 Screw Package
1 x 3D Printing Mount Screw Package
1 x Extension Cable for RGB strips
1 x ROG Coaster
1 x 10-in-1 ROG cable label
1 x ROG sticker


Software
Software Drivers
ROG GameFirst IV*
ROG RAMDisk
ROG RAMCache II
ROG CPU-Z
ROG MemTweakIt
Overwolf
ROG Keybot II
CloneDrive
Kaspersky® Anti-Virus
DAEMON Tools Software
ASUS WebStorage
ASUS Utilities
*ROG GameFirst IV is only available for Windows 10/8.1 64-bit

Operating System Support
OS Windows® 10 64-bit
Physical
Form Factor ATX
Dimensions 12" X 9.6” (30.5cm x 24.4cm)
