ASUS Prime X370-Pro AM4 Motherboard
OS Support
The Asus X370 Chipset Motherboards Support the following Operating Systems:
- Windows® 10 64-bit
Ryzen/A-series/Athlon (7th Gen), ATX, DDR4, 3 x USB 3.1, 8 x USB 3.0, 4 x USB 2.0, 1 x M.2, 2 x PCI-E x16, SLI/CrossfireX
Sorry, this product is no longer available to purchase.
Please view our whole range of Socket AM4 Ryzen (X370 Chipset) here
The Asus X370 Chipset Motherboards Support the following Operating Systems:
Socket | AM4 socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors |
Architecture | 14nm CPU |
Chipset | AMD X370 Chipset |

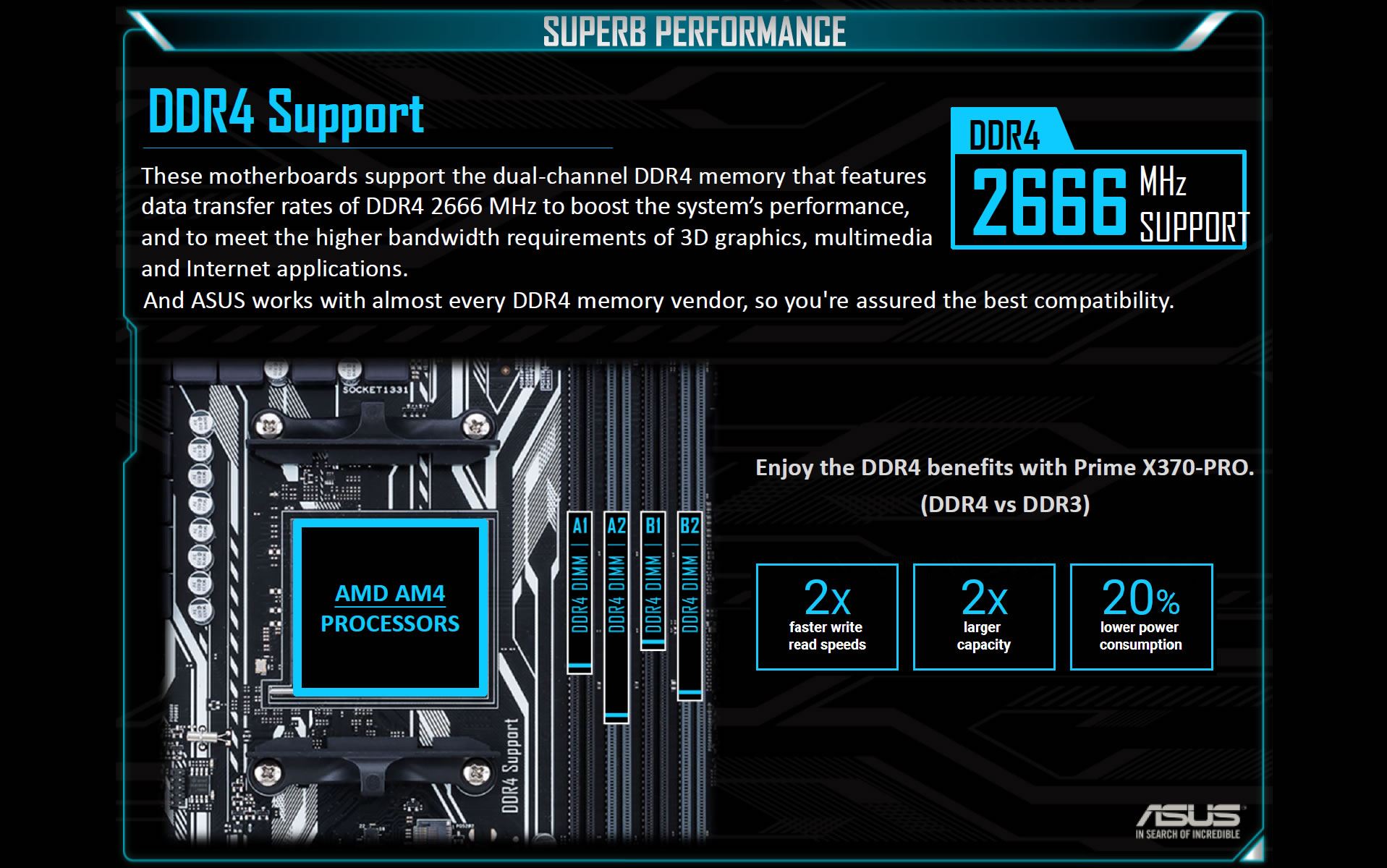

Memory Slots | 4 DIMM / 64GB Max DDR4 |
Memory Support | DDR4 2133, 2400, 2666 Un-buffered memory |
ECC | Ryzen CPU - Yes 7th Gen A-Series/Athlon - No |
Channels | Dual Channel Architecture |
Expansion Slots | 2 x PCIe 3.0 x16 slots 2 x PCIe x1 slot |
Integrated Graphics Processor | Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU |
Multi-VGA Output Support | Displayport/HDMI ports |
Multi-VGA | SLI/CrossfireX |
Sata | 8 x SATA 6Gb/s ports |
M.2 | - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (Ryzen supports PCIE 3.0 x4 and SATA modes)(A-Series/Athlon supports pCIE 3.0 x2 and SATA modes) |

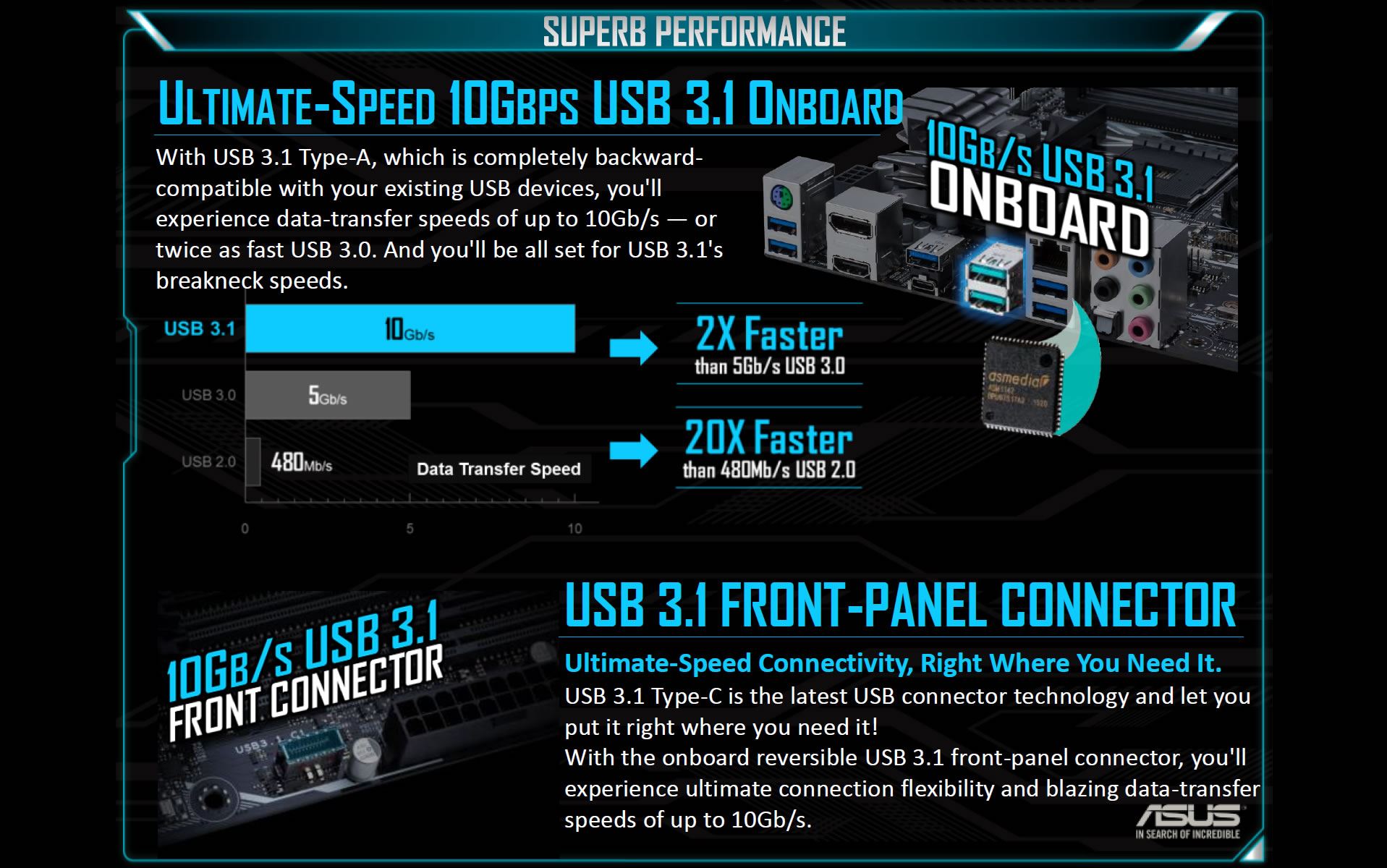

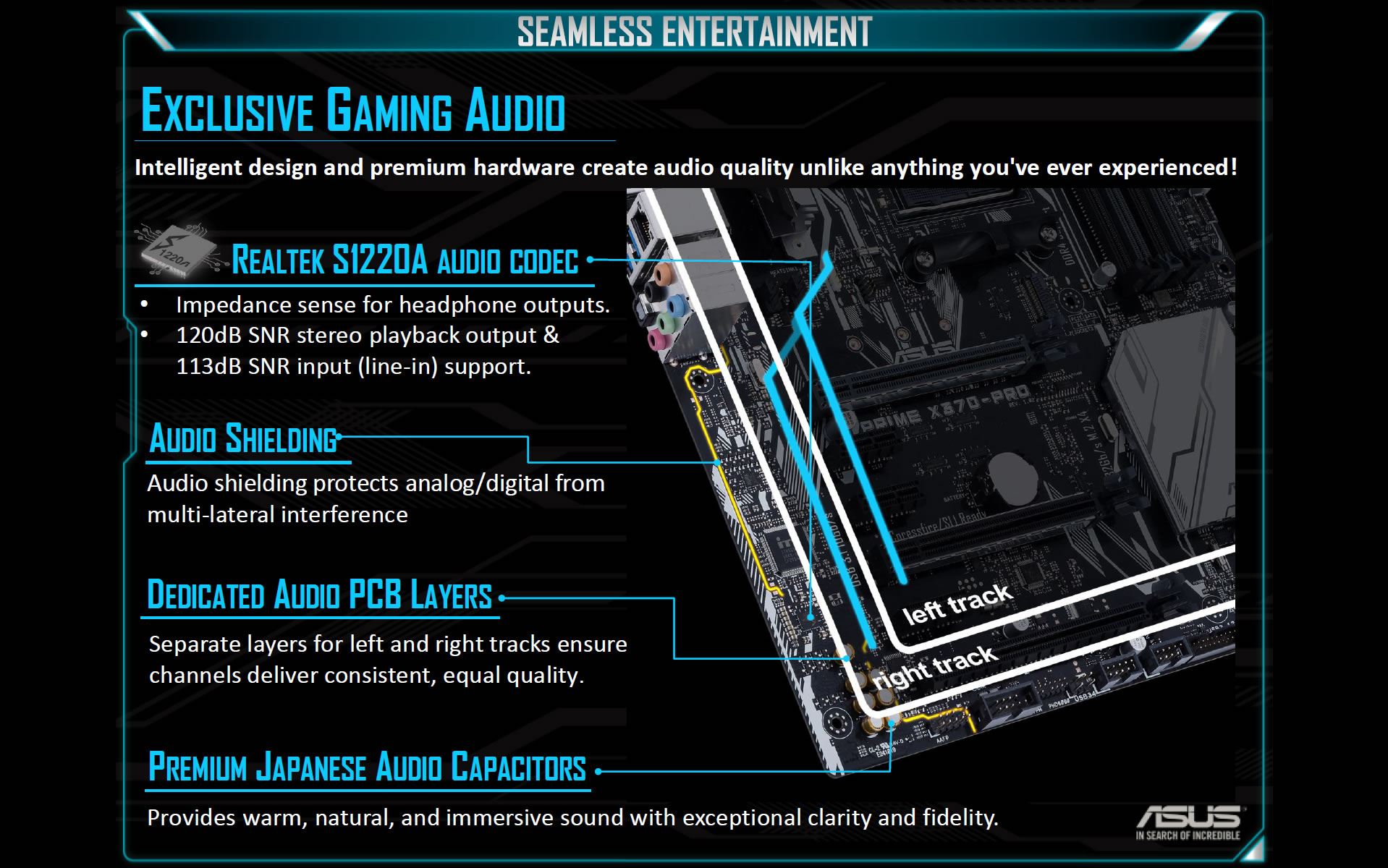

Ports Present & Quantity | 1 x PS/2 Keyboard/Mouse Combo port 1 x DisplayPort 1 x HDMI port 1 x Intel LAN (RJ45) port 2 x USB 3.1/3.0/2.0 ports (teal blue, Type-A) 1 x USB 3.0/2.0 ports (Type-C) 5 x USB 3.0/2.0 ports (blue,Type-A) 1 x Optical S/PDIF out 5 x Audio Jacks(Line in,Front Speaker Out,Mic in,Center/Subwoofer,Rear Speaker Out) |

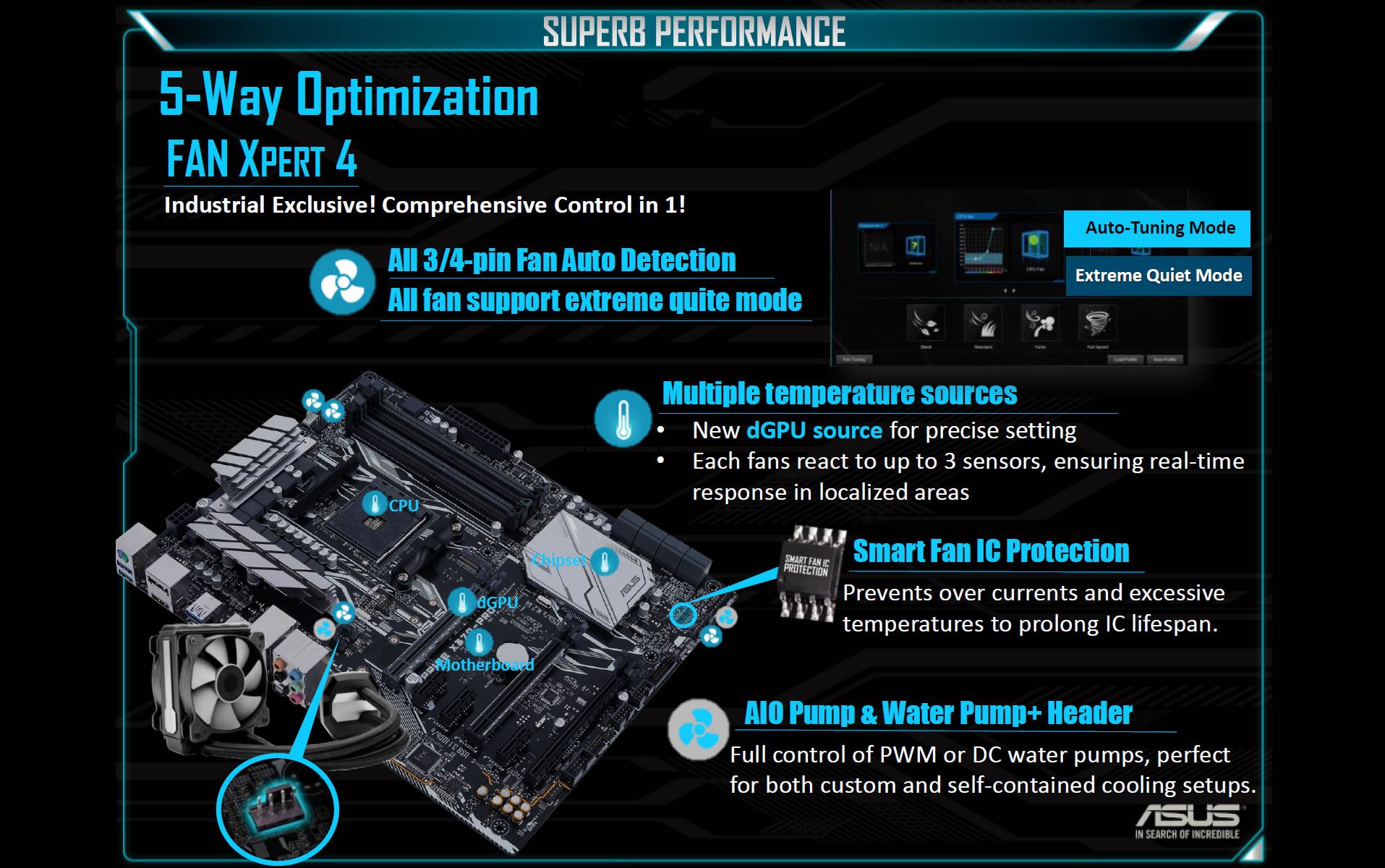

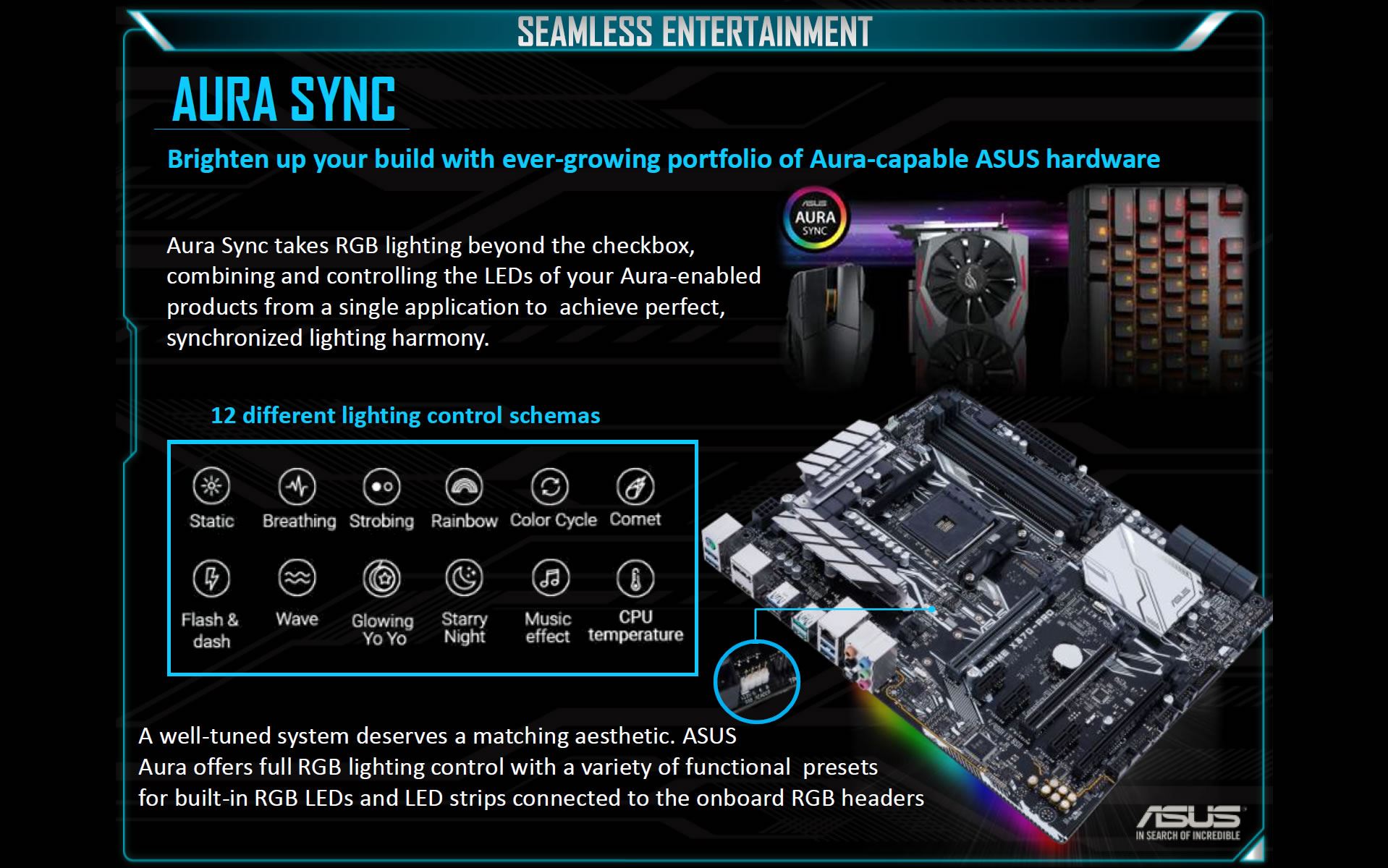

Ports Present & Quantity | 1 x USB 3.1/3.0/2.0 front panel connector 1 x USB 3.0/2.0 connector support additional 2 USB ports 2 x USB 2.0/1/1 connectors support additional 4 USB ports 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode) 8 x SATA 6.0Gb/s connectors (gray) 1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support 1 x CPU OPT Fan header (4-pin) 1 x AIO Pump header (4-pin) 1 x W_PUMP+ header (4-pin) 2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support 1 x Aura RGB header 1 x Front panel audio connector (AAFP) 1 x TPM connector 1 x COM connector 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x System Panel 1 x Clear CMOS header |

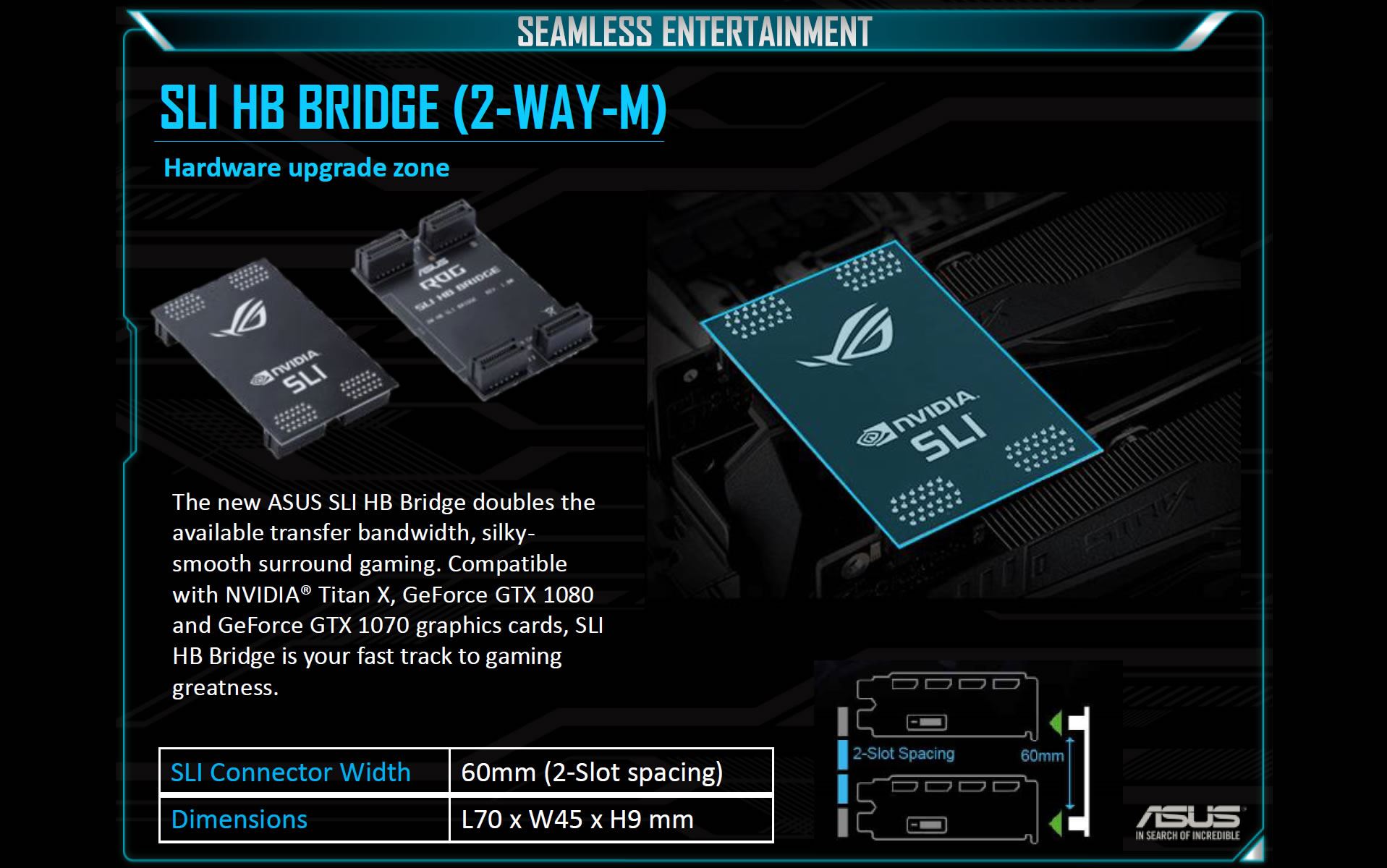

Accessories | 4 x Serial ATA 6.0Gb/s cables 1 x SLI HB BRIDGE(2-WAY-M) 1 x ASUS Q-Shield 1 x Q-connector 1 x Support DVD 1 x M.2 screw package 1 x user's manual |
Software | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
OS | Windows® 10 64-bit |
Form Factor | ATX |
Dimensions | 12" X 9.6” (30.5cm x 24.4cm) |
